Dramm - ii ri Bluetooth Smart Irrigation Controller
Brand: Dramm

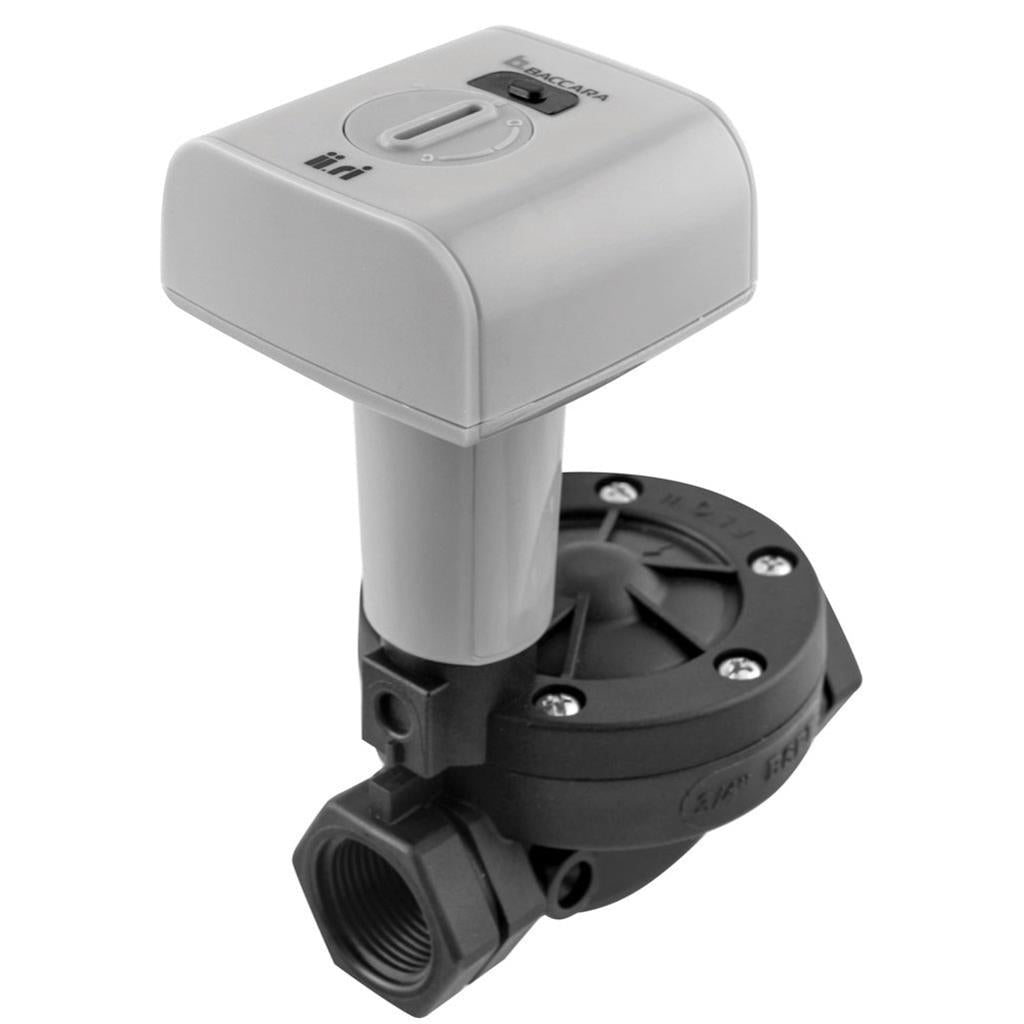

ii ri Bluetooth Smart Irrigation Controller
The ii ri is a battery operated, Bluetooth connected irrigation and misting controller that runs one solenoid valve with no wiring at all. It fits by replacing the valve's coil, so an existing manual valve becomes an automated one without a control cable, a panel or a transformer. There is no screen or controls on the unit - the whole program is built in the iOS or Android app and uploaded over Bluetooth.
Both options are the same controller; the only difference is the size of the solenoid valve it arrives mounted on, 3/4 in or 1 in, and they carry the same price, so this is purely a plumbing decision - match the valve to the line. Dramm also publishes a controller-with-coil-only version for fitting to a valve already in the ground, which is the one to ask for if you are retrofitting. On scheduling, it will irrigate up to 6 times a day, run on selected days, or mist, with a minimum duration of 3 seconds and a minimum interval of 10 seconds; that puts it between an irrigation timer and a mist controller.
Specifications
| Outputs | One solenoid valve |
| Valve supplied by option | 3/4 in or 1 in solenoid valve |
| Power | CR123 3 V battery - Dramm rates it up to 3 years |
| Programming | iOS or Android app over Bluetooth - no screen or controls on the unit |
| Schedule | Up to 6 irrigations per day, on selected days, or mist cycles |
| Minimum mist timing | 3 second duration, 10 second interval |
| Mounting | Fits various valves by replacing the coil |
| Enclosure | Watertight - Dramm rates it for outdoor use |
| Phone requirement | Bluetooth 4.0, with iOS 7 or Android 4.3 or later |
Configurations
| Valve Size | Part number |
|---|---|
| 3/4 in Solenoid Valve | iiriSVB075 |
| 1 in Solenoid Valve | iiriSVB100 |
Key Features
- No wiring, no transformer, no panel - the controller is the coil
- Battery life rated up to 3 years on a single CR123 cell
- 3 second minimum duration makes it usable for mist, not just irrigation
- Programs are built on a phone and uploaded, so schedule changes happen at the bench
- Watertight construction for outdoor beds and field positions
- Retrofits an existing solenoid valve rather than replacing it
Ideal Applications
- A single propagation bench or mist bed with no control wiring
- Outdoor mum and perennial fields
- Temporary or seasonal zones
- Retrofitting automation onto an existing manually operated solenoid valve
Because it replaces the coil, it is the alternative to running 24 VAC cable back to a MistTime or Villa; keep a screen filter upstream and check your phone meets the Bluetooth 4.0 requirement before you buy.
