Dramm - Hydra SprayTrax 50 Gallon Sprayer

Brand: Dramm

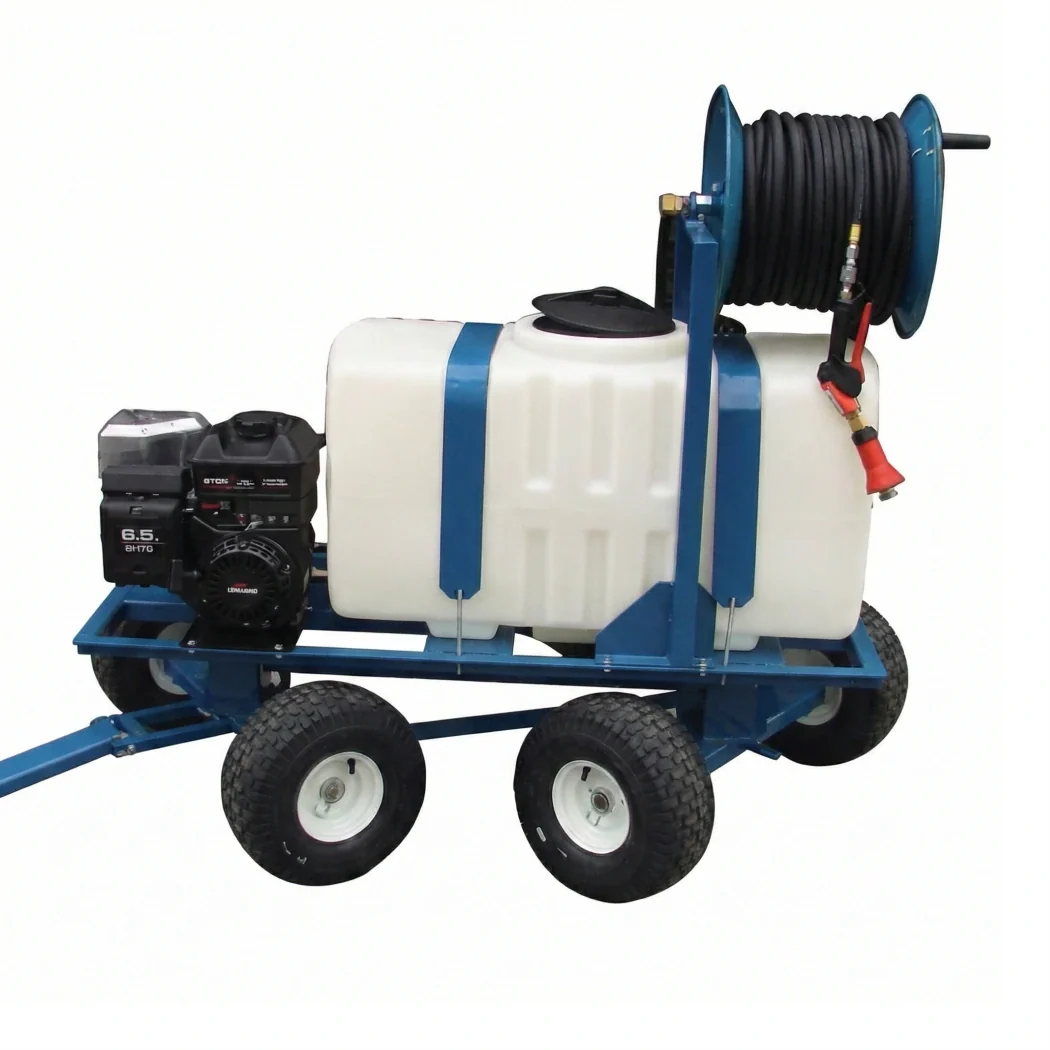

Hydra SprayTrax 50 Gallon Sprayer

The Hydra SprayTrax 50 is a 50 gallon hydraulic sprayer mounted on a four-wheel self-tracking cart, built for insecticide, fungicide, growth regulator, fertilizer and disinfectant work in commercial nurseries, greenhouses and cultivation facilities. The triplex stainless steel piston pump is close-coupled to the drive on a shared shaft, so there is no belt, chain or gear drive to maintain. Flow depends on which power option you order: the Honda gas builds run the pump at up to 7 gpm, the 115 V electric builds at up to 4 gpm on a 1.5 HP motor turning 1750 rpm. Every build carries the same 550 psi maximum pressure with a fully adjustable regulator and ships with Dramm's Turbo Gun.

There are three choices to make on this page. Power decides your flow rate: the Honda 5.5 HP gasoline engine gives the higher 7 gpm output and runs where there is no outlet, while the 115 V single-phase electric motor draws 13.6 amps, runs quietly indoors with no exhaust, and tops out at 4 gpm. Hose length sets how far you can walk from the cart, at 150, 200 or 250 ft on the same convex locking reel. Fittings is the corrosion question: Standard uses brass fittings, while Corrosion-resistant (CRF) replaces the brass with stainless and plated components for oxidizers such as ZeroTol, and CRF is offered here on the 115 V electric builds only.

Specifications

Configurations

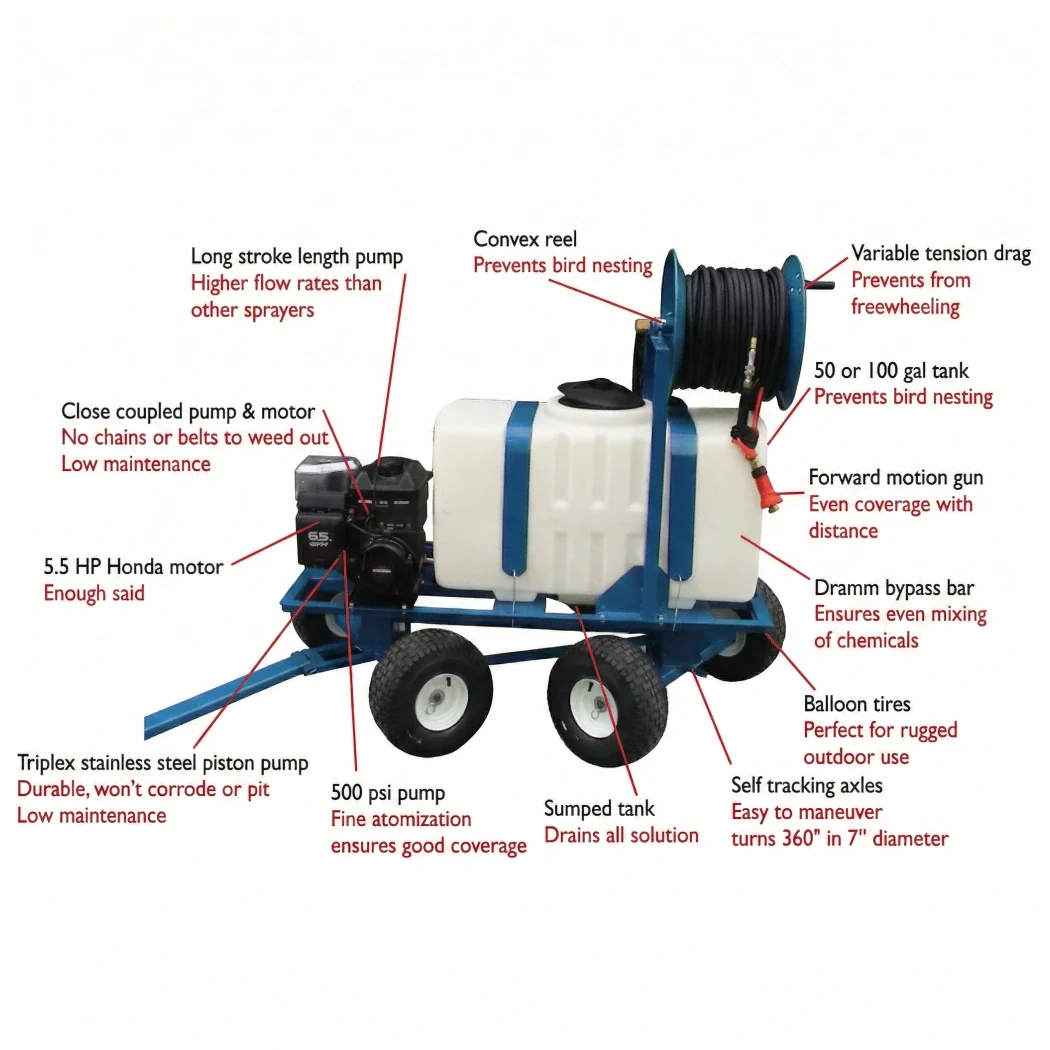

Key Features

• 50 gallon polyethylene tank on a 4-wheel self-tracking cart that turns 360 degrees inside a 7 ft circle
• Triplex stainless steel piston pump close-coupled to the drive - no belts, chains or gears to service
• Fully adjustable regulator to 550 psi lets you set droplet size and throw distance for the job
• Enough flow to run a gun, drench and agitate the tank at the same time
• Convex reel with lock and variable tension drag stops bird-nesting and freewheeling
• 15 in turf tires and a tongue design that hitches to a tractor or pulls by hand
• Corrosion-resistant (CRF) fittings offered on the electric builds for oxidizer chemistry such as ZeroTol

Ideal Applications

• Insecticide, fungicide and miticide programs across commercial nursery and greenhouse ranges
• Plant growth regulator and foliar fertilizer applications
• Disinfectant and sanitizer passes between crop cycles
• Drenching containers while agitating the tank on the same pass
• Outdoor nursery blocks and container yards where the cart is towed behind a tractor
• Oxidizer chemistry such as ZeroTol, using a CRF electric build

The Hydra 50 Gallon Cart Sprayer offers the same tank on a two-wheel cart, the Hydra SprayTrax 100 Gallon doubles the capacity, and pump, motor and crankcase spares are listed under Hydra 50 Gallon Sprayer Replacement Parts.
