Dramm - FertiCart SprayTrax 50 Gallon Injector Cart

Brand: Dramm

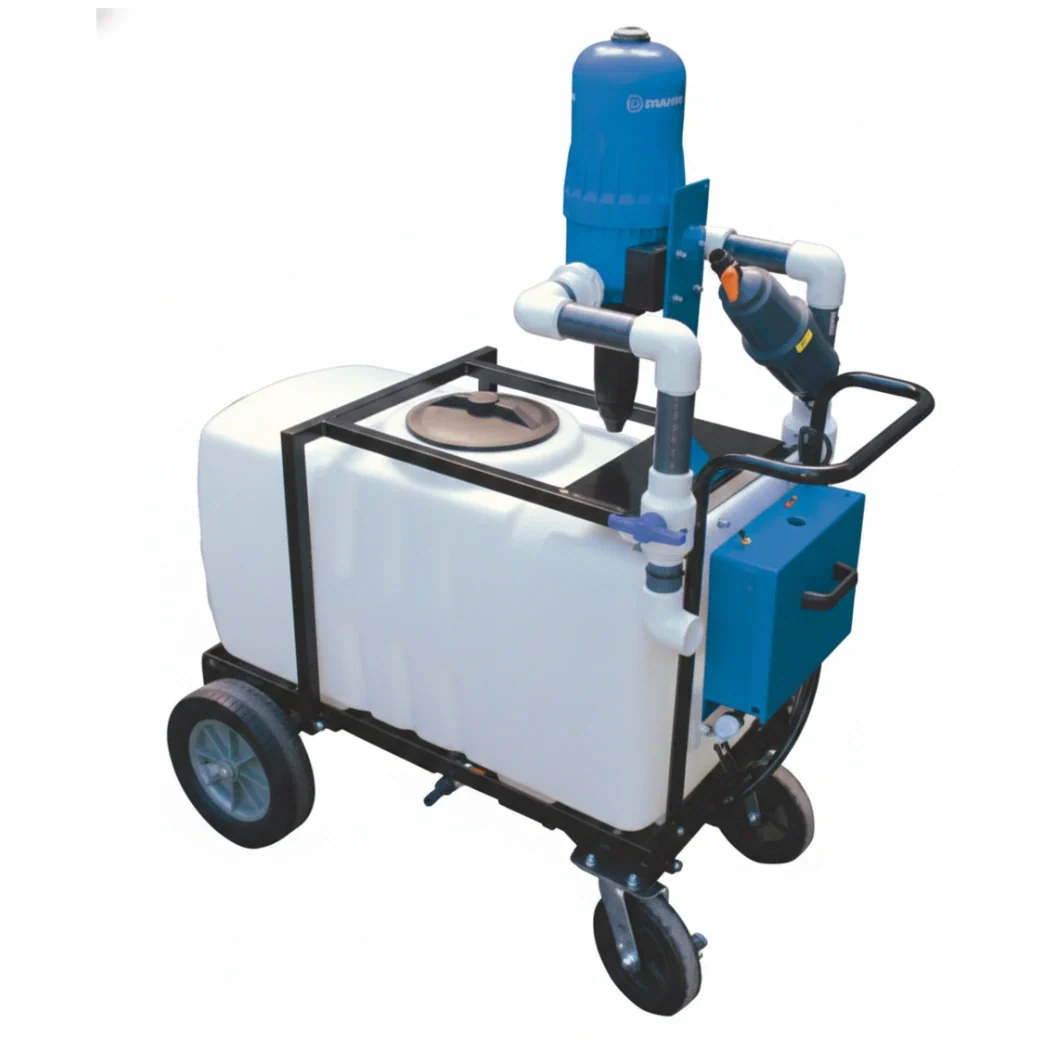

FertiCart SprayTrax 50 Gallon Injector Cart

The FertiCart SprayTrax is a 50 gallon fertilizer stock solution cart on Dramm's four wheel self tracking SprayTrax chassis, pre-plumbed with a 200 mesh filter, a check valve and unions so a Dosatron injector drops straight into the mounting bracket. The injector is not included on any build - all of the plumbing is on the cart, but the injector is bought separately and fitted before first use. On-board recirculation drives Dramm's agitation bar, which sprays across the bottom of the tank to rotate the liquid and hold water soluble fertilizers, fungicides, insecticides and growth regulators in suspension, and an air injection switch oxygenates the stock solution to saturation so beneficial nematodes and other aerobic biologicals survive the application. Use it wherever there is no permanent injection point: hook it to an irrigation line or hand water straight off the injector outlet and tow or push it between blocks.

Two choices, and they are independent of each other. The injector line is a plumbing size, not an injector purchase: Dosatron D45 - up to 20 gpm carries the smaller plumbing for the D45, and Dosatron D40 - up to 40 gpm carries the larger plumbing for the D8 range at flows to 40 gpm. Order the one that matches the injector you already run, because it changes the pipe and fitting sizes on the cart and cannot be swapped later without re-plumbing. Agitation Power decides how the recirculation pump and the aerator are fed: AC powered runs them from a mains cord, which is the right answer inside a house where an outlet is always within reach, while 12V DC battery powered runs them from 12 volt battery power on the cart so the agitation keeps turning out in a field block, a hoop house or anywhere a cord would be in the way. Both power options offer both injector sizes, and everything else about the cart - tank, chassis, tires, plumbing set, drain - is identical across all four builds.

Specifications

Configurations

Key Features

• Portable injection for houses, blocks and benches with no permanent injection point
• Pre-plumbed for a Dosatron injector - 200 mesh filter, check valve and unions are already fitted
• Unions either side of the injector position let you pull the injector for service without cutting pipe
• Agitation bar sprays across the tank floor and rotates the liquid, so stubborn powders stay in suspension
• Air injection switches in to hold dissolved oxygen at saturation for beneficial nematodes
• Battery powered builds keep agitating away from an outlet; AC builds plug in and run continuously
• Four wheel self tracking chassis on 15 in turf tires turns 360 degrees inside a 7 foot circle
• Drain valve empties the tank for a clean changeover between chemistries

Ideal Applications

• Fertigating houses and outdoor blocks with no injection point
• Applying beneficial nematodes and other aerobic biologicals
• Water soluble fertilizer programs run off a single portable injector
• Fungicide, insecticide and growth regulator drenches through an irrigation line
• Field blocks and hoop houses where no mains outlet is within reach
• Hand watering with finished solution taken off the injector outlet

The FertiCart SprayTrax 100 Gallon doubles the tank on the same chassis, the FertiCart Portable Injector Cart line covers 20 gallon, three tank and 50 gallon greenhouse carts, and the Aeration/Agitation Bucket (AAB120V) handles 5 gallon batches.
