Dramm - EasyLoc 16mm Elbow
Brand: Dramm

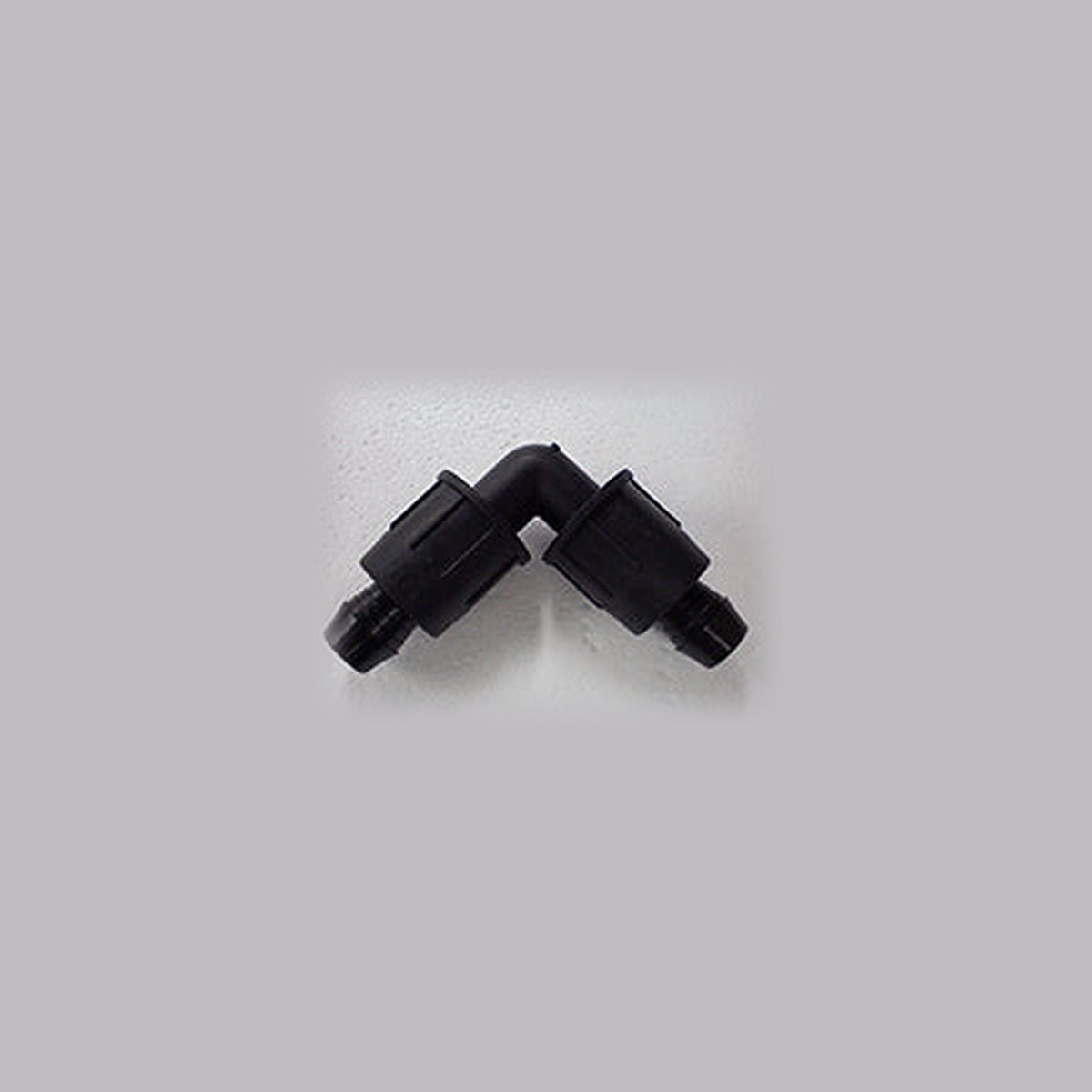

EasyLoc 16mm Elbow
A 90 degree corner fitting for 16mm polyethylene lateral, using the same EasyLoc barb and reverse-threaded compression nut as the rest of the family. The inlet leg is a 16mm EasyLoc barb on both options; the outlet is either a second 16mm barb or a 3/4 in female hose thread swivel. Dramm's stated use is 90 degree corners in a manifold layout.
One choice: the outlet leg. The 16mm PE option is a second EasyLoc barb, for turning a lateral at the end of a bench, bed or bay and carrying on in tubing. The 3/4 in FHT Swivel option puts a female hose thread on the turn, so a run can start at a hose bib or end in a hose-thread cap or connection without an adaptor; HF in the part number is Dramm's code for female hose thread. Both are 16mm on the inlet, and EasyLoc is not made in 25mm - for a 25mm corner, look to the PolyLoc elbows.
Specifications
| Inlet leg | 16mm EasyLoc barb on both options |
| Outlet leg | A second 16mm EasyLoc barb on the 16mm PE option; a 3/4 in female hose thread swivel on the FHT option |
| Joint | Barb plus reverse-threaded compression nut; Dramm: 'Needs no additional clamp' |
| Assembly | The nut stays on the fitting, the tubing pushes fully onto the barb, then the nut reverse-threads over the tubing and is hand tightened only |
| Angle | 90 degrees on both options |
| Tubing it fits | Dramm 16mm PE lateral tubing, supplied in 100 ft, 500 ft and 1000 ft |
| System limit Dramm publishes for a 16mm manifold | Water pressure not to exceed 60 psi at the head; above that a regulator is required |
Configurations
| Outlet Connection | Part number |
|---|---|
| 16mm PE | ITESL16 |
| 3/4 in FHT Swivel | ITEHFSL16 |
Key Features
- Dramm's stated use is 90 degree corners in a 16mm manifold layout
- Hand-tightened barb and nut joint that Dramm states needs no additional clamp
- The nut stays captive on the fitting during assembly
- The FHT swivel option starts a run at a hose bib or ends it in a hose-thread cap
- Both options work on the same 16mm lateral that PolyRail carries and 3mm punches open
Ideal Applications
- 90 degree corners in a 16mm manifold layout
- Turning a lateral at the end of a bench, bed or bay
- Ending a run into a hose-threaded cap or hose connection
- Starting a lateral from a hose bib
PolyLoc is Dramm's compression fitting family for 16mm and 25mm PE tubing, EasyLoc is the separate barb-and-nut family Dramm makes in 16mm only, and PolyRail is the aluminum extrusion that same tubing snaps into; PipeLoc is an unrelated Dramm line for large PVC pipe and shares no parts with any of them.
