DrammPress Replacement Jaws

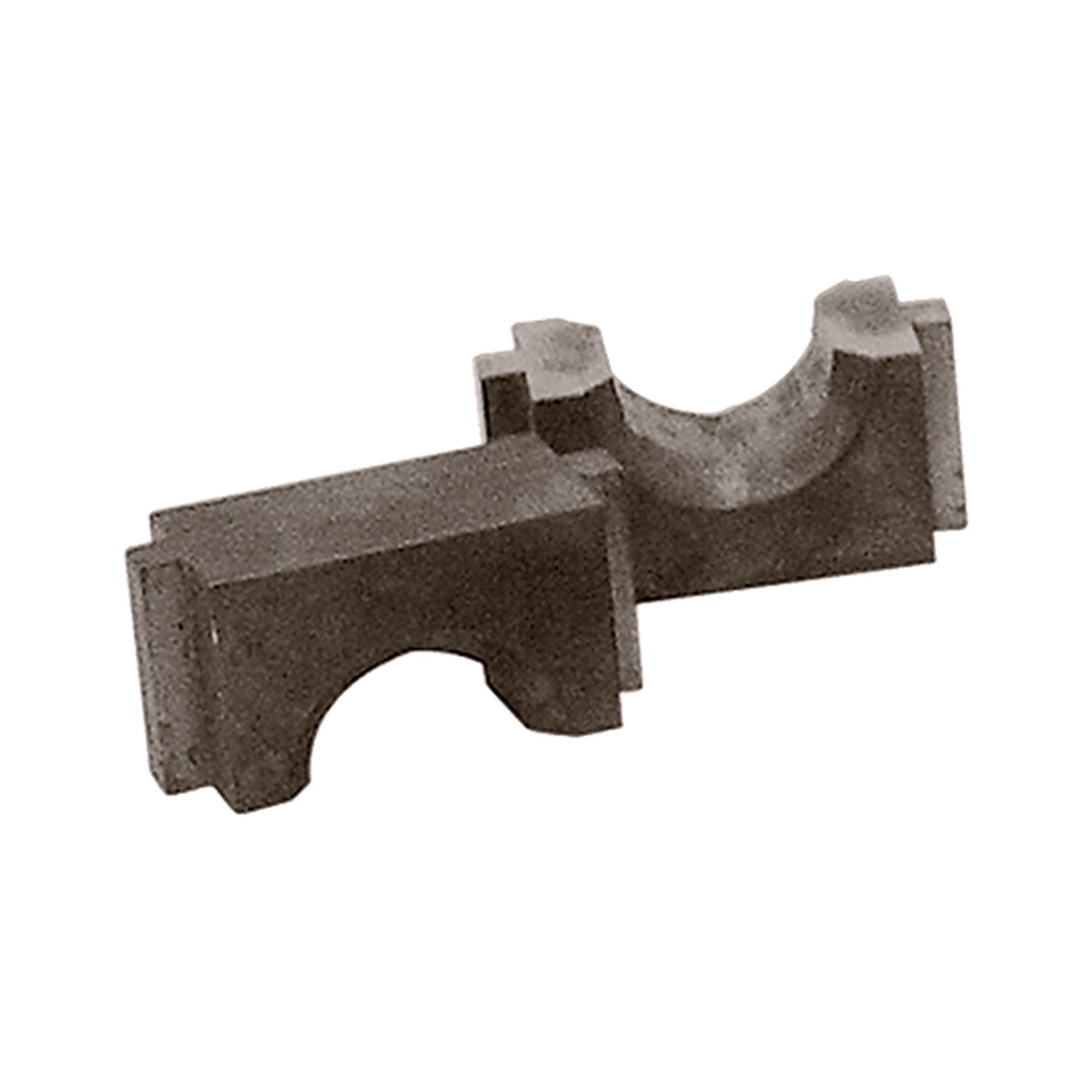

These are the crimping jaws for the DrammPress hose crimper, supplied without the press frame. The jaws are what sizes the tool: the frame is common to every size and the jaw set matched to the hose bore is what closes the ferrule. They are hardened steel, they bolt into the frame, and they change over with the hex wrench supplied with the press. Order a set when a shop starts building a second hose size, or when a worn set stops producing a clean, tight crimp.

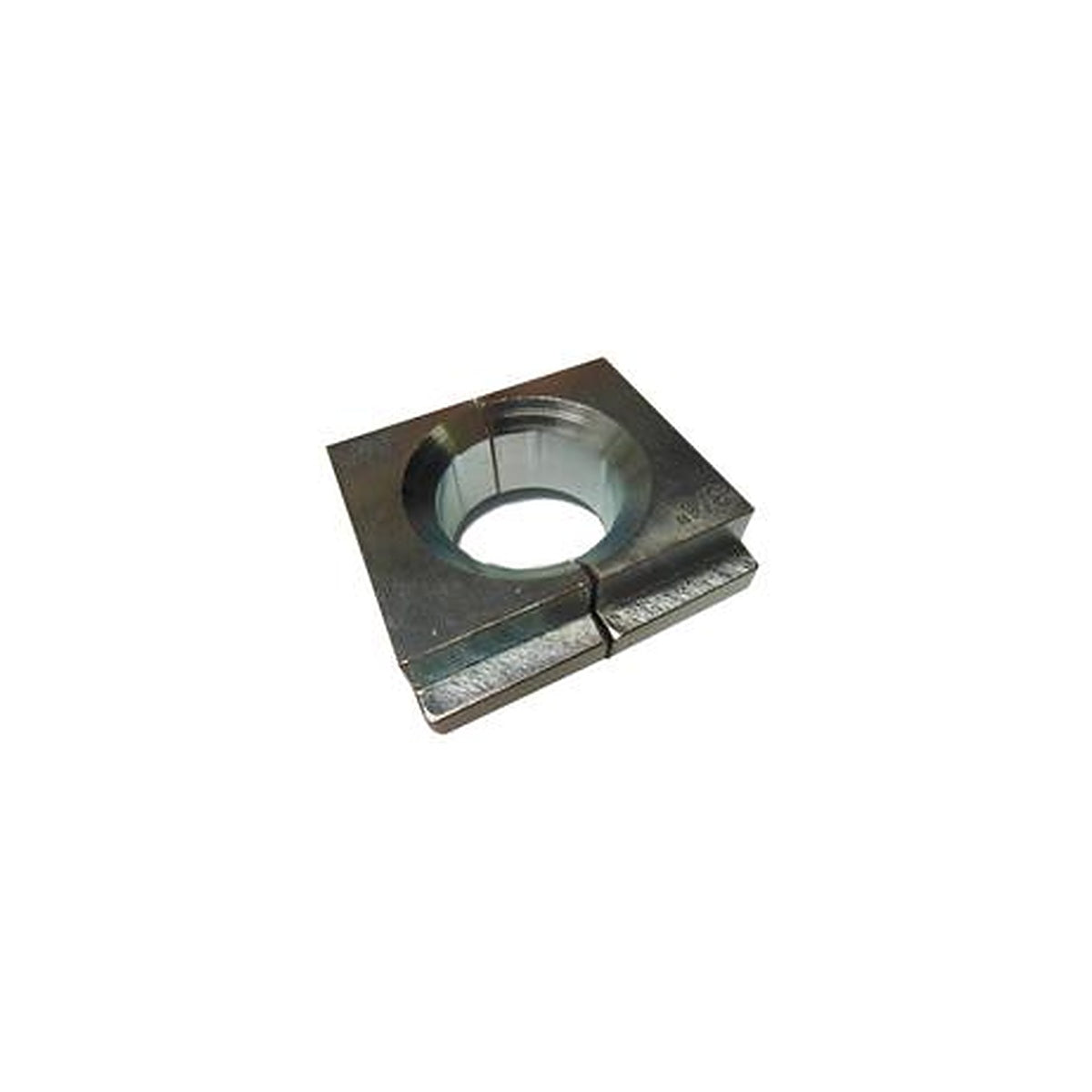

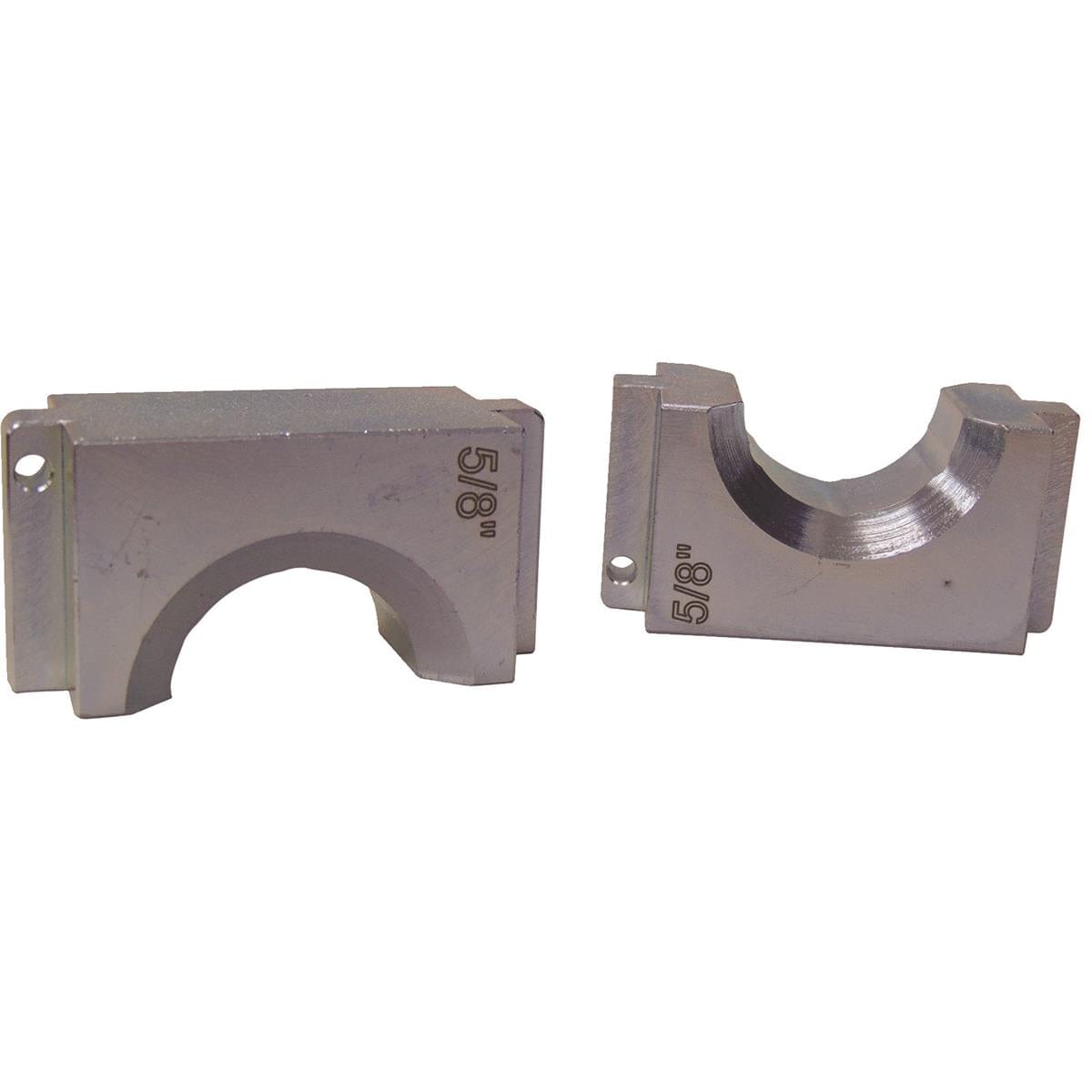

Match the jaw set to the inside diameter of the ColorStorm hose being crimped rather than to the fitting. A 5/8 in set crimps 5/8 in hose and a 3/4 in set crimps 3/4 in hose; they are not interchangeable, because the jaw bore has to close on the ferrule without flattening it. The 1/2 in set covers 1/2 in ColorStorm hose and is a made to order size rather than a shelf item, so ask us to confirm lead time before you commit it to a job. One DrammPress frame accepts any of the three, so a shop assembling more than one hose size buys a single frame and a jaw set per size.

Specifications

Configurations

Key Features

• Hardened steel jaw set, the wear part of the DrammPress
• Interchangeable, so one press frame covers 1/2 in, 5/8 in and 3/4 in hose by changing jaws
• Closes Dramm ferrules onto ColorStorm hose with no ring bands or gear clamps
• Runs by hand with a hex wrench or under a cordless drill
• Produces the same fit and finish as Dramm factory assembled hose
• Bolts into the frame with no additional tooling

Ideal Applications

• Building custom length ColorStorm hose assemblies from bulk roll
• Repairing a damaged hose end in the shop instead of scrapping the run
• Adding a second hose size to a shop that already owns a DrammPress
• Replacing a worn jaw set that has started leaving loose or distorted crimps
• Making up male, female and splice ends from Dramm fitting and ferrule sets

Add the DrammPress frame if you do not already own one, plus Dramm ColorStorm bulk hose and the male, female or splice fitting and ferrule sets in the matching size.
