Dramm - ColorStorm Hose Fitting and Ferrule Set, 12 Pack
Brand: Dramm
ColorStorm Hose Fitting and Ferrule Set, 12 Pack

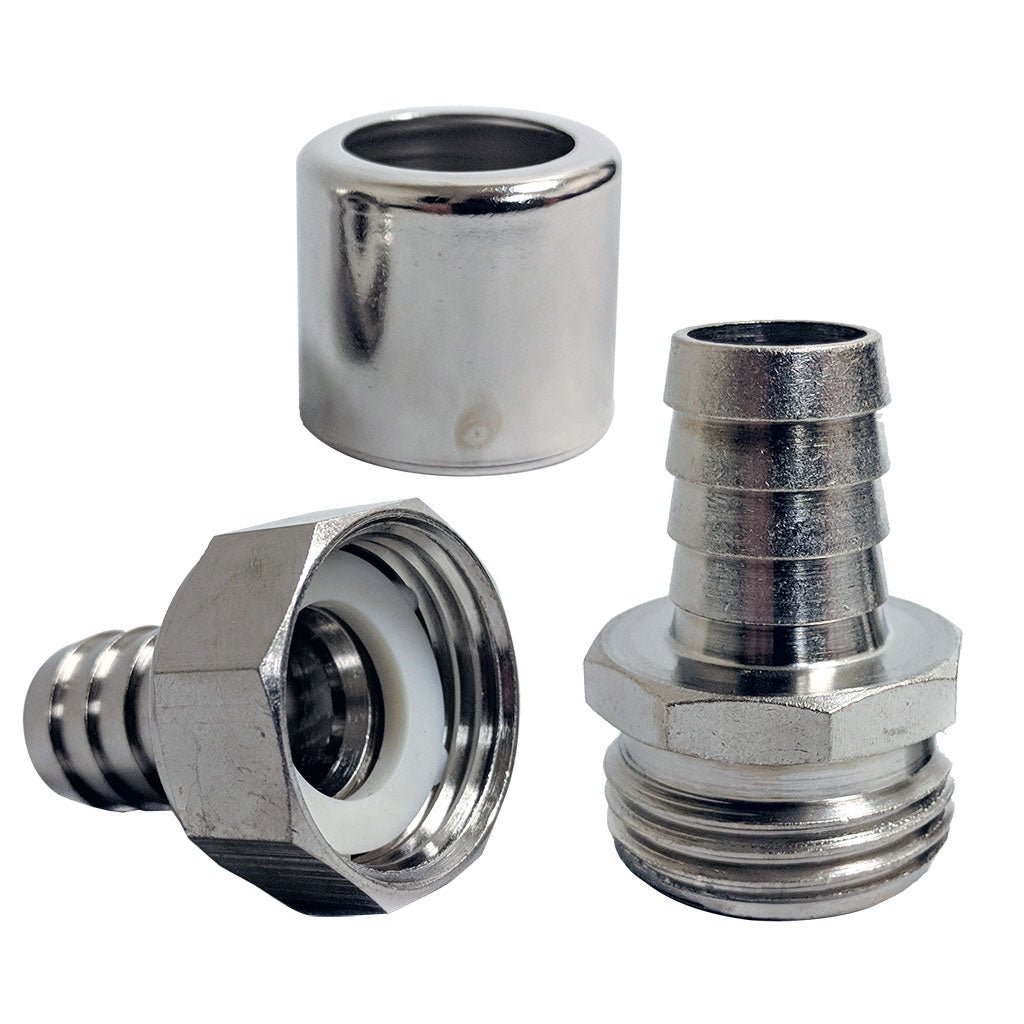

Bags of twelve nickel plated machined brass hose fittings with their matching brass ferrules, for building and repairing lengths of Dramm ColorStorm rubber hose. The ferrule slides over the cut hose end, the barbed fitting is pushed in through it, and the ferrule is crimped in the DrammPress, producing the same joint Dramm puts on its factory assembled hose. Dramm's own note is that because the crimper uses its ferrules there is no need for ring bands or gear clamps. Greenhouses and nurseries buy these to make hose to the length a bay actually needs instead of ordering stock lengths.
There are two choices. Hose Size is the inside diameter of the hose the ferrule crimps onto, 5/8 in or 3/4 in, and it is not a thread size, so measure the hose bore rather than the coupling and fit the press jaws that match that bore. Fitting Type is what the end becomes: Male Coupling and Female Coupling each terminate one hose end, so re-ending a hose normally takes one bag of each, while Splice / Mender is a double-ended barb that joins two lengths or closes the gap where a damaged section has been cut out. Every bag holds 12 fittings with 12 matching ferrules whichever pair you choose.
Specifications
| Hose Size | 5/8 in or 3/4 in, measured as the hose inside diameter and not as a thread size |
| Fitting Type | Male Coupling and Female Coupling each terminate one hose end; Splice / Mender is a double-ended barb that joins two hose lengths |
| Pack | 12 fittings with 12 matching ferrules on every option |
| Material | Nickel plated machined brass fittings and brass ferrules, the same parts used on Dramm factory assembled hose |
| Tooling | DrammPress frame 72620 with the jaw set that matches the hose bore, 72625 for 5/8 in or 72750 for 3/4 in |
| Clamps | Dramm: because the hose crimper uses Dramm's high quality ferrules, there is no need for ring bands or gear clamps |
| Ship weight | 2 lb per set |
Configurations
| Hose Size | Fitting Type | Part number |
|---|---|---|

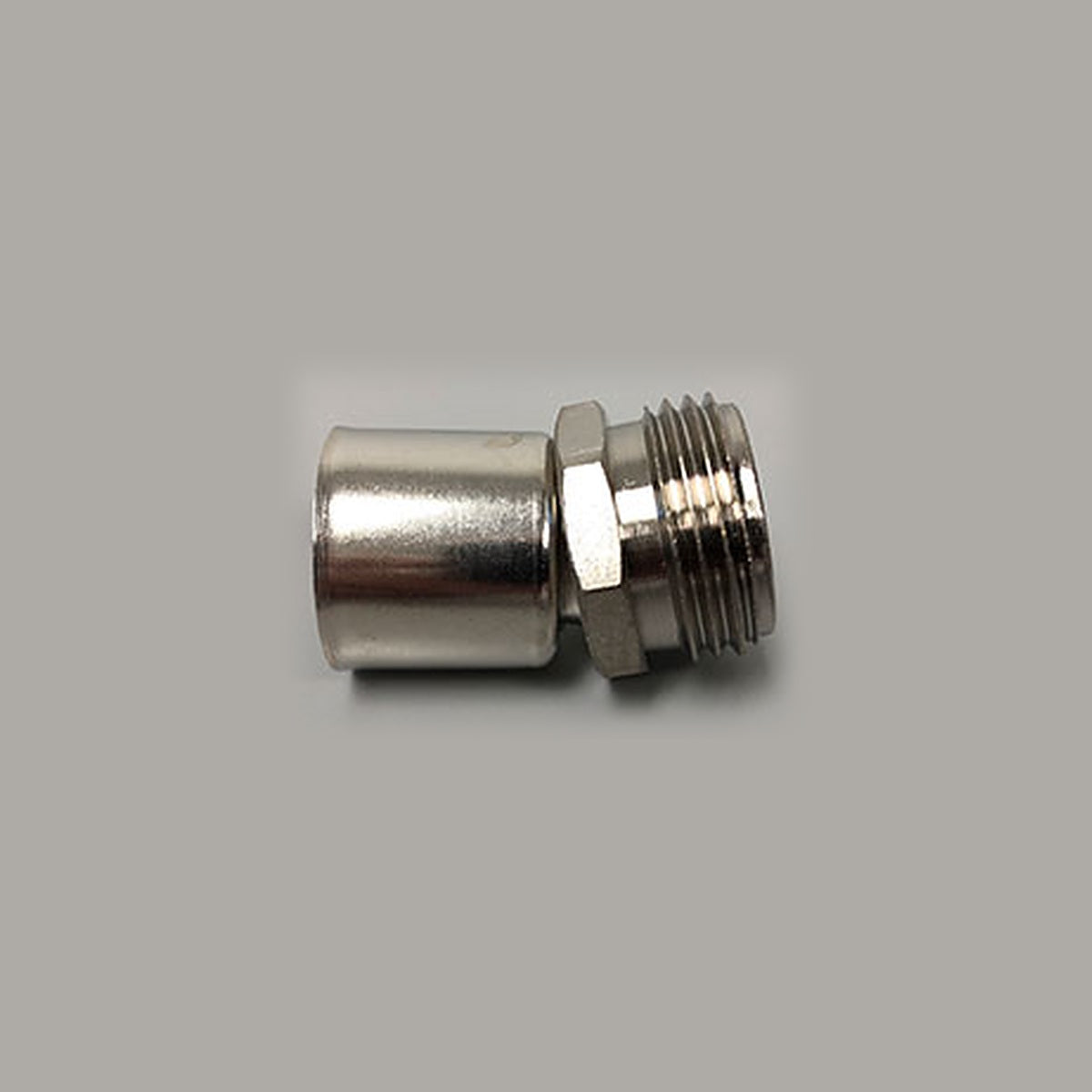

| 5/8 in | Male Coupling | 10-17810 |

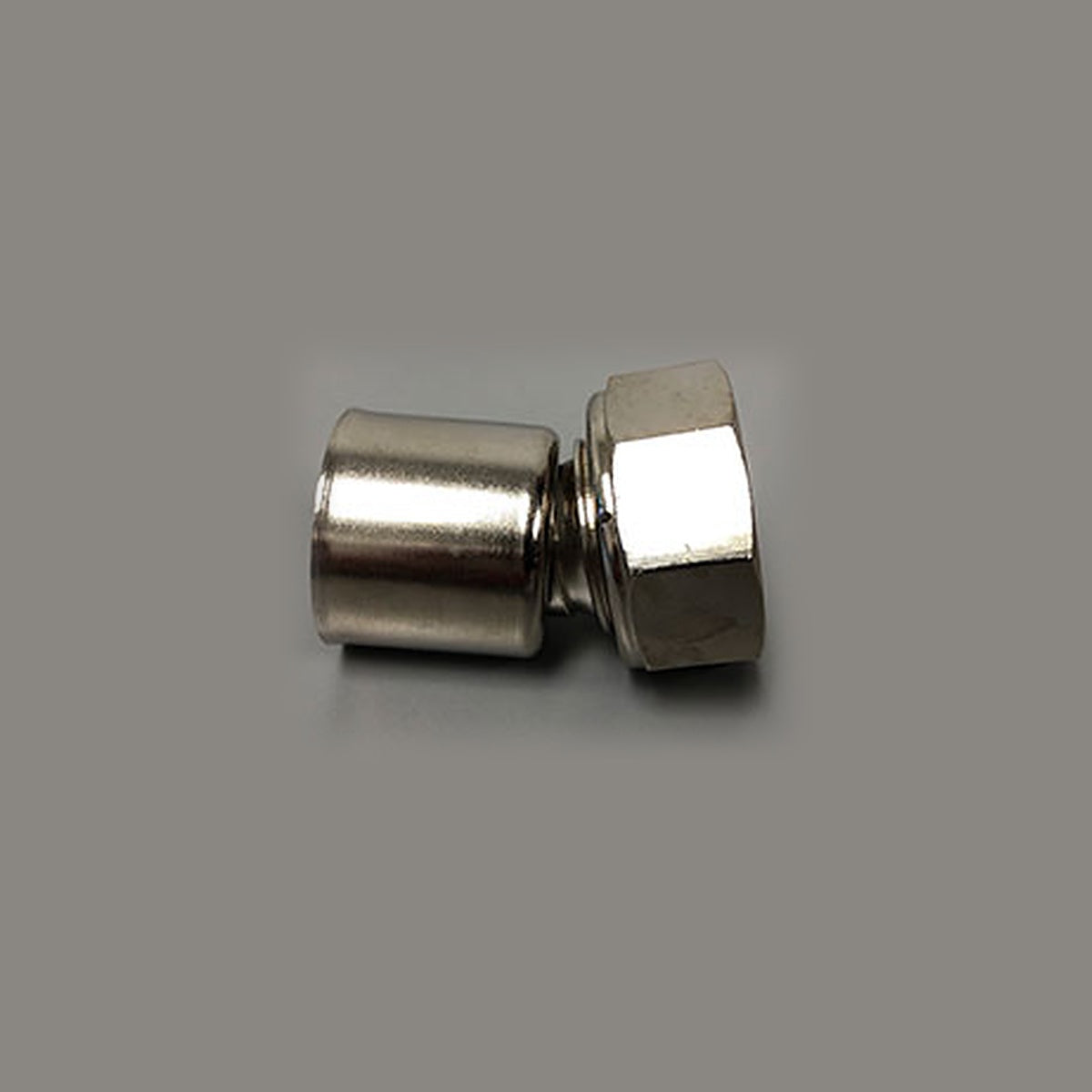

| 5/8 in | Female Coupling | 10-17815 |

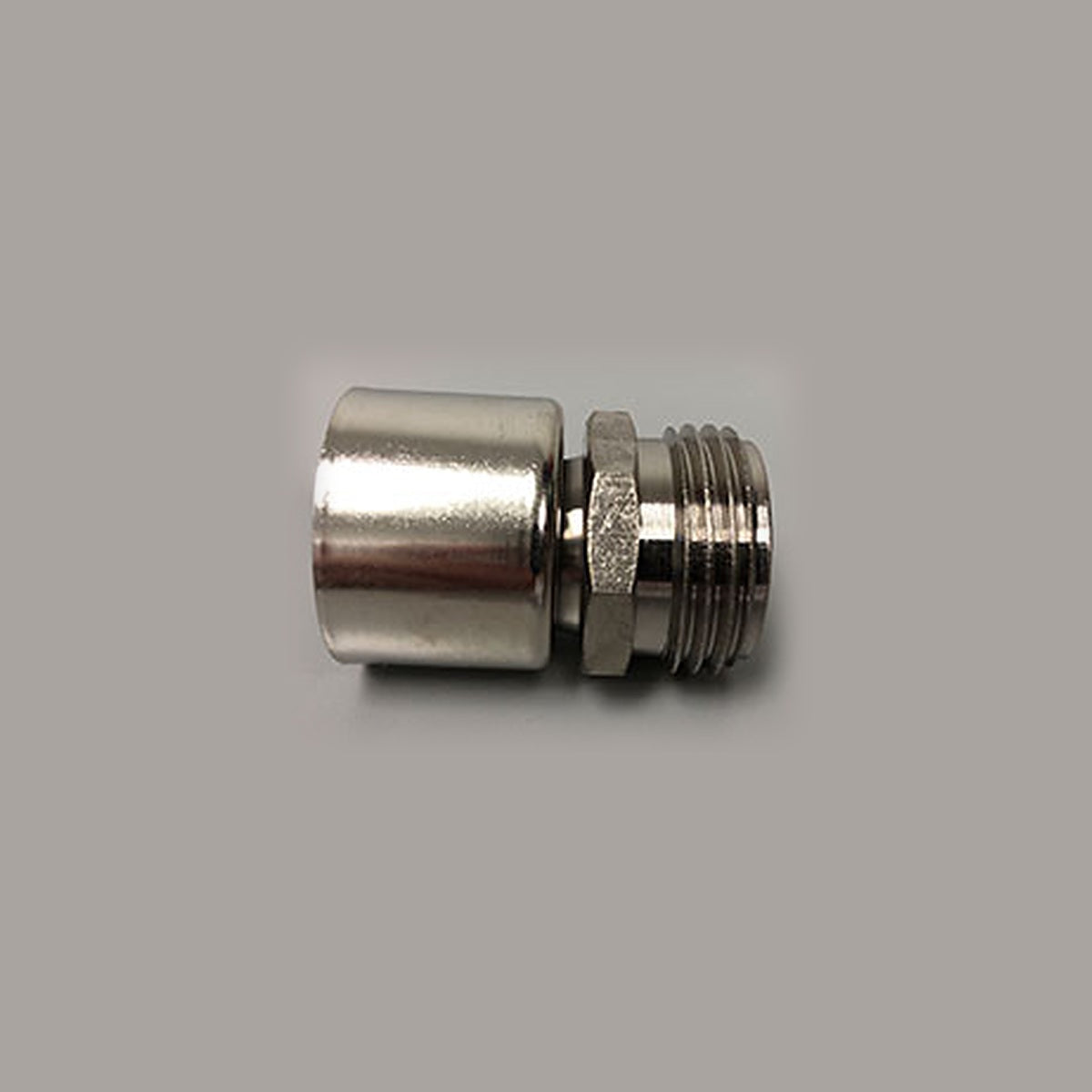

| 3/4 in | Male Coupling | 10-17820 |
| 5/8 in | Splice / Mender | 10-17830 |

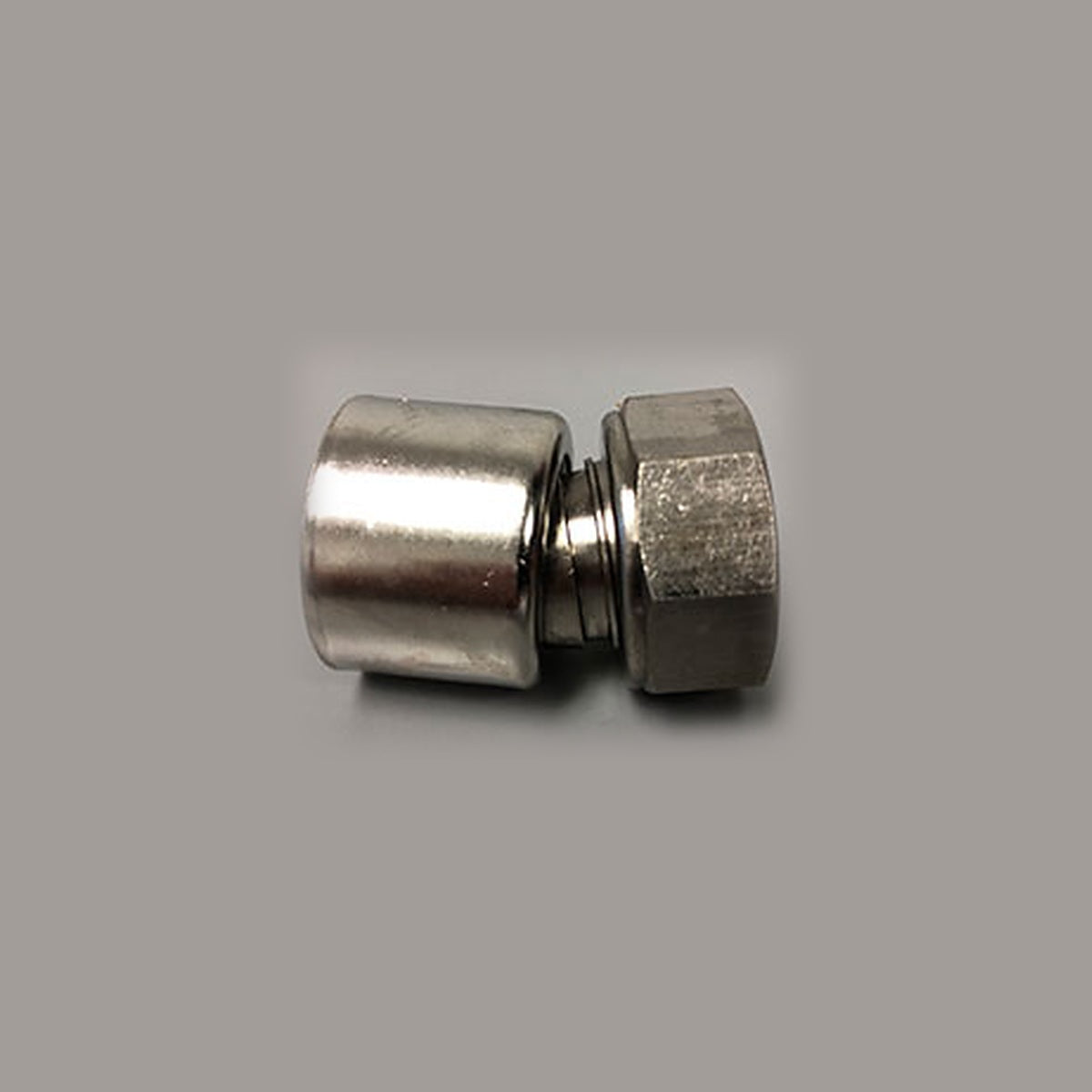

| 3/4 in | Female Coupling | 10-17825 |
| 3/4 in | Splice / Mender | 10-17840 |
Key Features
- Makes hose to an exact length instead of ordering stock lengths
- Crimped ferrule joint needs no ring bands or gear clamps
- Nickel plated machined brass, the same fittings and ferrules used on Dramm factory hose
- Splice sets rebuild a hose cut in the middle instead of scrapping the run
- Twelve to a bag, enough to re-end a run of hoses in one session
- Sized by hose inside diameter so fitting, ferrule and press jaws all key off one number
Ideal Applications
- Making hose to an exact length for a bay or a hose station
- Repairing a hose end that has been crushed, cut or pulled off
- Joining two shorter hoses into one long run
- Re-ending factory hose in house with the same fittings the factory used
Crimped with the DrammPress frame 72620 and its 72625 or 72750 jaws onto Dramm ColorStorm bulk hose 17999-330 and 17989-330, and supplied in quantity inside the Custom Hose Starter Kits 17626 and 17751.
