Dramm - BlueFlex Spray Hose
Brand: Dramm

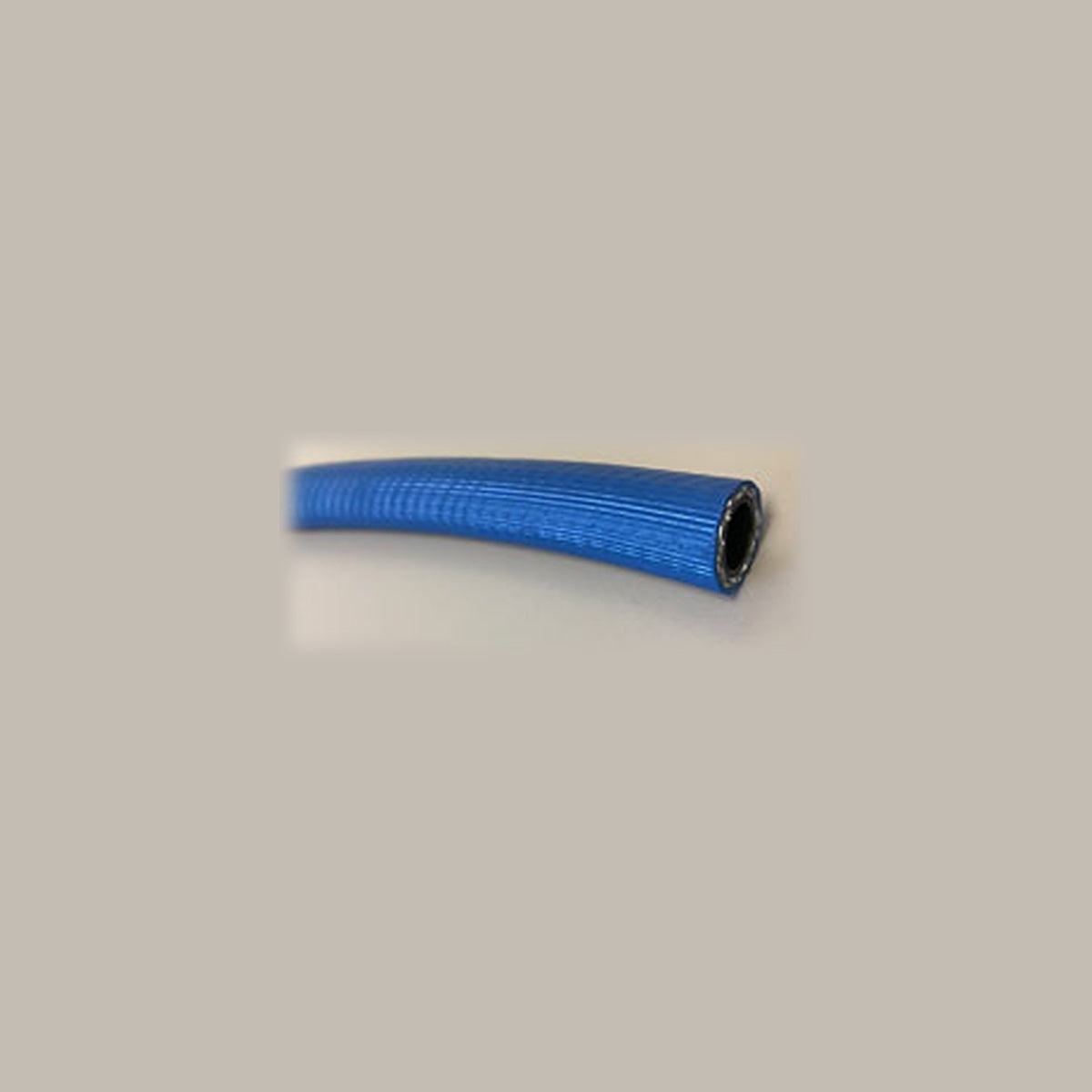

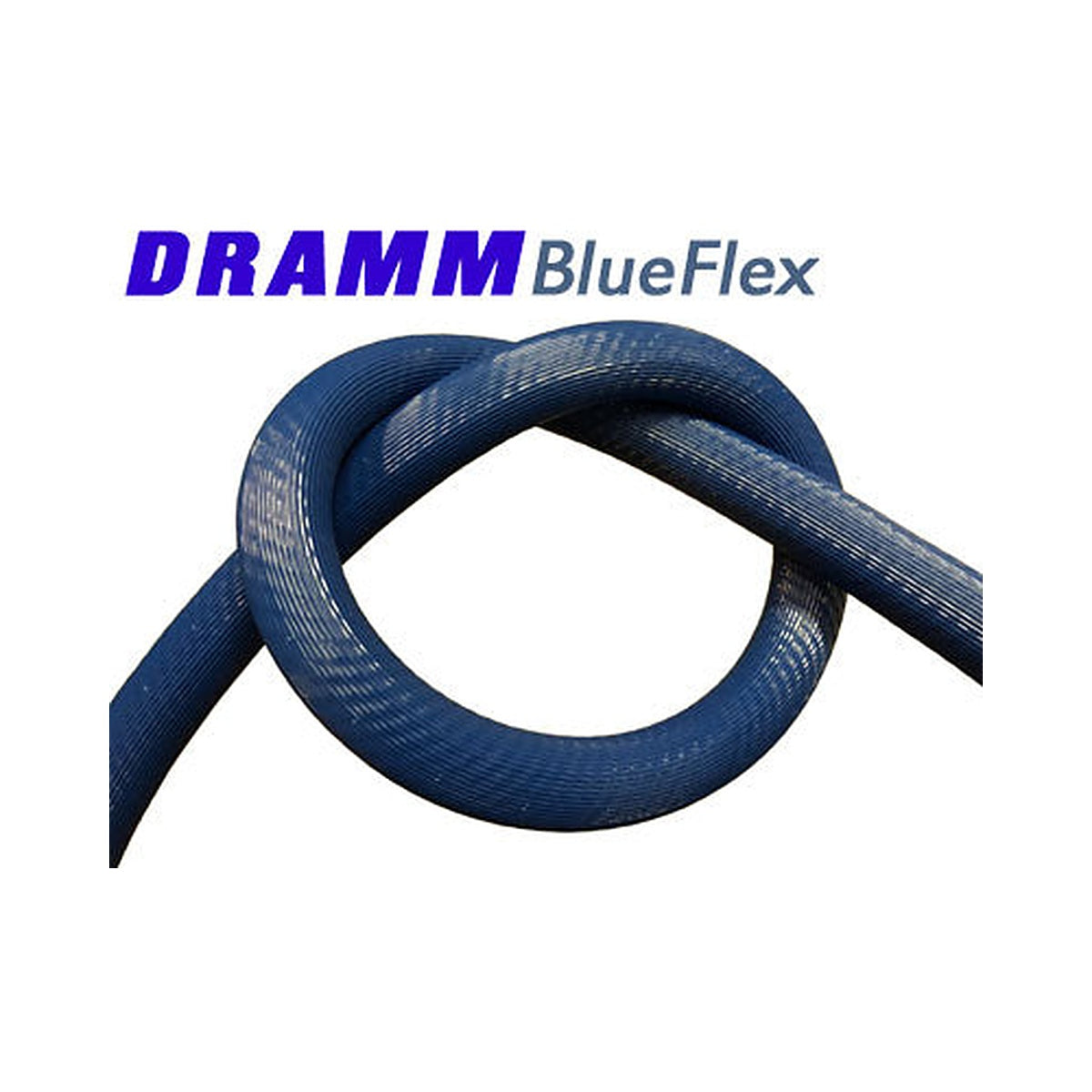

BlueFlex Spray Hose
BlueFlex is the spray hose Dramm developed to be more flexible and more durable than the black spray hose it replaced, and it now ships as standard on Dramm MSO, MS-Gas and Hydra spray equipment. Dramm rates it to 800 PSI working pressure while keeping it easy to coil on a reel and drag around benches. Because it expands far less under pressure, more of the pump's PSI arrives at the gun and the nozzles atomize the way they were sized to. Dramm designed it around its own sprayers but states it works well with other spray equipment too.
Size sets the bore and the finished length together, because BlueFlex is supplied as a complete drag hose rather than as raw hose. The 1/4 in bore is the MSO and MS-Gas size: 1/4 in x 33 ft for a single bay or a bench, 1/4 in x 100 ft for a normal cart run, and 1/4 in x 150 ft when the pump parks at one end of a long range. The 3/8 in bore is the Hydra size and carries more volume over distance, in 3/8 in x 200 ft, 3/8 in x 250 ft and 3/8 in x 300 ft drag lengths, plus 3/8 in x 500 ft supplied on a spool. Fittings is what sits on the ends. Standard Brass is the factory brass coupling supplied on the MSO hose and is the right choice for water and general spray work. Stainless (CRF) is the corrosion-resistant stainless build and is the one to specify when fertilizer, crop protection or sanitizing chemistry runs down the line. Unfitted Spool means no couplings at all: the 500 ft spool is bulk hose for a shop that terminates its own lengths or re-hoses a reel.
Specifications
| Working pressure | 800 PSI |
| Size | Each size is a bore and a finished length together: 1/4 in in 33 ft, 100 ft or 150 ft; 3/8 in in 200 ft, 250 ft, 300 ft or 500 ft |
| Bore | 1/4 in or 3/8 in |
| Length | 33 ft, 100 ft and 150 ft in 1/4 in; 200 ft, 250 ft, 300 ft and 500 ft in 3/8 in |
| Fittings | Standard brass or stainless corrosion-resistant (CRF) on the drag-hose lengths; the 500 ft spool is supplied with no fittings |
| Ship weight | 3.5 lb at 1/4 in x 33 ft, 10 lb at 1/4 in x 100 ft, 15 lb at 1/4 in x 150 ft, 30 lb at 3/8 in x 200 ft and 37 lb at 3/8 in x 250 ft |
| Jacket | Blue, chosen for visibility in tight aisles |
| Original equipment | Ships as standard on Dramm MSO, MS-Gas and Hydra sprayers |
Configurations
| Size | Fittings | Part number |
|---|---|---|
| 1/4 in x 33 ft | Standard Brass | BLFM25-DH33 |
| 1/4 in x 100 ft | Standard Brass | BLFM25-DH100 |

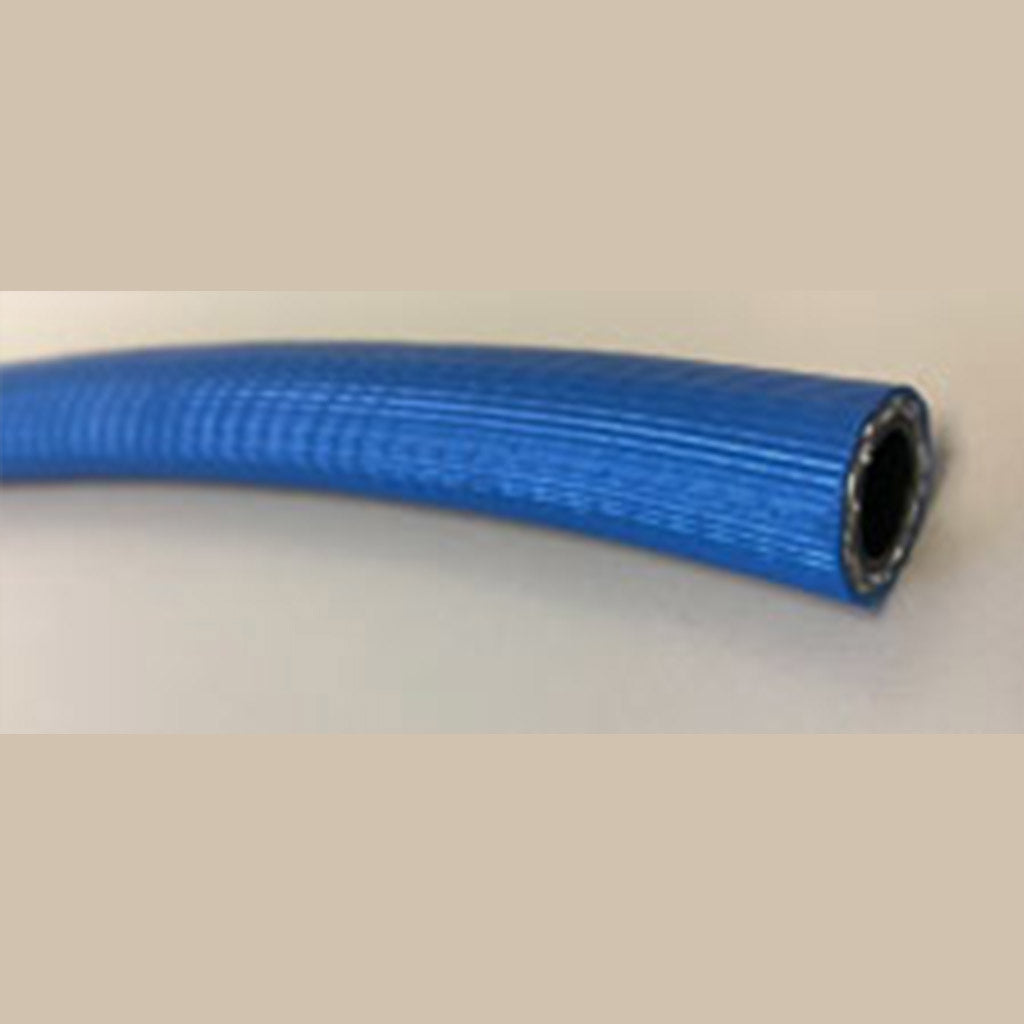

| 1/4 in x 150 ft | Standard Brass | BLFM25-DH150 |
| 1/4 in x 150 ft | Stainless (CRF) | BLFH25-DH150 CRF |

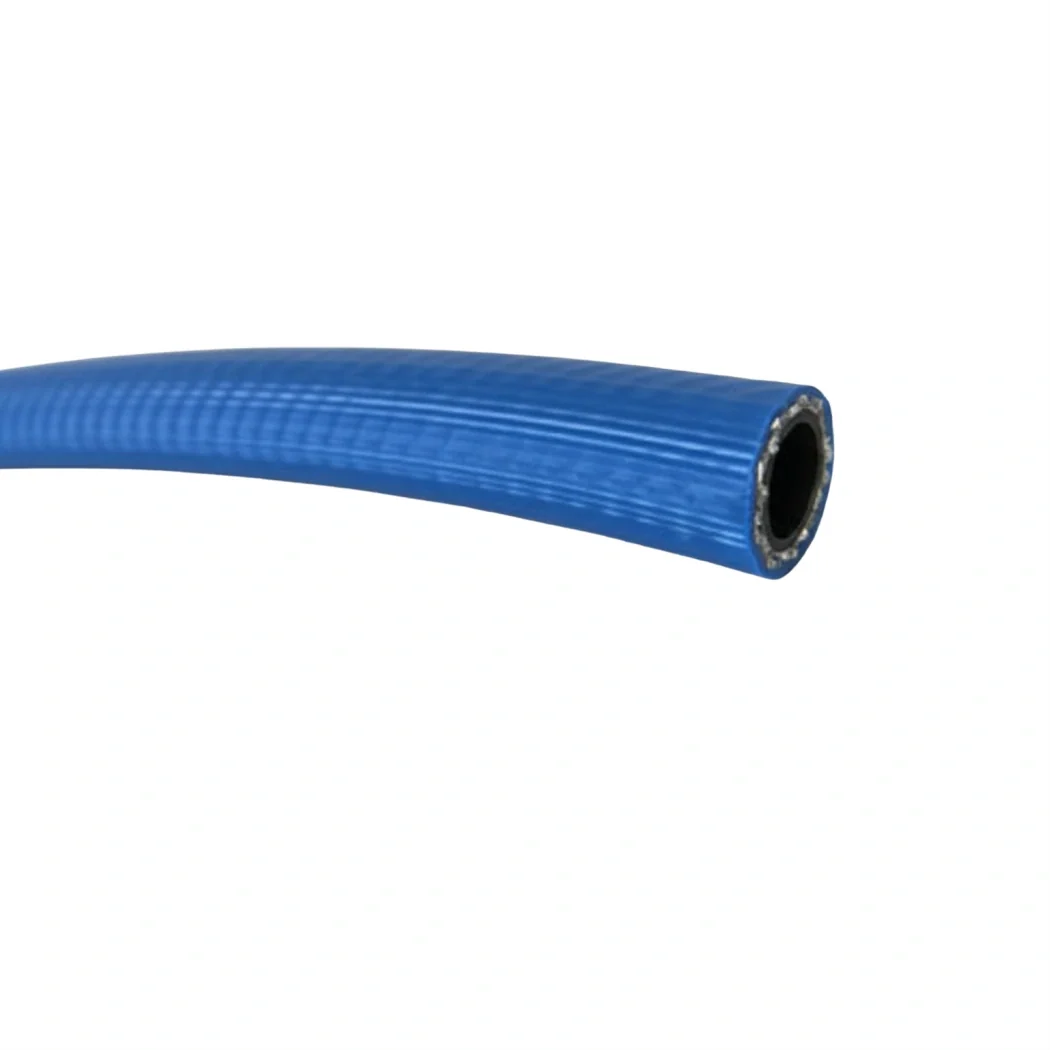

| 3/8 in x 200 ft | Stainless (CRF) | BLFH375-DH200 CRF |
| 3/8 in x 250 ft | Stainless (CRF) | BLFH375-DH250 CRF |
| 3/8 in x 300 ft | Stainless (CRF) | BLFH375-DH300 CRF |
| 3/8 in x 500 ft | Unfitted Spool | BLFH375-SP500 |
Key Features
- Rated to 800 PSI working pressure
- More flexible than conventional black spray hose, so it coils and drags with less effort
- Low expansion under pressure keeps pump PSI at the gun
- Blue jacket stays visible in a crowded aisle
- Stainless corrosion-resistant fittings offered for chemical duty
- Ships as original equipment on Dramm MSO, MS-Gas and Hydra sprayers
- 500 ft spool for shops that build and terminate their own hose lengths
Ideal Applications
- Greenhouse and nursery crop protection spraying
- Foliar feeding across benches and long production ranges
- Replacement drag hose for Dramm MSO, MS-Gas and Hydra sprayers
- Indoor and controlled-environment cultivation facilities
- Sanitizing runs where corrosion-resistant fittings are required
- Re-hosing a sprayer reel from bulk
Made for Dramm MSO, MS-Gas and Hydra sprayers and their trigger guns, and winds on the same Dramm convex spray reels.
