Dramm - BigFoot Pneumatic Wheel Kit for MS Cart

Brand: Dramm

BigFoot Pneumatic Wheel Kit for MS Cart

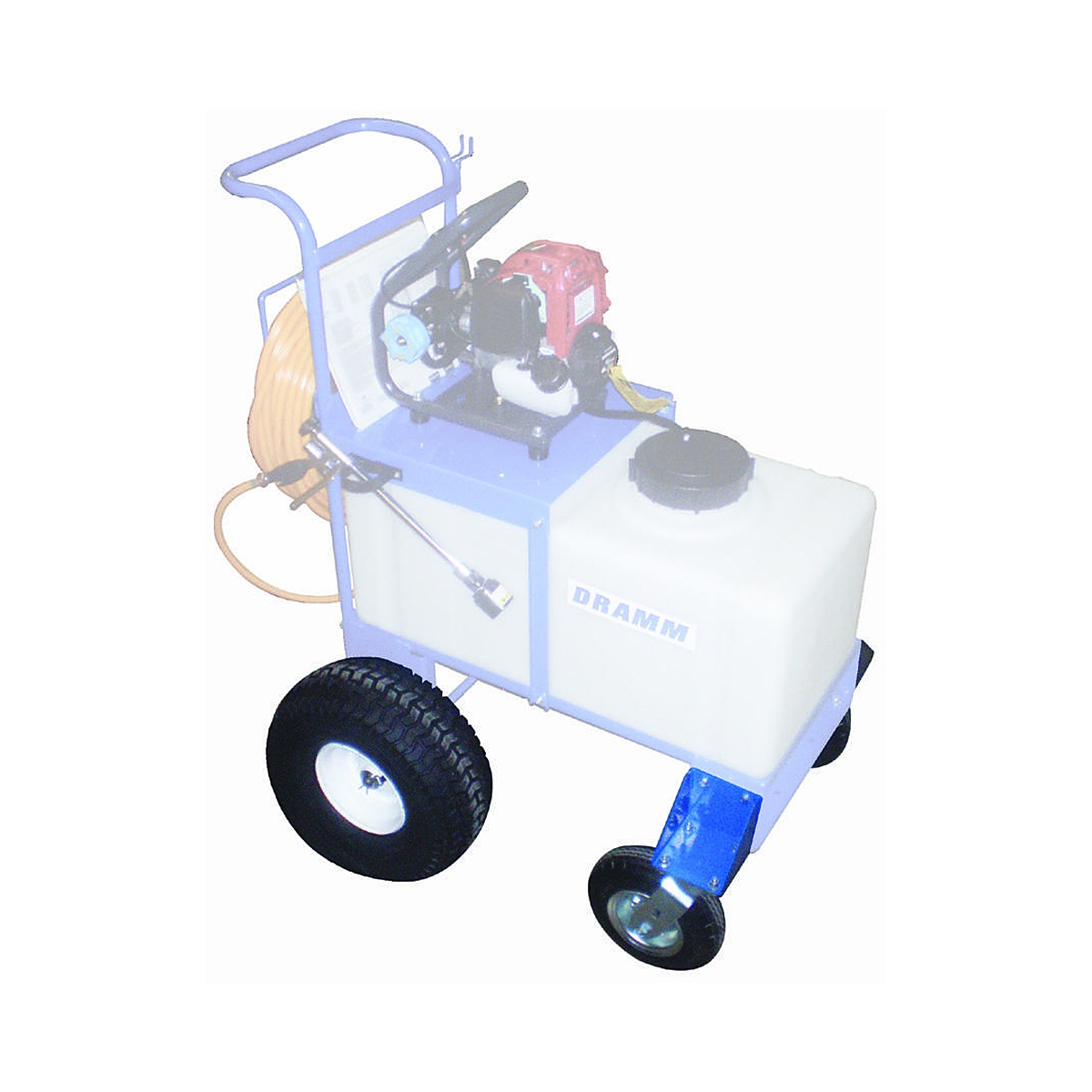

BigFoot is Dramm's retrofit wheel package for the MS 20 gallon cart. It swaps the cart's solid rubber wheels and solid rubber casters for 15 in pneumatic turf tires on a rear axle and pneumatic casters carried on bolt-on front outriggers. Fitting it takes the overall cart width from 21 in to 27 in and leaves the 37 in length and 42 in height alone, so aisle clearance is the only dimension that changes. The kit is parts only: the axle, both turf tires with their retaining clips, both outriggers, both casters and the mounting hardware, with no cart, tank, pump or hose.

There is one kit on this page and it is the retrofit, meant for an existing MS cart that was bought with the standard solid wheel package. Order it when the cart is already in service and the ground has turned out to be the problem: gravel yards, door thresholds, floor drains, expansion joints, hoop house dirt and turf all load a solid wheel far harder than a pneumatic one, and a full 20 gallon tank makes that difference obvious at the handle. The pneumatic wheels and casters are the same 15 in turf tire and outrigger caster package Dramm fits at the factory, so a retrofitted cart ends up matching a factory BigFoot machine rather than approximating it. Dramm lists the upgrade as working with the MSO and MS-GAS sprayers, ChemDose 120, FertiCart, WaterCart and the FM20 foamer; the kit on this page is the 20 gallon MS cart size. Installation is a bolt-on job in seven steps using Dramm's own BigFoot installation sheet: the axle slides into the welded shaft at the rear of the cart, the tires clip on, and the outriggers and casters bolt to the front with the supplied hardware.

Specifications

Key Features

• 15 in pneumatic turf tires replace the solid rubber wheels, so the cart rolls over gravel, thresholds and expansion joints instead of stopping on them.

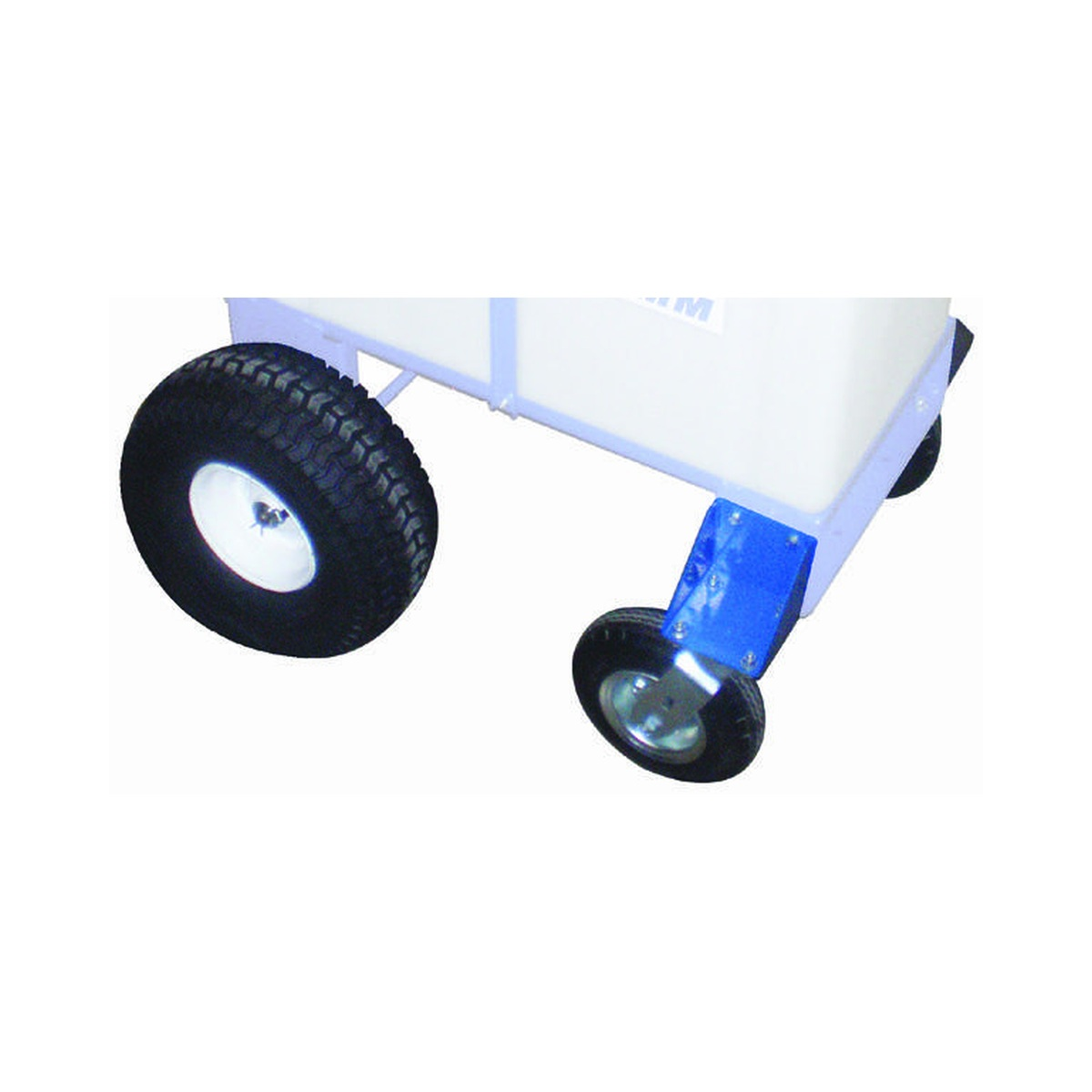

• Pneumatic casters on bolt-on outriggers replace the solid casters and widen the front track, which steadies a loaded 20 gallon tank on uneven ground.
• Designed as a retrofit: the axle slides into the welded shaft already on the rear of the cart and the outriggers use the hardware supplied.
• Adds 6 in of cart width and nothing to length or height, so the only clearance to re-check is aisle width.
• Turf tread rather than a solid tire, which spreads the load of a full cart across a wider contact patch.
• Matches the factory BigFoot wheel package, so an older cart can be brought up to the same specification.
• Ships as parts only, with Dramm's BigFoot installation sheet, and includes no cart or sprayer.

Ideal Applications

• MS 20 gallon sprayer carts moved between hoop houses over gravel or bare ground
• Carts that cross door thresholds, floor drains and expansion joints several times a shift
• Outdoor nursery and container yards where a solid caster digs in and stalls
• Turf and field work where the cart leaves paved surfaces
• Reducing push effort on a cart carrying a full 20 gallon tank
• Bringing an older solid-wheel cart up to the same wheel package as a factory BigFoot machine

Growers refreshing an older MS cart usually order this alongside the MS-PRK piston repair kit and the MPG-KIT pressure gauge kit for the MSO pump, and a spare MS-TG trigger gun or L-5TQC extension lance while the machine is stripped.
