Dramm - Autofog AirKit for LVH-15NS Fogger Head
Brand: Dramm
Autofog AirKit for LVH-15NS Fogger Head

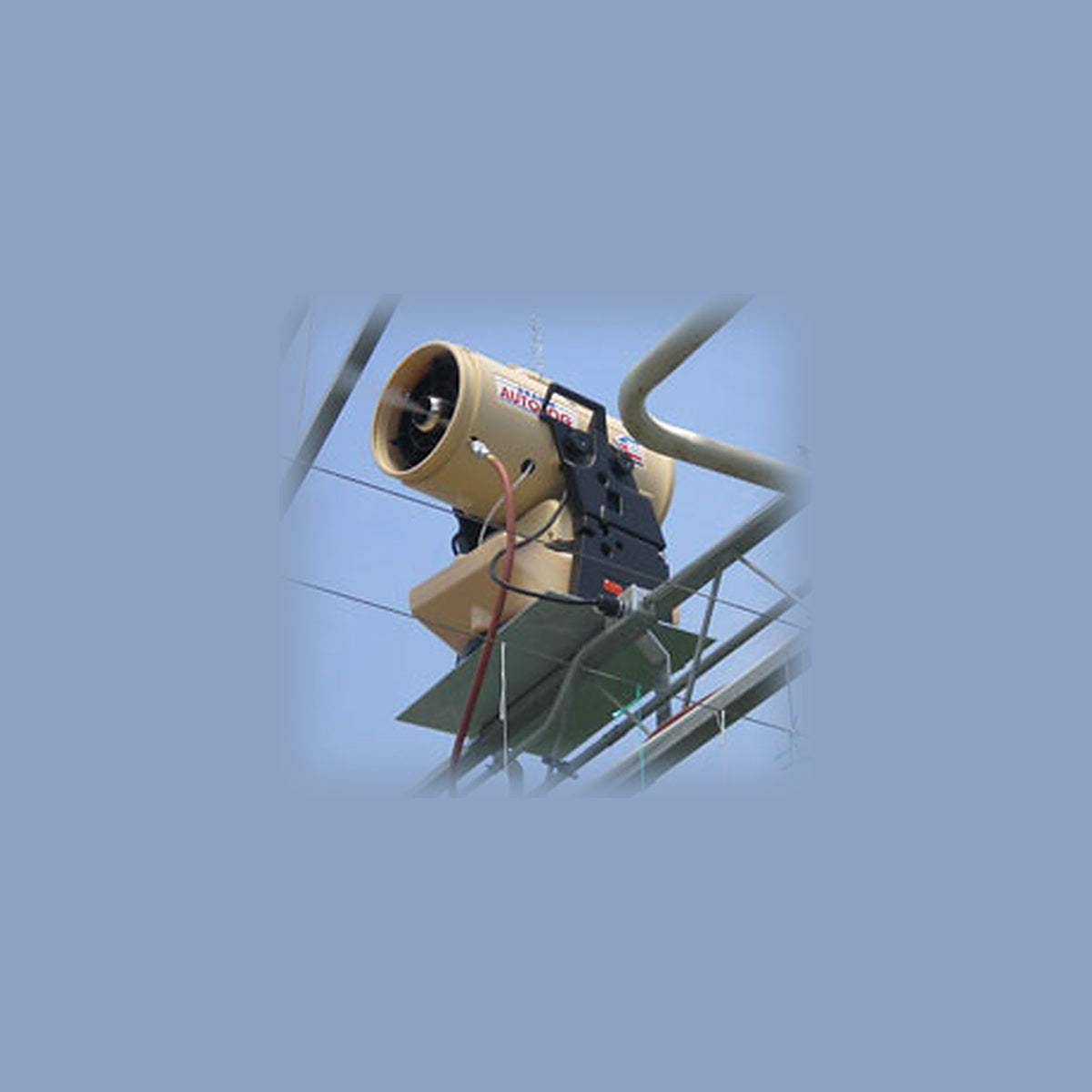

The Autofog AirKit connects a permanently mounted Dramm fogger head to an air source you already have, so the head can live in the greenhouse instead of rolling in on a carriage. It supplies regulated air to the head and opens and closes on a 24 VAC signal, which lets your climate control computer decide when fogging happens.
Note what this kit is and is not. It supplies and regulates air to the head - it does not include a compressor, and it does not include the control. You provide the compressed air and the 24 VAC control signal from your environmental computer. The head itself is sold separately. The LVH-15NS head runs on 230 VAC at 3.2 amps and needs two circuits, one for the 24 VAC air valve and one line voltage circuit for the fan and agitation.
Specifications
| Configuration options | AirKit for LVH-15NS fogger head |
| Part numbers | LVH-AIRKIT |
| Fits | LVH-15NS and SLVH-7BN3 fogger heads |
| Kit contents | Air filter, pressure regulator with gauge, 24 VAC air solenoid valve, 10 ft air line, female quick connects both ends |
| Air requirement | 4.06 CFM at 28.5 psi |
| Control signal | 24 VAC |
| Compressor | Not included - connects to an existing air source |
| Control system | Not included - supplied by your climate control computer |
| Ship weight | 15 lb |
Key Features
- Permanently mounts the fogger head in the house
- Regulated air supply with filter and gauge
- 24 VAC solenoid valve for climate computer control
- 10 ft air line with quick connects on both ends
- Removes the wheeled carriage from the application
Ideal Applications
- Fixed installation fogging in production greenhouses
- Automating fogging from an environmental control computer
- Multi house installations running off one shop compressor
- Retrofitting an existing LVH-15NS head
Autofog complete units and annual maintenance kits are available separately.
