Dosatron - D25F1 Injectors - 11 GPM (3/4 in) (HORT)

Brand: Dosatron

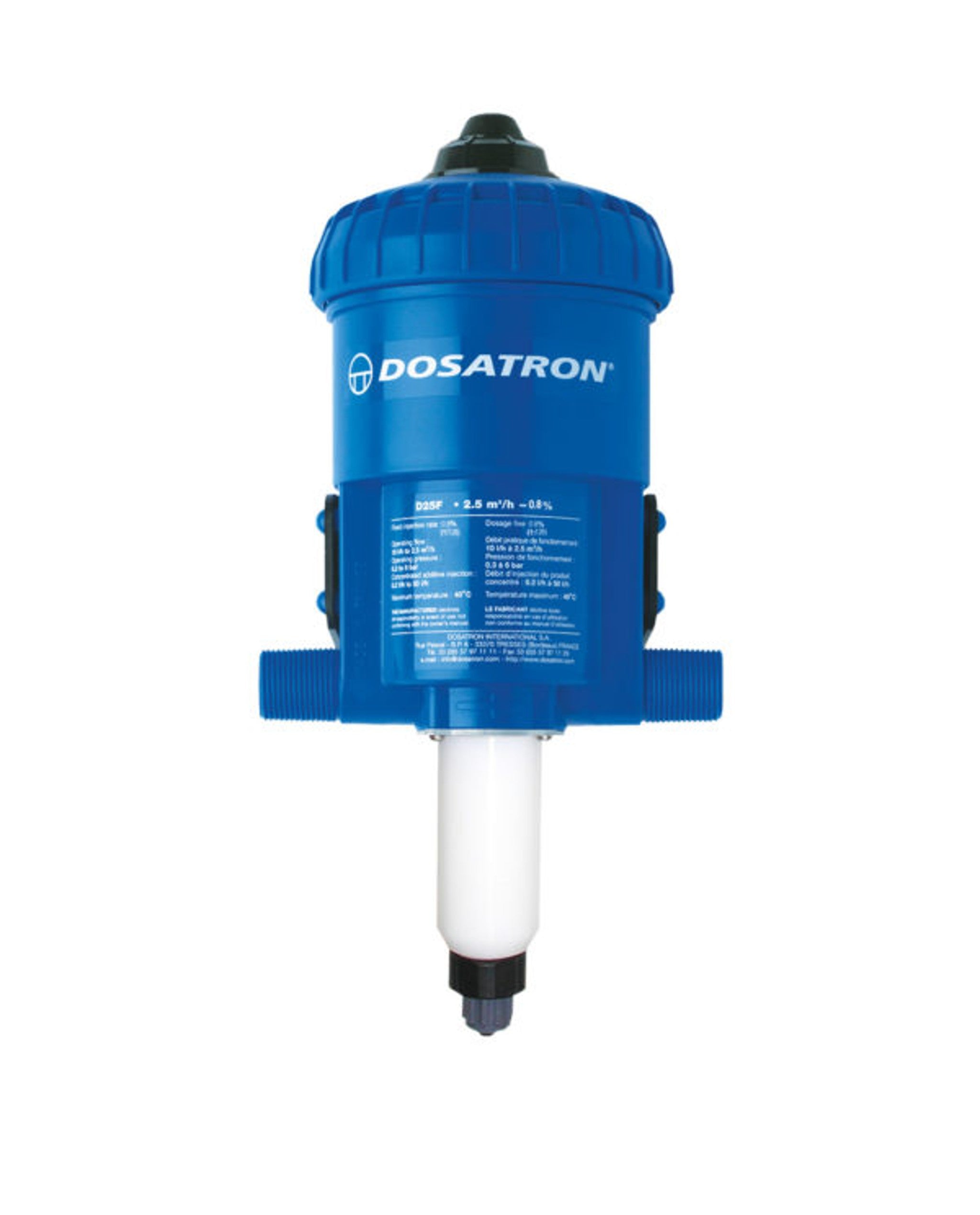

The Dosatron D25F1 is a fixed-rate, water-powered proportional injector rated for 11 GPM on 3/4 in lines. It runs on water pressure alone, injecting concentrate at a fixed 1:100 (1 percent) ratio in proportion to the water moving through it, with no electricity and no batch tanks.

The fixed ratio makes the D25F1 a simple, tamper-resistant choice for operations that dose one recipe at one strength. It suits propagation benches, small greenhouse zones, and single-product feed lines where a set-and-forget injector is preferred over an adjustable unit.

Available Options

• 1% fixed (1:100 fixed) 3/4 in Viton (FKM) Seals - No Bypass [D25F1VFII]
• 1% fixed (1:100 fixed) 3/4 in Viton (FKM) Seals - Bypass [D25F1VFBPII]

Specifications

• Flow range: 0.05 to 11 GPM
• Operating pressure: 4.3 to 85 psi
• Connection: 3/4 in NPT
• Dilution range: 1:100 fixed (1%)
• Seal materials: Viton (FKM)
• Dimensions: 14 in x 6-1/4 in; weight 4 lbs
• Dose scale: percentage and ratio (HORT); union not included

Key Features

• Water-powered proportional dosing, no electricity required
• Dosing accuracy holds through supply pressure and flow variation
• Fixed ratio: tamper-resistant, nothing to drift out of calibration
• Bypass fitted on selected models for clear-water flushing
• Field-serviceable; seal and rebuild kits available

HORT vs Hydro Versions

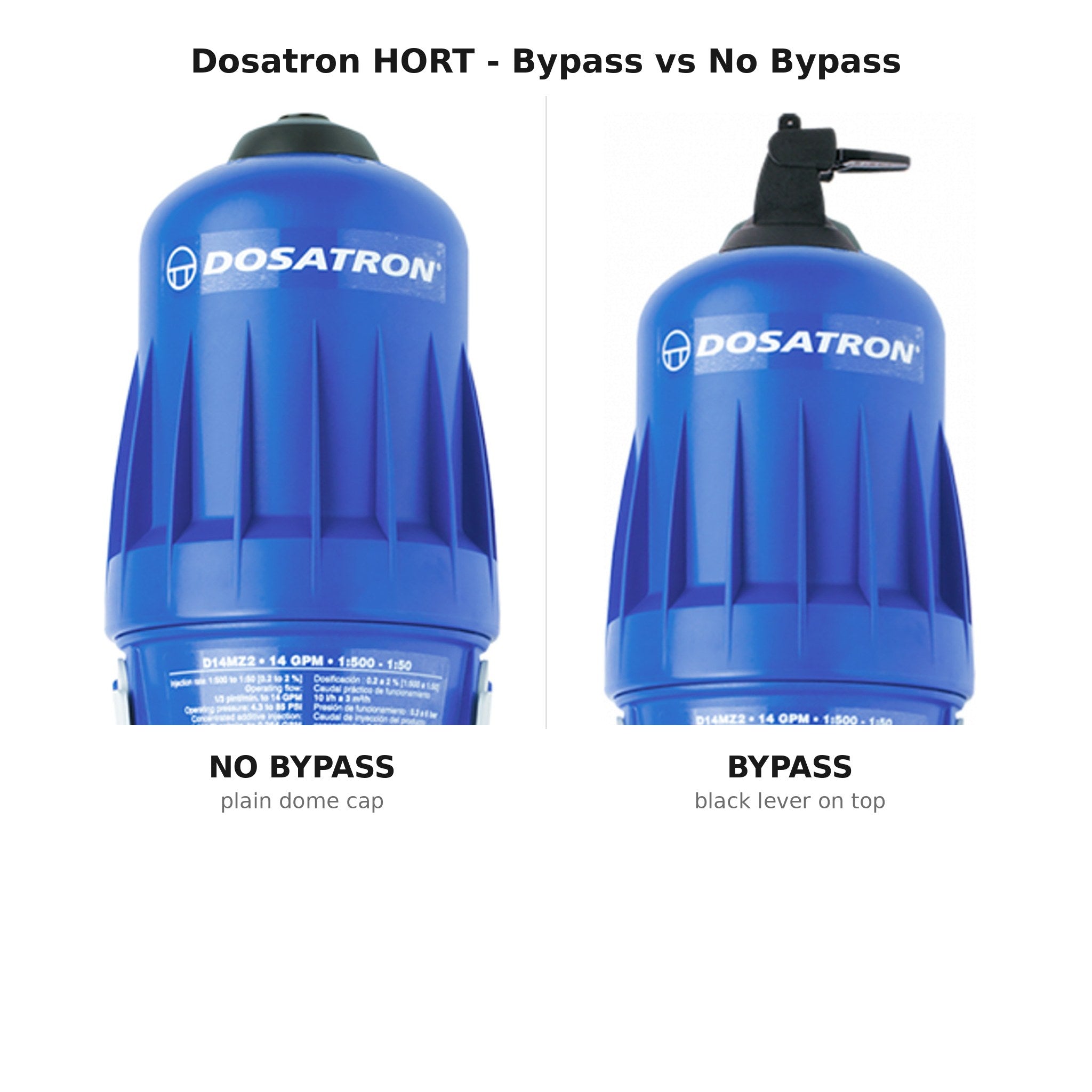

This listing covers the HORT (horticulture) build. Compared to the Hydro (HY) build of the same injector, the unit is marked in percentage and ratio rather than ml/gal, and no union is included. Bypass is not standard on HORT units - only the model marked Bypass in the option list ships with one; for the other, plumb an external bypass loop if you need to flush clear water without pulling the unit.

Choosing Your Model

Models differ by dilution range, seal material, and whether a bypass is fitted. The dilution range (percentage and ratio) sets how much concentrate is injected per unit of water: pick the range your feed recipe sits in the middle of, not at the edge of, so you keep adjustment headroom in both directions. Seal material is matched to your chemistry, covered below.

Seal Selection

After dilution range, seal material is the most important choice you make. The seal is the only part of the injector in constant contact with undiluted concentrate, and running the wrong elastomer is the single most common cause of early injector failure.

• Viton (FKM) - the general-purpose default. Suited to soluble fertilizers, micronutrients, pH-down acids, wetting agents, and most neutral to mildly acidic feeds.
• Aflas - for alkaline chemistry. Specify for pH-up, potassium hydroxide, liquid lime, carbonates, and hypochlorite sanitizers, which swell and harden Viton over time.
• Kalrez (FFKM) - the broadest chemical resistance available. Specify for peracetic acid (PAA), hydrogen peroxide blends, chlorine dioxide, and strong oxidizers such as ZeroTol and SaniDate, or where one unit has to run mixed chemistries.

If a single injector will see more than one chemistry, specify to the most aggressive of them. Replacement seal kits and full rebuild kits are stocked for every model listed here.

Service and Maintenance

These injectors are field-serviceable and designed to be rebuilt rather than replaced. Routine service is a seal kit; a full rebuild kit restores the motor and piston assembly. Install a strainer ahead of the unit and flush after dosing aggressive chemistry to get full service life.

Ideal Applications

• Single-recipe propagation and bench feeding
• Small greenhouse and indoor cultivation zones
• Fixed-rate sanitizer or supplement dosing
• Animal health and livestock watering
