TrolMaster - CO2 Sensor for Carbon-X (MBS-K30)

Brand: TrolMaster

TrolMaster CO2 Sensor for Carbon-X (MBS-K30)

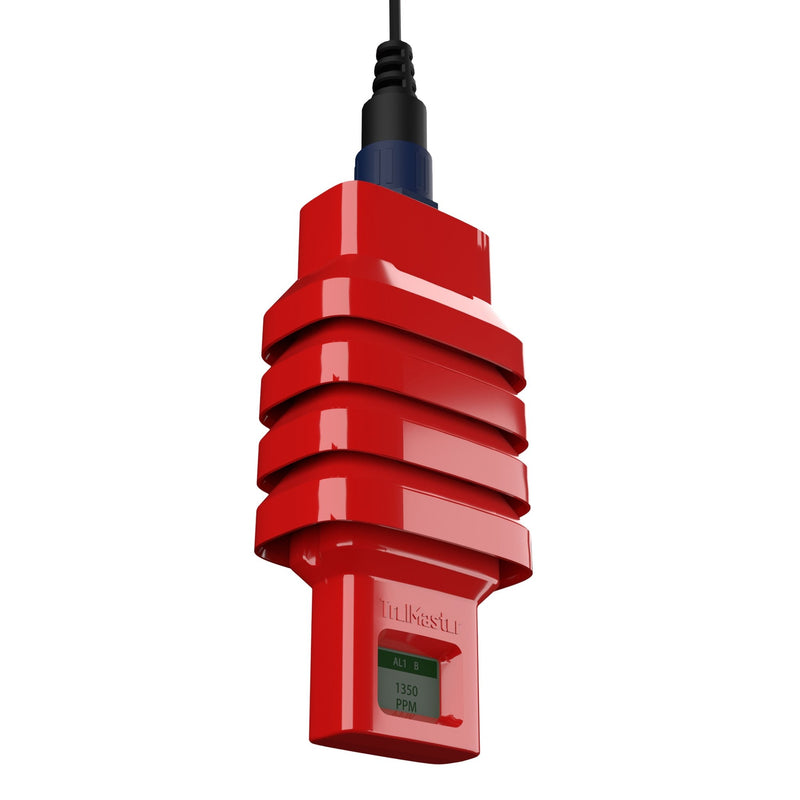

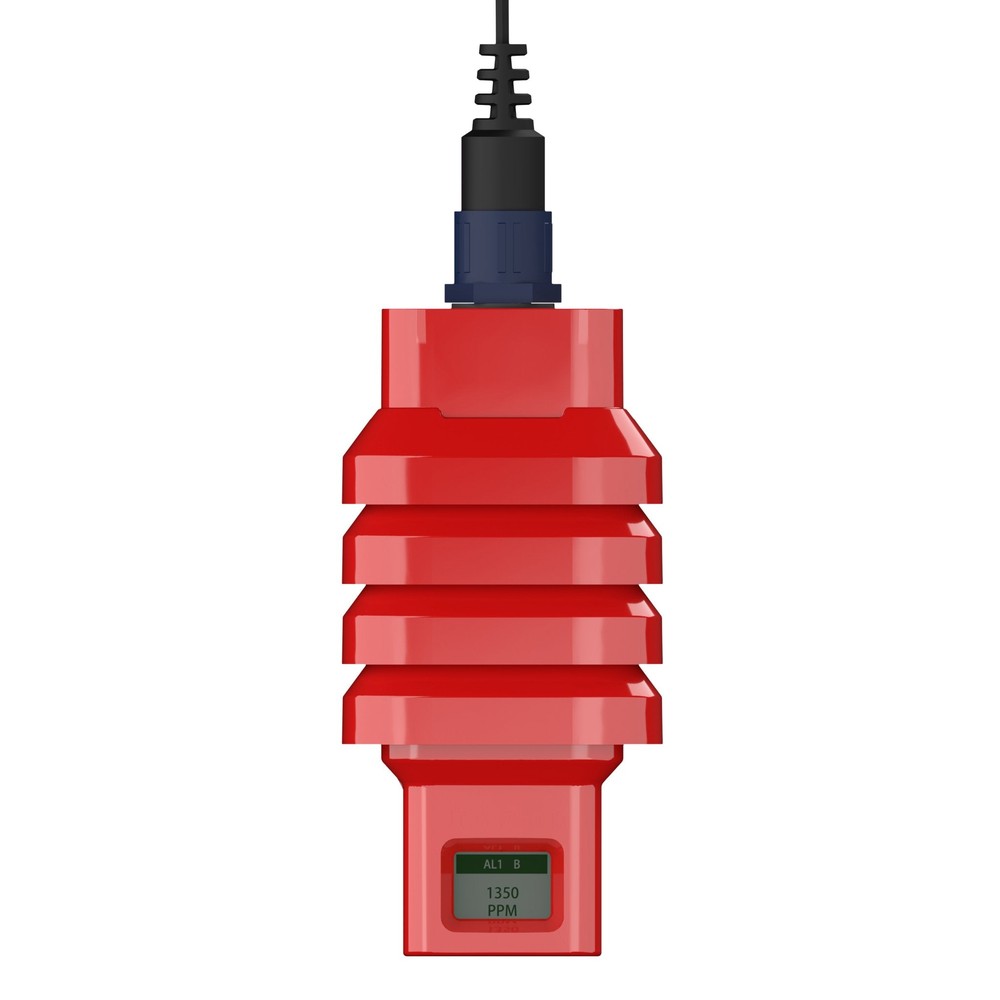

The TrolMaster MBS-K30 is a CO2 sensor for the Carbon-X emergency CO2 system, using an NDIR 0-30,000 ppm sensor in a self-aspirated enclosure. Reading up to 30,000 ppm is critical to the proper operation and safety of an emergency CO2 system. A built-in display constantly shows the current CO2 level in ppm.

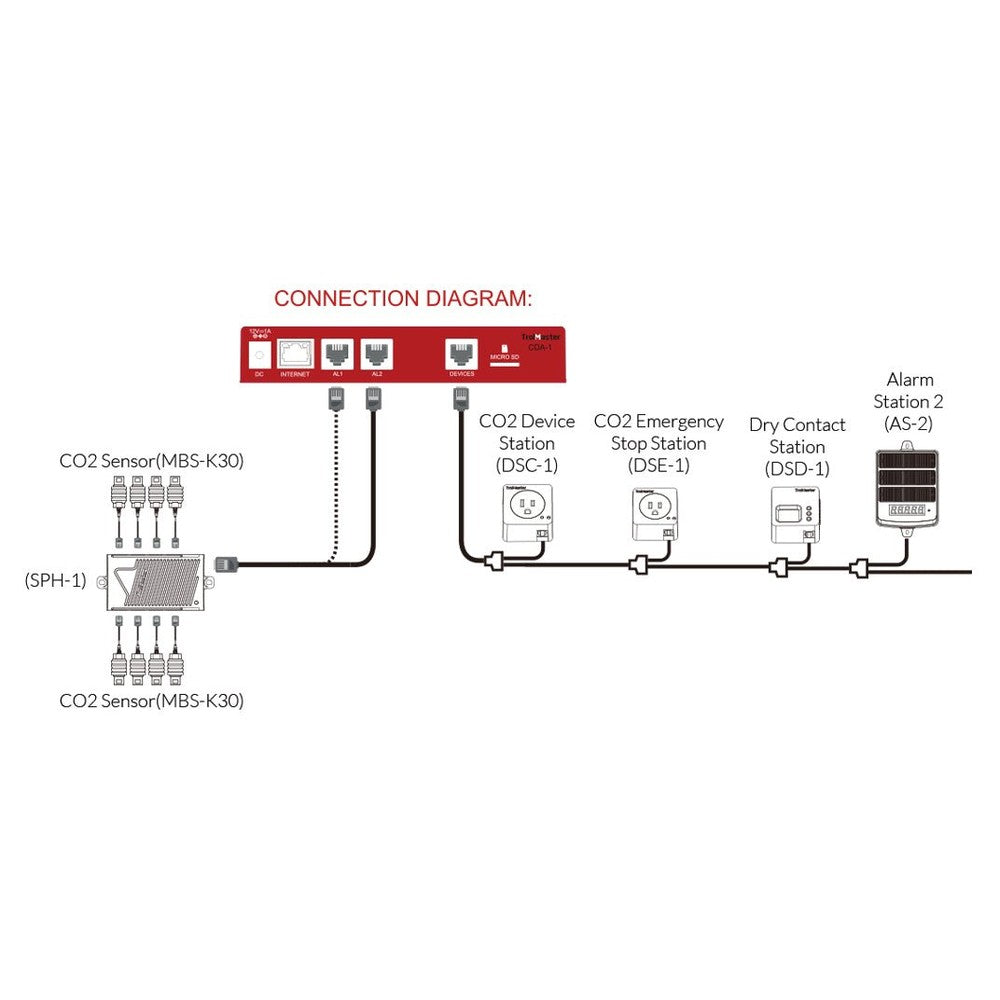

Each zone or room monitored by the Carbon-X can have 1 or 2 MBS-K30 sensors installed to satisfy local code requirements. The sensor is plug and play with the included RJ12 cable and splitter. The MBS-K30 requires the SPH-1 splitter hub for supplemental power.

Available Options

• Model: MBS-K30
• Includes: MBS-K30 sensor, 16ft RJ12 cable, T-shape splitter
• Compatible controllers: Carbon-X (CDA-1)

Key Features

• NDIR sensor with 0-30,000 ppm range
• Self-aspirated enclosure
• Built-in display of current CO2 ppm
• 1 or 2 sensors per zone or room
• Input voltage: 14V; maximum current 0.04A
• Working temperature: 32 to 122 deg F; working humidity under 90%
• Requires SPH-1 for supplemental power

Ideal Applications

• Carbon-X emergency CO2 safety systems
• Rooms where local code requires CO2 monitoring
• Commercial facilities using bulk or supplemental CO2
