300L 304SS Jacketed Collection and Storage Vessel with Locking Casters

SKU: 300LR

$5,000.00
Quantity:

300L 304SS Jacketed Collection and Storage Vessel with Locking Casters

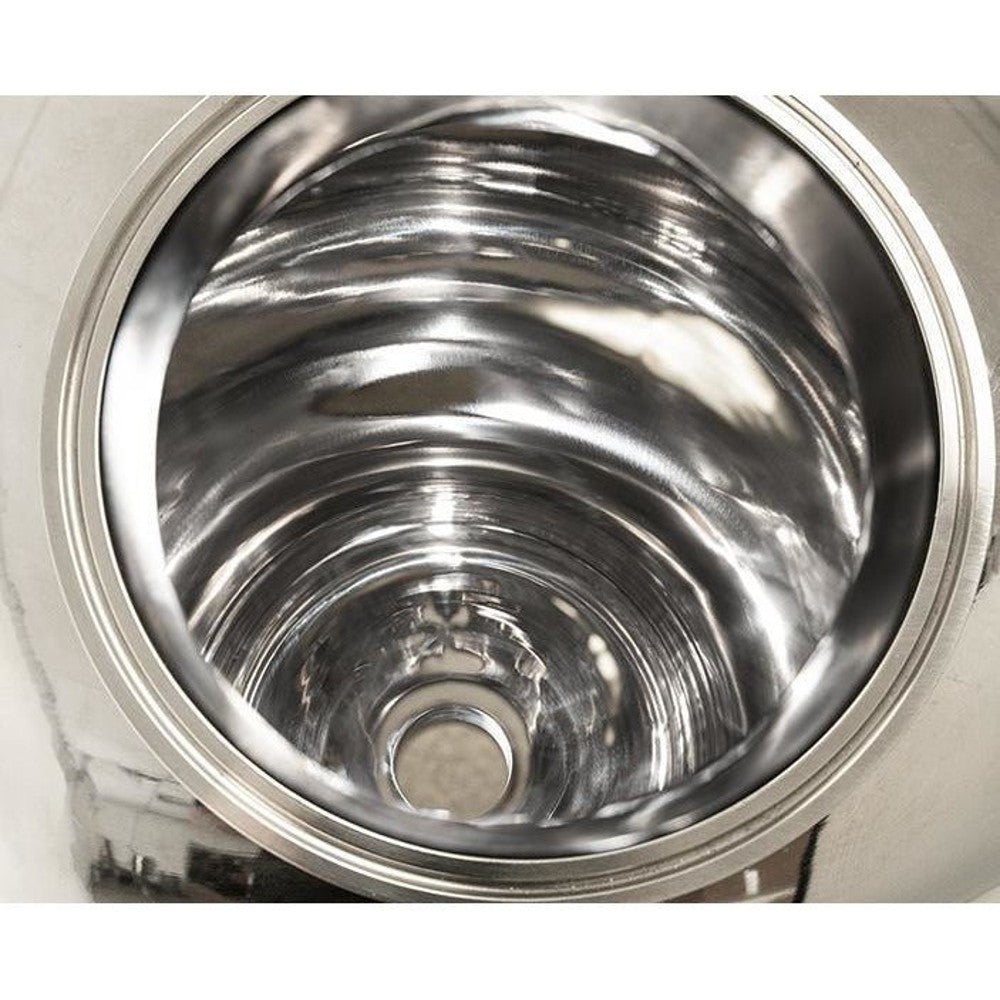

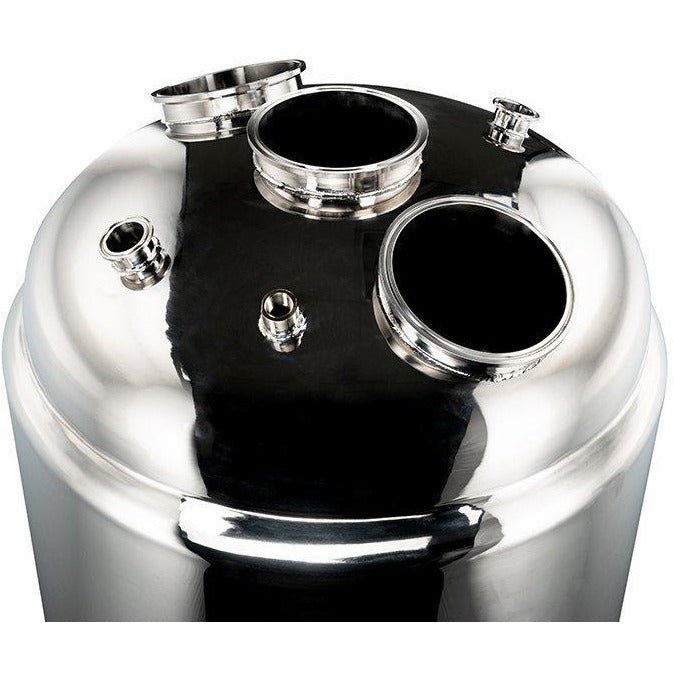

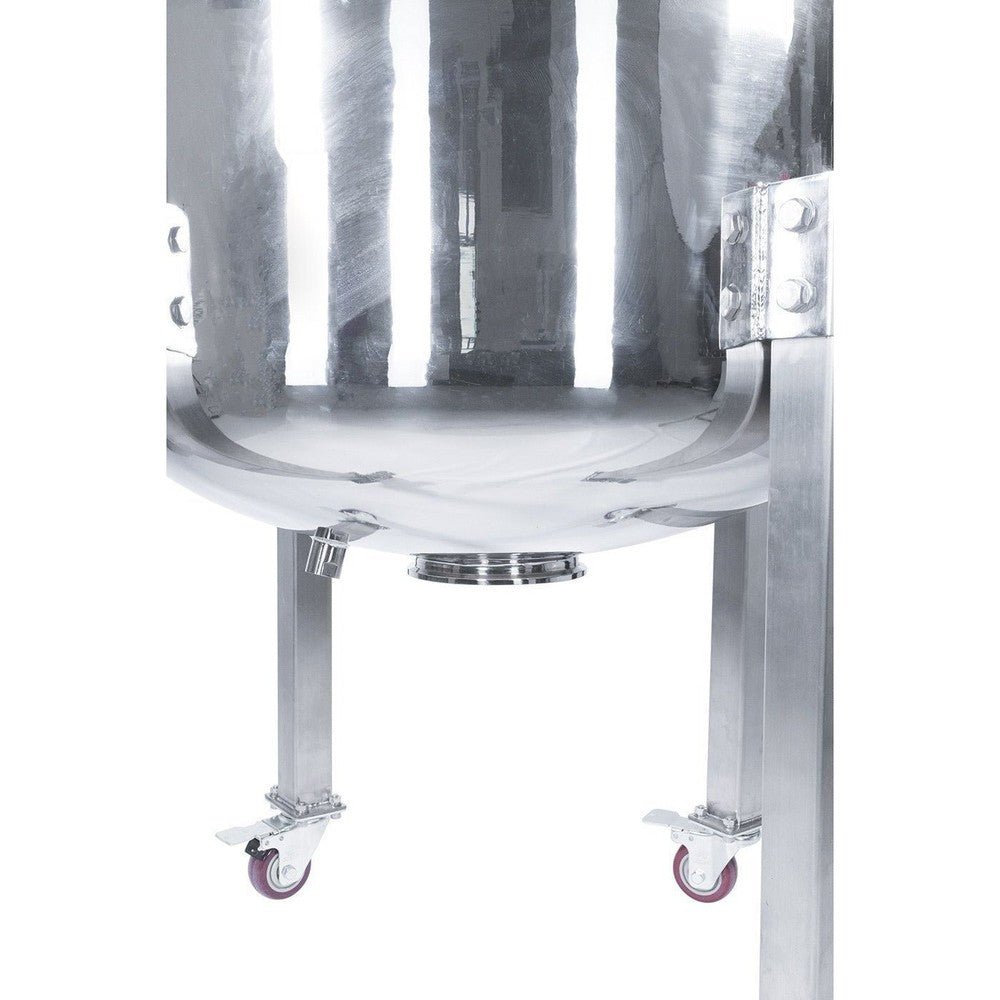

This massive 304 Stainless Steel Jacketed vessel can hold up to 300L of water (~80 gallons) and has a (3) 6" Tri-Clamp, (2) 1.5" Tri-Clamp/ Tri Clover and (1) 1/2" FNPT port on the top and a 6" Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2" FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 43L or 11.5 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily. (Note: this unit comes bare and does not include any fittings besides the legs with casters.)
































Specifications
Material 304 Stainless Steel
Pressure Rating 100 PSI MAX
Connection Type(s): (3) 6" Tri-Clamp Top Ports
(2) 1.5" Tri-Clamp Top Ports
(1) 6" Tri-Clamp Bottom Port
(2) 1/2" FNPT Outer Jacket Ports
(1) 1/2" FNPT Top Port


***Note: This item will ship via freight ONLY.
