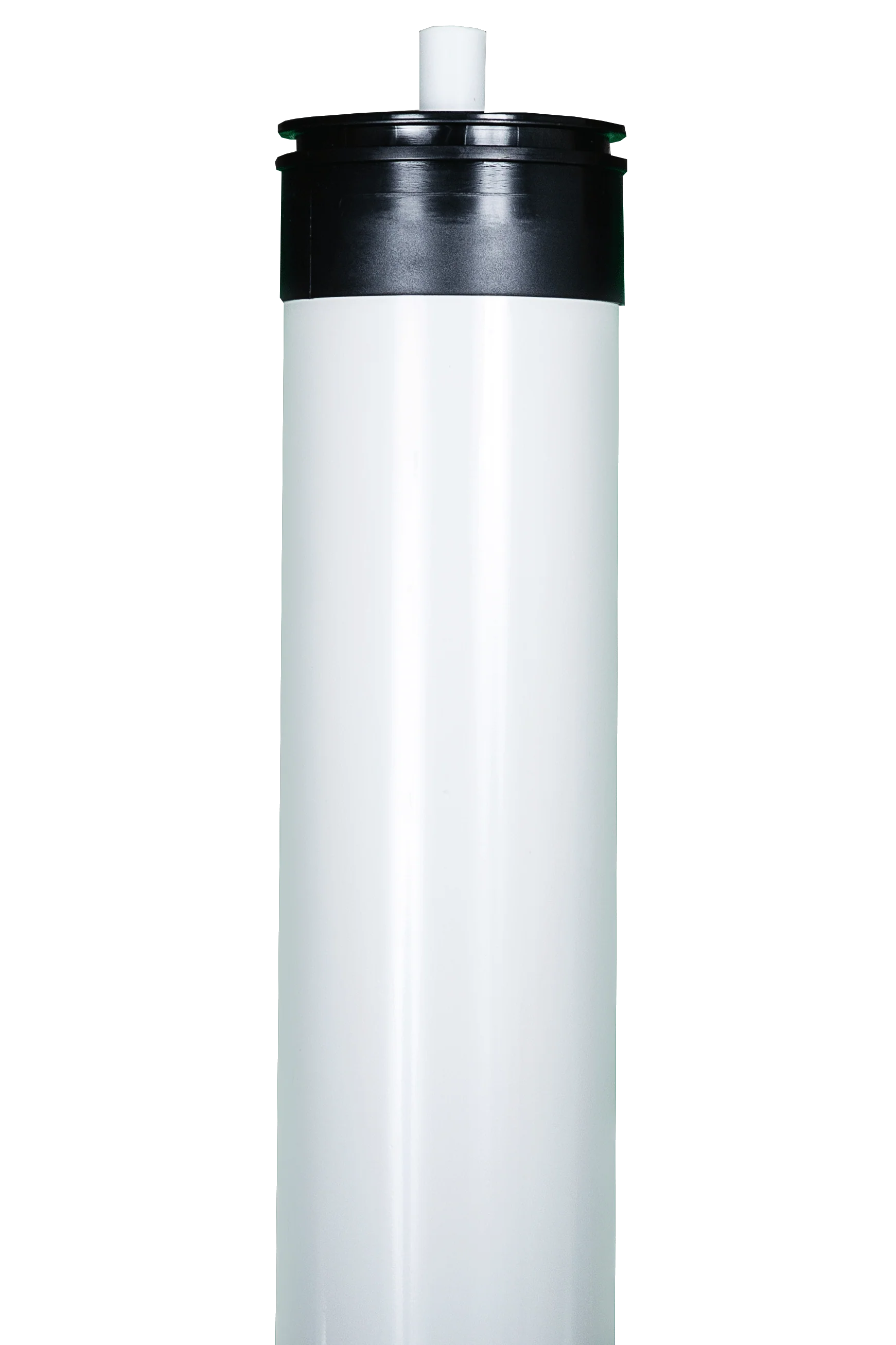

AXEON - 200394 - Membrane | HF5 | 4040 | Dry

Brand: Axeon

AXEON - 200394 - Membrane | HF5 | 4040 | Dry

AXEON HF5-Series RO membrane elements use advanced thin-film technology to deliver ultra-low energy operation at just 80 psi - the lowest operating pressure in the industry. The HF5-4040 maintains high rejection rates and steady production even in cold water conditions.

Used in commercial and industrial RO systems for drinking water, process water, humidification, and irrigation pretreatment, especially where feed water is cold or energy costs are a priority.

Available Options

• Element Size: 4 inch x 40 inch
• Permeate Flow: 2,500 GPD
• Applied Pressure: 80 psi
• Nominal Salt Rejection: 98.50%
• Maximum Feed Flow: 14 GPM
• Exterior: Tape-Wound
• Shipping State: Dry

Key Features

• Polyamide thin-film composite membrane
• Ultra-low 80 psi operating pressure - lowest in industry
• Tape-wound exterior
• 100% vacuum integrity tested
• Optional individual wet testing available
• Maximum operating pressure 400 psi
• Maximum operating temperature 113 F
• pH range 2-11 continuous, 1-13 short term cleaning
• Chlorine and chloramine tolerance: 0 ppm
• Maximum feed SDI: 5

Why Choose AXEON HF5-4040 RO Membrane Element, Dry

The HF5-4040 sets the benchmark for low-energy RO at 80 psi while preserving rejection and flow even in cold feed water. Shipped dry for indefinite shelf life and lighter handling.

Ideal Applications

• Energy-conscious commercial RO
• Cold feed water installations
• Industrial process water
• Humidification systems
• Irrigation and greenhouse pretreatment
