Faven R6 + R8 Under Canopy Lights

Cords and accessories are sold separately.

Faven R Series Under Canopy Lights

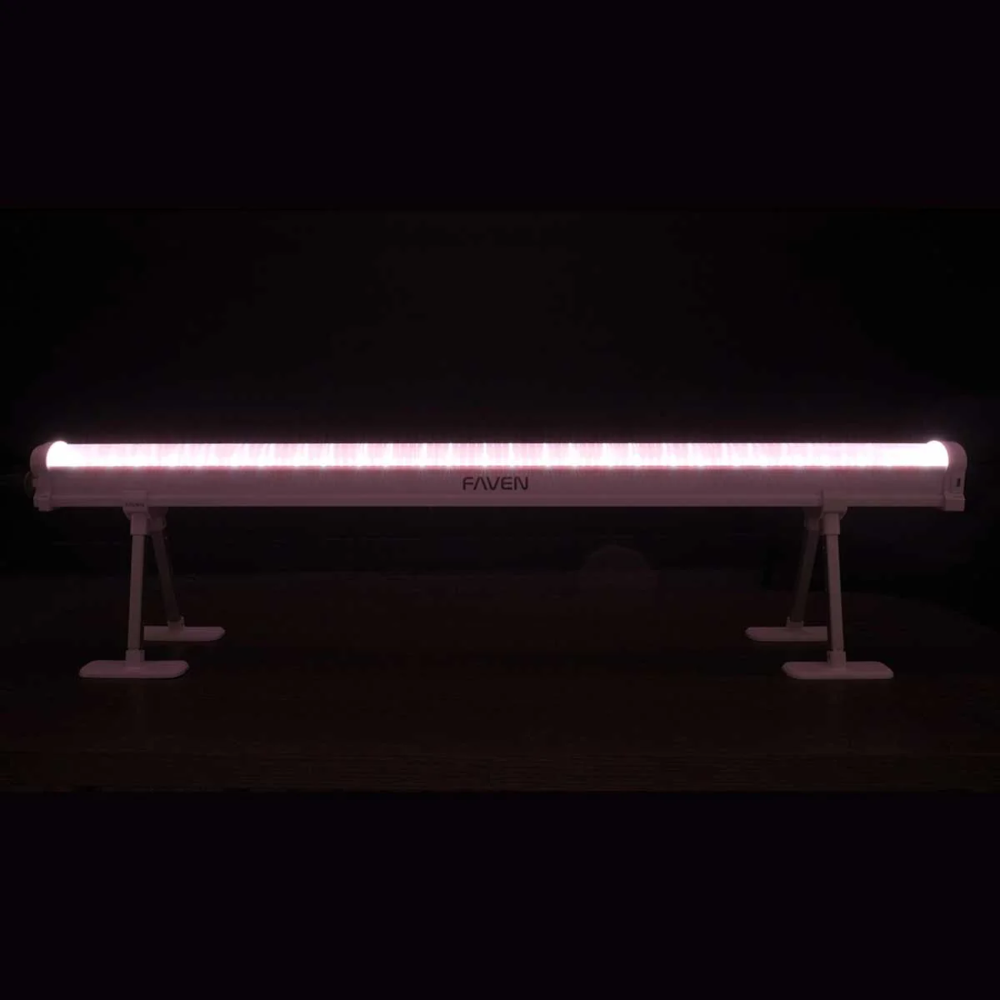

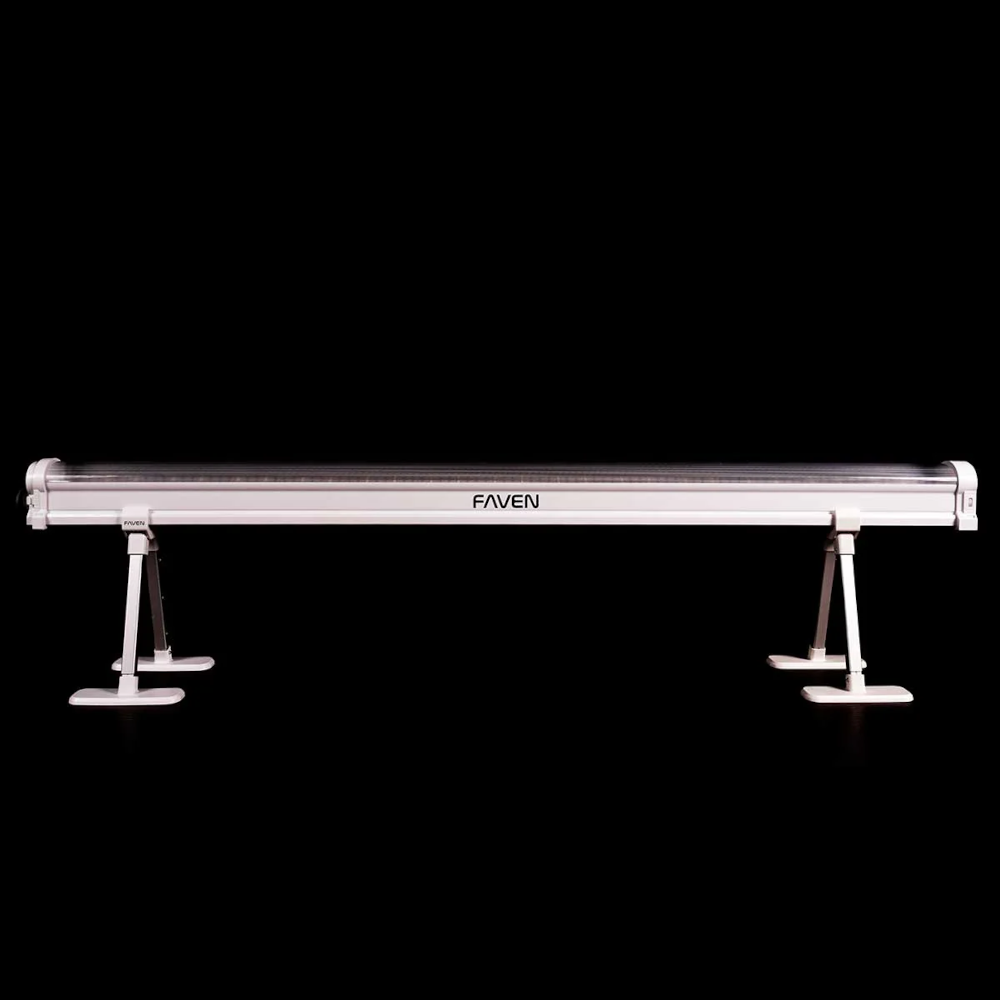

The Faven R Series is a 120 W dimmable under canopy LED bar that lights the lower canopy to increase usable canopy depth. The R6 and R8 share the same fixture, power cords and accessories. The difference is the spectrum.

R6 vs R8

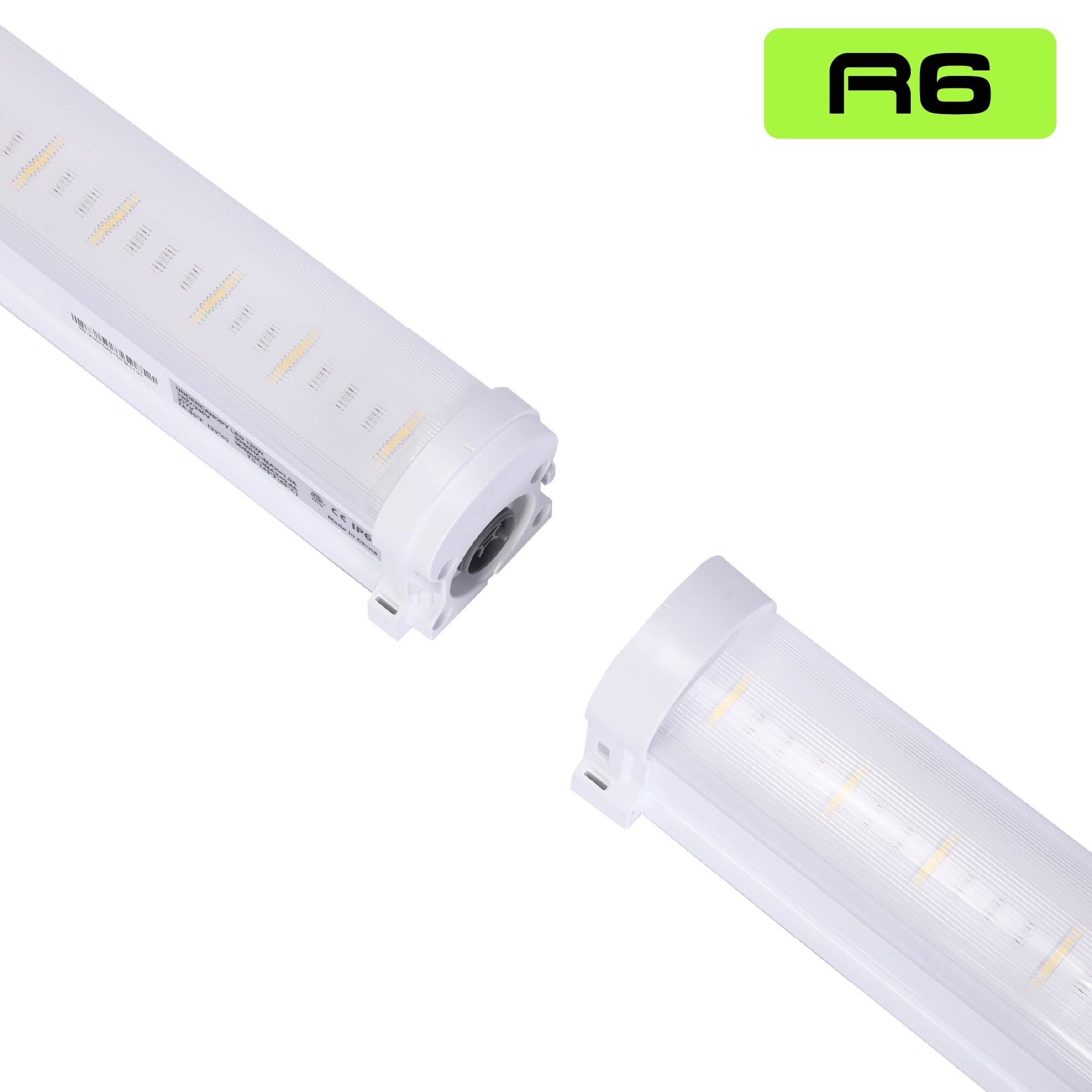

	R6 - 60% Red Spectrum	R8 - 80% Red Spectrum
Spectrum	60% red	80% red
Efficacy (PPE)	Up to 2.9 umol/J	Up to 3.28 umol/J
Output (PPF)	Up to 359 umol/s	Up to 399 umol/s
Best for	A value option for adding under canopy lighting	Improving color uniformity and maximizing performance. Faven's best-selling model, ideal for LED and greenhouse applications
Voltage	120-277 V	120-277 V standard, 480 V version available on request

Why Faven Under Canopy Lighting

Over 85% of Faven customers have reported a return on investment in one harvest
Yield increases of 20%-40% on average; typically a 20% yield increase pays for the lights
Increases usable canopy depth
More uniform color, shape and density through the canopy
Fewer small, lower-value products
Less under-clearing, plant labor and post-production labor
Qualifies for electrical rebates

Specifications (R6 and R8)

Input power: 120 W LED, dimmable 40%-100% and off
Input current: 1.0 A at 120 V, 0.5 A at 240 V, 0.43 A at 277 V, 0.25 A at 480 V (R8 480 V version)
Maximum fixtures per daisy chain: 9 at 120 V, 17 at 240 V, 20 at 277 V, 35 at 480 V
Frequency: 50/60 Hz
Dimensions: 45.6" L x 2.9" W x 3.3" H (115.7 x 7.5 x 8.5 cm)
Weight: 5.72 lb (2.6 kg)
IP66 rated, internal driver, passive thermal management
Light distribution: 120 degrees
Maximum operating temperature: 95 F (35 C)
Rated lifetime: more than 50,000 hours
5 year warranty
ETL, DLC, CE and FCC certified

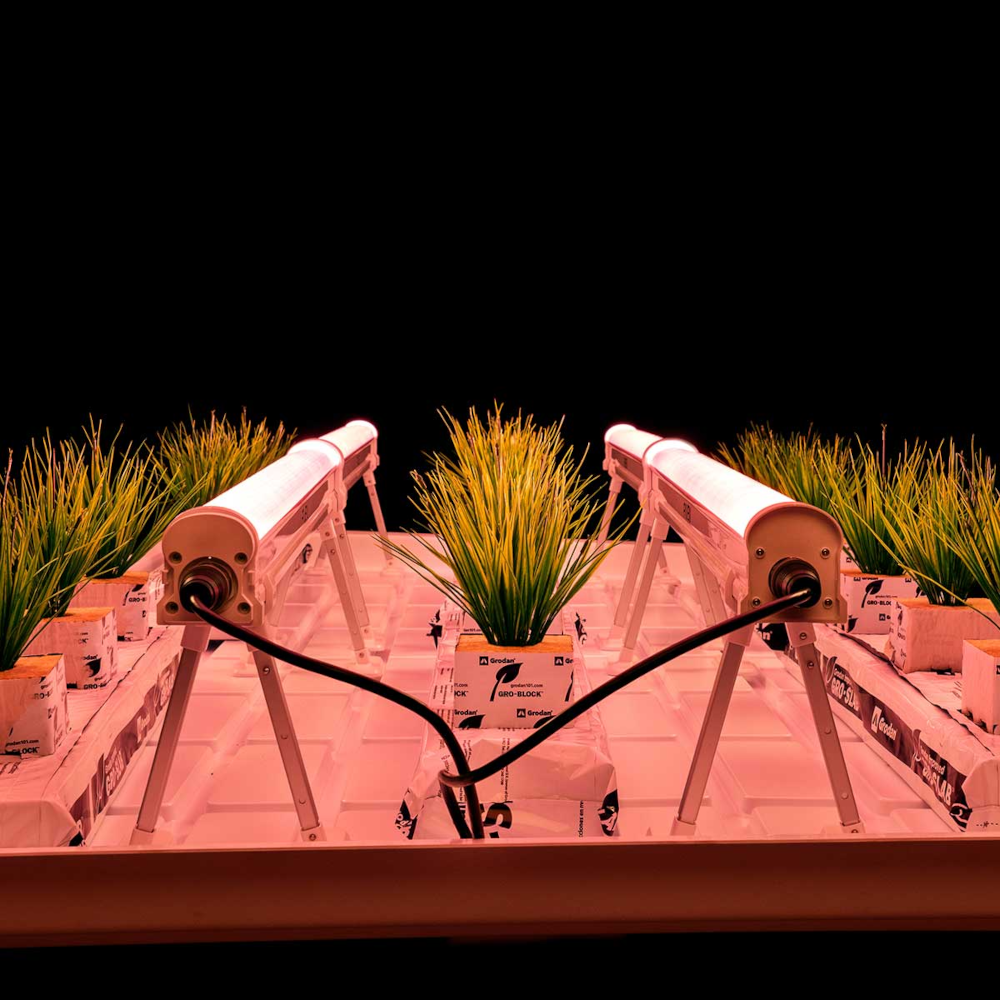

Layout Options

Lengthwise: fixtures run parallel with the bench length. The popular choice for first-time users and suitable for most facilities.
Widthwise: fixtures run across the bench width, for improved access to the plants and improved canopy coverage.

Each run is fed by a power cord, and jumper cables connect adjacent rows.

What You Need (Sold Separately)

Faven Power Cord 1.0 Bundles: 120 V, 240 V or 277 V in 10' lengths, plus 240 V and 277 V in 20' lengths
Faven Jumper Cables in 6", 3', 9' and 20' lengths
Faven Adjustable Stand with Metal Clip (8", 10" or 12", sold in pairs) and under canopy accessories
A controller: the Faven Mini Controller for 0-10 V dimming, or the CX3 Controller for two-channel dimming and scheduling

Faven - R6 + R8 Under Canopy Lights

Brand: Faven
