Table Top Cart Filler XL 6 Liter & Heater Kit

SKU: BDNGO-XL-MP7H

$3,900.00
Quantity:

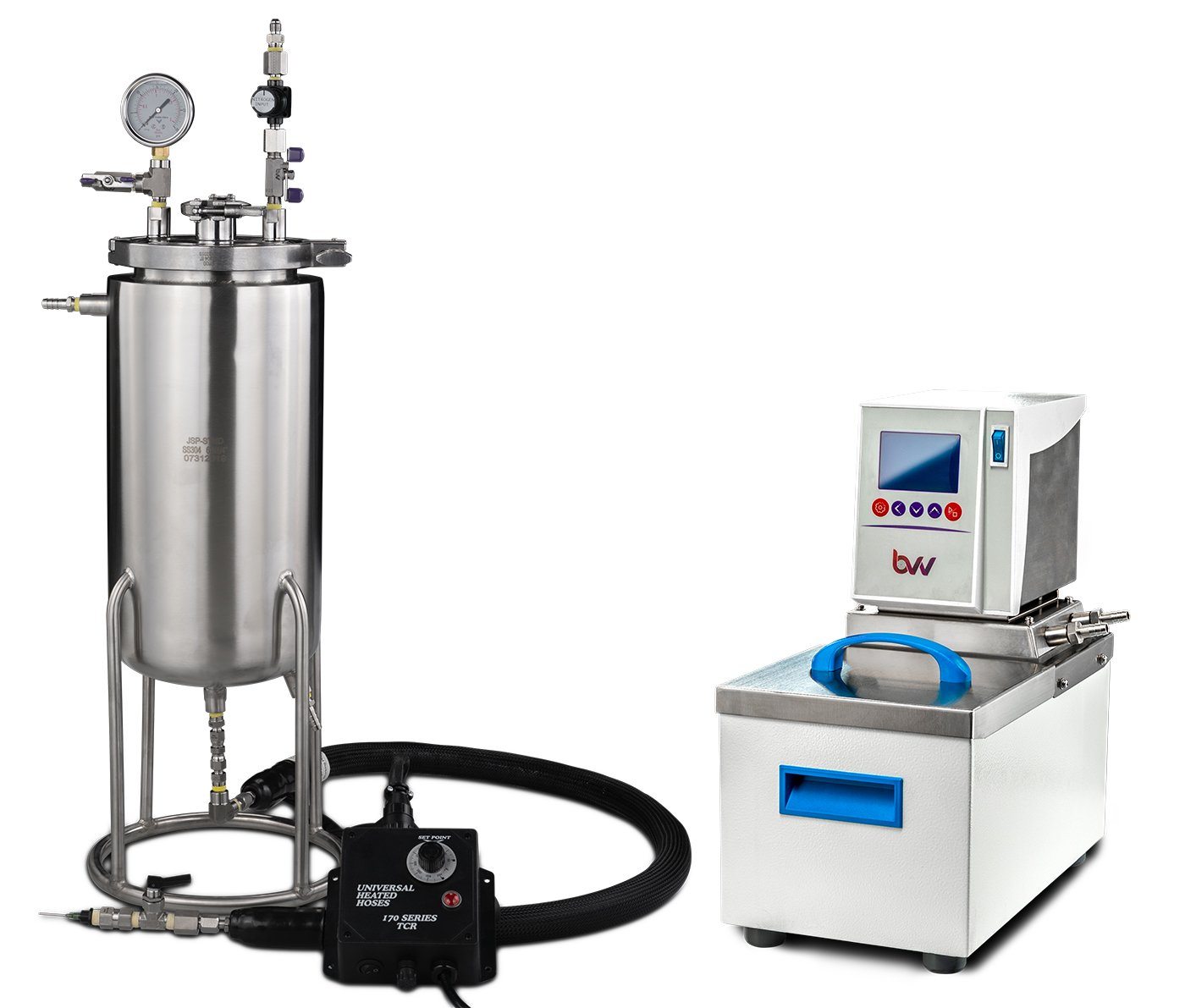

Table Top Cart Filler XL 6 Liter & Heater Kit

Fill 6000 1ml Carts per Load

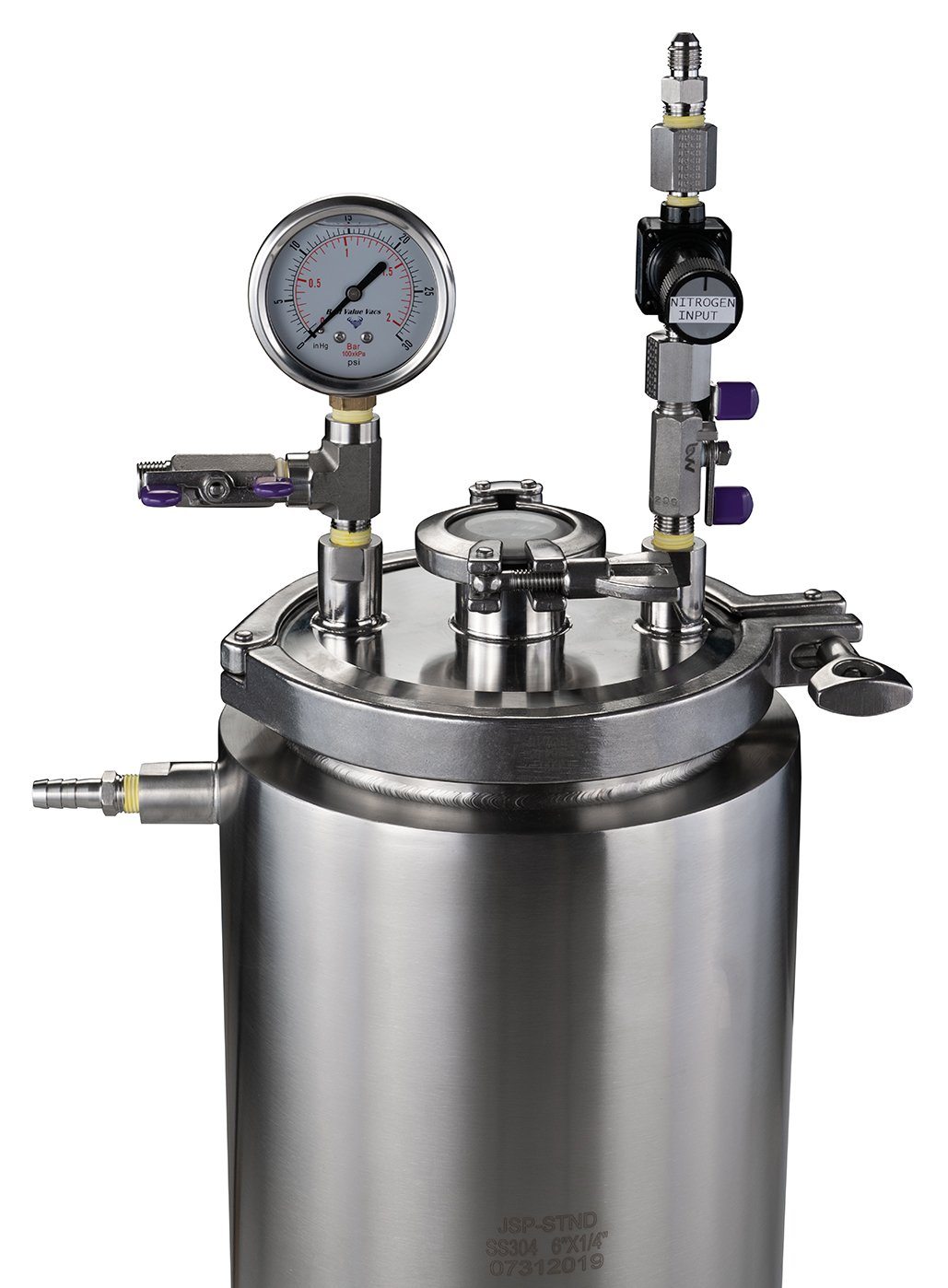

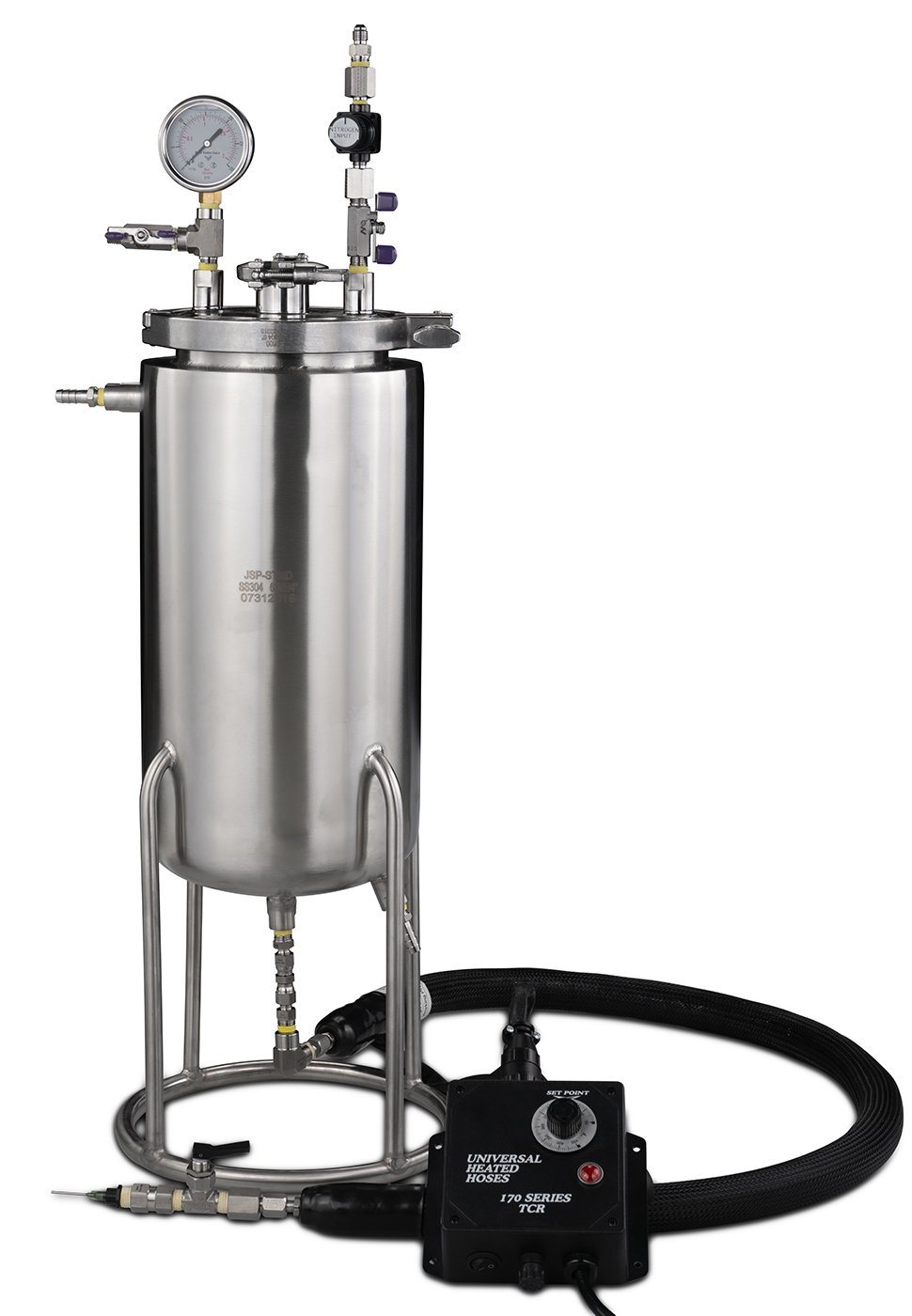

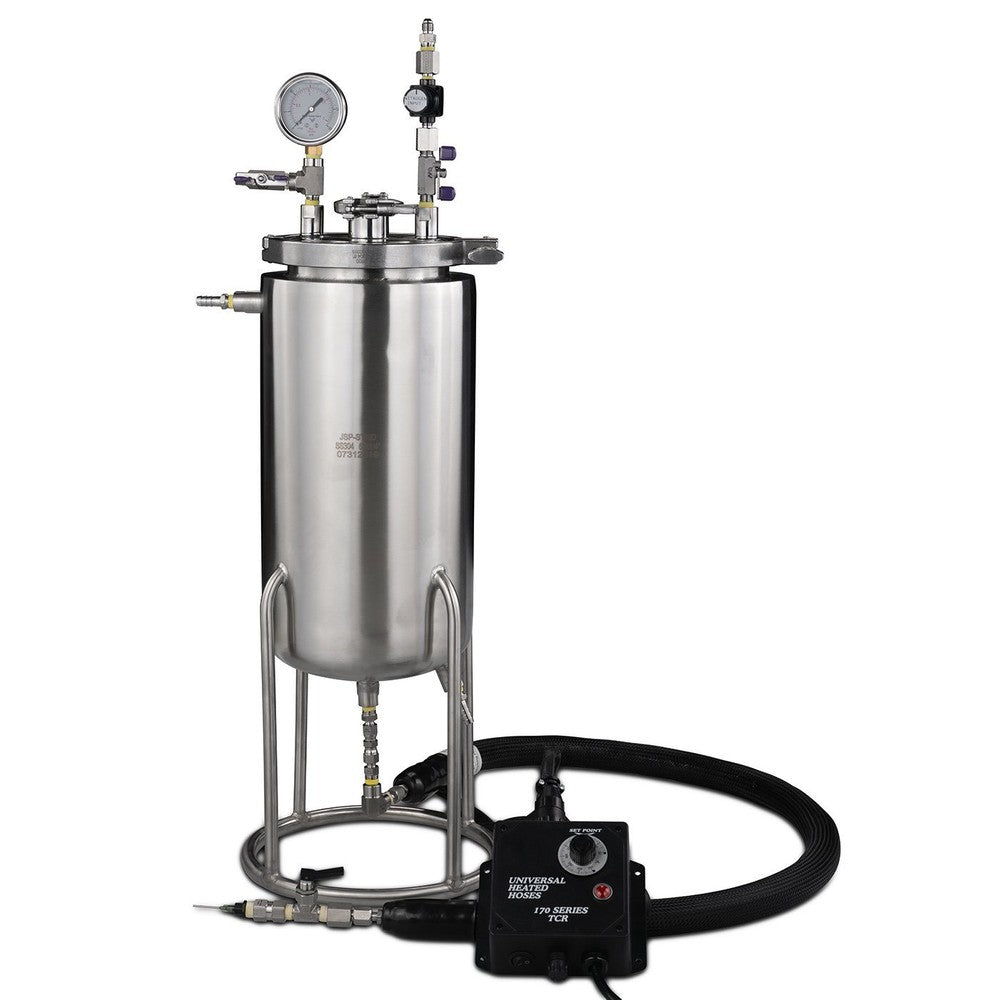

This 6 Liter capacity Giant is made to fill.  Fully jacketed 304SS with a design that allows the OIL inside to fully drain creating little to no loss.  The system is made of all parts that can be sterilized.  The body, valves and all connections are 304 Stainless Steel and the hosing is PTFE.

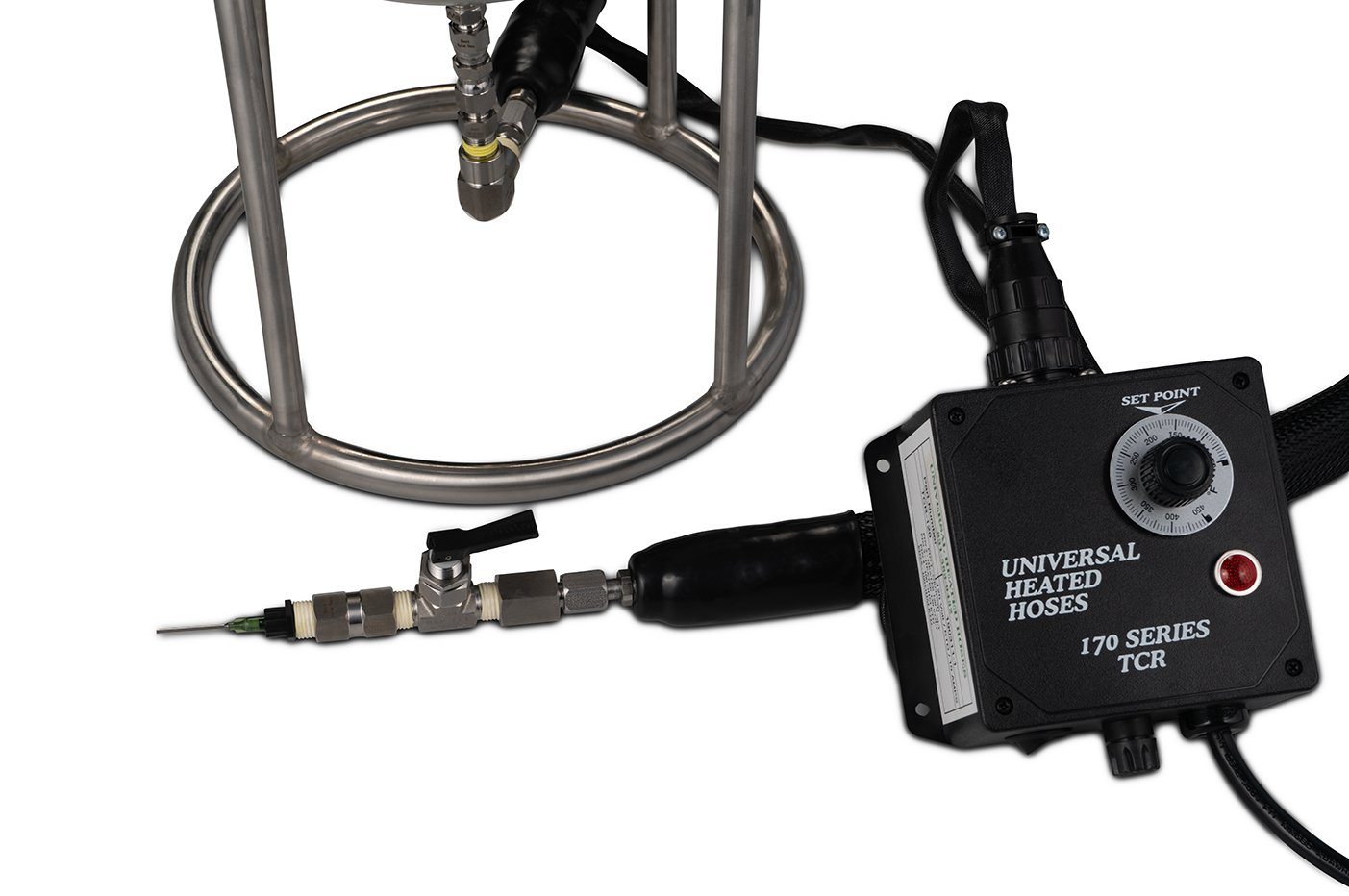

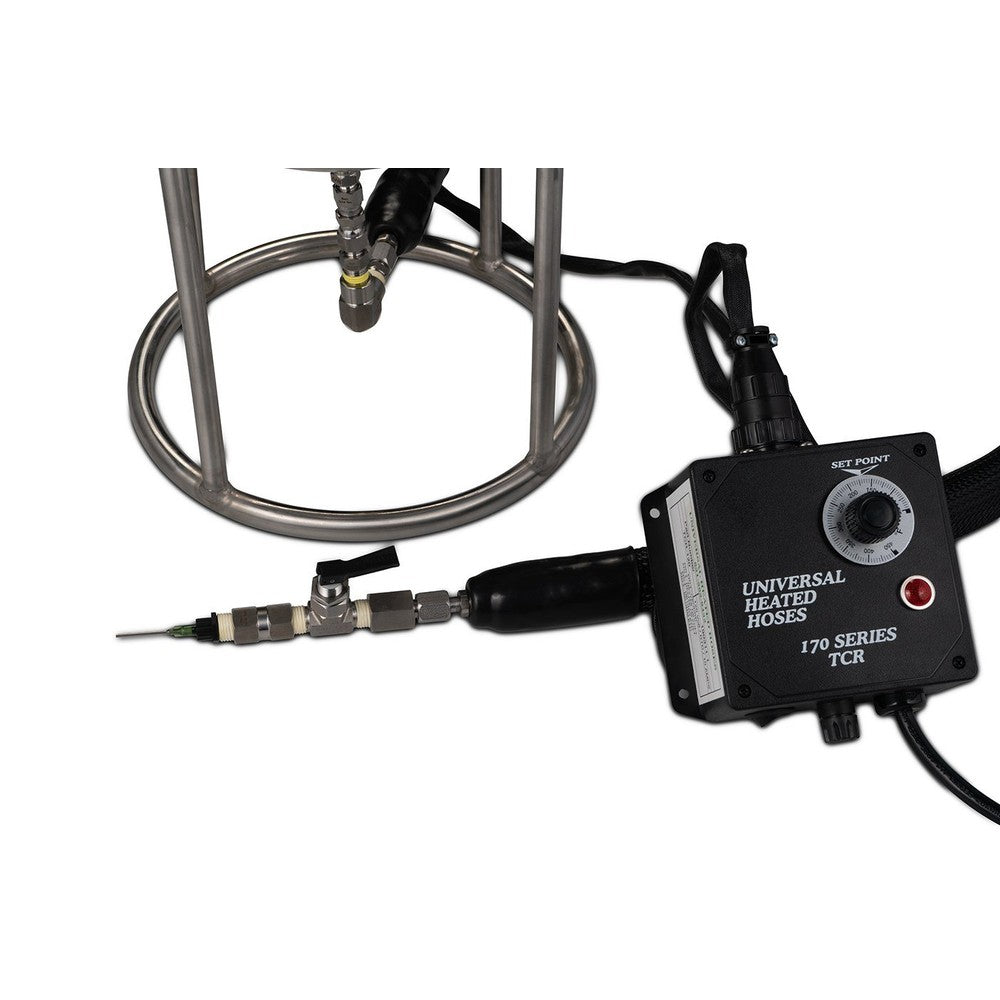

The body of the vessel is fully jacked and is recommended to be run with stand alone heater to pre-heat the oil.  The hose heated and insulated.  The hose temperature is controlled by an analog PID.  The hose and PID controller are precision made in the USA.  The hose uses Platinum Thermocouples for durability and accuracy, which means you wont run into down time or temperature errors.

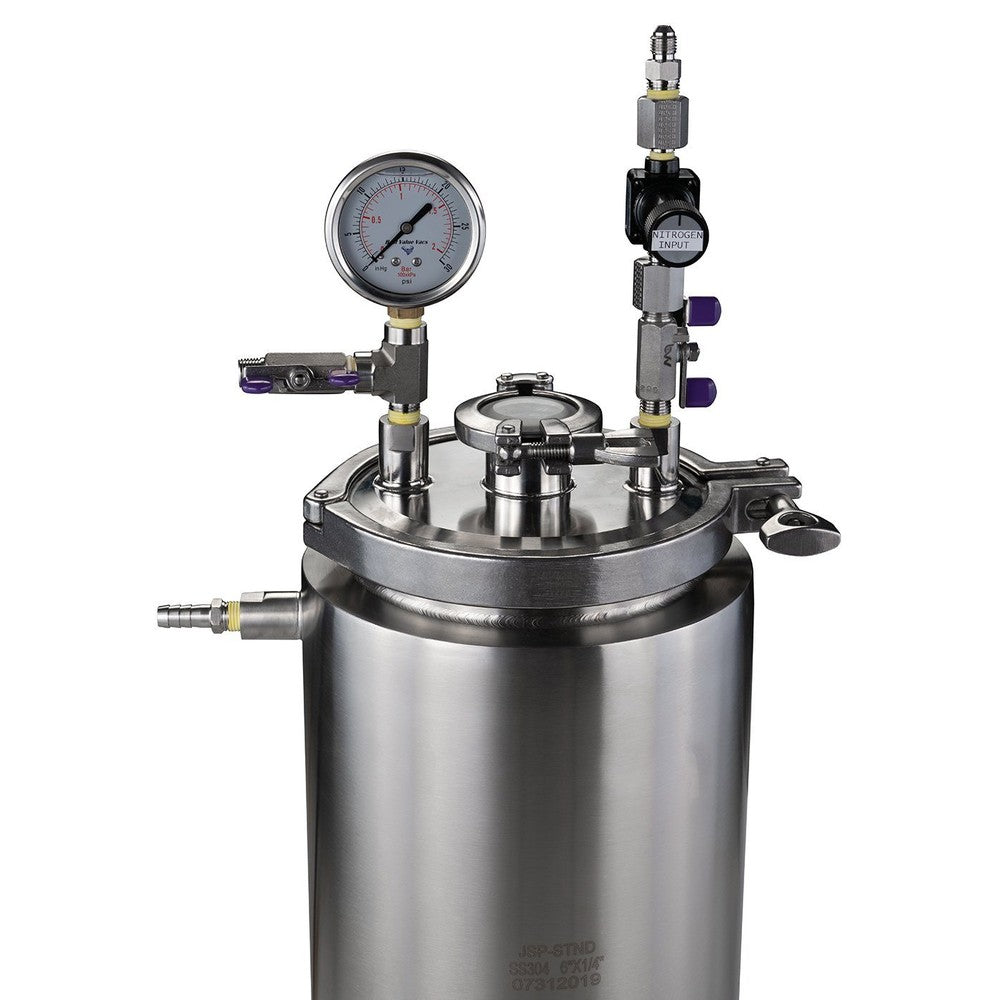

To use the system you will need Nitrogen to back pressure the oil in the tank.  The pressure is regulated by a low pressure regulator.  To dispense the end of the hose has a toggle valve that connects to a Lure Lock connection.

System Specs.

  • Nitrogen Input MAX Pressure: 150PSI
  • Regulator working pressure: 0.5-30PSI (*recommended pressure 10PSI)
  • Hose Temperature Rating: 50°F - 450°F
  • Controller Temperature Range: 50°F -450°

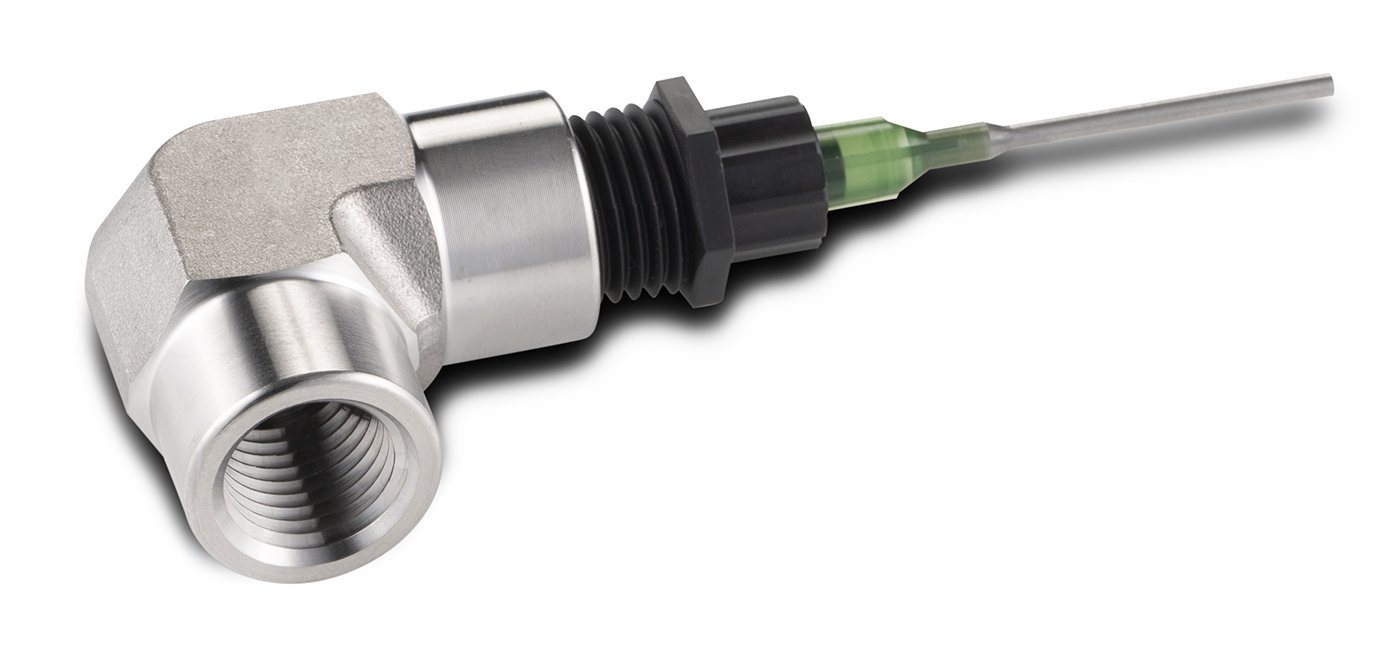

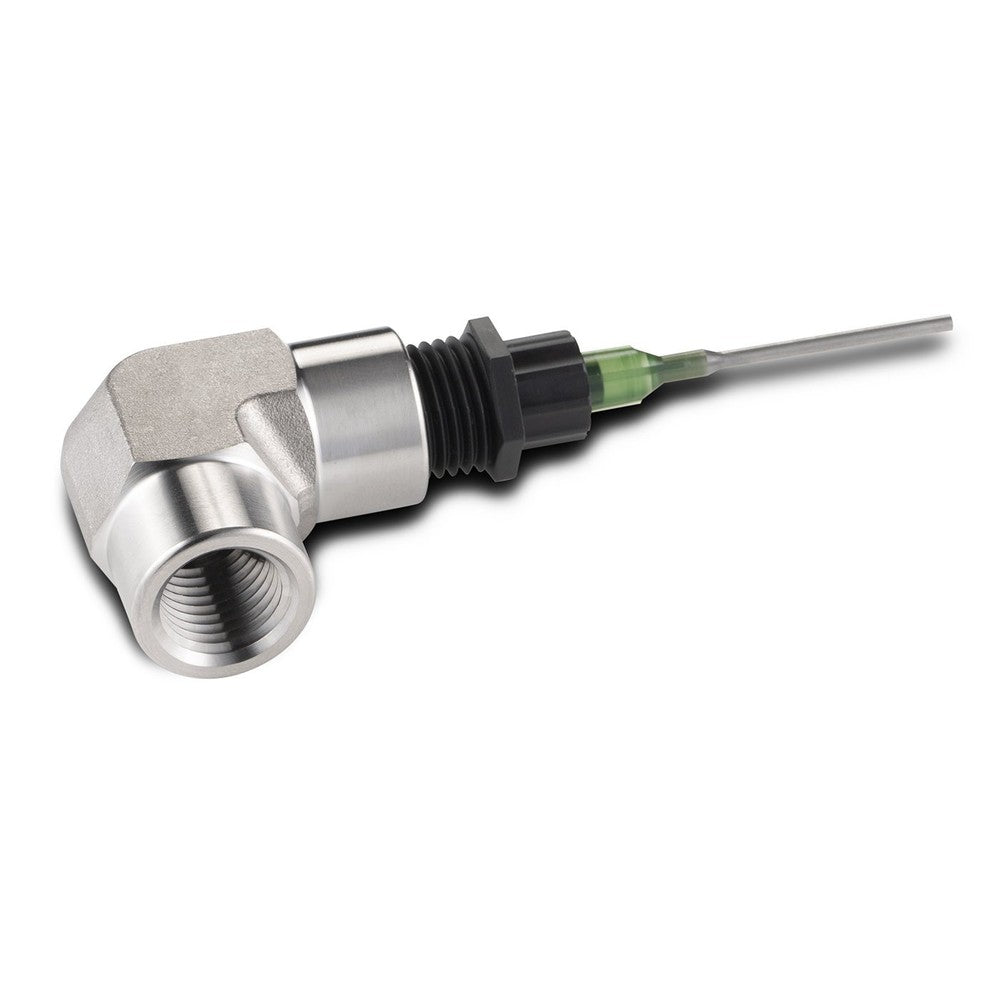

  • Includes Right Angle Attachment for added user flexibility.
  • Non-Metered Dispensing with toggle valve control.
  • Pressure gauge for pressure monitoring: 0-150PSI

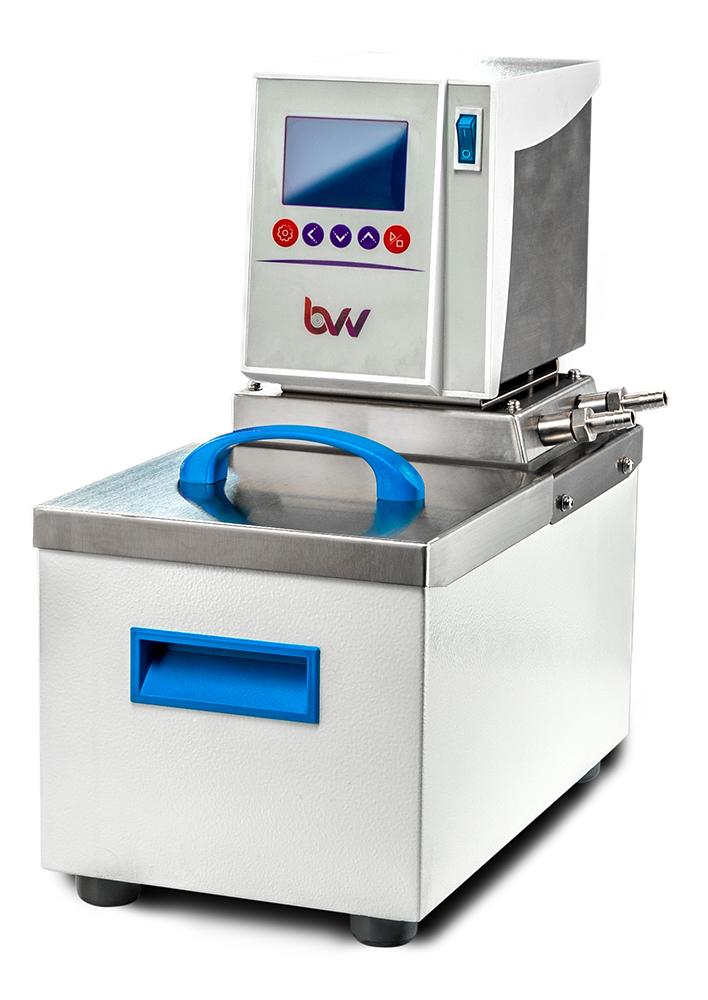

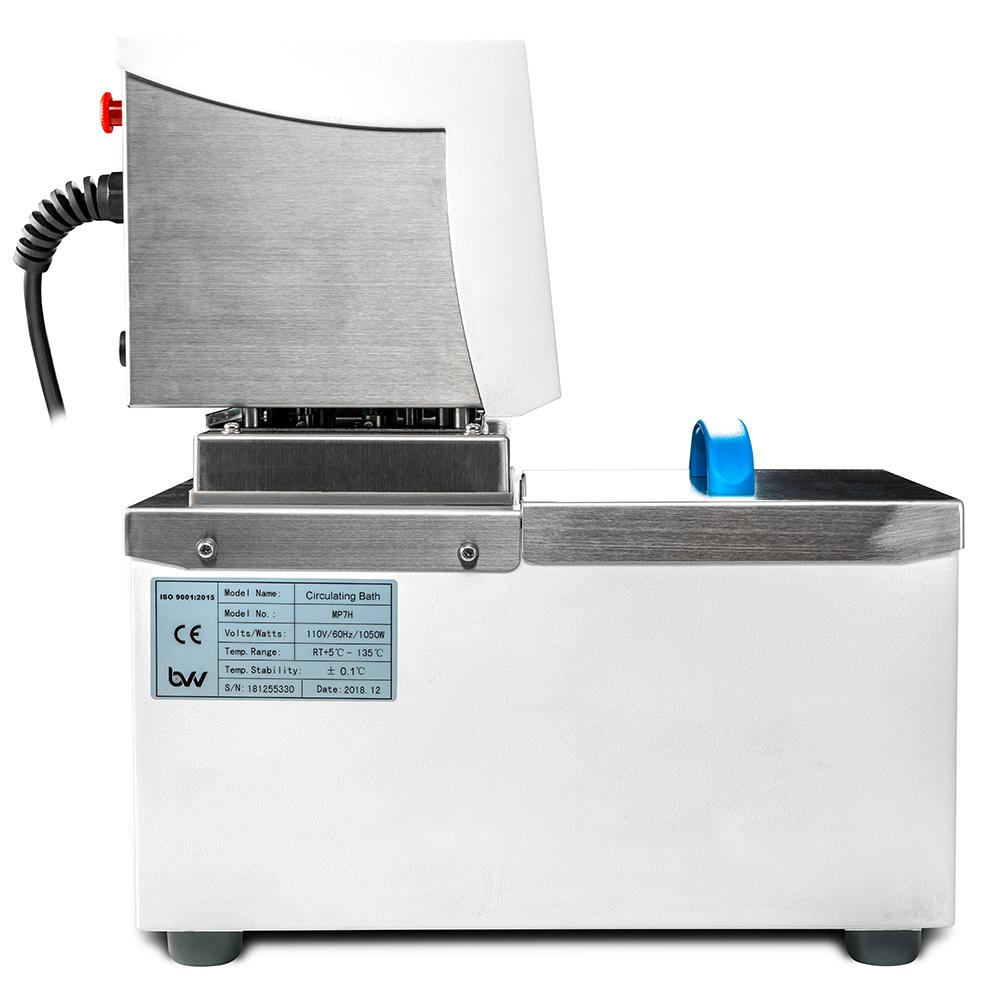

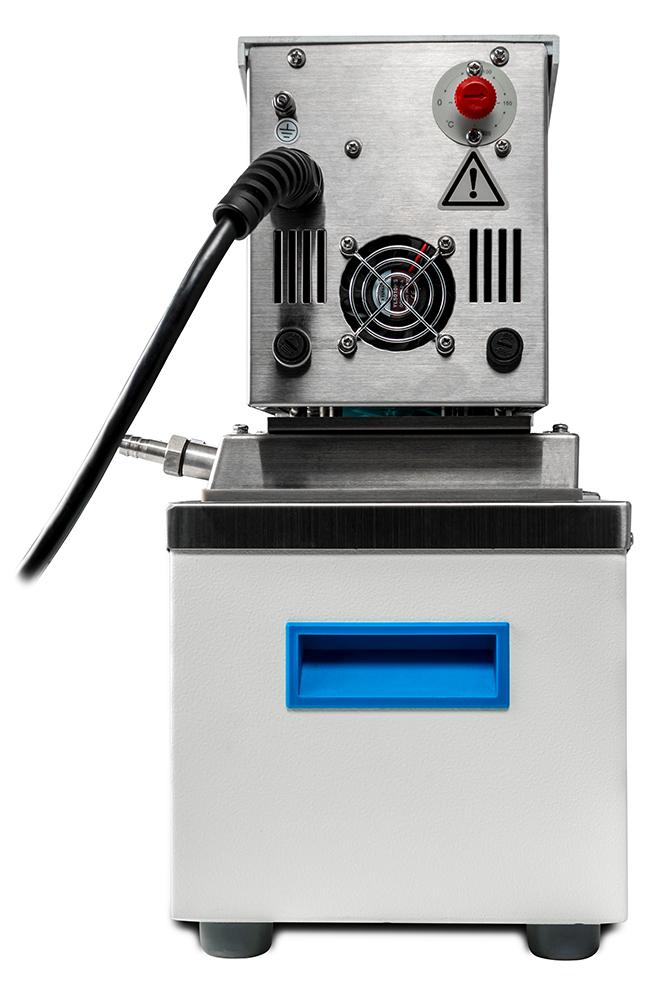

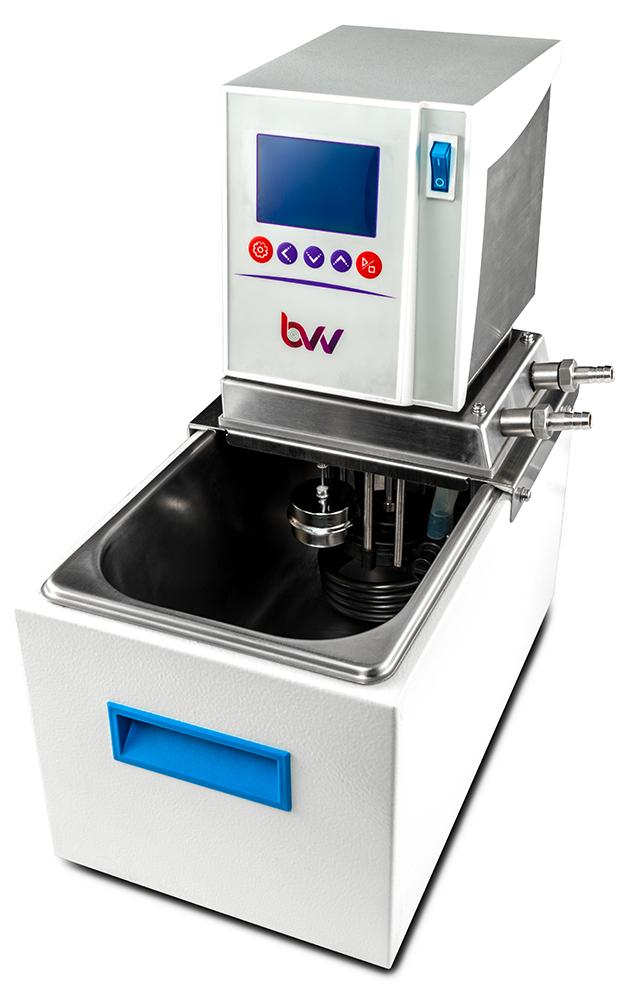

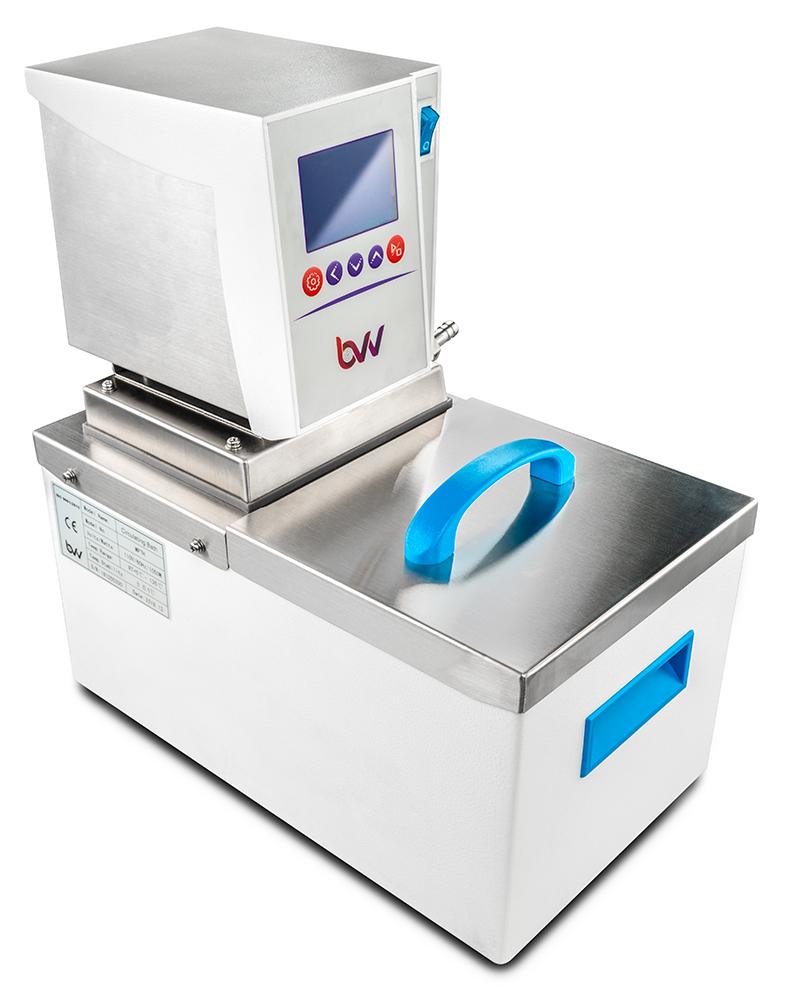

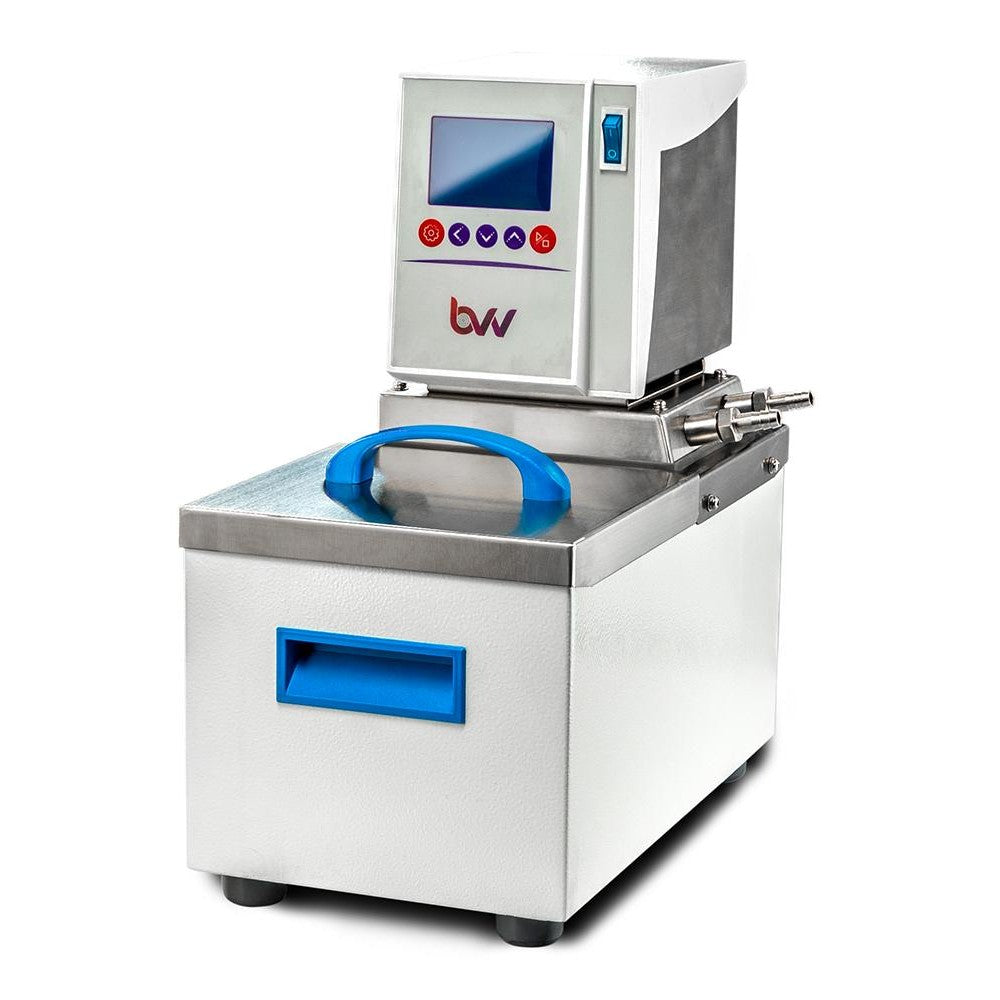

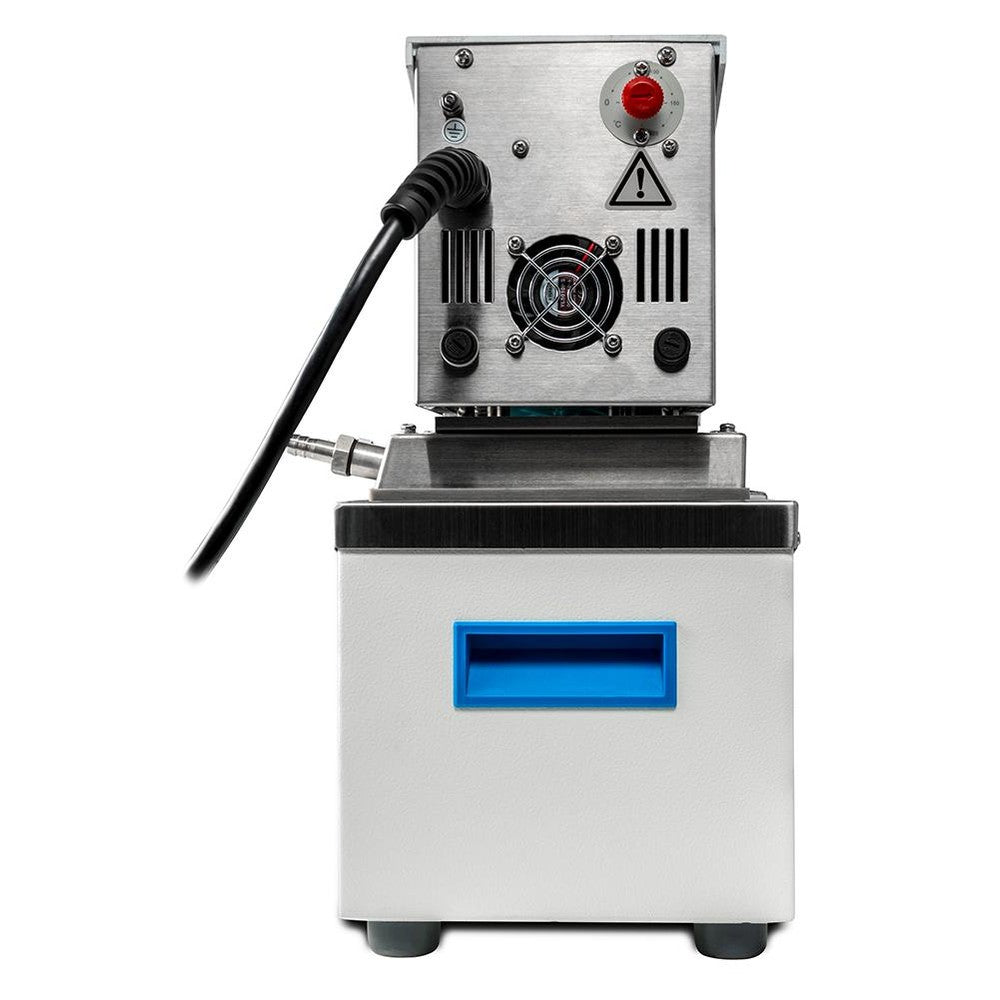

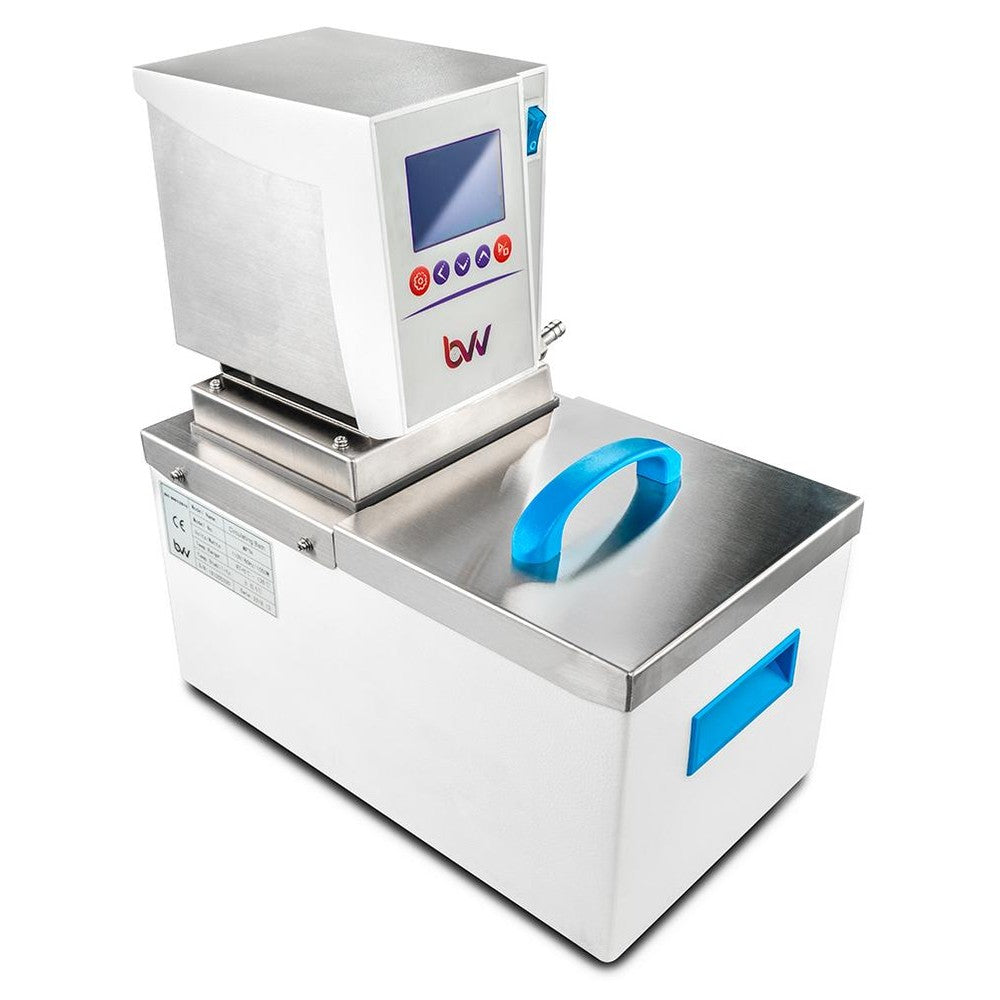

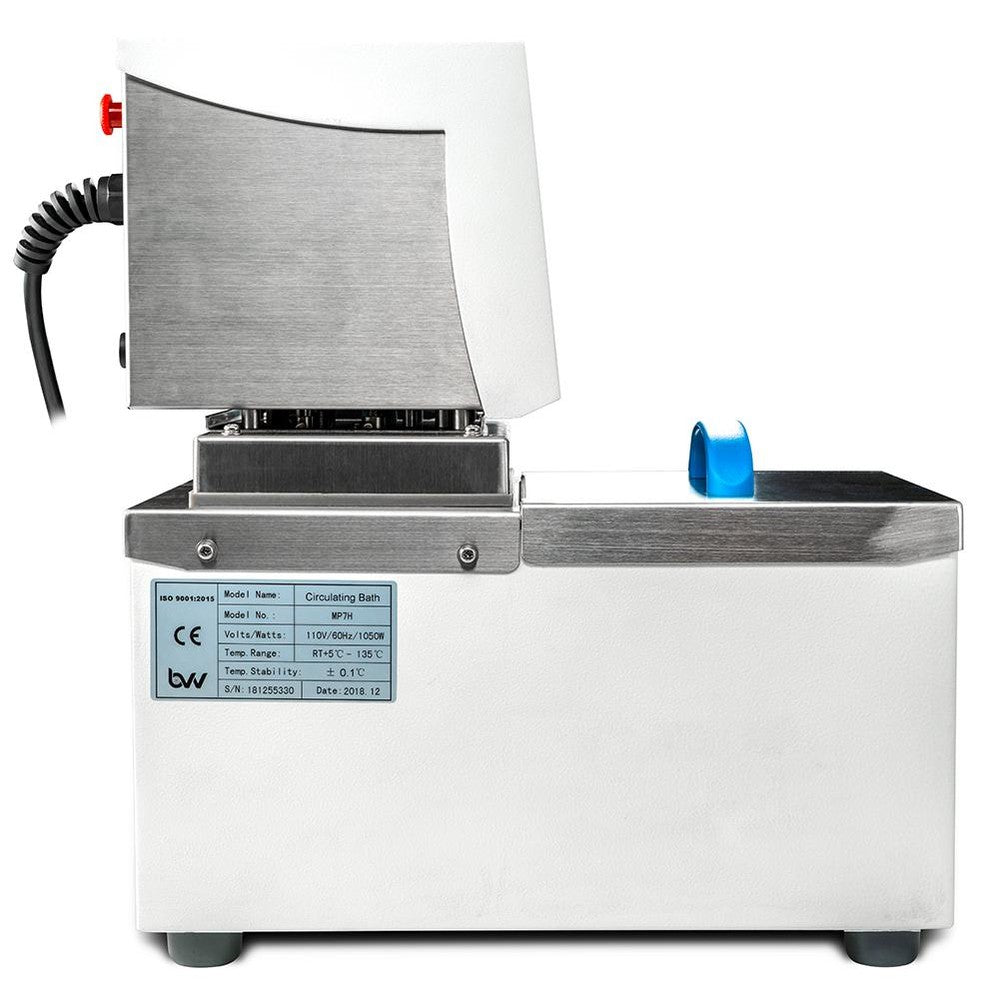

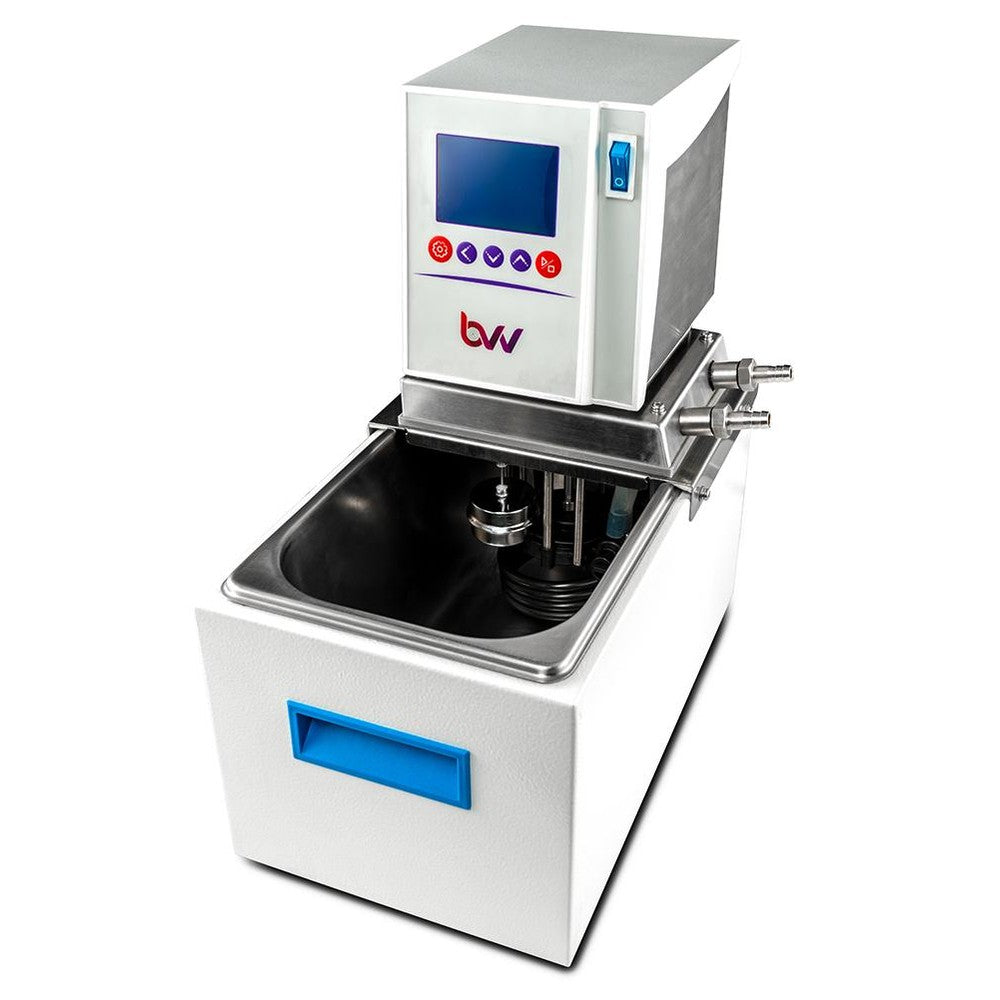

  • BVV™ 5 Liter Heated circulator 275°F Max Temperature

*Heater and 10Ft of hose is included in the kit.  Ready to Run!



Cleaning:

  • NOTE: Please Clean Prior to first use the system does not come sterilized.  A simple IPA wash down will be sufficient.

At any point the system can be cleaned using IPA or D-limonene.

  • Note: The heater should be operated with RO water to avoid scale buildup.  BVV™'s warranty does not protect heating coils that fail due to scale buildup.
