TrolMaster - Standard Controller Cabinet for Hydro-X Plus 25 in (SCC-3)

Brand: TrolMaster

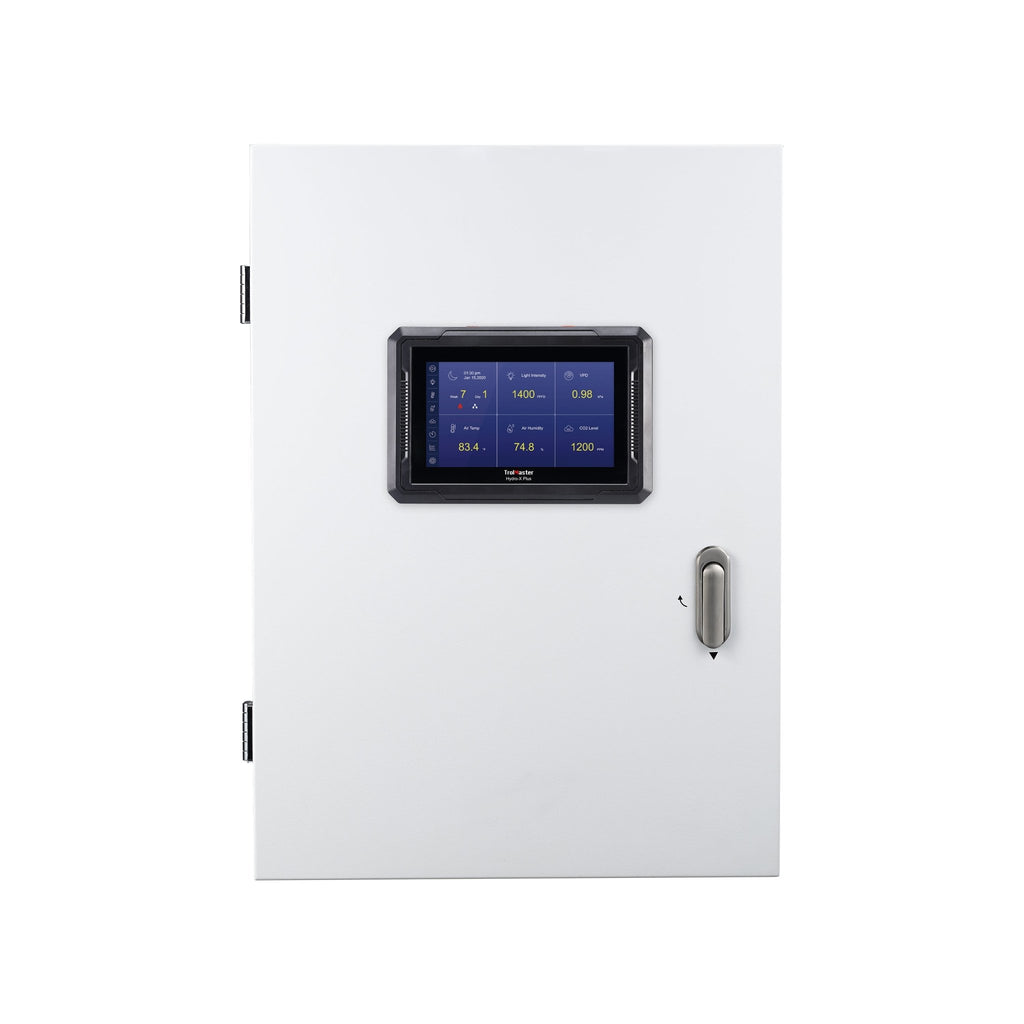

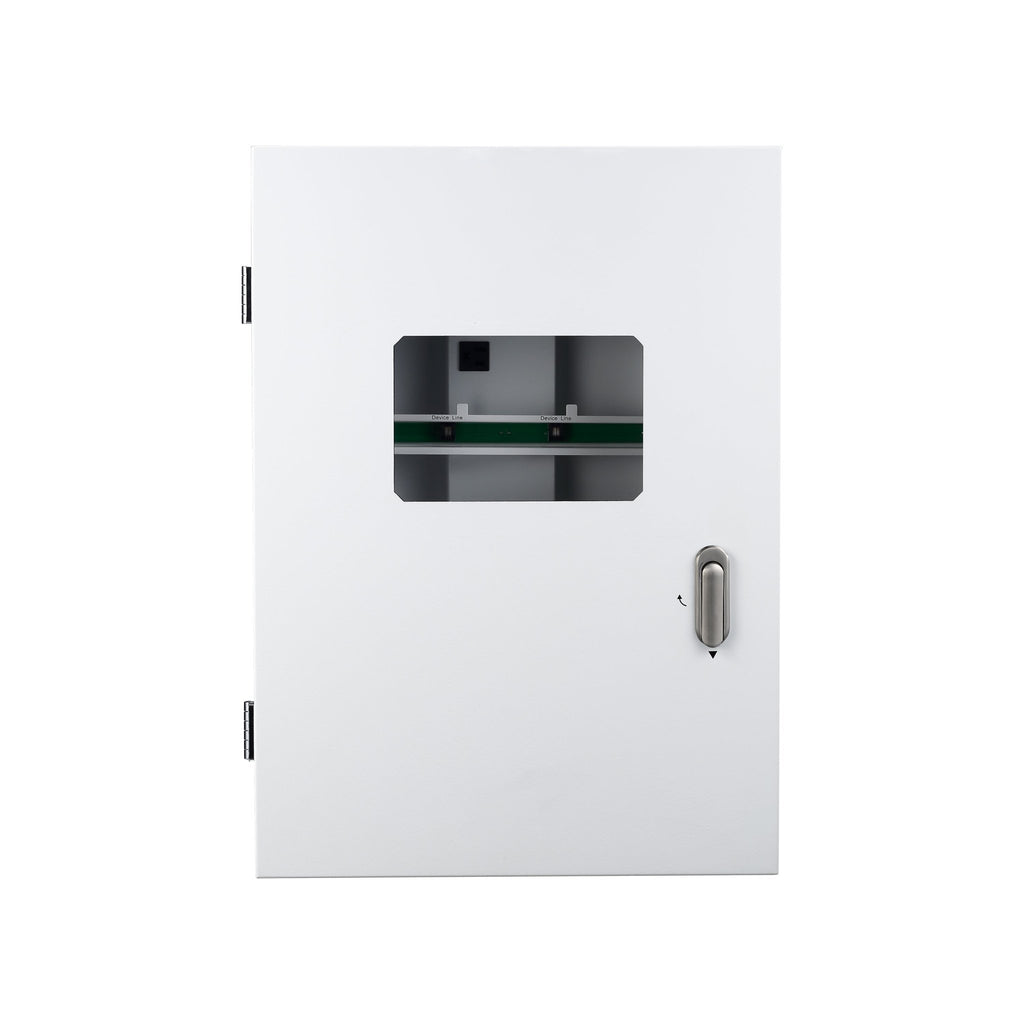

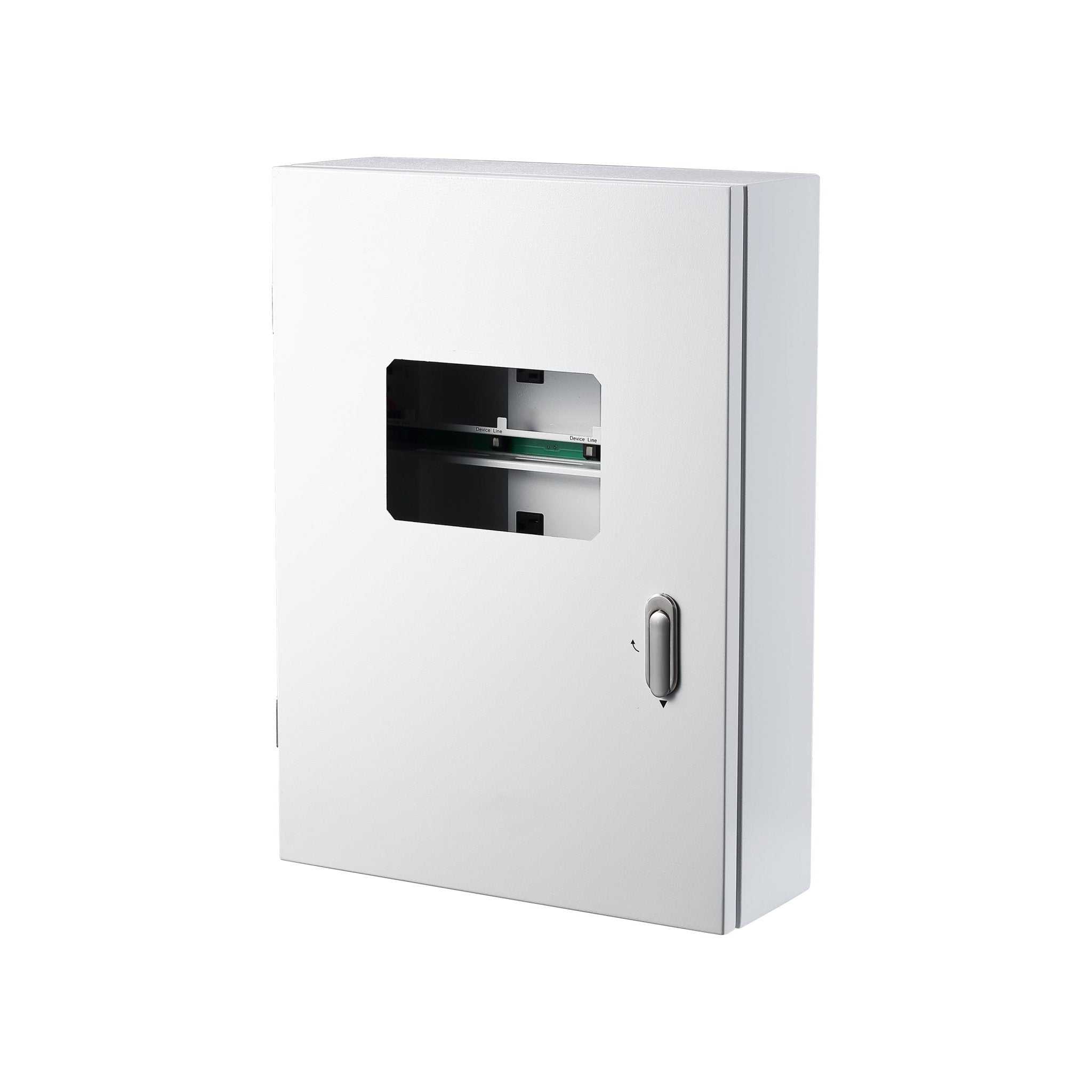

TrolMaster Standard Controller Cabinet for Hydro-X Plus 25 Inch (SCC-3)

The TrolMaster SCC-3 is a 25-inch modular electrical enclosure and wire management system for TrolMaster control systems, including the Hydro-X Plus and Aqua-X Plus. It lets controllers be installed professionally with device stations mounted inside to keep them clean and dry. Power supplies, modules and RJ12 cables can be mounted and organized in one cabinet.

The cabinet is industrial rated and waterproof, with a detachable design and built-in splitter boards. Bi-directional RJ12 cables let operators lay out their own cabinet. It runs on 120V, 15A input and holds up to 8 TS/HS/TSH/VPD modules.

Available Options

• Model: SCC-3 (25 inch)

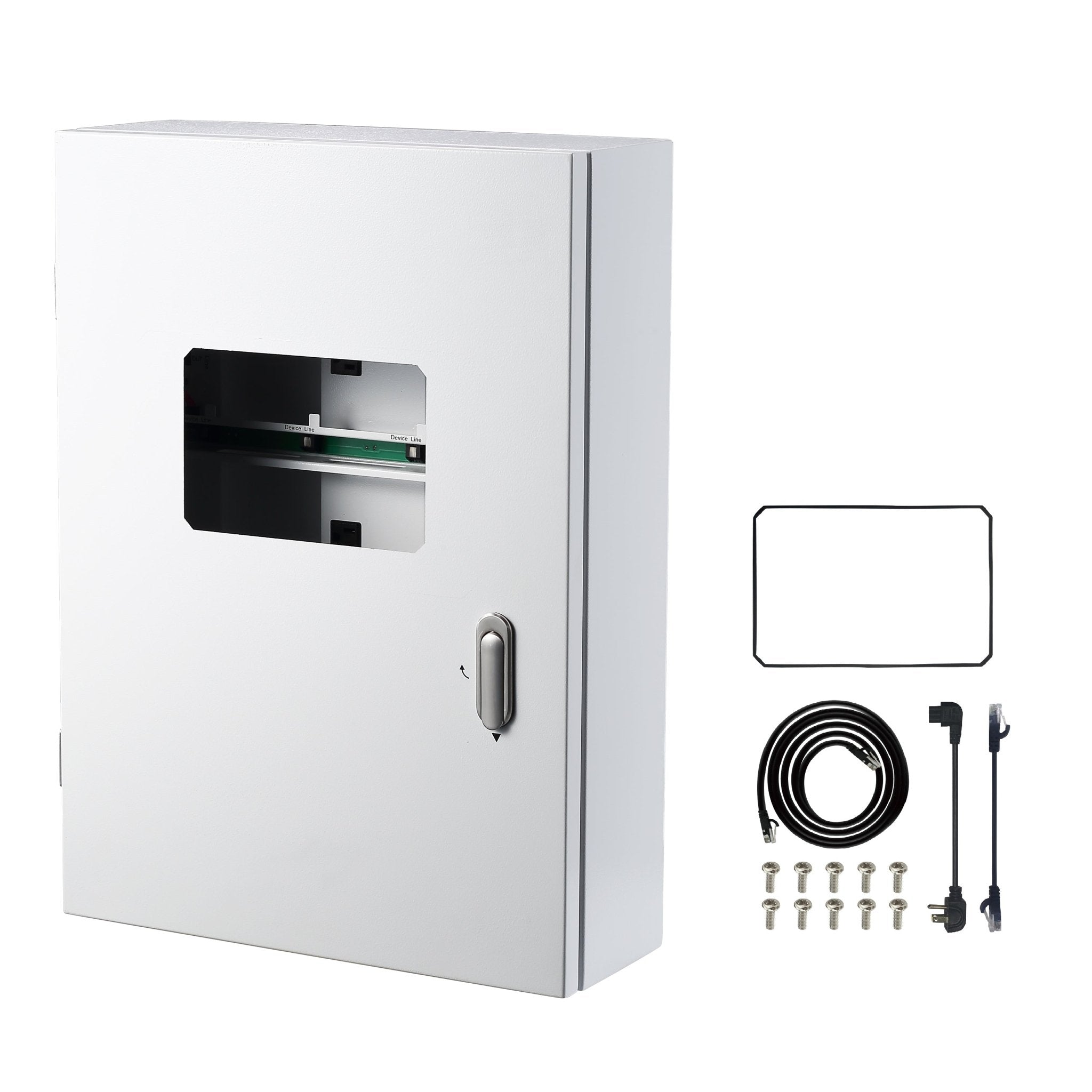

• Includes: standard controller cabinet, controller rubber gasket, 16 short RJ12 cables, 4 power cables (for OA6 modules), 10 OA6-24 screw sets, installation manual
• Compatible controllers: Hydro-X Plus (HCS-3), Aqua-X (NFS-3)

Key Features

• Industrial rated, waterproof all-in-one controller and module housing

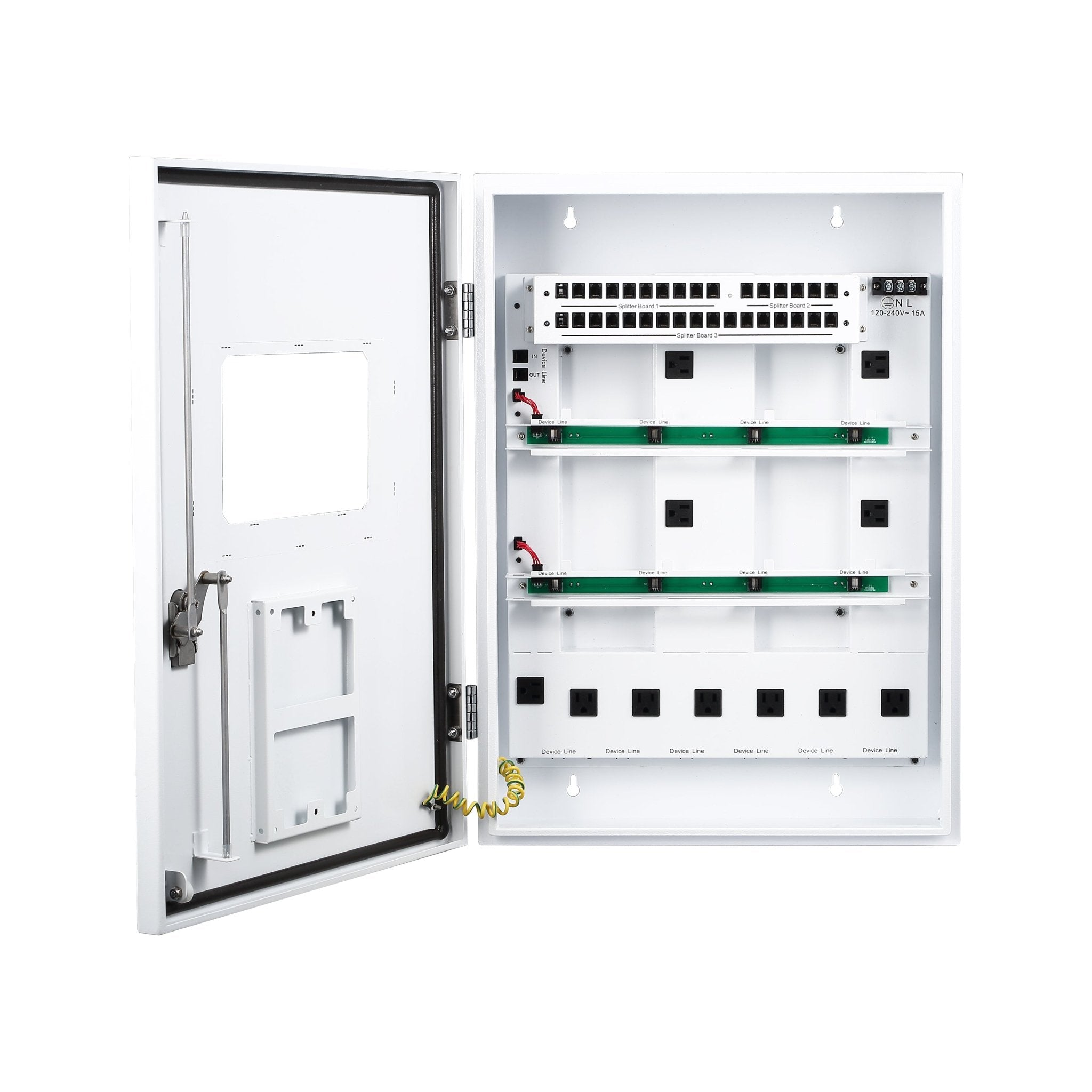

• Splitter boards: 10, 6 and 17 ports (top); 2 x 4-port detachable splitter bars, 2 device ports, 6 bottom ports
• Power outlets: 4+1+6
• Up to 8 TS/HS/TSH/VPD modules
• Input: 120V, 50/60Hz, 15A
• Working temperature: 32 to 104 deg F; working humidity up to 90%

Ideal Applications

• Professional Hydro-X Plus installations
• Aqua-X irrigation control panels
• Commercial facilities needing clean, protected wiring
