TrolMaster - Full Spectrum Quantum Sensor (MBS-PAR)

Brand: TrolMaster

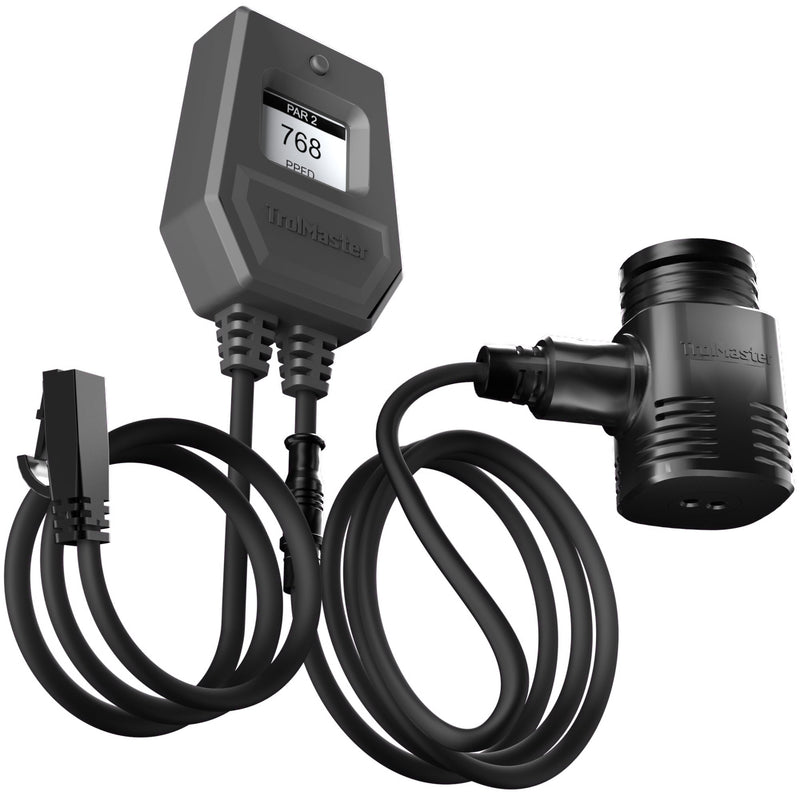

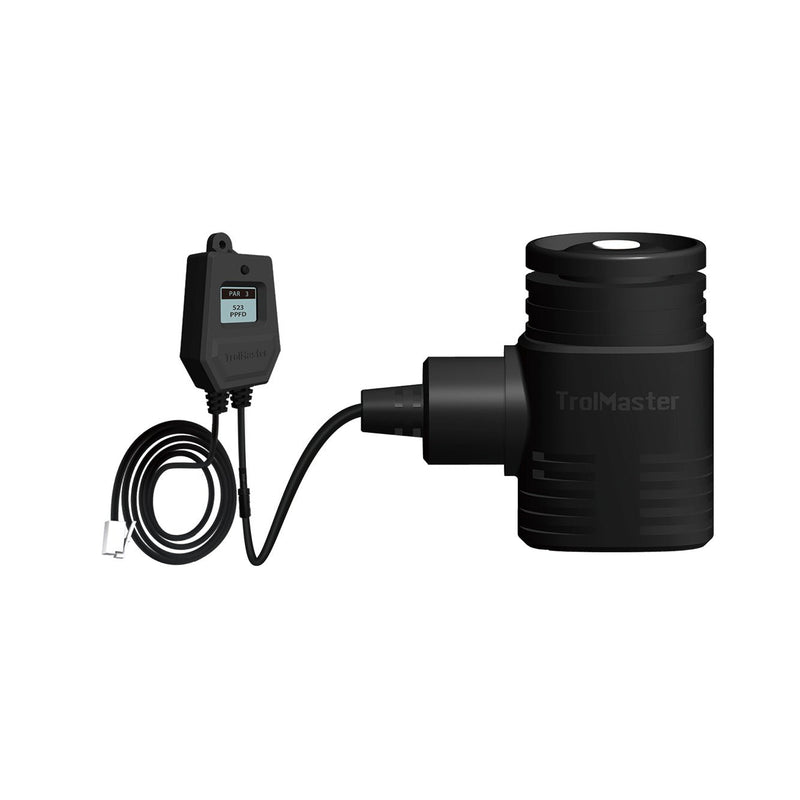

TrolMaster Full Spectrum Quantum Sensor (MBS-PAR)

The TrolMaster MBS-PAR Full Spectrum Quantum Sensor provides accurate, cost-effective measurement of photosynthetically active radiation (PAR) from all light sources used to grow plants. Its spectral range of 389 to 692 nm (+/- 5 nm) and improved spectral response increase the accuracy of LED measurements.

Used with a Hydro-X controller, the sensor automatically raises or lowers the output of supplemental lighting to continuously maintain the exact PPFD level the operator selects. Keep the sensor clean and dry, and do not spray it or expose it to water or condensate, to prevent premature failure.

Available Options

• Model: MBS-PAR
• Includes: full spectrum quantum sensor, 4 ft RJ12 cable, RJ12 T-splitter, 1/2 in. post clamp and two 1/2 in. end caps
• Compatible controllers: HCS-1, HCS-2, HCS-3, TCS-1

Key Features

• Full spectrum PAR measurement, 389 to 692 nm +/- 5 nm
• Improved spectral response for accurate LED readings
• Enables automatic dimming to hold a user-set PPFD with Hydro-X
• Onsite reading; plug-and-play
• Input voltage: 12V; maximum current: 0.2A
• Working environment: 32 to 122 deg F, under 90% humidity

Ideal Applications

• Closed-loop PPFD control of supplemental lighting with Hydro-X controllers
• Monitoring light levels in greenhouses and indoor cultivation rooms
• Measuring output of LED and other horticultural light sources
