Dramm - Guard Set for AME HAF Fan
Brand: Dramm
Guard Set for AME HAF Fan
A two piece wire guard set for a Dramm AME horizontal air flow fan - one guard for the intake face and one for the exhaust face. AME fans ship without guards because a guard reduces the capacity of any fan, and Dramm's position is that a fan hung 8 ft or higher above the floor does not need one. Below 8 ft, or anywhere a worker can reach the blade from a walkway, bench or platform, the guards have to be fitted. The set is sized to one fan diameter, so order it to match the fan you are protecting.

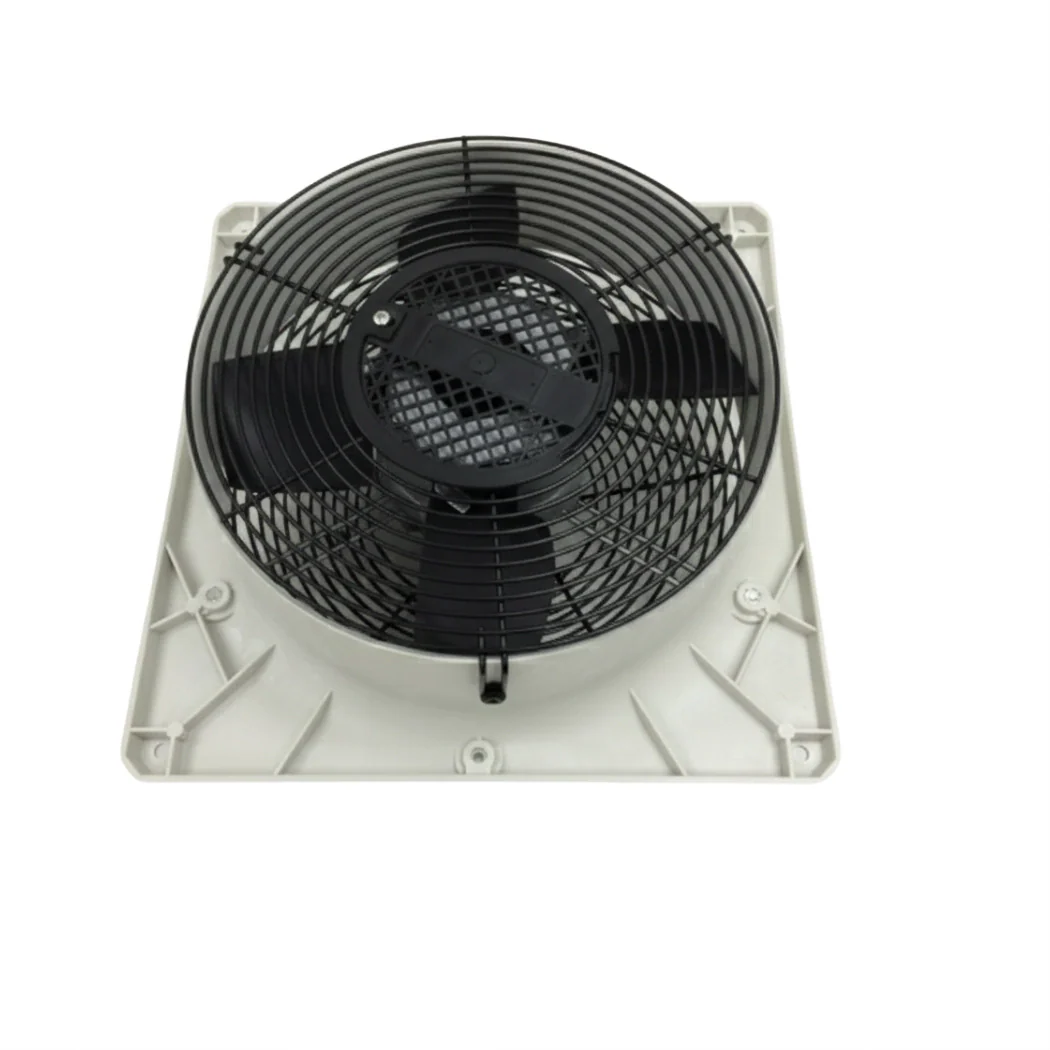

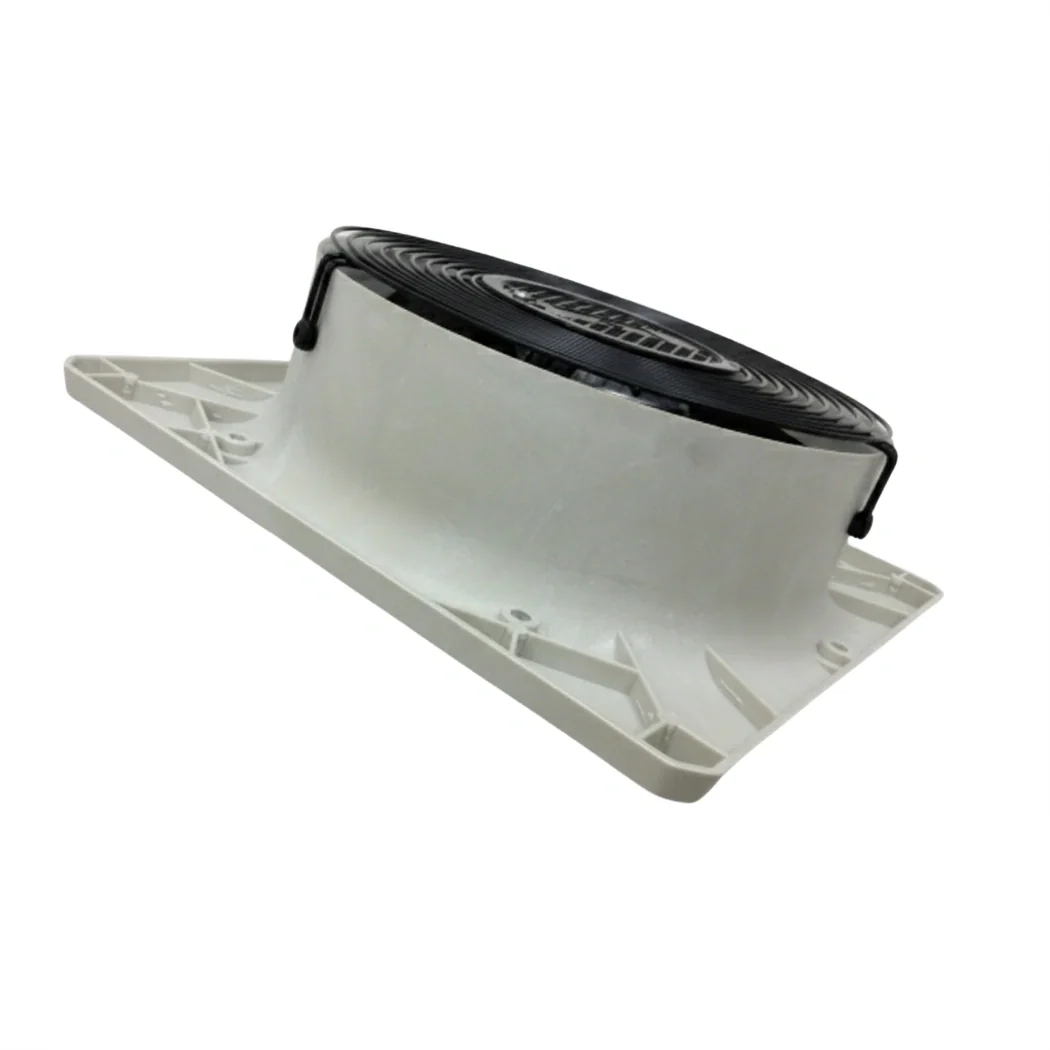

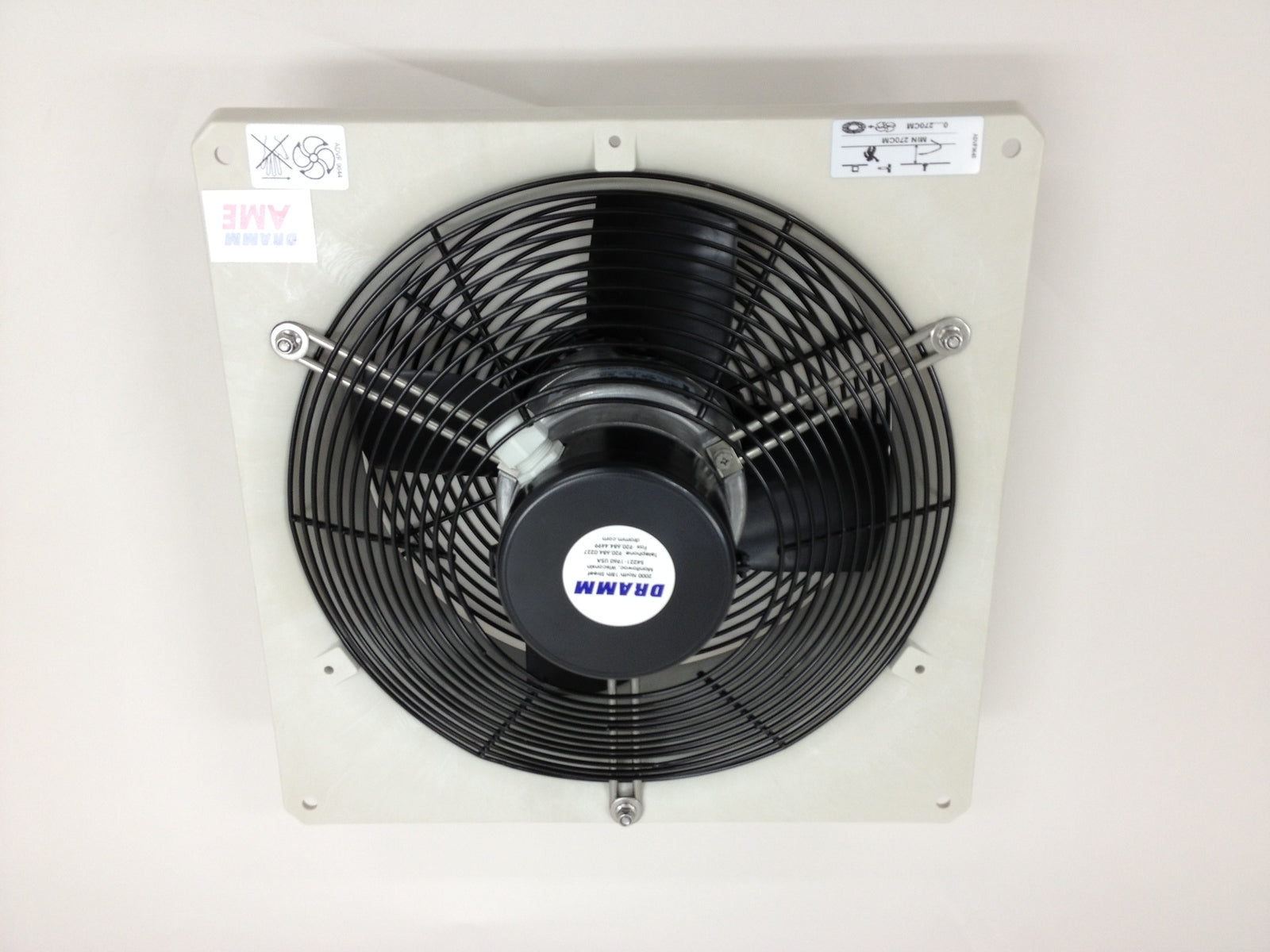

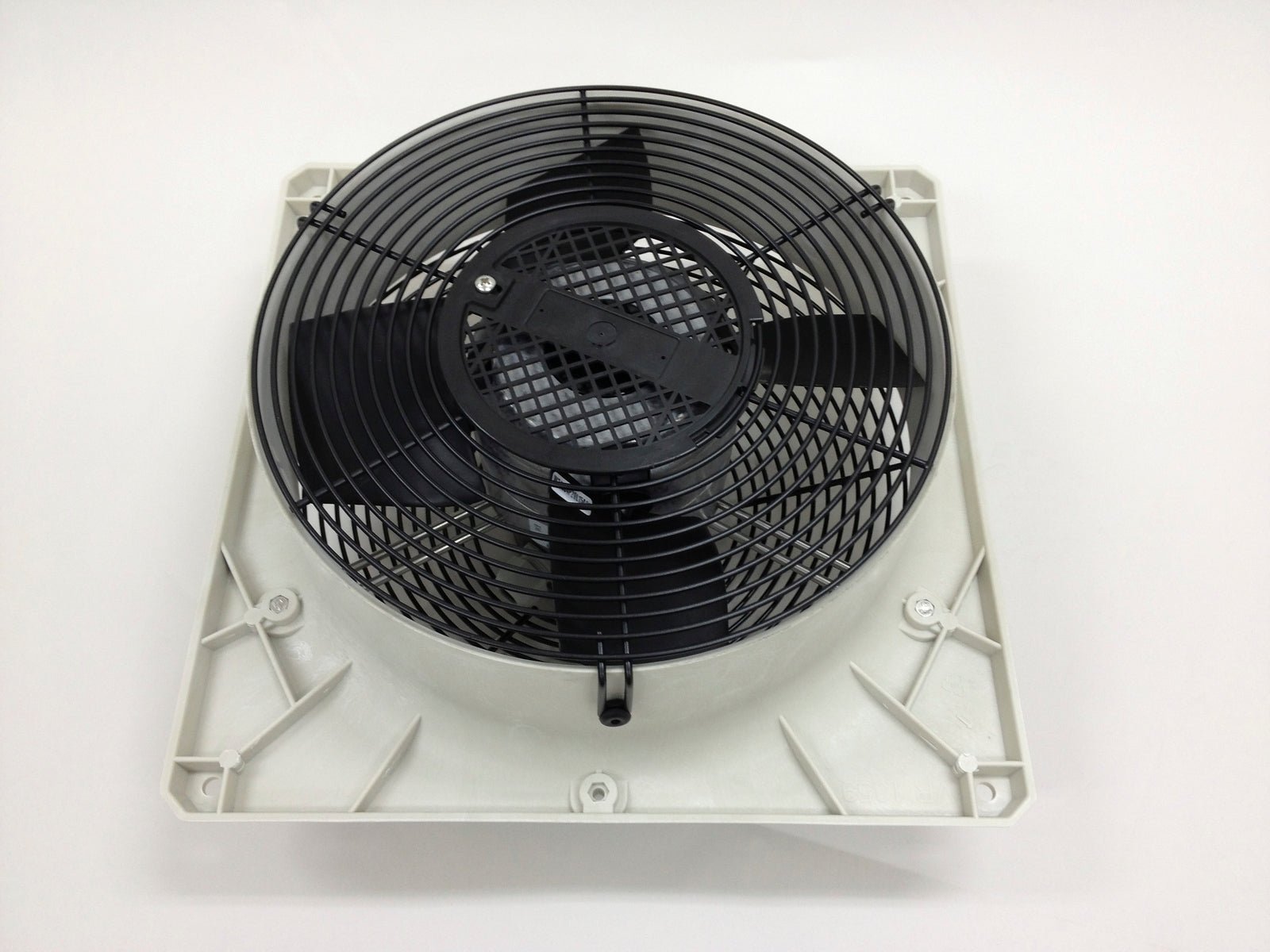

The only choice is fan size, and it is a fit dimension rather than a feature: 350mm (14 in) fits the AME 350/4 housing and 400mm (16 in) fits the AME 400/4 housing. They are not interchangeable - a 350mm set will not seat on a 400mm housing and a 400mm set will not grip a 350mm one, so check the fan before you order. Fitting is straightforward and needs no drilling. The front guard is a pressure fit: rubber grommets hold it in place by friction alone, so you press it over the intake side of the housing. The rear guard is captured by the three motor mounting brackets - lay the fan exhaust side down, remove the bracket bolts, slide the brackets through the gap between the first and second wire rings, and bolt the brackets back to the housing. Expect some loss of output once both guards are on, which is why Dramm recommends hanging the fan high and adding guards only where site conditions require them.
Specifications
| Fan Size | One set fits the AME 350/4 (14 in / 350mm) housing; the other fits the AME 400/4 (16 in / 400mm) housing |
| Pieces | Two per set - one intake guard and one exhaust guard |
| Material | Wire mesh guard rings |
| Front guard mounting | Pressure fit over the intake housing, held by rubber grommets |
| Rear guard mounting | Captured by the three existing motor mounting brackets, no drilling |
| When required | Any AME fan hung below 8 ft above the floor or within reach of personnel |
| Effect on airflow | Guards reduce the capacity of any fan; Dramm recommends hanging high and guarding only where needed |
| Supplied with fan | No - AME fans ship without guards |
Configurations
| Fan Size | Part number |
|---|---|
| 350mm (14 in) | AME350GS |
| 400mm (16 in) | AME400GS |
Key Features
- Covers both faces of the fan, so the blade is unreachable from either side
- Front guard presses on over rubber grommets and needs no tools
- Rear guard reuses the three motor mounting brackets already on the fan - no drilling
- Sized per fan diameter so the guard seats on the housing without adaptors
- Lets an AME fan be hung low over a walkway or work area and still meet guarding practice
- Retrofits to AME fans already installed
Ideal Applications
- AME fans hung below 8 ft above the floor
- Fans over walkways, headhouse aisles and packing lines
- Fans mounted near benches, carts or work platforms where a hand can reach the blade
- Propagation and low tunnel houses where there is no height to hang out of reach
- Retrofitting an existing bank after a bench or platform is added underneath
These guards fit the Dramm AME 350mm and AME 400mm HAF fans, which are listed separately along with the Variable Power-Station speed controllers that run them.
