Craft Farmer - V3 inGAME CHANGING" Undercanopy Light - Brand New V3 ( SOLD INDIVIDUALLY )

Brand: Craft Farmer

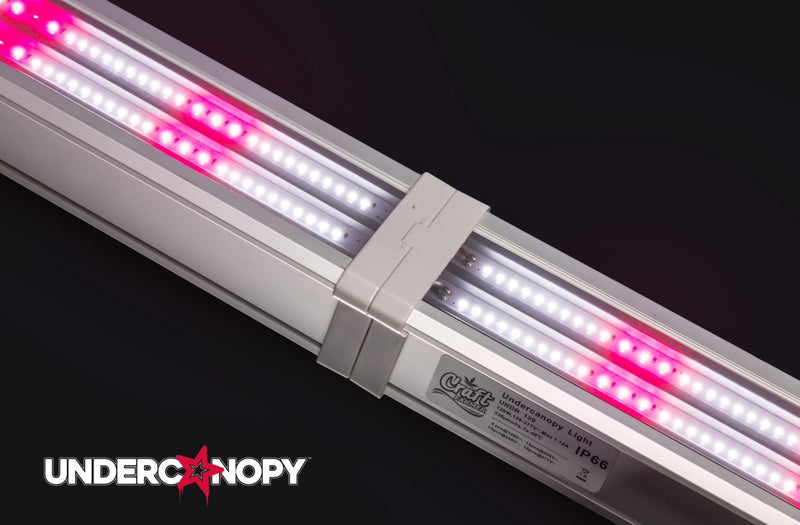

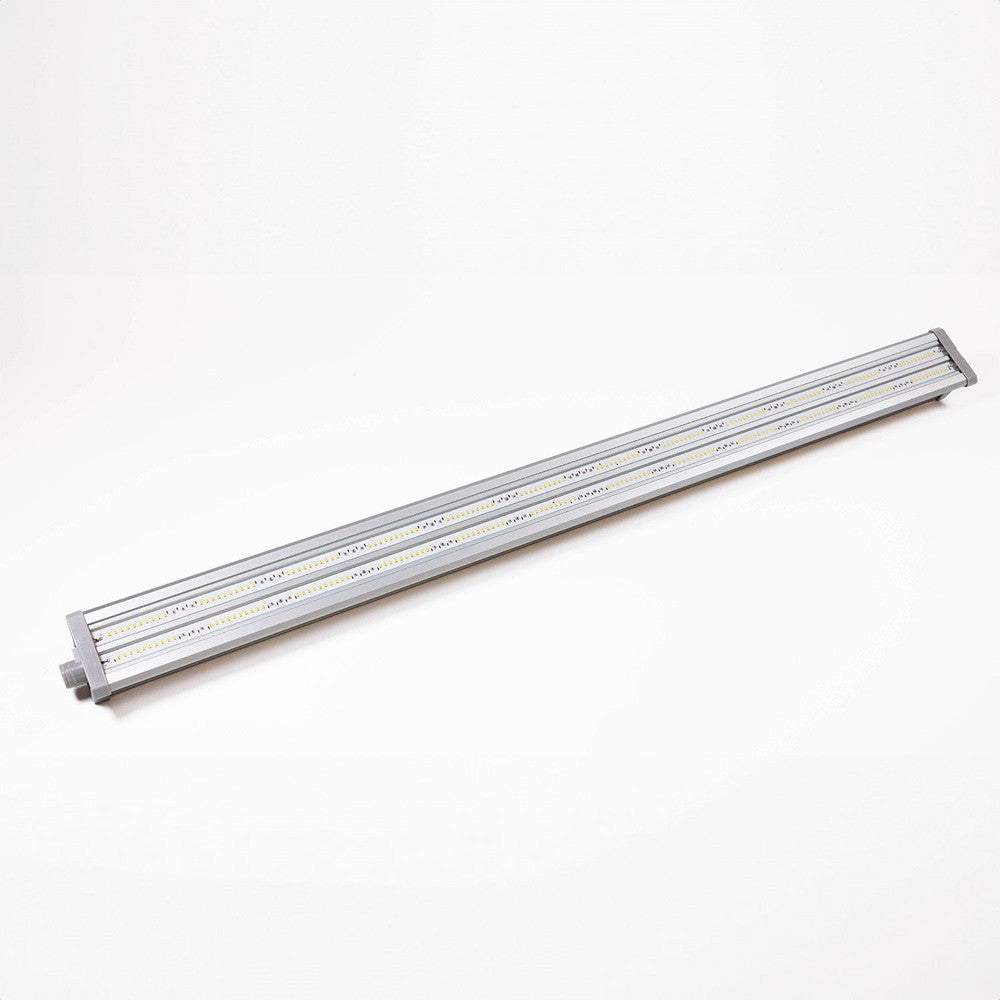

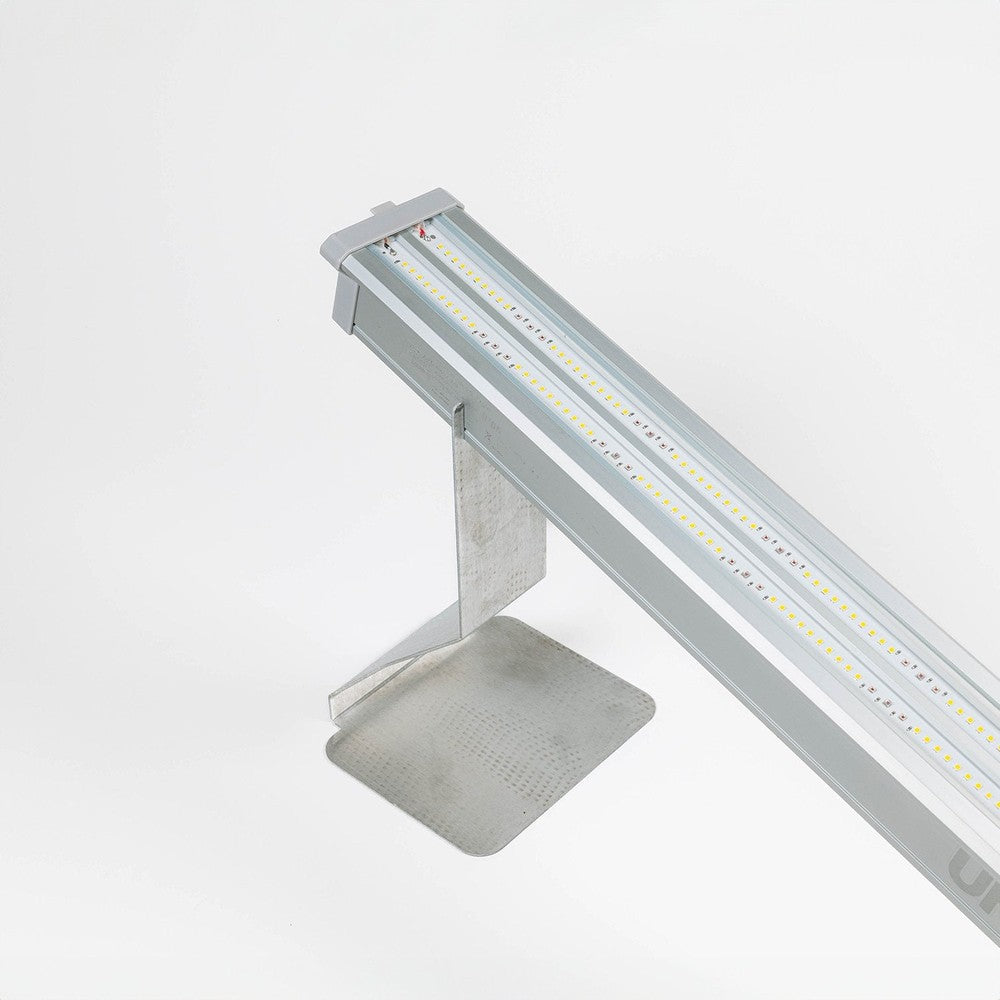

Craft Farmer V3 "GAME CHANGING" 120W LED Undercanopy Light

The Craft Farmer V3 "GAME CHANGING" Undercanopy Light is a 4-foot, 120-watt LED fixture engineered specifically for supplemental lighting beneath dense flowering canopies. By delivering light directly to lower and interior plant sites that receive limited intensity from overhead fixtures, the V3 is designed to improve light distribution throughout the canopy and support more uniform development.

Craft Farmer's V3 design features an updated flowering spectrum incorporating deep red and far-red wavelengths and utilizes Osram and Samsung diodes. The fixture combines an aluminum housing with a glass top and carries an IP66 rating for use in demanding controlled-environment cultivation applications.

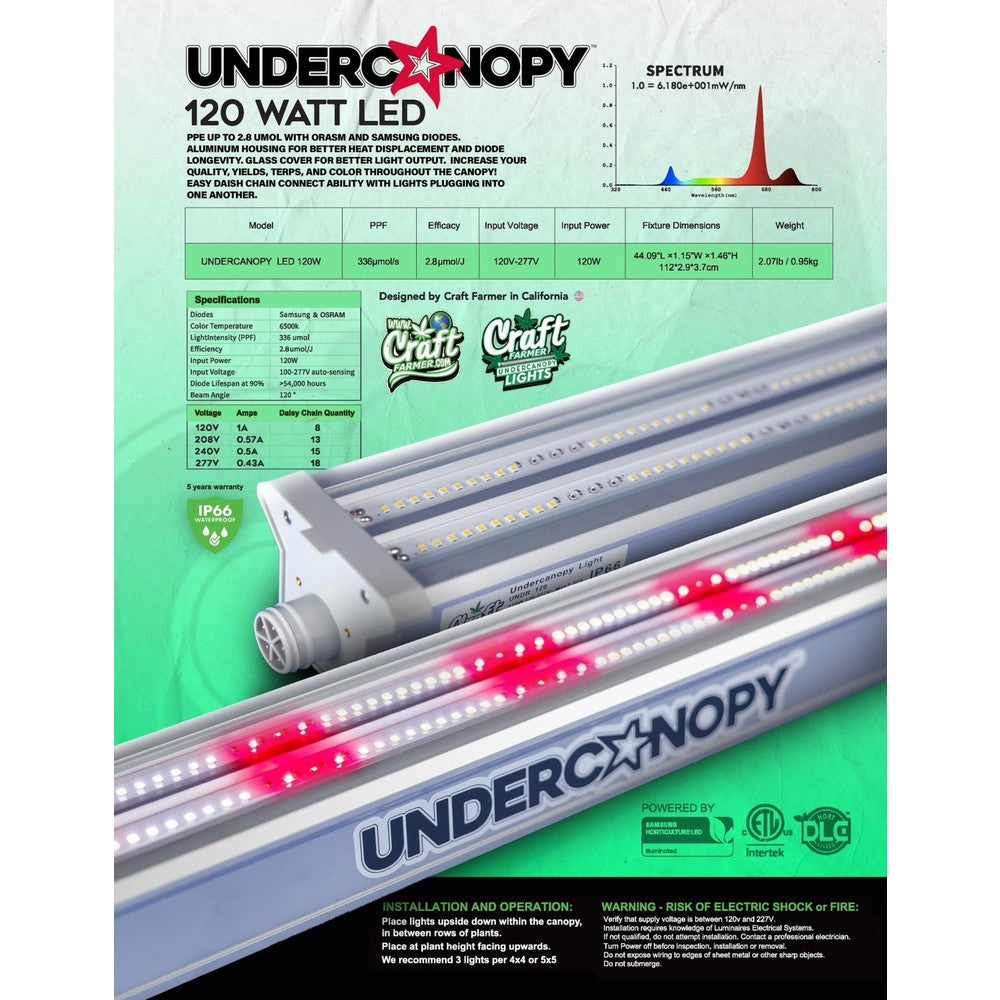

Manufacturer-Reported Features

• Power: 120W per fixture
• Fixture Length: 4 ft.
• Application: Supplemental undercanopy lighting for flowering environments
• LED Diodes: Osram and Samsung
• Spectrum: Updated flowering spectrum incorporating deep red and far red
• Input Voltage: 120–277V voltage-sensing operation
• Ingress Protection: IP66

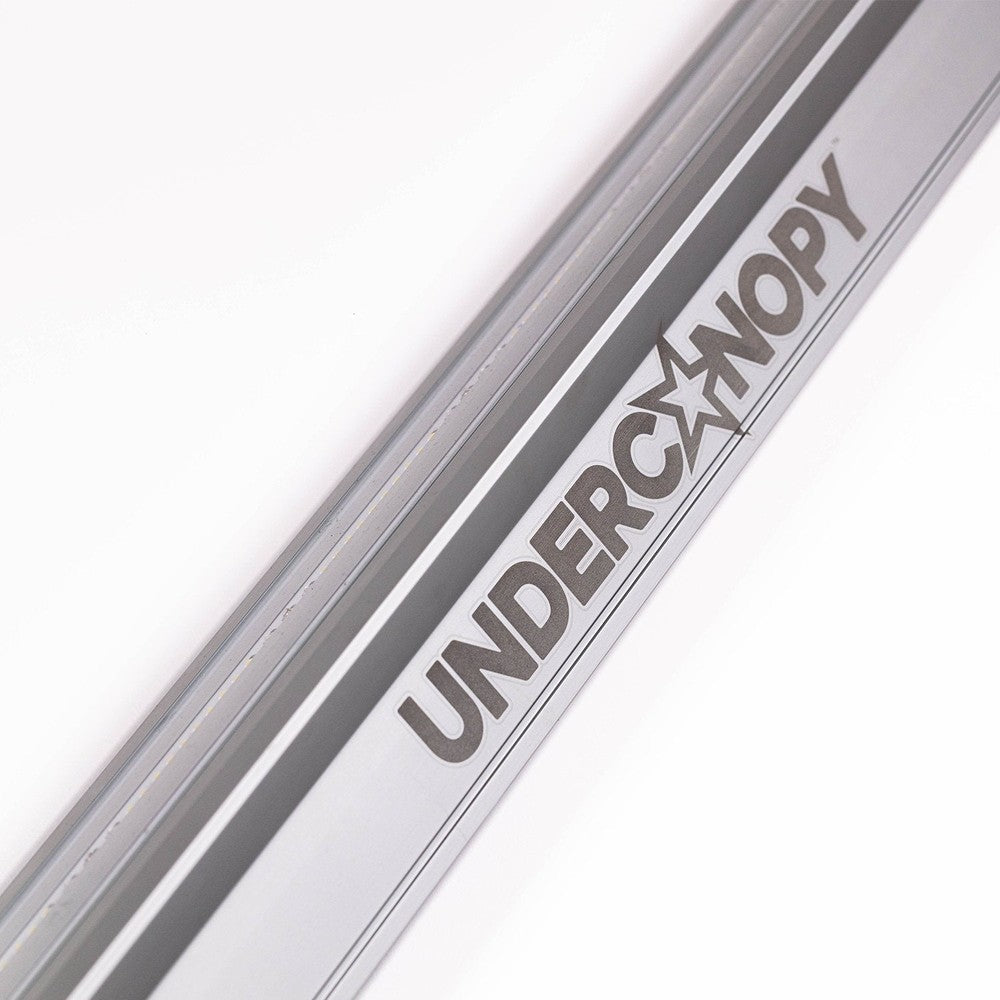

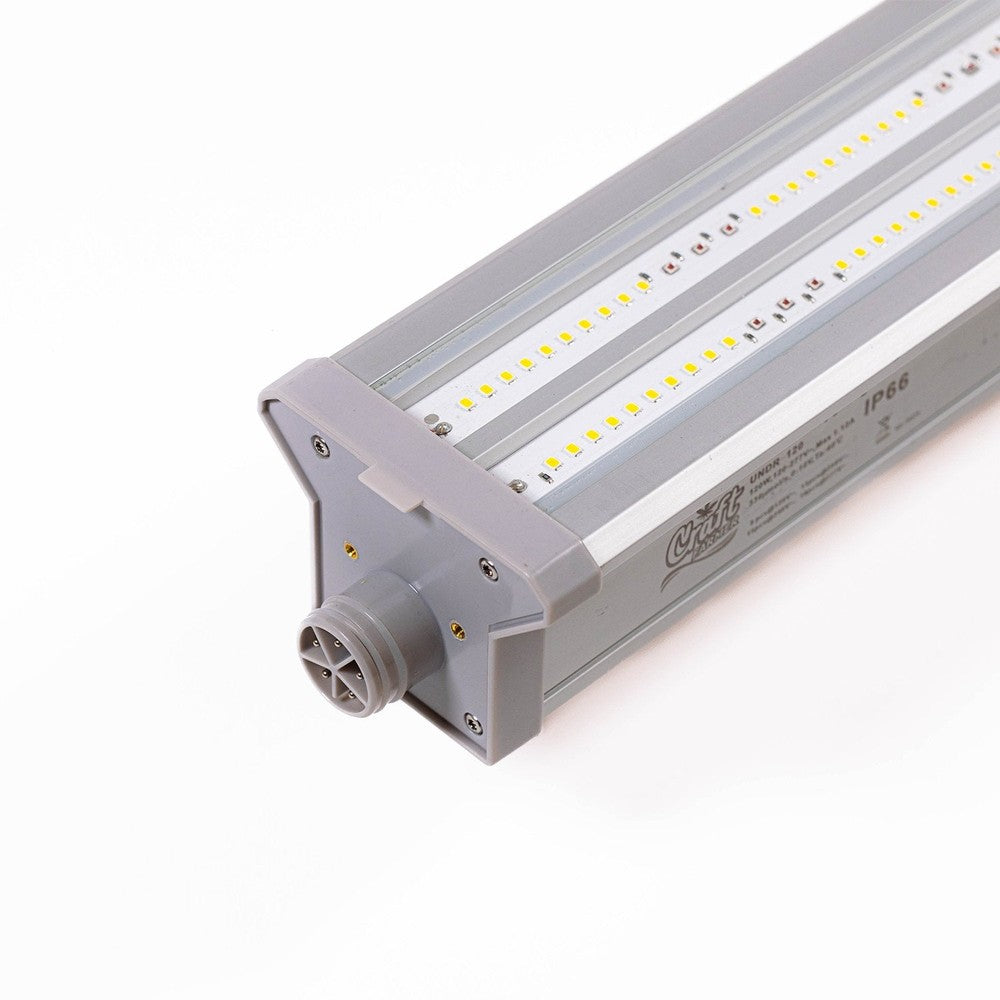

• Construction: Aluminum housing with glass top
• Installation: Daisy-chain capable
• Manufacturer Warranty: 7 years

Designed for Under-Canopy Flowering Applications

Traditional overhead lighting can create substantial shading as flowering canopies become denser. The Craft Farmer V3 is positioned beneath the canopy to supplement these lower-light areas and increase light availability to lower and interior plant sites.

According to Craft Farmer, the fixture's spectrum was developed specifically for flowering applications following extensive cultivation testing. The V3 spectrum has been updated with deep-red and far-red output to complement the primary overhead lighting system.

Daisy-Chain Capacity

Multiple V3 fixtures can be connected in series. Craft Farmer reports the following maximum fixture quantities based on operating voltage:

• 120V: Up to 8 fixtures at approximately 1.0A per fixture
• 208V: Up to 13 fixtures at approximately 0.57A per fixture
• 240V: Up to 15 fixtures at approximately 0.50A per fixture
• 277V: Up to 18 fixtures at approximately 0.43A per fixture

Example Manufacturer Layout

For a manufacturer-provided example consisting of two 5' x 20' benches illuminated by ten ThinkGrow Model I overhead fixtures, Craft Farmer recommends 30 V3 undercanopy fixtures for maximum supplemental coverage, along with two extension cables for connecting separate fixture rows.

Actual fixture quantity and placement should be determined based on bench dimensions, canopy architecture, overhead lighting intensity, target light levels, electrical configuration, and facility layout.

What's Included

This product is sold as one individual Craft Farmer V3 undercanopy light fixture.

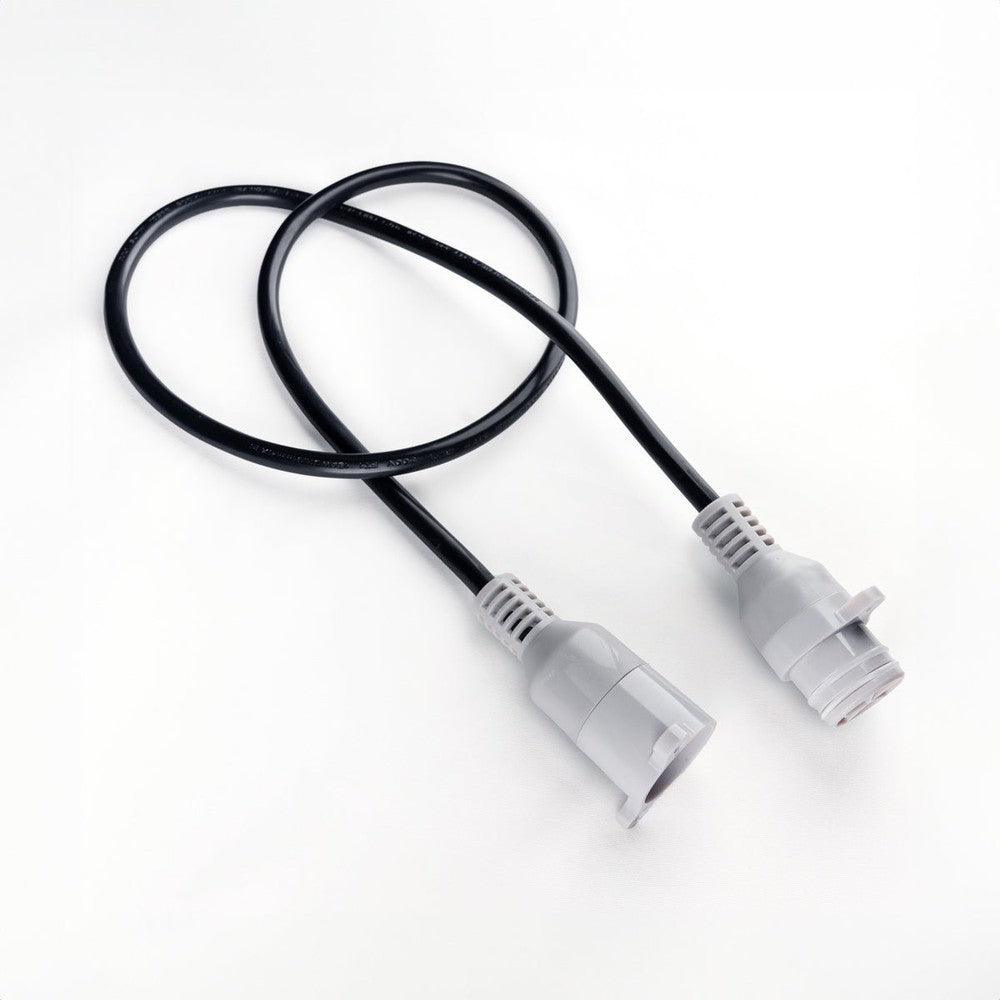

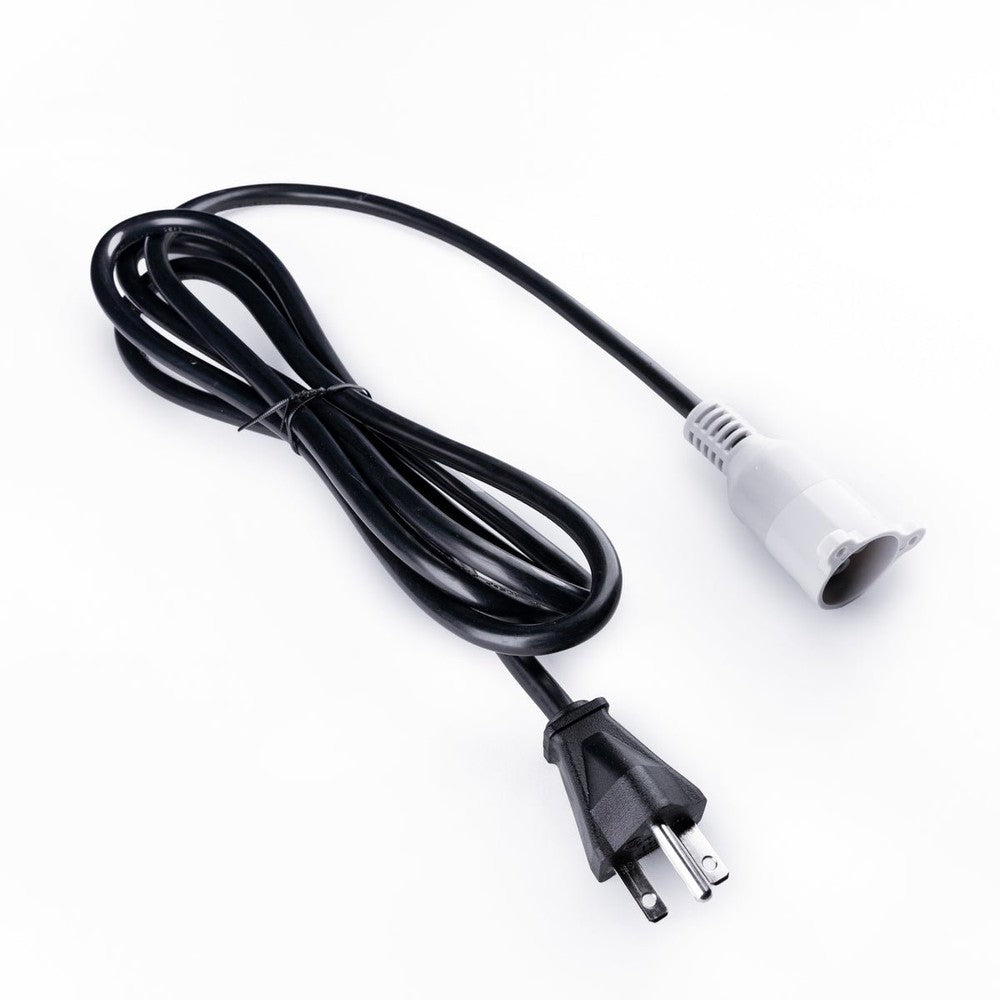

Power cables, daisy-chain extension cables, adapters, stands, and other accessories are sold separately unless specifically stated otherwise.

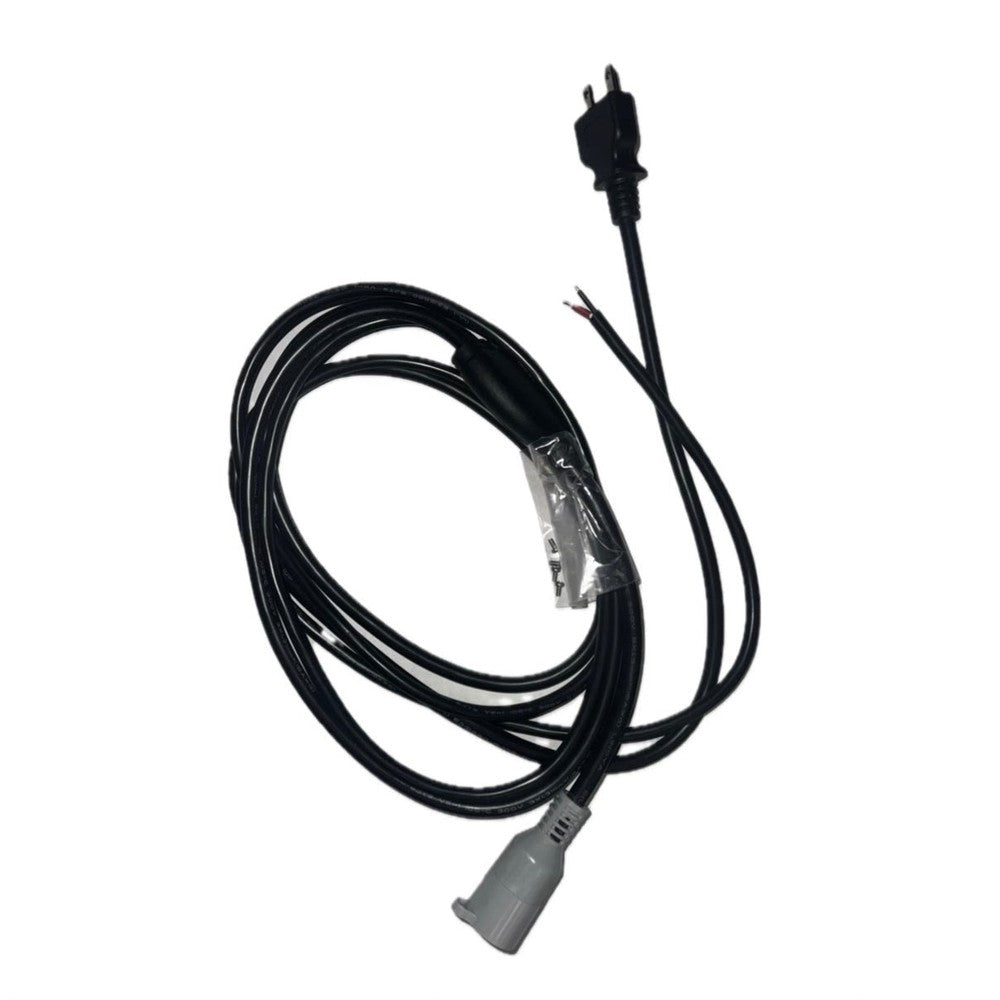

Craft Farmer's standard power-cable configuration is 240V. A compatible adapter or alternate power configuration is required when operating from a 120V supply.

Installation

Electrical installation and circuit sizing should be completed in accordance with applicable electrical codes and the manufacturer's requirements. Craft Farmer recommends that electrical work be performed by a qualified licensed electrician and properly permitted and inspected where required.

SKU: CFUCANOPYV3
