Dab Pumps - Tank Hull for EsyBox Max - SP00006699

Brand: Dab Pumps

Tank Hull - EsyBox Max - SP00006699

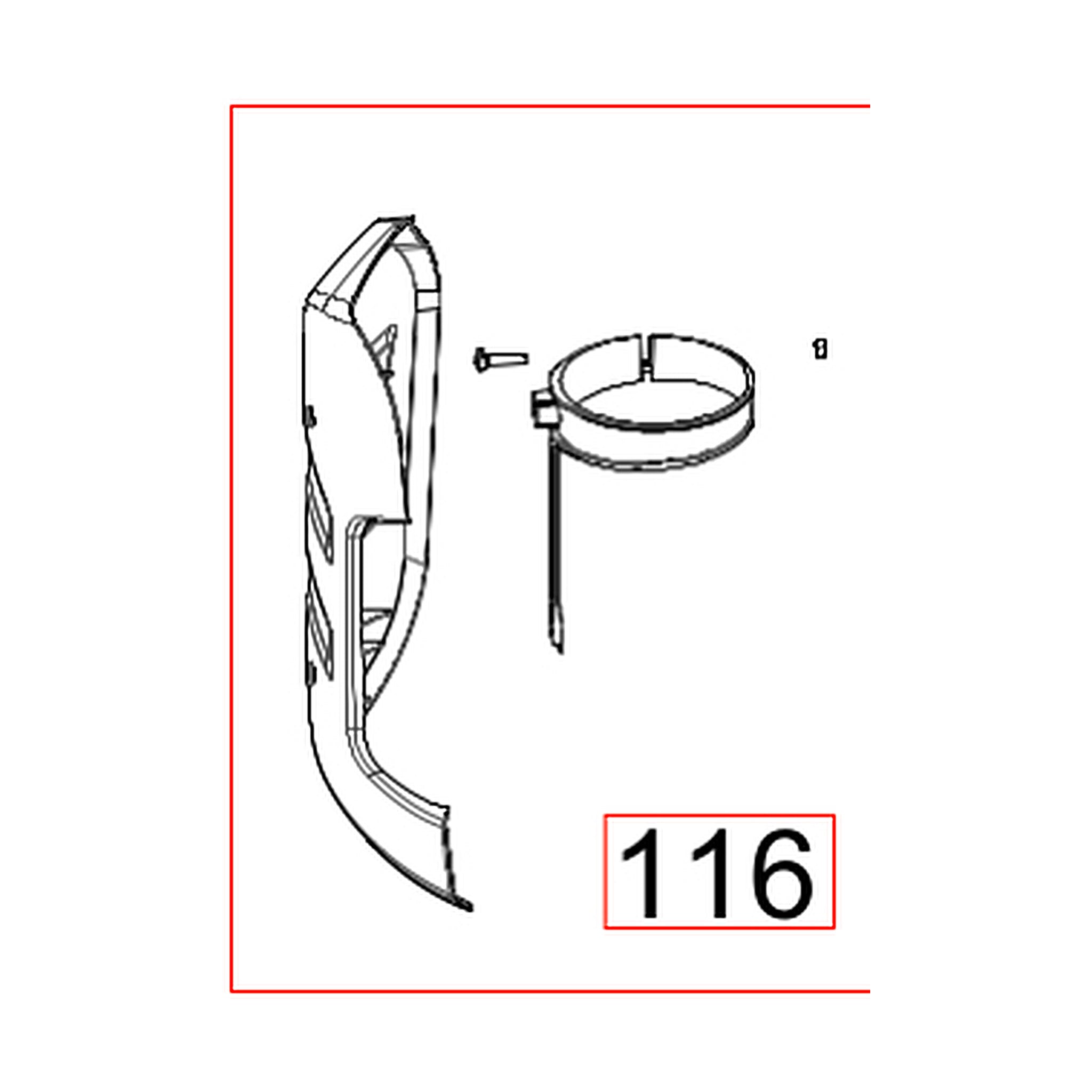

The tank hull is the moulded casing section that encloses the expansion vessel on the EsyBox Max. DAB's spare parts sheet lists it as (SP) ESYBOXMAX - TANK HULL at position 116, in the same body-panel family as the side hulls (position 110), the back hull (position 111) and the top hull (position 112).

DAB's manual reaches this panel first in the expansion vessel replacement procedure. Section 13.5, step 3, says to remove the casing (vessel cover) simply by pulling it, as it is fixed by a double cylindrical snap-on coupling. The panel comes off before the retaining screw, the metal fork and the retaining collar that hold the vessel itself, so it is a handled item on any tank job. It is also the panel behind which the accessory tool is housed: manual section 13.1 states that the tool is housed behind the expansion vessel.

Fits

• DAB EsyBox Max. DAB's spare parts sheet ESYBOX MAX 45/120 M208-240 PUMP/AUS2, revision N.1, document code 60217359 lists this item at position 116 as (SP) ESYBOXMAX - TANK HULL, item no. SP00006699.
• The DAB EsyBox Max instruction manual for North America covers the EsyBox Max 60/120 M, 60/120 T and 85/120 T (manual section 1.5). That manual does not list the 45/120 M208-240 at all, and the spare parts sheet cited here is for the 45/120 M208-240. The two documents cover different model sets.
• Manual section 13.5, step 3, describes removing the casing over the expansion vessel for the EsyBox Max without distinguishing between the models the manual covers. DAB's spare parts sheet cited here is the 45/120 M208-240 build.

Before You Order

• Attention: check the correspondence with the revision of your product. That caution is printed across the header of DAB's spare parts sheet. Check the position number and item number against the sheet issued for your own unit and its revision before you order.
• The only EsyBox Max spare parts list available for this listing is the AU build sheet, ESYBOX MAX 45/120 M208-240 PUMP/AUS2, revision N.1, document code 60217359. DAB has not published a parts sheet in the documents used here for the 60/120 T or 85/120 T, so the item number for three-phase machines is not confirmed by these sources.
• DAB describes the panel's attachment as a double cylindrical snap-on coupling that releases by pulling (manual section 13.5, step 3). No fasteners, materials or dimensions are published for it at part level and none are stated here.
• This is the casing over the vessel, not the vessel. If the fault is loss of pressure or a broken diaphragm, the part you need is the water tank at position 123, SP00006706.

Often Replaced With

• Water Tank 2 L, SP00006706, position 123. This casing is the first item removed in DAB's tank replacement procedure (manual section 13.5, step 3).
