ZE−SERIES ZEOLITE WATER FILTRATION SYSTEMS

Brand: Axeon

Please sign in to see pricing

$3,084.14

SKU: 212193

Model:

ZE-40-1653- 100

Variant

AXEON® ZE–Series Zeolite Water Filtration Systems use a filtering media that is effective in reducing sediments and debris down to 5 microns, while maintaining high flow rates. These systems are designed for reliability, minimal maintenance, comply with all industry standards and can efficiently treat municipal and well water sources.

FEATURES

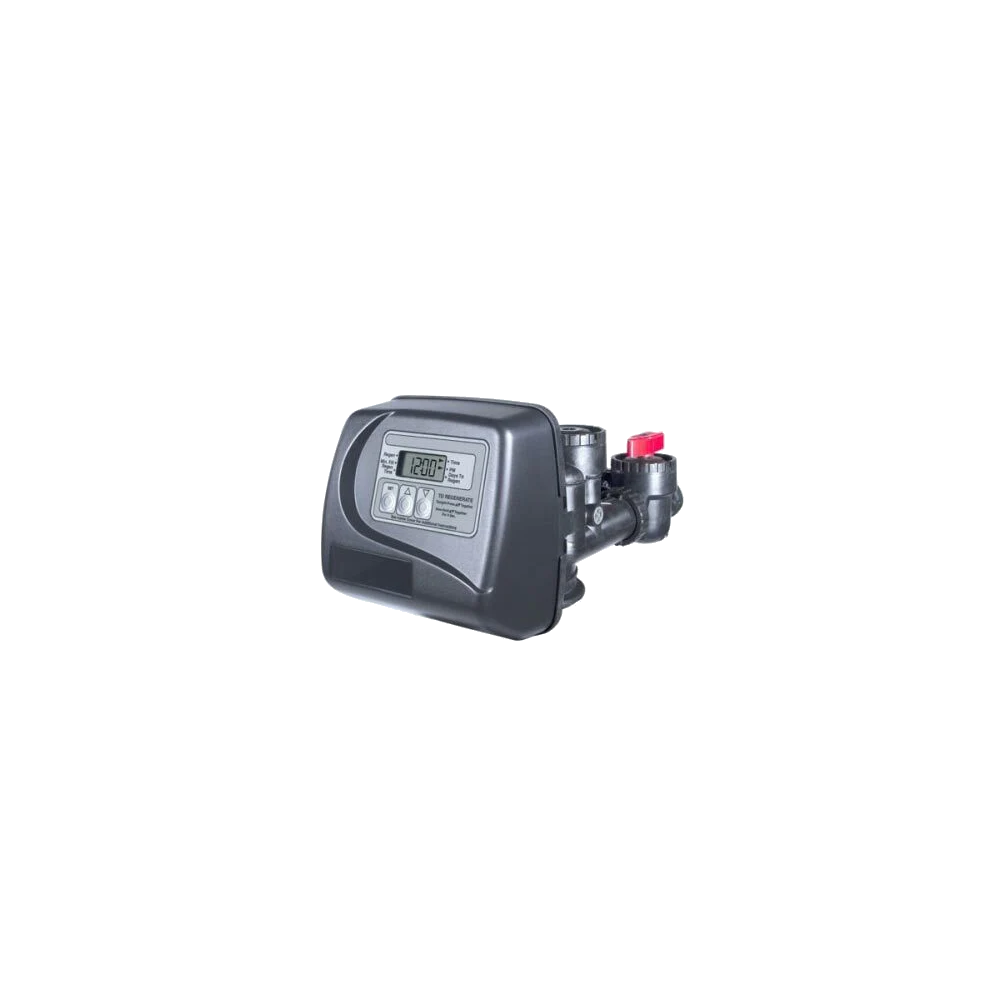

Solid-State Microprocessor Control
Led Backlit Display Screen
Meter Monitors and Self-Adjusts Regeneration Cycles Based on Water Use
Trends
Easily Programmed for Optimum Performance
Extended Lithium Battery 48-Hour Power Backup
Flexible “Adjustable Cycle Sequence” Programming — Saves Water
Day-Of-The-Week Controls
Regeneration Can Be Triggered Immediately

Advanced History and Diagnostic Screens
Integrate Pretreatment Lockout Contacts
Heavy-Duty Fiberglass Tank
Heavy-Duty Riser Pipe With Upper and Lower Screens
Zeolite Filtration Media
Service Alarms
Optional AC 220V Adapter– (P/N:212200)
Optional AC 220V Adapter for AC-43-3672-200 – (P/N:212199)

SPECIFICATIONS

Reduces Sediments, Rust, Sand, Debris and Particulates Down to 5 Microns
Metering Valve Reduces Waste Water

Self Maintaining With Automatic Backwashing Functionality

TECHNICAL SPECIFICATIONS

Part Number	212191	212192	212193	212194	212218	212195	212196	212197	212198
Model	ZE-40-0948- 100	ZE-40-1252- 100	ZE-40-1653- 100	ZE-40-1665- 100	ZE-41-1865- 125	ZE-44-2162- 125	ZE-42-2472- 125	ZE-43-3072- 150	ZE-45-3672- 200
Valve Mode	Clack i510	Clack i510	Clack i510	Clack i510	Clack i512	Clack i515P	Clack i515	Clack i520Q	Clack WS2H
Valve Type	Meter	Meter	Meter	Meter	Meter	No Meter	No Meter	No Meter	Meter
Auxiliary Relay Included	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Voltage	110 V	110 V	110 V	110 V	110 V	110 V	110 V	110 V	110 V
Plumbing Connection	Bypass / 1″ MPT	Bypass / 1″ MPT	Bypass / 1″ MPT	Bypass / 1″ MPT	Bypass / 1.25″ MPT	1.5″ FPT	1.5″ FPT	2″ FPT	2″ FPT
Drain Connection	5/8″ Barb	1″ MPT	1″ MPT	1″ MPT	1″ MPT	1.5″ MPT	1.5″ MPT	1.5″ FPT	1.5″ FPT

Media Tank Size / Color	9×48 Black	12×52 Black	16×53 Black	16×65 Black	18×65 Natural	21×62 Natural	24×72 Natural	30×72 Natural	36×72 Natural
Media Type / Pounds	Gravel 10 Lbs	Gravel 20 Lbs	Gravel 40 Lbs	Gravel 40 Lbs	Gravel 50 Lbs	Gravel 100 Lbs	Gravel 150 Lbs	Gravel 250 Lbs	Gravel 500 Lbs
Media Type/ Cubic Feet	Zeolite 1 CF	Zeolite 2 CF	Zeolite 3 CF	Zeolite 4 CF	Zeolite 5 CF	Zeolite 7 CF	Zeolite 10 CF	Zeolite 15 CF	Zeolite 20 CF
Media Funnel Included	Media Loaded	Media Loaded	Media Loaded	Media Loaded	Yes	Yes	Yes	Yes	Yes

Design Service GPM	1-6	2-11	4-15	4-20	5-26	7-36	9-47	15-73	21-105
Estimated Peak GPM	8	15	21	25	30	48	60	98	125
DLFC Backwash GPM	6.5	11	20	20	25	35	45	75	100
Height Inches	57″	61″	61″	74″	75″	79″	85″	98″	101″
Weight Dry / Pounds	105 Lbs	175 LBS	280 Lbs	350 Lbs	460 Lbs	535 Lbs	625 Lbs	1450 Lbs	2000 Lbs

These systems are not intended to be used for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
