TrolMaster - RJ12 Splitter Hub (SPH-1)

Brand: TrolMaster

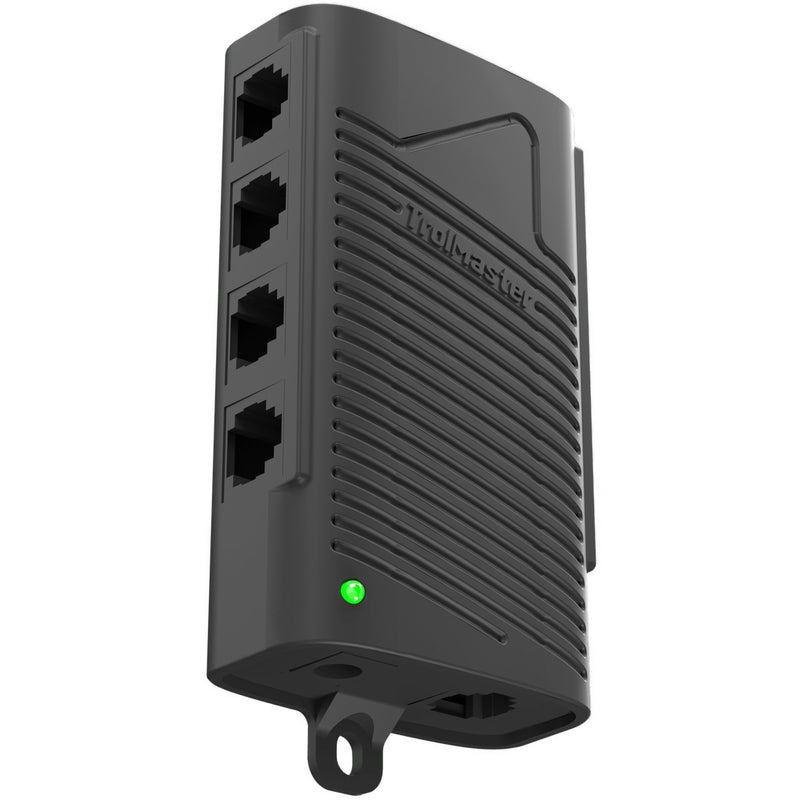

TrolMaster RJ12 Splitter Hub (SPH-1)

The TrolMaster SPH-1 is a powered RJ12 splitter hub with one input jack and 8 RJ12 output jacks for TrolMaster sensors, adapters and device modules. It allows a clean installation without daisy-chained Y-splitters. As a powered hub, it boosts signals so more modules, sensors and light adapters can be connected.

Mount the SPH-1 centrally with a single RJ12 cable back to the main controller, then run individual cables to each sensor, device module or lighting adapter. Using SPH-1 hubs, an almost unlimited number of LED or HID lights can be controlled from one TrolMaster controller. If the SPH-1 interconnects lighting back to a single LMA adapter (except LMA-T and ThinkGrow systems), do not connect the 12V DC power supply.

Available Options

• Model: SPH-1
• Includes: RJ12 splitter hub, 12V power adapter, RJ12 cable
• Compatible controllers: Aqua-X (NFS-2), Aqua-X (NFS-3), Tent-X (TCS-1), Carbon-X (CDA-1)

Key Features

• 1 RJ12 input, 8 RJ12 outputs
• Powered hub boosts signal for larger systems
• LED indicator; plug and play
• Input voltage: 12VDC; maximum current 2A
• Working temperature: 32 to 122 deg F; working humidity up to 90%
• Required supplemental power for MBS-K30, AS-4 and DFM-1

Ideal Applications

• Clean RJ12 wiring for TrolMaster controllers
• Large lighting layouts with many LMA adapters
• Carbon-X and Aqua-X accessories requiring supplemental power
