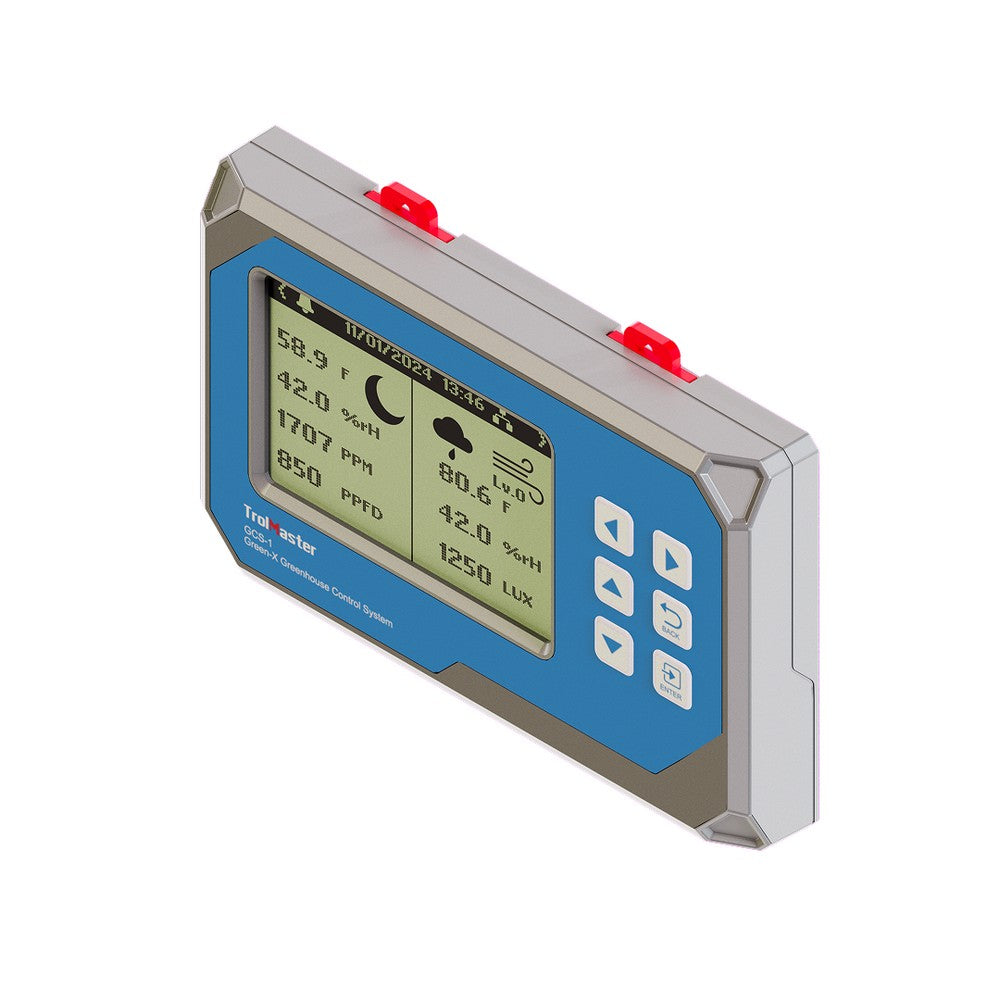

TrolMaster Green-X Greenhouse Controller (GCS-1)

The TrolMaster Green-X (GCS-1) is a modular, all-in-one greenhouse control system for irrigation, climate, CO2 monitoring, lighting, curtain motors and ventilation. It ships with the MBS-GH 4-in-1 sensor for real-time tracking of temperature, humidity, CO2 and light, and is compatible with the free TrolMaster App.

For outside conditions, the GCS-1 reads outdoor temperature and wind speed through the MBS-WS Weather Station Sensor and manages curtains and glass with the AMC-1 single/three phase curtain motor controller and DMC-1 24V DC roll-up motor controller. Its entry-friendly cost and expansion potential let a greenhouse grow from a basic setup into a fully integrated system with historical data logging.

Available Options

• Model: GCS-1
• Includes: Greenhouse controller, Temp/Humid/CO2/Day and Night 4-in-1 sensor (MBS-GH), RJ12 cable set for light connection, 12V power adapter, RJ12 T-splitter

Key Features

• All-in-one control of grow lights, climate, irrigation, curtain motors and ventilation
• Up to 96 scheduled irrigation outputs (24V or 110V)
• Sensor capacity per set: 1 each of MBS-GH, MBS-WS, MBS-PAR, MBS-SD, AMP-3 and DFM-1/2/3; up to 8 WCS-1/2/3; up to 2 WD-1
• Device capacity per set: up to 4 temperature, 4 humidity, 2 CO2 and 2 program (timer) device stations
• Up to 8 control boards and irrigation devices (OA6-24, OAT-24, OA6-110, DSP-1/2, DSD-1/2)
• Up to 4 AC/DC motor controllers and 4 EC Fan Control Adapters (EFC-1)
• 2 lighting channels, up to 256 fixtures per channel (depending on light brand)
• Complete historical data logging; 256x160 LCD
• Power: DC 12V, 3A
• Working environment: 32 to 122 deg F (0 to 50 deg C), 5 to 95% RH non-condensing

Ideal Applications

• Commercial greenhouse climate, irrigation and lighting control
• Curtain, roll-up and ventilation management based on outdoor weather data
• Scalable greenhouse automation starting from a single controller
