TrolMaster - Device Station Kit (4RS-2)

Brand: TrolMaster

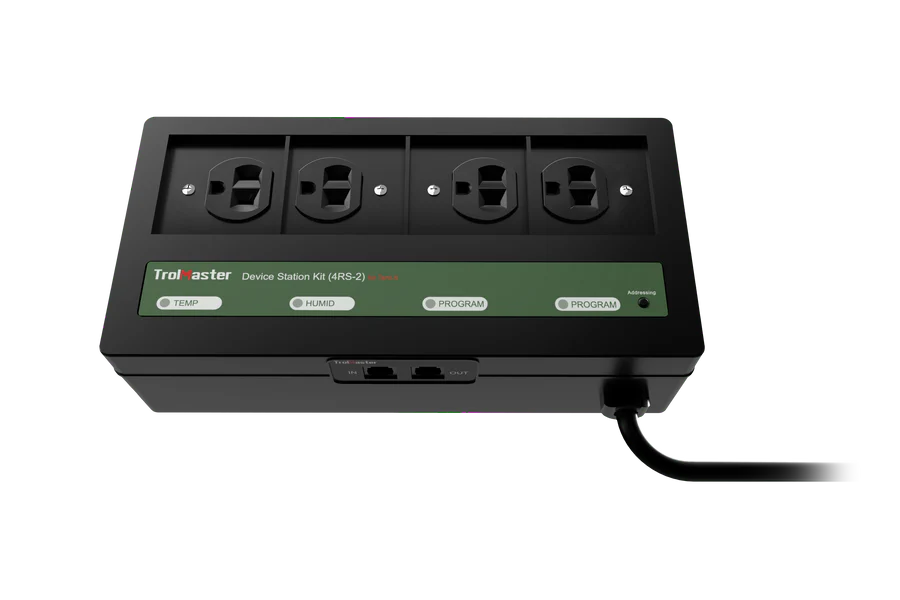

TrolMaster Device Station Kit (4RS-2)

The 4RS-2 is a universal 4-outlet device module kit that connects directly to the Tent-X controller through RJ12 cables. It takes up 4 device modules on the controller and provides 4 outputs defaulted, from left to right, as 1 x DST, 1 x DSH and 2 x DSP.

The power cable connects directly to the socket for quick, easy installation, letting operators power multiple devices at once. Each output can provide up to 15A, with a total of 15A for the kit.

Available Options

• Model: 4RS-2
• Includes: Device Station Kit (4RS-2), 16ft RJ12 Cable
• Compatible controllers: TCS-1, GCS-1

Key Features

• 4 controlled outlets: 1 x DST (temperature), 1 x DSH (humidity), 2 x DSP (program)
• Max 15A per output, 15A total input
• Powers multiple devices at once
• Quick and easy installation
• Input / output voltage: 100-240VAC, 50/60Hz
• Working temperature: 32 to 104 deg F, humidity 90% or less

Ideal Applications

• Tent-X (TCS-1) and Green-X (GCS-1) installations needing several controlled outlets in one unit
• Compact grow tents and rooms controlling heaters, humidifiers, fans and timers
