ThinkGrow - 30A AWG#10 ThinkGrow Hardwire Cord for OPA-2

Brand: ThinkGrow

ThinkGrow 30A AWG#10 Hardwire Cord for OPA-2

ThinkGrow 30A, AWG#10 hardwire cords connect equipment and ThinkGrow LED strings to power in systems built around the ThinkGrow OPA-2 Smart Junction Box. Both versions are 3 ft (0.9 m) long, built from high-quality materials for long-lasting performance in demanding environments.

The DOA-10 lets non-ThinkGrow products such as high-power pumps, fans, HVAC and dehumidifiers connect to the OPA-2 line-out section, which can be connected to HCS-2 or HCS-3 controllers as a high-power device control module. The DPA-10 connects each string of ThinkGrow daisy chain cables and LEDs to the main power source and is pre-stripped at one end for easy connection.

Available Options

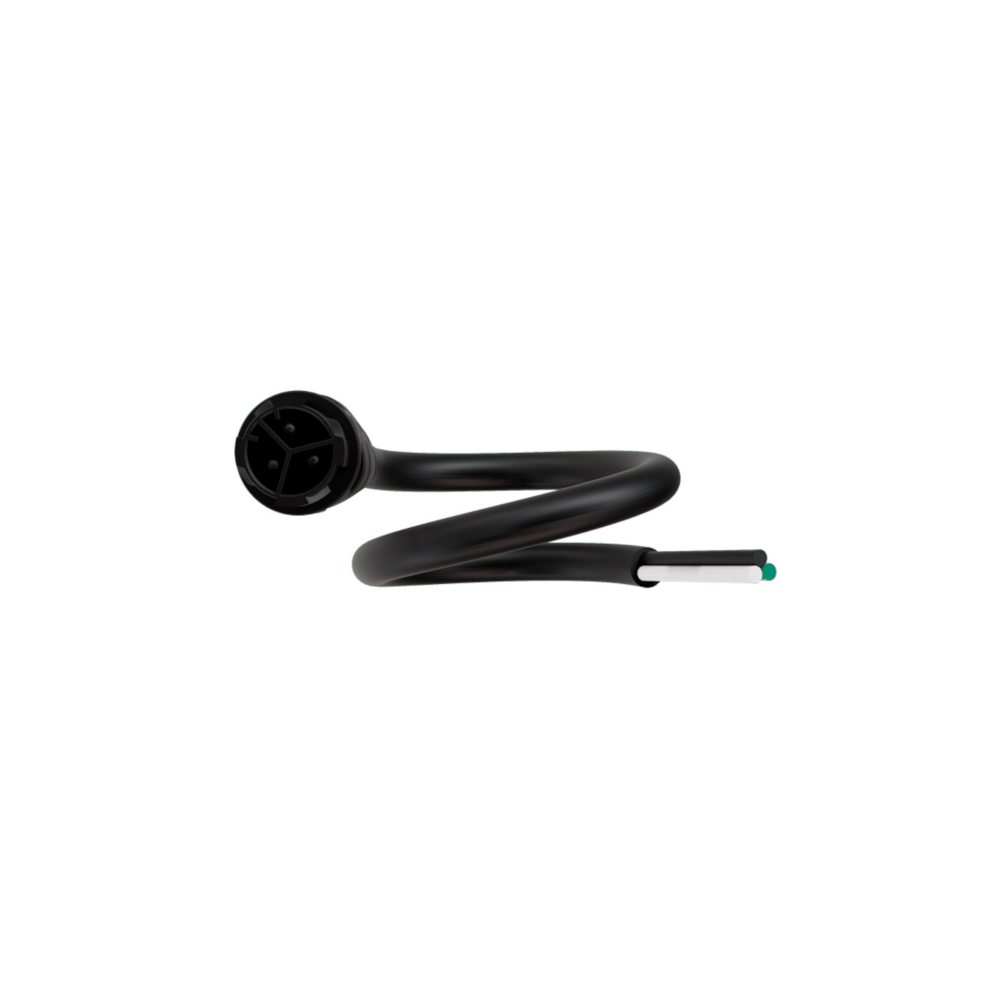

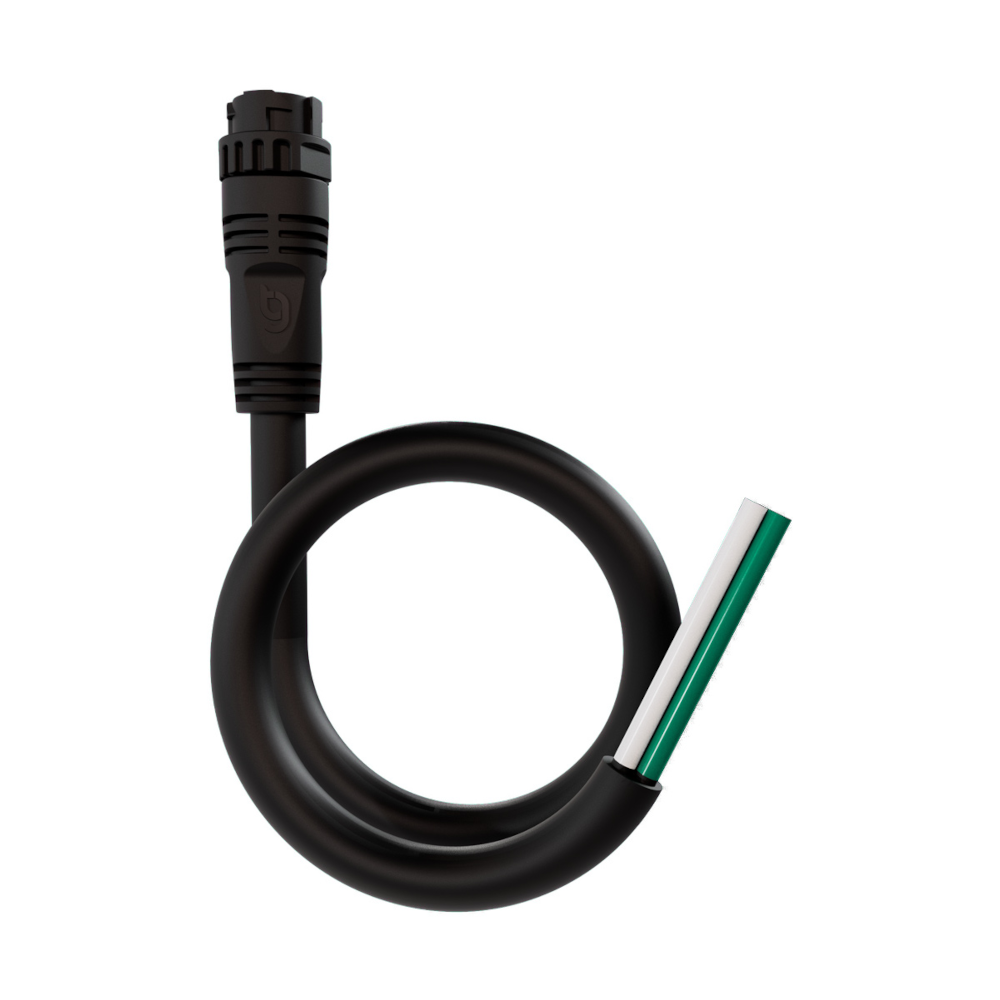

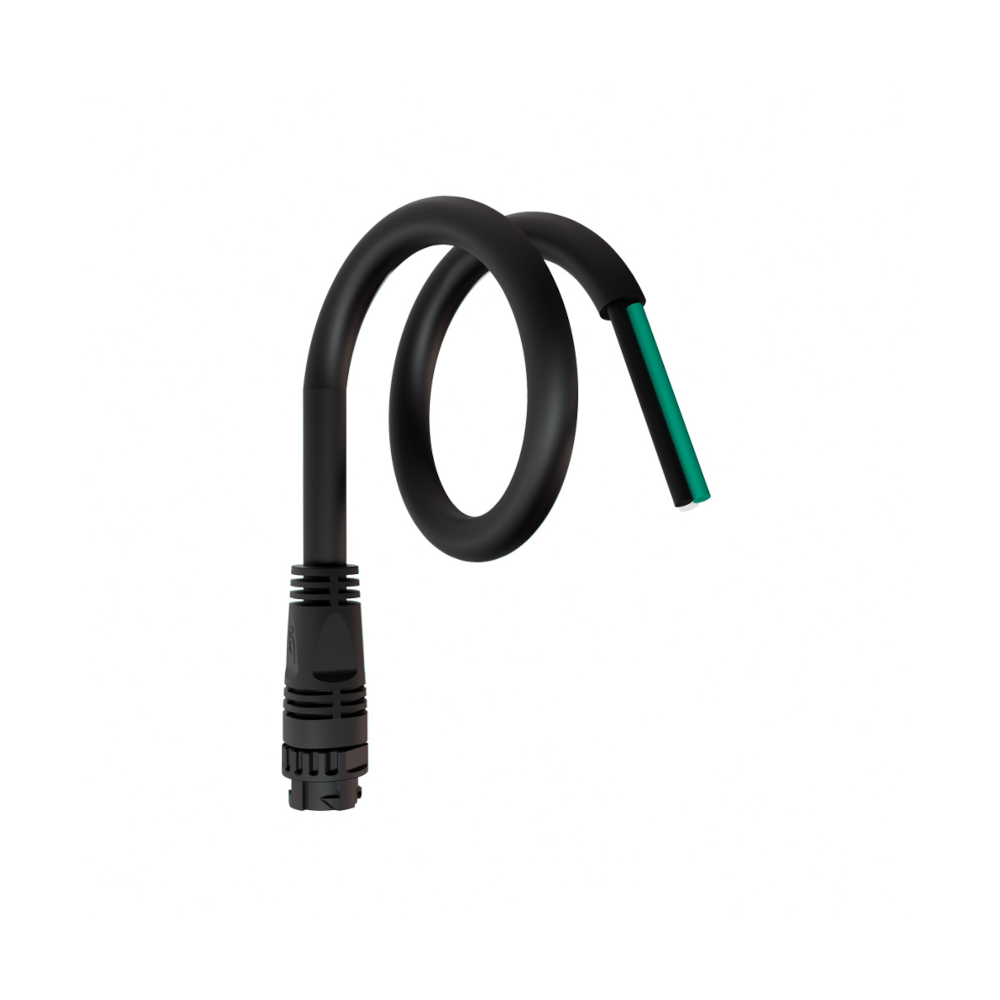

• DOA-10 (OPA-2 Output): hardwire cord for connecting non-ThinkGrow equipment to the OPA-2 line-out section (includes 1 cord)

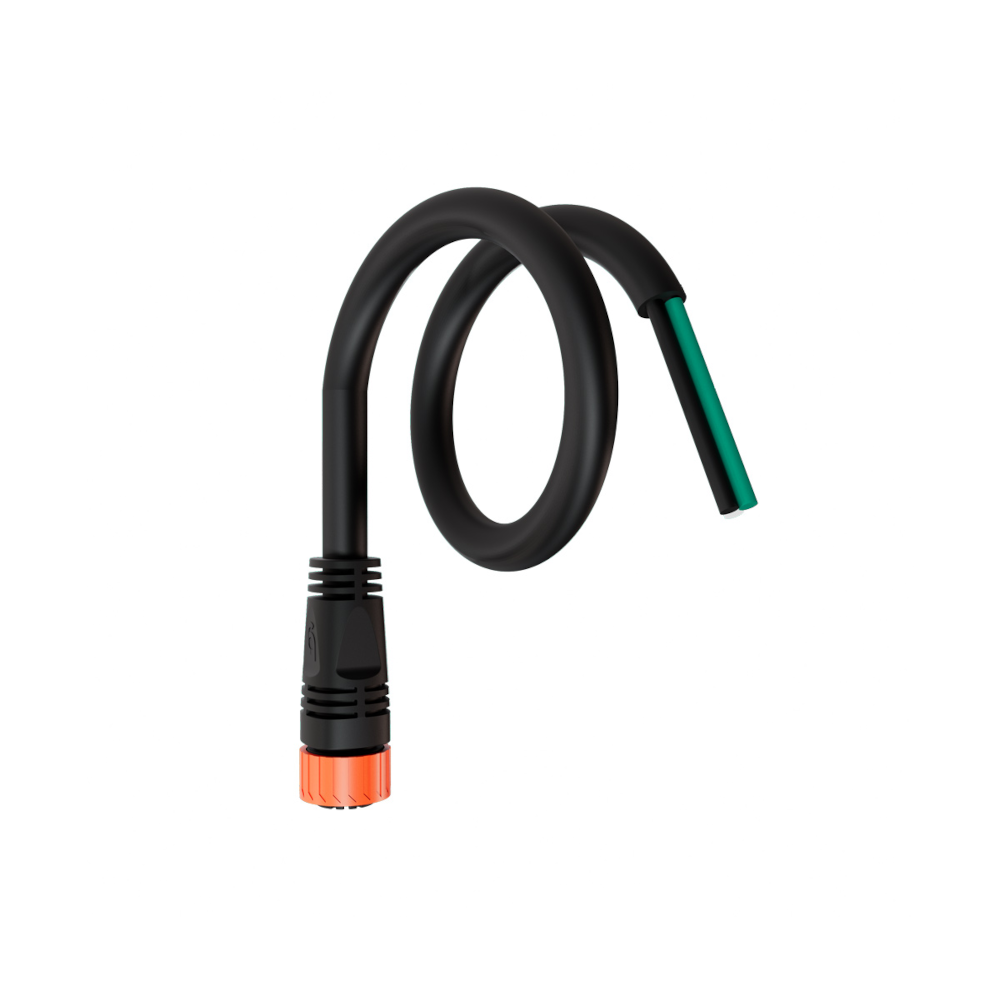

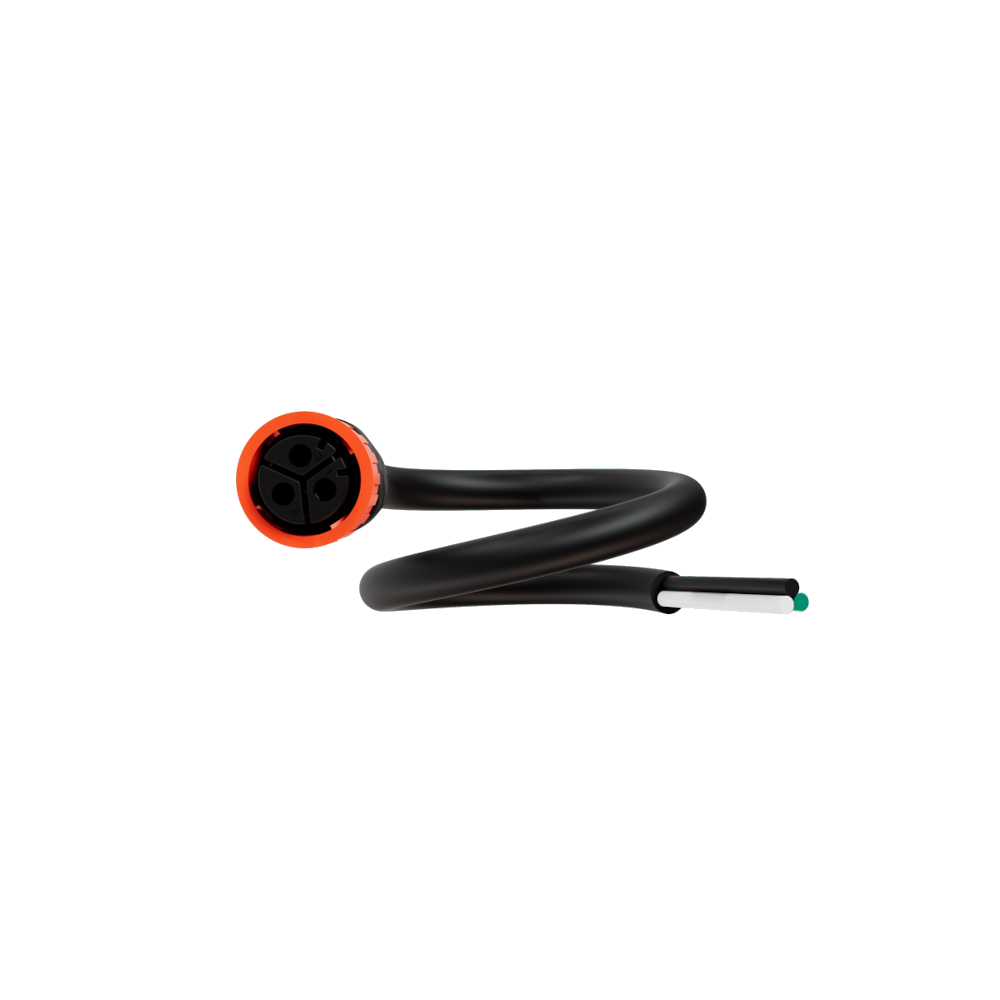

• DPA-10: hardwire cord for connecting ThinkGrow daisy chain LED strings to the main power source, pre-stripped at one end (includes 1 cord)

Key Features

• Input voltage: 100-277V, 30A or less
• Gauge: 10 AWG; copper area 5.26 mm2
• Resistivity: less than 12 mOhm
• Length: 3 ft (0.9 m); gross weight 0.97 lbs (0.44 kg)
• Easy installation
• DPA-10: 4-pin IP65 waterproof connector; ROHS compliant; rated to 105 deg C

Ideal Applications

• High-power device control of pumps, fans, HVAC and dehumidifiers via the OPA-2
• Hardwiring ThinkGrow daisy chain LED strings to facility power
• Integrating equipment with TrolMaster Hydro-X Pro systems
