ThinkGrow - Model One 7ft Splitter Power Cord with Control Connection

Brand: ThinkGrow

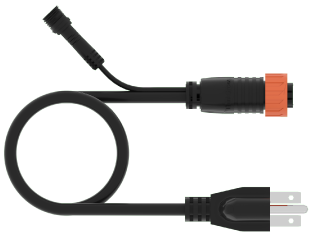

ThinkGrow Model One 7 ft Splitter Power Cord with Control Connection

ThinkGrow Model One splitter power cords are 7 ft (2.1 m) cords whose split end connects to power and the controller on one side and to the LED drivers on the other. They bring main power to a group of Model One drivers and transfer data from the HCS lighting controller. Versions are offered for 120V, 240V and 277V power.

The Model One system reduces the number of power outlets and cables by combining multiple LED drivers on a single power cable. After the splitter cord feeds the first driver, TDC-2/3/4 daisy chain cords carry power and control signal from driver to driver.

Available Options

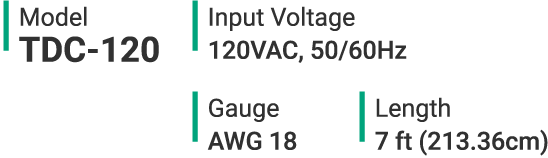

• TDC-120: 7 ft (2.1 m), 120V, NEMA 5-15 plug

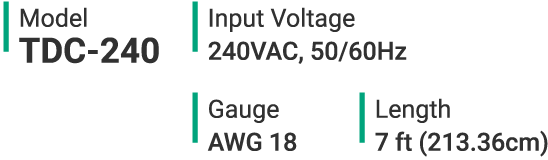

• TDC-240: 7 ft (2.1 m), 240V, NEMA 6-15 plug
• TDC-277: 7 ft (2.1 m), 277V, NEMA L7-15P plug

Key Features

• Splitter design combines power and HCS lighting control connection in one cord
• Length: 7 ft (2.1 m)
• TDC-120: 120VAC, 50/60Hz; 10A; 18 AWG
• TDC-240: 240VAC, 50/60Hz; 10A; 18 AWG
• Easy installation

Ideal Applications

• Powering ThinkGrow Model One driver groups at 120V, 240V or 277V
• Model One systems controlled by TrolMaster Hydro-X (HCS) controllers
• Commercial rooms reducing outlet count
