TrolMaster - 3-in-1 Sensor (MBS-TH)

Brand: TrolMaster

TrolMaster 3-in-1 Sensor for Hydro-X (MBS-TH)

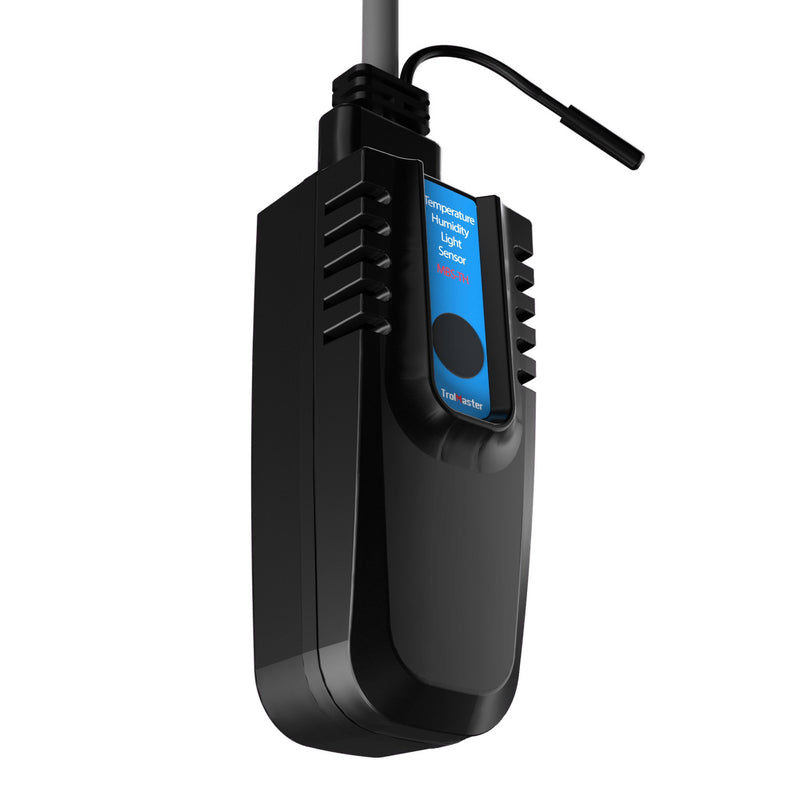

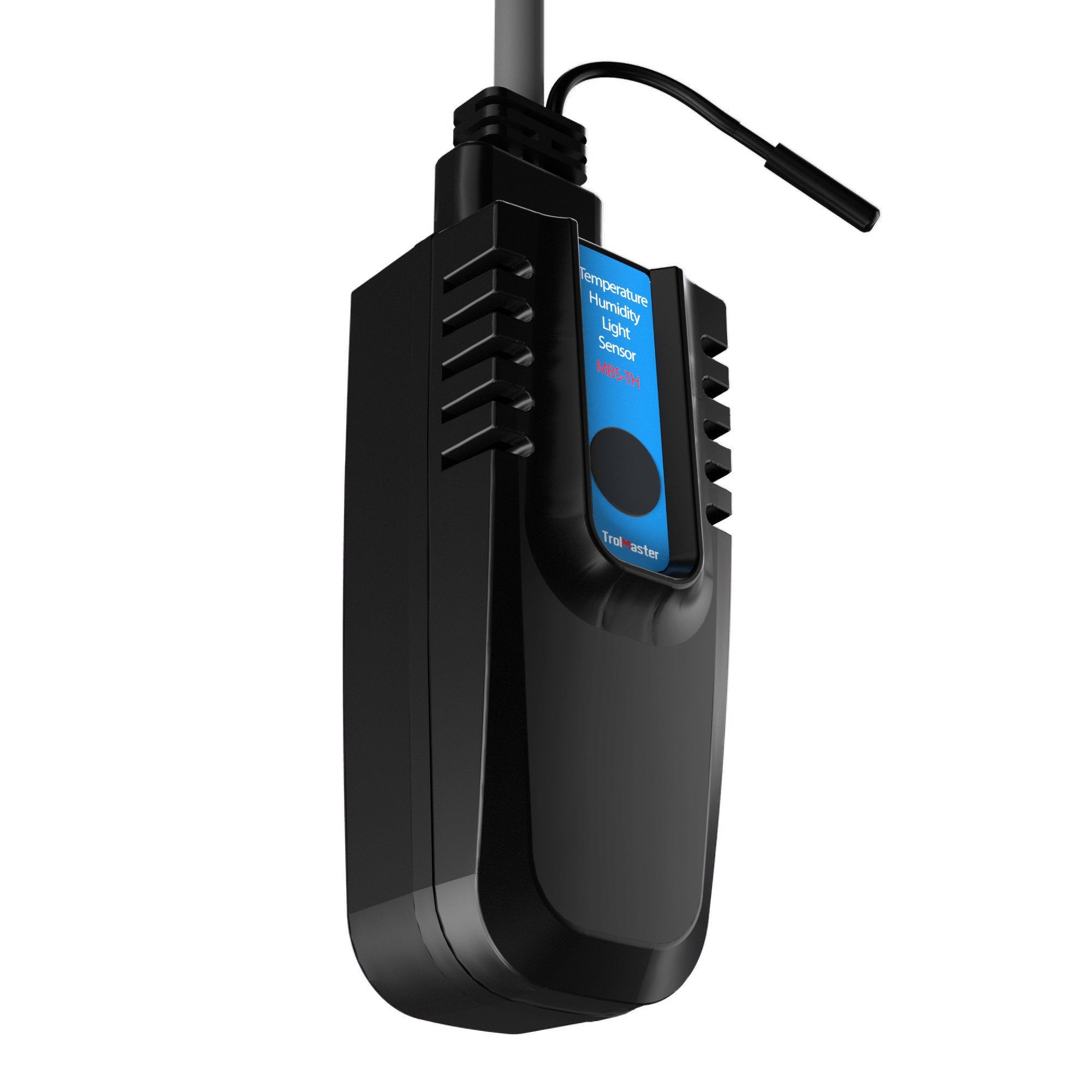

The TrolMaster MBS-TH is a 3-in-1 temperature, humidity and light sensor for the Hydro-X system. A built-in photocell detects day/night mode, and plug-and-play RJ12 connectivity makes installation simple.

This is a replacement or spare sensor; the main controller already ships with a sensor. Sensors should be kept clean and dry, and should not be sprayed or exposed to water or condensate, to prevent premature failure.

Available Options

• Model: MBS-TH

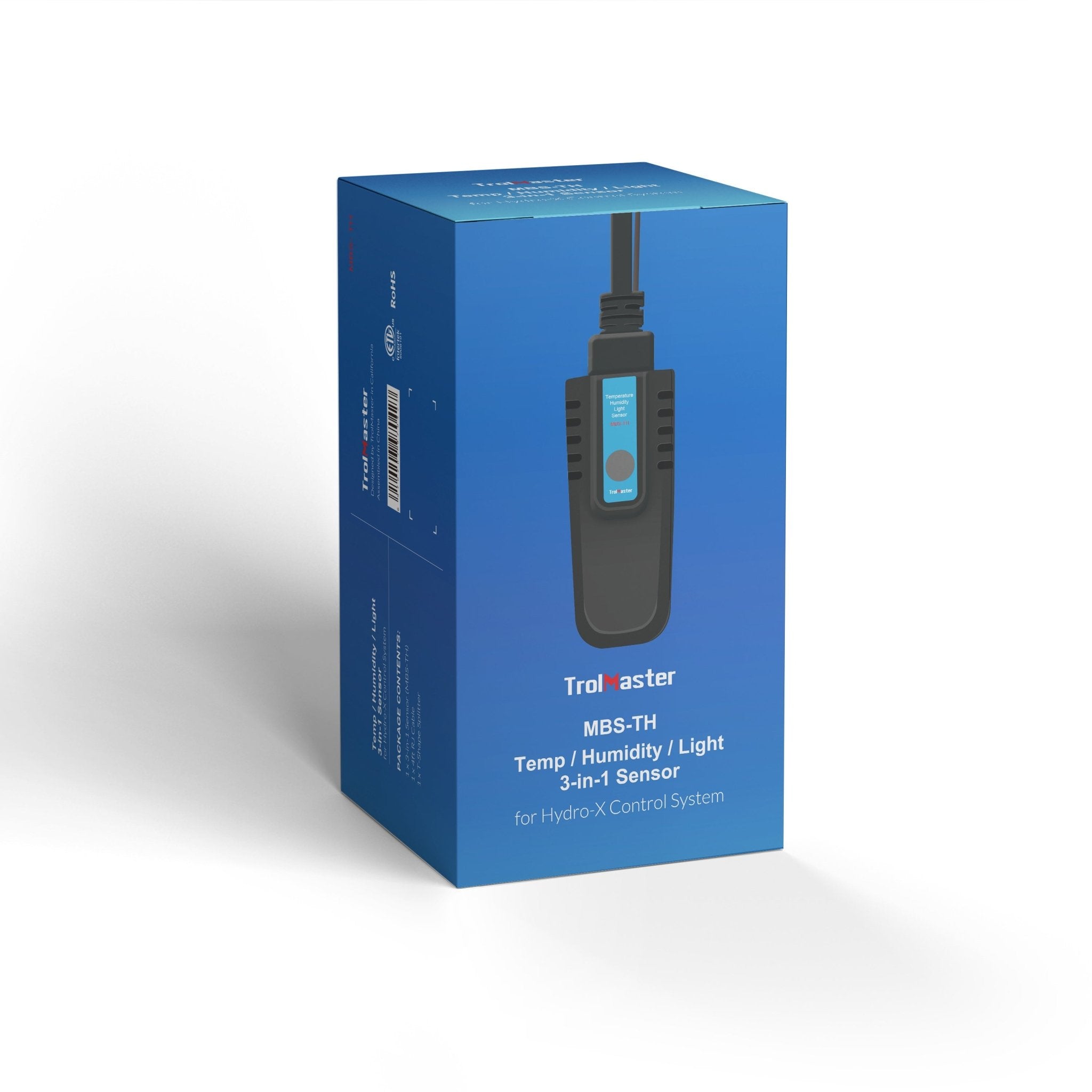

• Includes: 3-in-1 temperature/humidity/light sensor, 16 ft RJ12 cable and RJ12 T-splitter
• Compatible controllers: HCS-1, TCS-1

Key Features

• Measures temperature, humidity and light
• Built-in photocell for day/night mode detection
• Plug-and-play RJ12 connection
• Output voltage: 0 to 11.5V; maximum current: 0.2A
• Working environment: 32 to 122 deg F, under 90% humidity

Ideal Applications

• Replacement or backup sensor for Hydro-X (HCS-1) and Tent-X (TCS-1) controllers
• Adding monitoring points for climate control in indoor cultivation rooms
