ProMinent - Gamma/XL Metering Pump for PAA

Brand: ProMinent

Gamma/XL Metering Pump for PAA

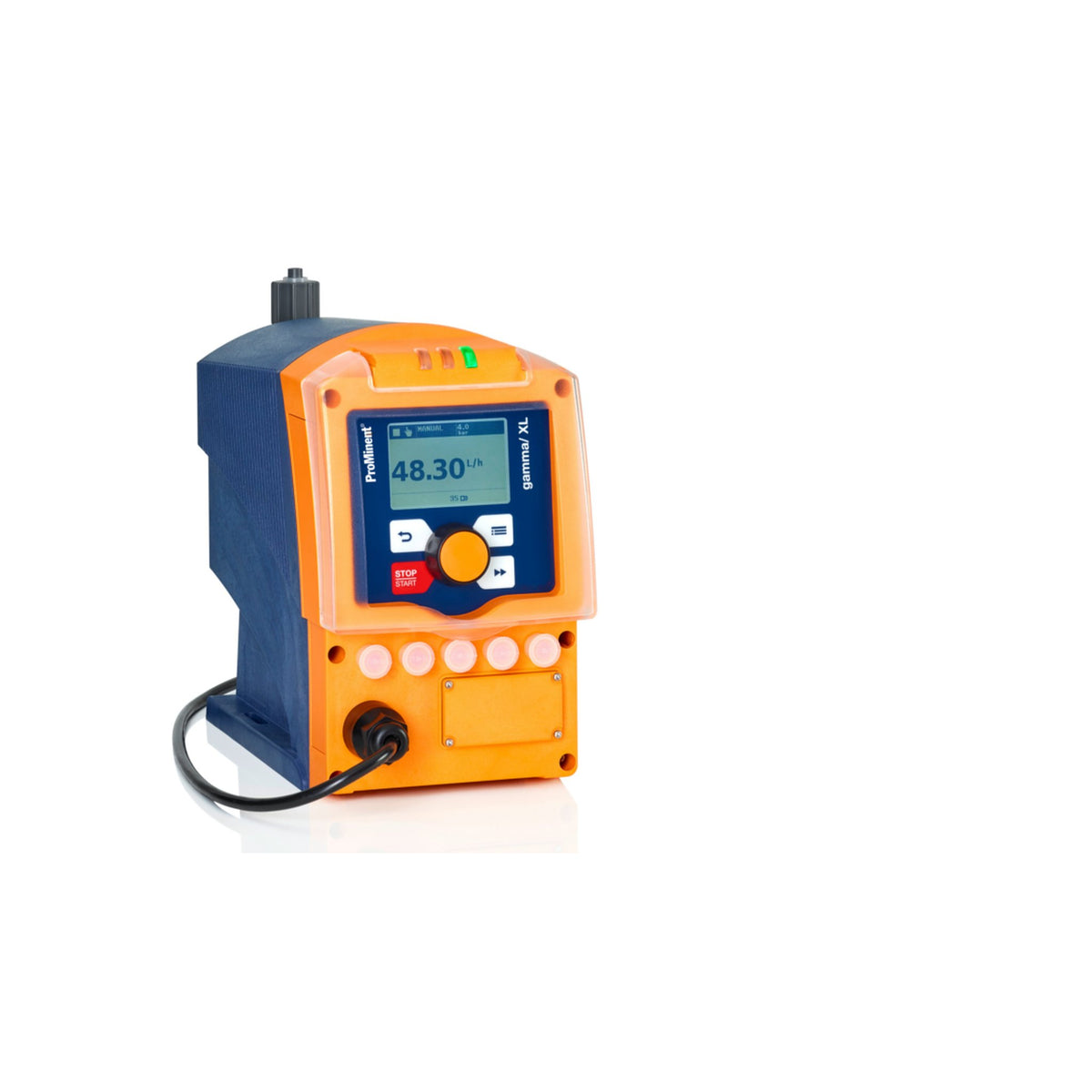

The ProMinent gamma/XL is a smart, connectable solenoid-driven metering pump supplied by BioSafe Systems for higher-capacity PAA feed. The gamma/XL line delivers up to 21.1 gph (78.5 L/h) with back pressure up to 363 psi depending on model.

Integrated pressure measurement detects gas in the dosing head, overpressure and loss of pressure, and the pump compensates for system pressure fluctuations to hold dosing accuracy. Stroke length is set electronically with a click-wheel, and a 300-event log book records operating history for troubleshooting.

Available Options

• Standard

Key Features

• Capacity up to 21.1 gph (78.5 L/h) at up to 363 psi, model dependent
• Stroke rate 1 to 12,000 strokes per hour
• Metering repeatability of plus or minus 1 percent
• Integrated pressure measurement and hydraulic fault detection
• 3 configurable digital inputs/outputs; optional 4-20 mA output and relay modules
• Illuminated LCD with click-wheel operation
• IP 66 protection

Ideal Applications

• High-capacity PAA dosing
• Automated dosing with the Aegis II controller
• Food and beverage process water
• Water and wastewater treatment
