ProMinent - Beta/4 Metering Pump for PAA

Brand: ProMinent

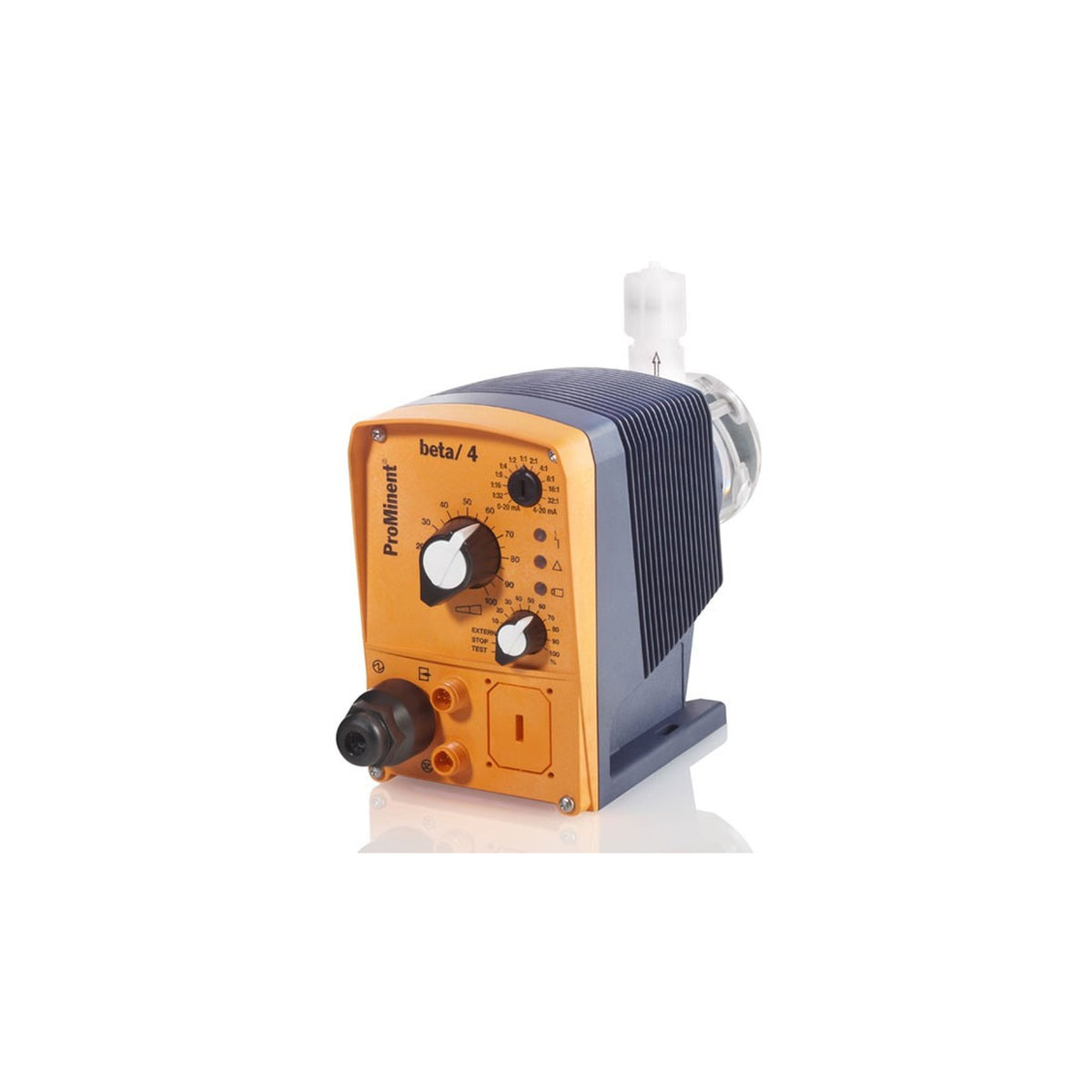

Beta/4 Metering Pump for PAA

The ProMinent Beta/4 is a microprocessor-controlled solenoid diaphragm metering pump supplied by BioSafe Systems for precise PAA chemical feed. Output is set by stroke length and stroke frequency, and the pump can follow external contact signals from a controller such as the Aegis II.

The beta series covers capacities from 0.16 to 8.45 gph (0.59 to 32 L/h) at pressures up to 363 psi depending on model, with auto-degassing liquid ends for off-gassing chemicals and an integral bleed valve to prevent priming issues.

Available Options

• Standard

Key Features

• Stroke length adjustable 0 to 100 percent with 10:1 turndown
• Stroke frequency adjustable in 10 percent steps from 10 to 100 percent
• External contact control with 64:1 to 1:64 pulse step-up and step-down; optional 4-20 mA control
• Auto-degassing liquid ends and integral bleed valve
• IP 66 / NEMA 4X protection
• 100 to 230 V power
• NSF/ANSI 61 certified with acrylic or PVDF liquid ends

Ideal Applications

• PAA dosing controlled by the Aegis II
• Water treatment chemical metering
• Sanitation and wash water systems
