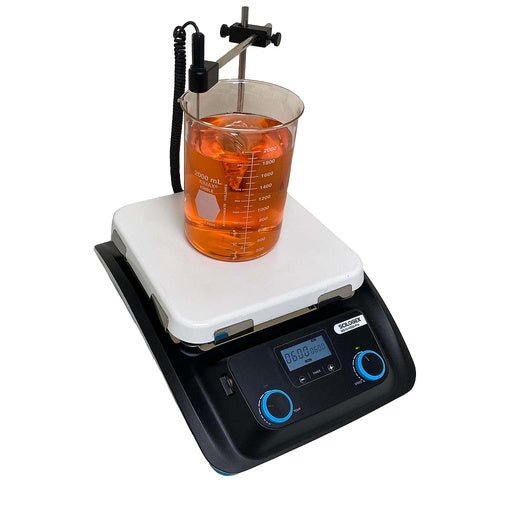

Scilogex - SCI500HS-Pro LCD Digital 10 x 10 Magnetic Hotplate Stirrer, ceramic-glass plate, 110V, 50/60Hz US Plug

Please sign in to see pricing

$1,782.20

SKU: 80301321159999

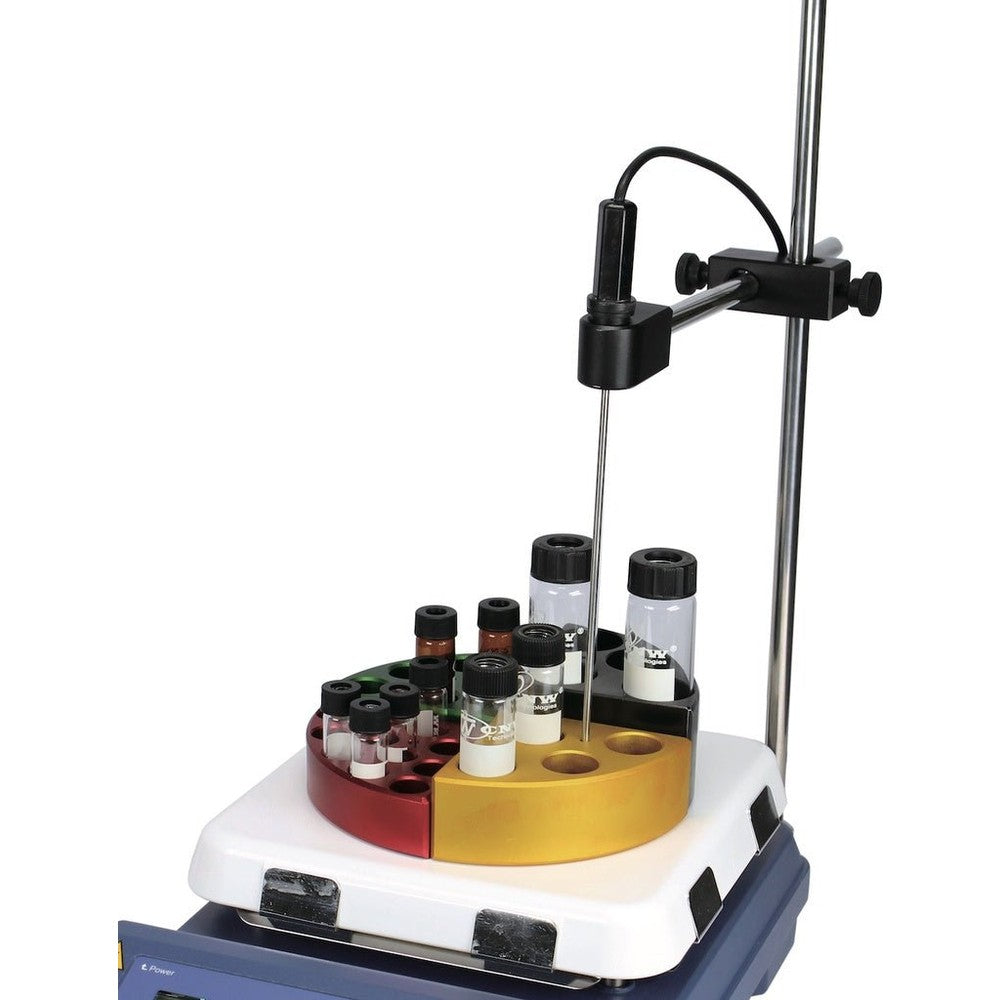

W/ Sensor and Sensor Stand:

No Yes

Variant

SCILOGEX SCI500HS-Pro LCD Digital 10x10 Magnetic Hotplate Stirrer 500degC/1500rpm Max

Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
Glass ceramic work plate provides excellent chemical resistant performance and efficient heat transfer.
LCD display for precise monitoring of speed and temperature. Liquid temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at +/-0.2degC.
Digital speed control of 100~1500 rpm
Max. heating plate temperature 500degC
The "Hot" warning will flash when the work plate temperature is above 50degC even when the hotplate is turned off.

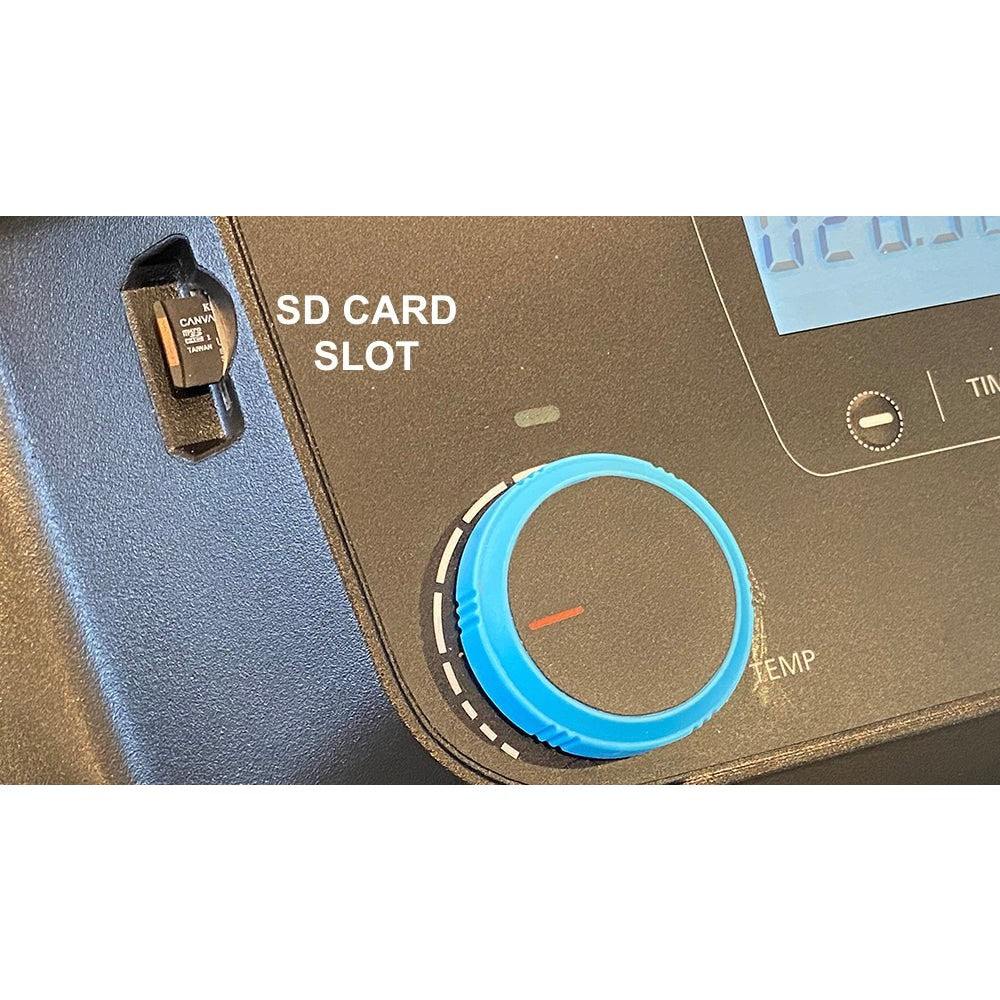

Free SD card records the instrument's running data in real time.
Timing function: the run time of the instrument can be set.

Work plate dimension[W x D]	254x254mm(10inch)
Work plate material	Glass ceramic
Motor type	Brushless DC motor
Stirring positions	1
Max. Stirring quantity, [H2O]	30L
Max. Magnetic bar[length]	80mm
Speed range	100-1500rpm resolution+/-1rpm
Speed, Time, Temperature display	LCD
Timer display	1min-99h59min
Heating Temperature range	Room Temp. -500degC, increment 1degC
Temperature control accuracy	+/-1degC(100degC)
Overheating Protection(degC)	540
Temperature Display Accuracy	+/-0.1degC
External temperature sensor	PT1000 (accuracy +/-0.2)
"Hot" warning (degC)	50
Data Connector	SD Card
Protection Class	IP21
Power	1400W
Heating output (W)	1350W
Voltage, Frequency	100-120/200-240V 50/60Hz
Dimensions [WxDxH]	328x424x138mm
Weight (kg)	7.18
Permissible Ambient Temperature and Humidity	5-40deg C, 80%RH

Downloadable PDFs

SCI500HS-Pro Manual
