Tri-Clamp Sight Glass 250 PSI - Peer Reviewed Certified
Brand: BVV
Neocision Sight Glass
Tempered Strengthened Soda Lime Glass

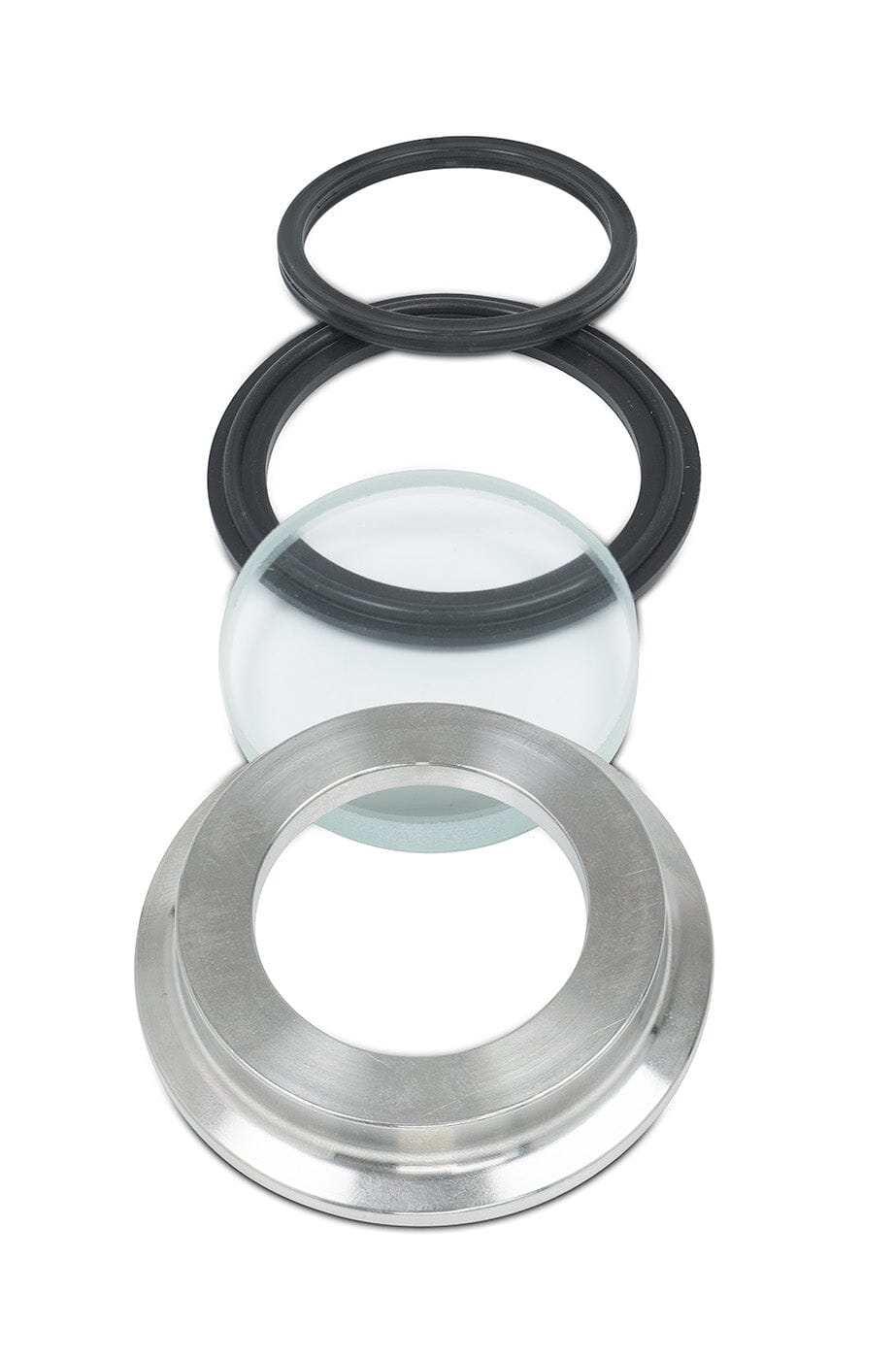

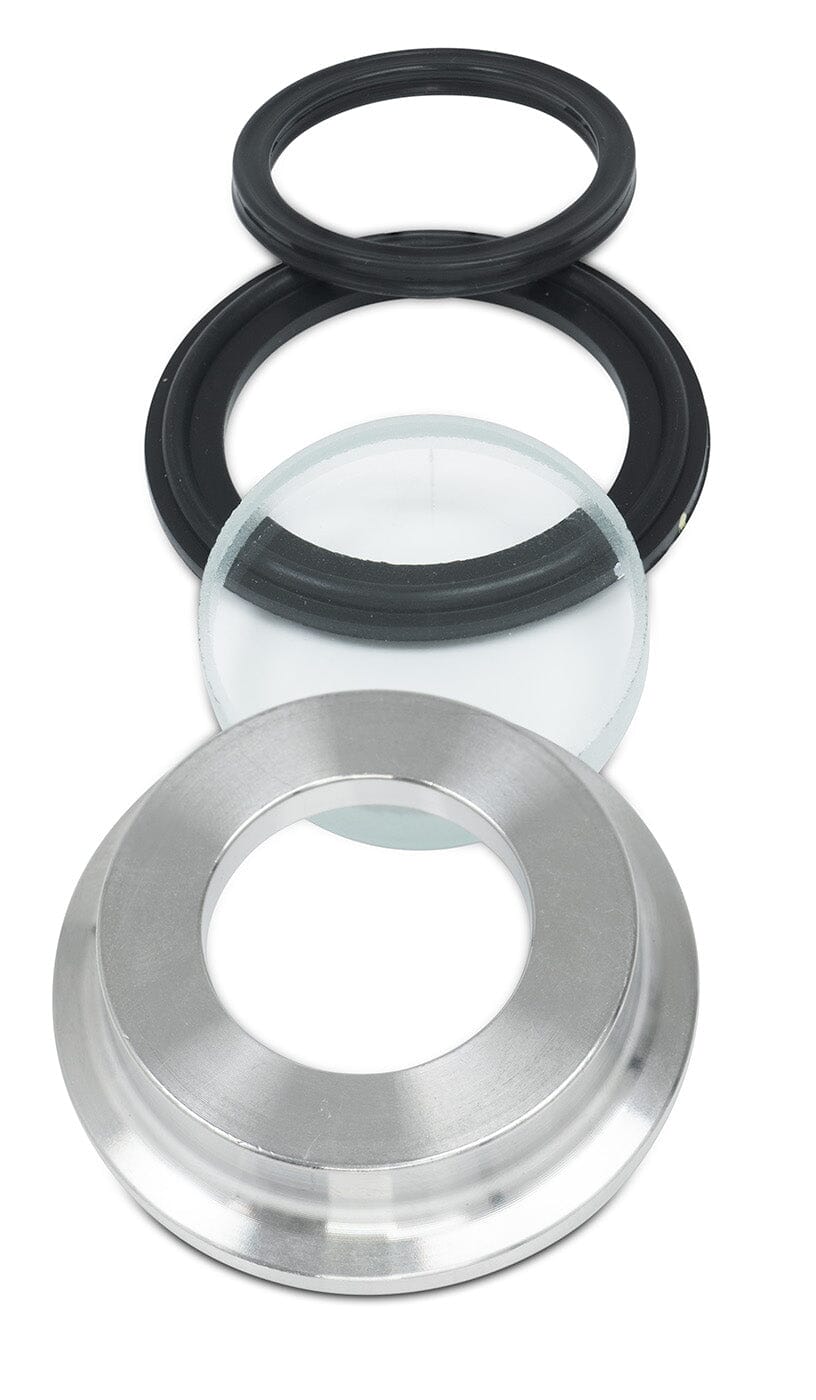

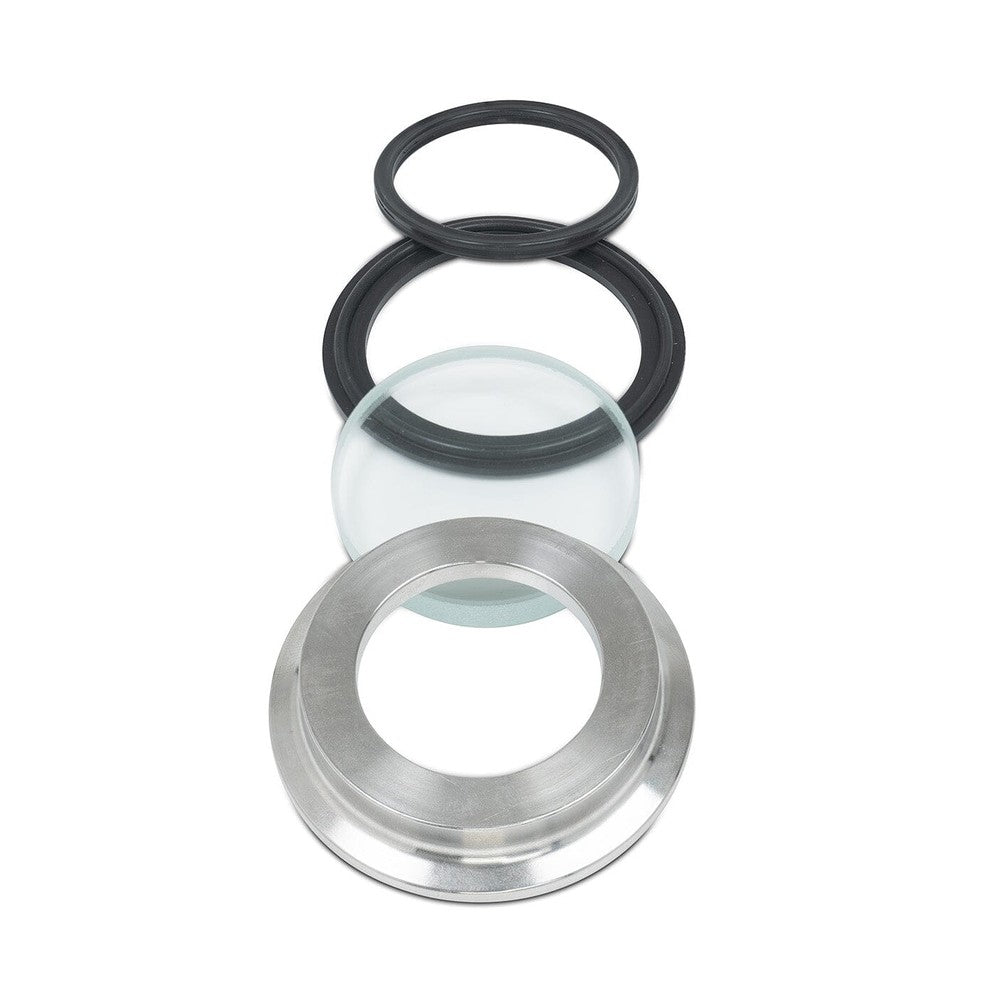

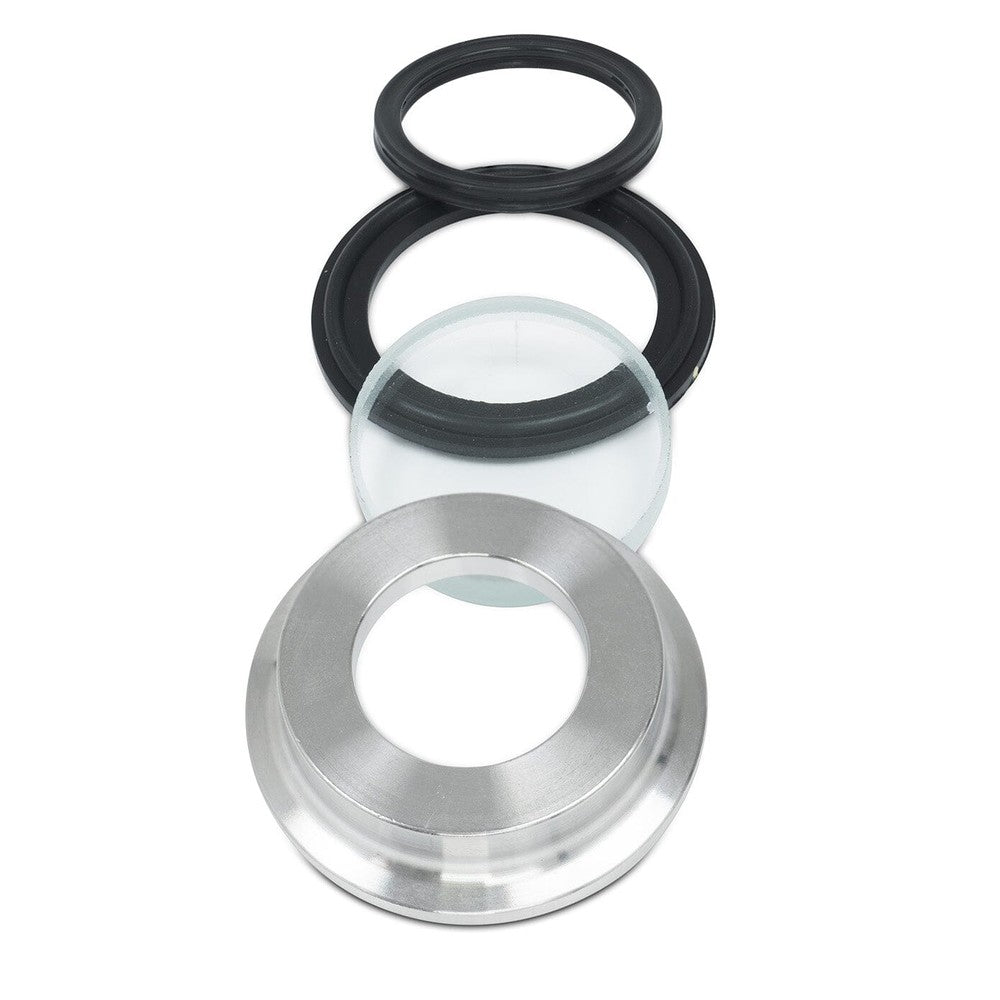

The 3 piece Neocision certified sight glasses offer a greater chemical resistance, viewing area, and cleanability compared to a traditional sight glass such as polycarbonate or Metaglas sight glasses. These Tri-Clamp sight glasses consist of 3 pieces: the tempered glass disc, Viton x-profile gasket, and custom tri-clamp ferrule. When used in combination with high-pressure clamps the working PSI is rated at 250 PSI (3rd party tested). These glasses are also resistant to thermal shock, enduring extreme heating and cooling temperatures. A Viton Tri-Clamp gasket must be used to conform with the certification ratings, and and is included.
***Disclaimer: Please handle with care when installing on to a system and do not overtighten or the glass disc may chip if the clamp torque ratings are exceeded.
Clamp Torque Specification Sheet
Sizes Available:
- 1.5" Tri-Clamp
- 2" Tri-Clamp
| Ferrule Material | 304 Stainless Steel |
| Glass Material | Tempered Soda Lime |
| Gasket Material | Viton(FKM) |
| Connection Type(s) | Tri-Clamp |
| PSI Rating | 250 PSI |
| Negative Temperature Rating | -40C |
