MetzConnect BACnet Router

Brand: Growlink

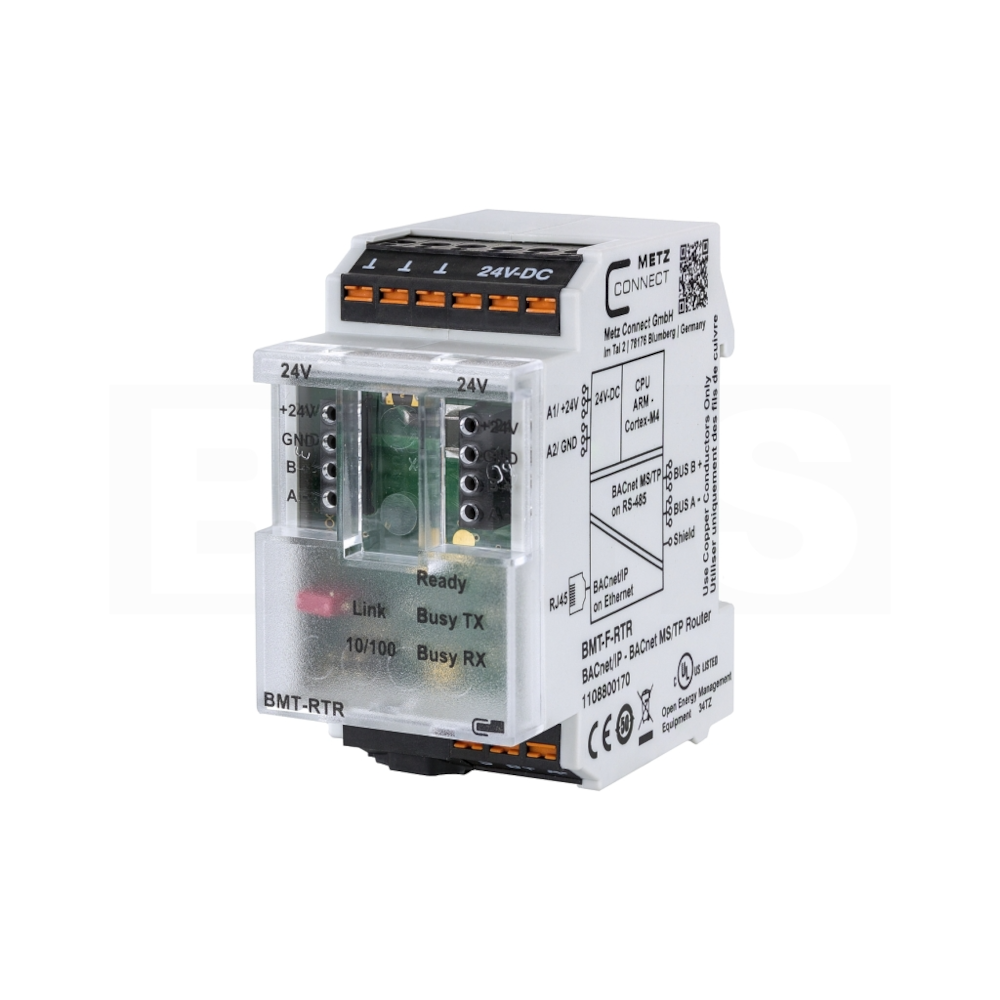

BMT-(F)-RTR is a compact Router and enables bidirectional data exchange between BACnet/IP and BACnet MS/TP fieldbus devices. The BMT-(F)-RTR can be connected to METZ CONNECT BACnet MS/TP devices via two 4-pole terminals on the front of the device and a jumper plug. An integrated web server is used for parameter settings, management and monitoring of the two interfaces (Ethernet / RS485). The web interface is also used to update the firmware. The BMT-(F)-RTR is suitable for decentralised mounting in electrical sub-distribution boards or in control cabinets on TH35 mounting rails in accordance with IEC 60715.

• Connection with spring clamp terminal blocks (push-in)
• Access to 32 devices on the BACnet MS/TP bus
• Bidirectional exchange of data between BACnet/IP and BACnet MS/TP devices
• Protocol: BACnet MS/TP, BACnet/IP, BACnet Ethernet, HTTP 1.0
• Integrated web server
• Intuitive and software-independent TCP configuration via web interface
• Recording and analysis of IP and RS485 communication
• Simple device search of METZ CONNECT BACnet MS/TP devices on the RS485 bus
• Fast connection of METZ CONNECT BACnet MS/TP devices via proven jumper plug technology
