Iluminar - CMH Full Fixtures

Brand: Iluminar

ILUMINAR CMH Full Fixtures

ILUMINAR ceramic metal halide (CMH) full fixtures deliver a remarkable PAR spectrum that closely matches the deeply penetrative energy of the sun. Each fixture includes an integrated low-frequency, square-wave ballast and is supplied without lamp, and the case is designed to dissipate heat quickly so it runs cool without fans or additional cooling.

Run the ballast independently or with the ILUMINAR Touch+ Controller. Fixtures are also compatible with Priva, Hortimax, and Argus controllers using the 0-10V protocol, allowing operators to fully dial in a facility to specific requirements. The double-ended 630W model provides a wider spectrum and more UV for larger yields.

Available Options

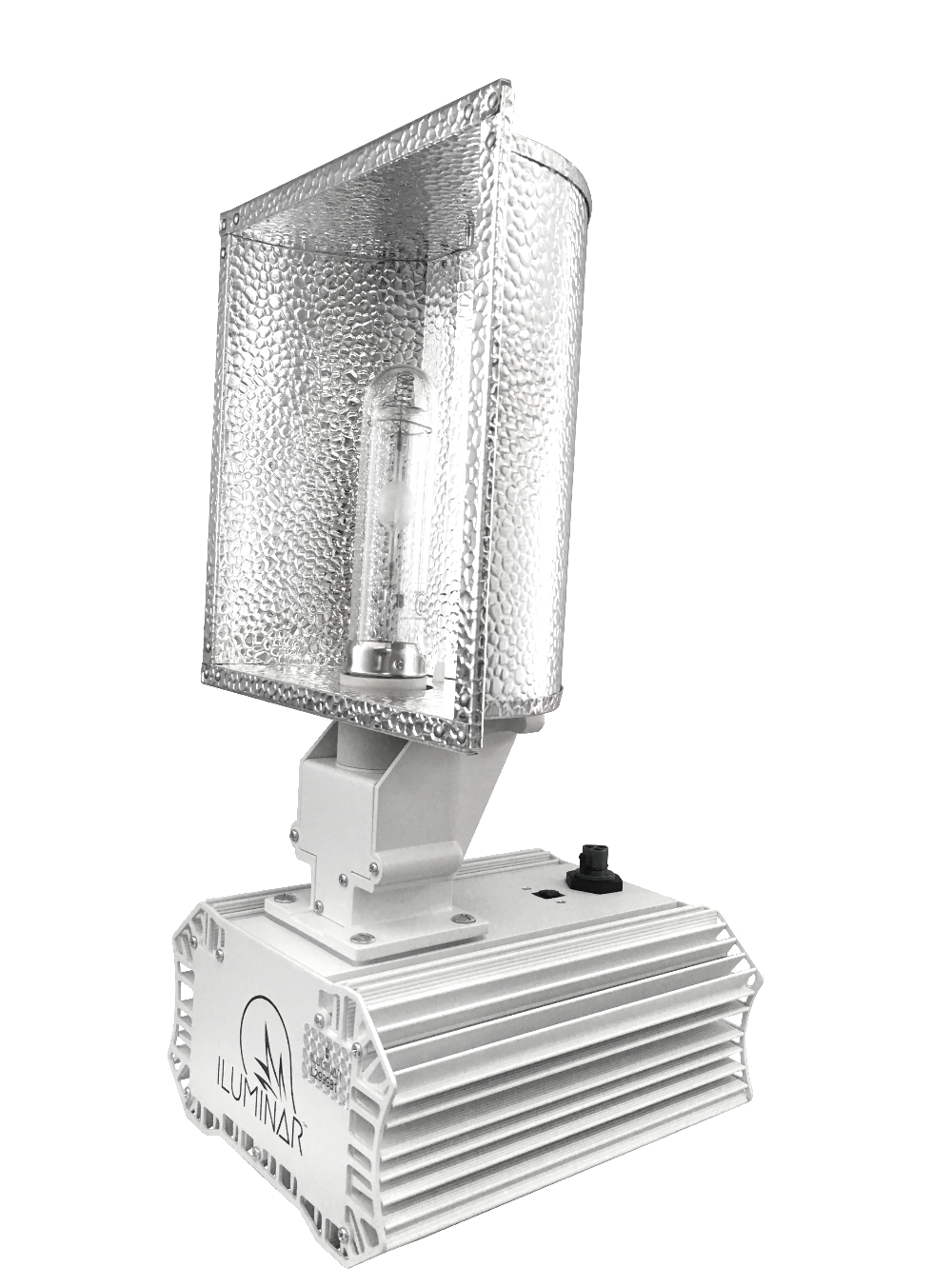

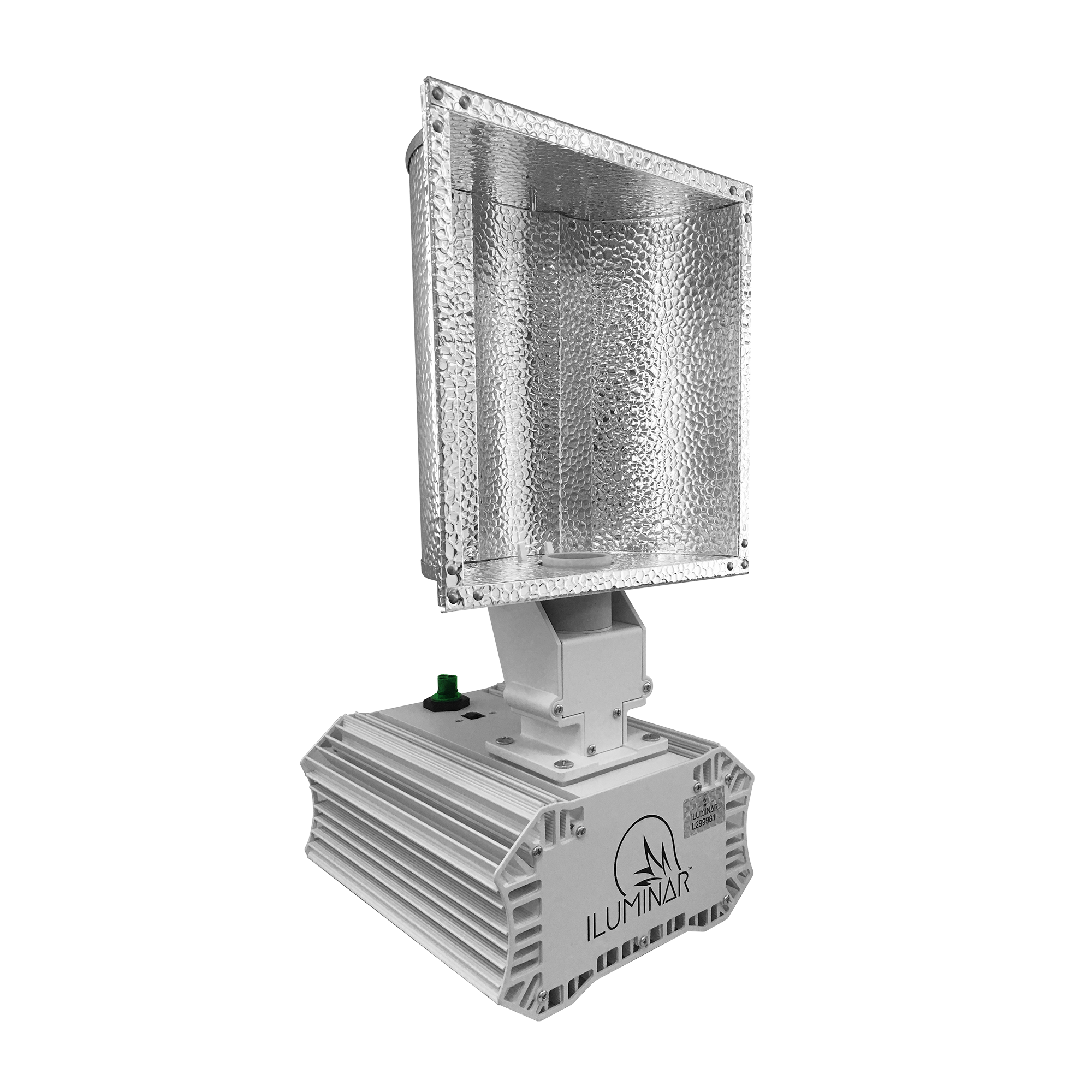

• SE 315W 120/240V (IL-CMH315-120)
• SE 315W 277V (IL-CMH315-277)

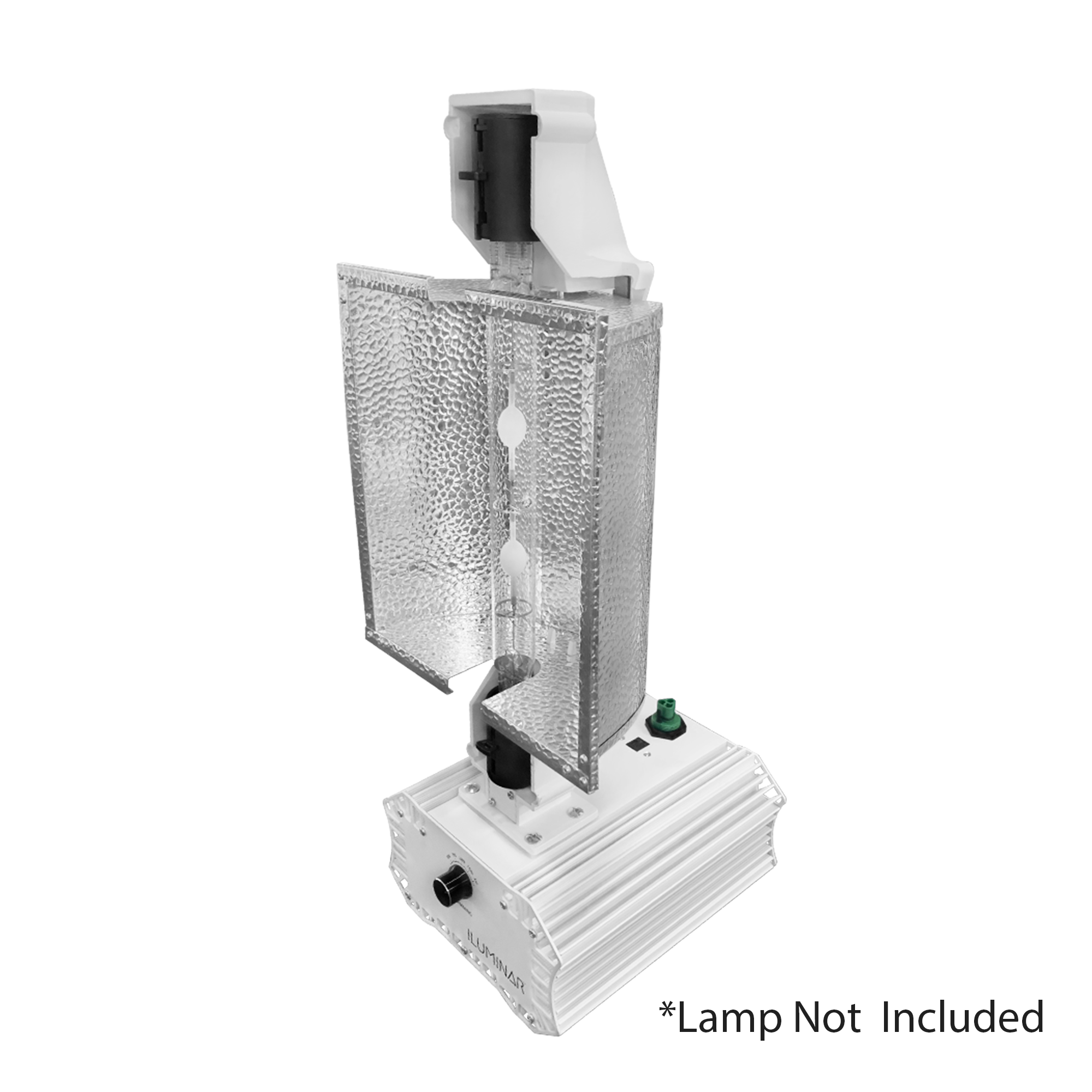

• DE 630W 120/240V (IL-CMHDE630-120)

Key Features

• Low-frequency, square-wave ballast for stable, sustained output
• Runs cool without fans, reducing cooling costs
• Random Start and Soft Start technology
• Ignition Failure Protection
• Uniform light distribution
• Compatible with Touch+, Priva, Hortimax, and Argus (0-10V protocol)
• Input voltage range: 108-264V; ships without lamp

Ideal Applications

• Primary or supplemental horticultural lighting
• Commercial indoor cultivation and controlled-environment agriculture
• Facilities seeking a full-spectrum, sun-like PAR output
