Huber - Unistat 510w

Brand: Huber

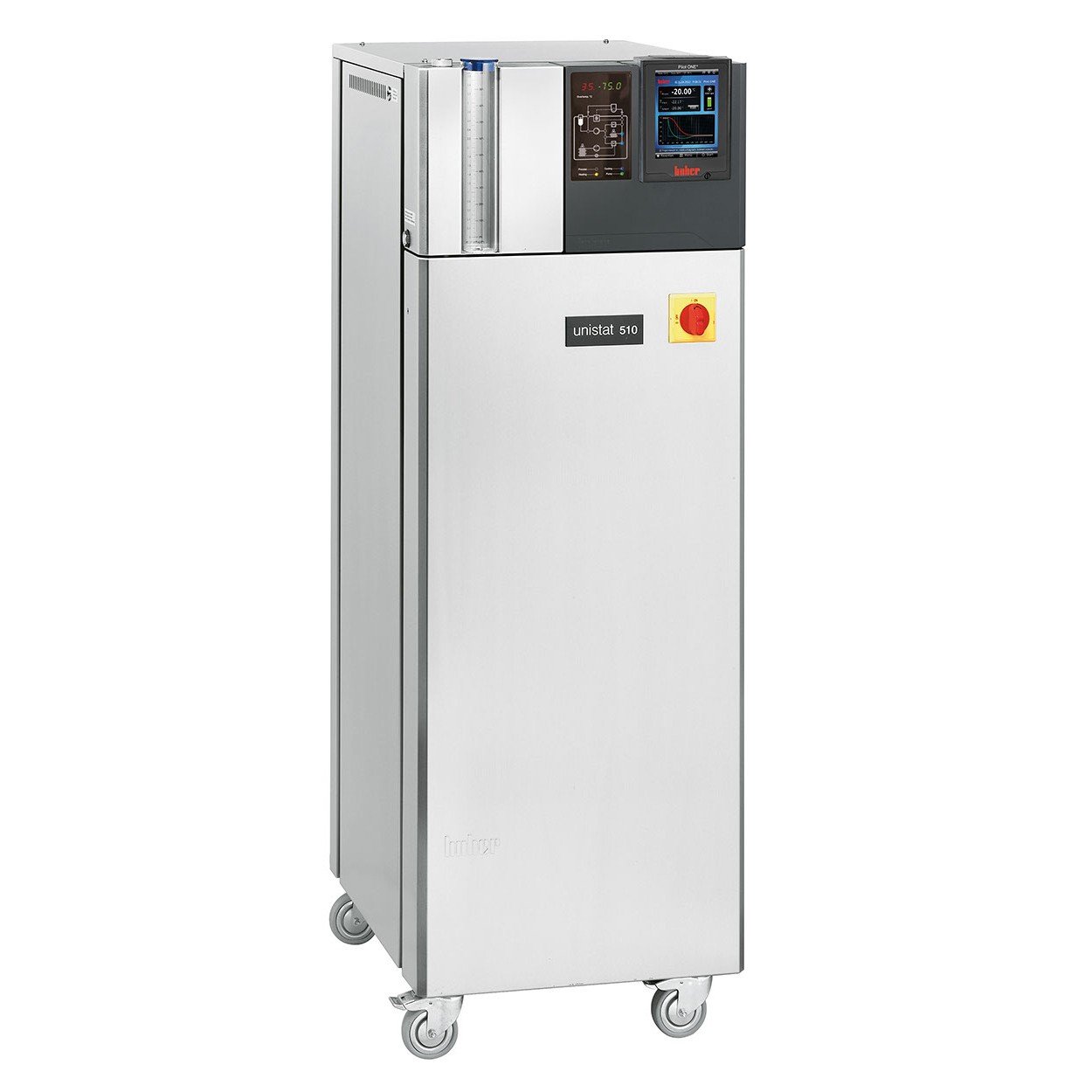

Unistat 510w

The Huber Unistat 510w is a dynamic temperature control system engineered for precise, reproducible thermoregulation across -50...250 C. It combines fast heating and cooling, tight temperature stability, and a closed, magnetically coupled circulation circuit that keeps your process on setpoint without fluid changes over the full range. Heating output reaches 6 kW. Operation is managed through the Pilot ONE touchscreen controller for adaptive, repeatable control.

Available Options

• 208V 3~ 60Hz (part 1070.0002.01)
• 460V 3~ 60Hz (part 1070.0003.01)
• 208V 3~ 60Hz / NR (part 1070.0037.01)
• 460V 3~ 60Hz / NR (part 1070.0038.01)

Key Features

• Operating temperature range: -50...250 C
• Temperature stability at -10 C: 0.01 K
• Heating power: 6 kW
• Cooling power with: Thermooil
• max. delivery: 112 l/min
• Overall dimensions WxDxH **: 460x554x1657 mm
• Net weight: 279 kg
• Power supply requirement: 208V 3~ 60Hz

Ideal Applications

• Reactor and pilot-plant temperature control
• Exothermic reaction control and scale-up
• Materials, battery, and process testing
