Huber - Unistat 410

Brand: Huber

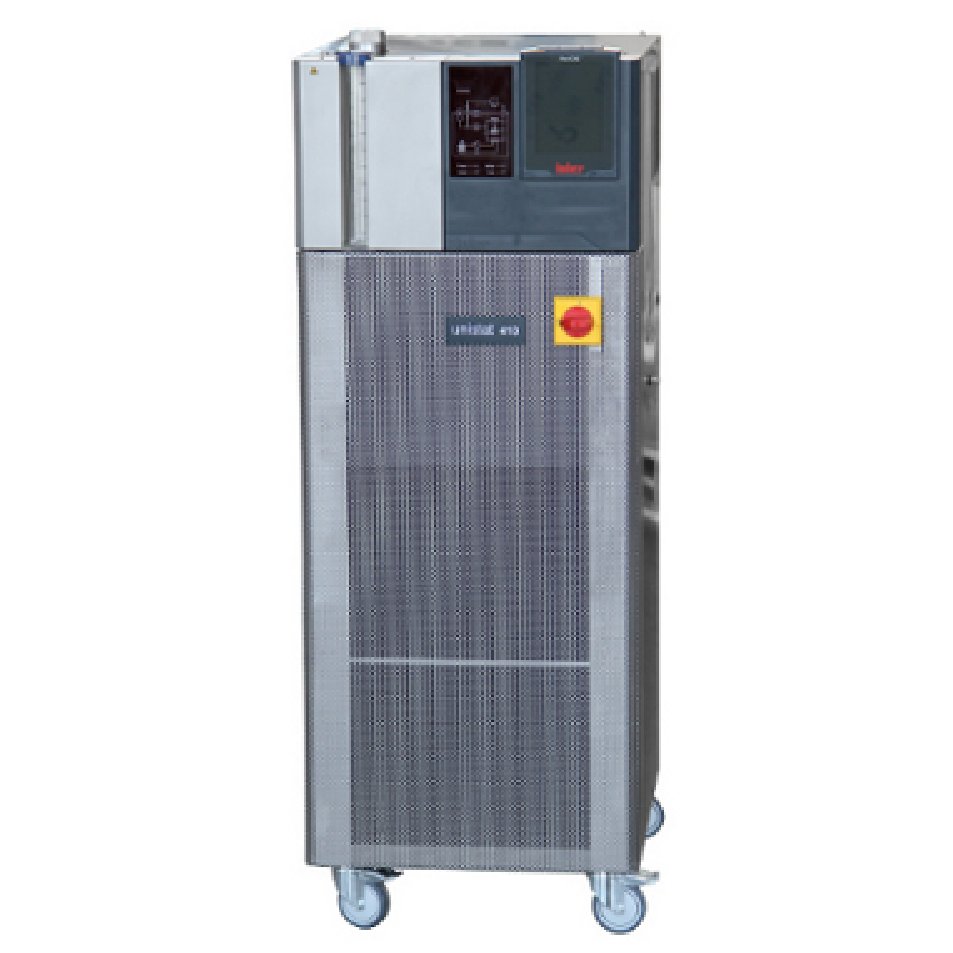

Unistat 410

The Huber Unistat 410 is a dynamic temperature control system engineered for precise, reproducible thermoregulation across -45...250 C. It combines fast heating and cooling, tight temperature stability, and a closed, magnetically coupled circulation circuit that keeps your process on setpoint without fluid changes over the full range. Heating output reaches 3 kW. Operation is managed through the Pilot ONE touchscreen controller for adaptive, repeatable control.

Available Options

• 460V 3~ 60Hz (part 1066.0004.01)
• 208V 3~ 60Hz (part 1066.0005.01)
• 460V 3~ 60Hz / NR (part 1066.0015.01)
• 208V 3~ 60Hz / NR (part 1066.0016.01)

Key Features

• Operating temperature range: -45...250 C
• Temperature stability at -10 C: 0.01 K
• Heating power: 3 kW
• Cooling power with: Thermooil
• max. delivery: 56 l/min
• Overall dimensions WxDxH **: 460x554x1201 mm
• Net weight: 146 kg
• Refrigerant (ASHRAE, GHS): R-452A (A1, H280)

Ideal Applications

• Reactor and pilot-plant temperature control
• Exothermic reaction control and scale-up
• Materials, battery, and process testing
