Huber - Unichiller 025-H

Brand: Huber

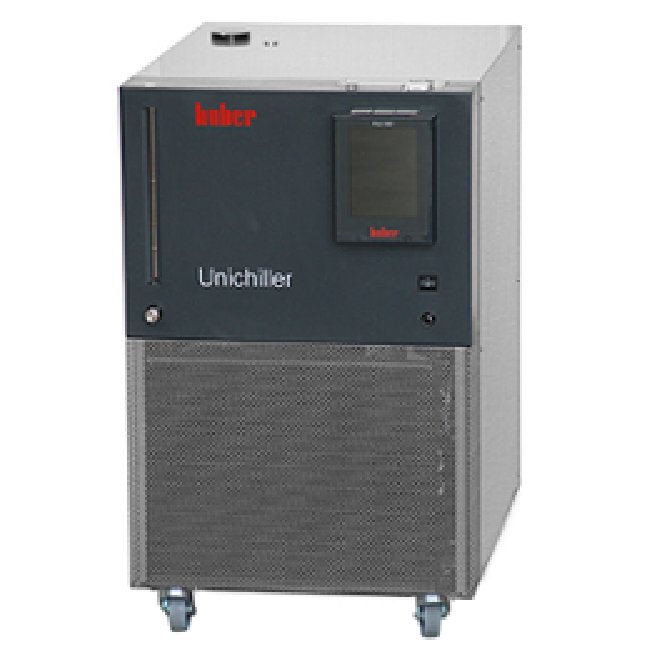

Unichiller 025-H

The Huber Unichiller 025-H is a recirculating chiller delivering dependable process cooling across -10...100 C, with . of cooling capacity. Its compact, energy-conscious design provides stable setpoint control for continuous-duty cooling loops.

Available Options

• 208-230V 1~/2~ 60Hz / SYNTH / Basic (part 3052.0011.01)
• 208-230V 1~/2~ 60Hz / NR / Basic (part 3052.0056.01)
• 208-230V 1~/2~ 60Hz / SYNTH / OLE Touchscreen (part 3052.0013.98)
• 208-230V 1~/2~ 60Hz / NR / OLE Touchscreen (part 3052.0064.98)

Key Features

• Operating temperature range: -10...100 C
• Temperature stability at -10 C: 0.2 K
• Heating power at 230V: 2 kW
• Cooling power at ambient temperature +20 C: .
• max. delivery: 29 l/min
• Overall dimensions WxDxH **: 460x590x743 mm
• Net weight: 79 kg
• Power supply requirement: 208-230V 1~/2~ 60Hz

Ideal Applications

• Process and analytical instrument cooling
• Rotary evaporators and vacuum systems
• Recirculating cooling loops
