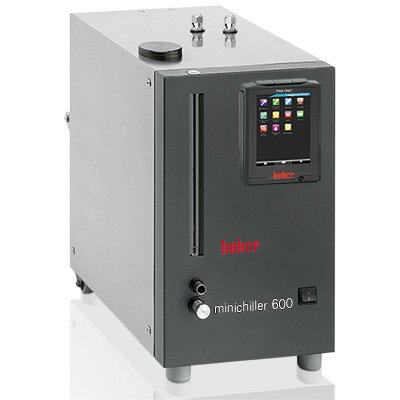

Huber - Minichiller 600

Brand: Huber

Minichiller 600

The Huber Minichiller 600 is a recirculating chiller delivering dependable process cooling across -20...40 (80)*** C, with . of cooling capacity. Its compact, energy-conscious design provides stable setpoint control for continuous-duty cooling loops.

Available Options

• 208-240V 1~/2~ 50/60Hz / NR / Basic (part 3066.0024.01)
• 110-120V 1~ 60Hz / NR / Basic (part 3066.0025.01)
• 110-120V 1~ 60Hz / NR / OLE Touchscreen (part 3066.0001.98)
• 208-240V 1~/2~ 50/60Hz / NR / OLE Touchscreen (part 3066.0002.98)

Key Features

• Operating temperature range: -20...40 (80)*** C
• Temperature stability at -10 C: 0.5 K
• Cooling power at ambient temperature +20 C: .
• max. delivery: 24 l/min
• Overall dimensions WxDxH **: 280x491x424 mm
• Net weight: 37 kg
• Power supply requirement: 208-240V 1~/2~ 50/60Hz
• Refrigerant (ASHRAE, GHS): R-290 (A3, H220)

Ideal Applications

• Process and analytical instrument cooling
• Rotary evaporators and vacuum systems
• Recirculating cooling loops
