GrowPros Solutions - Waterproof RJ45 2-in-1 Controller Adaptor

Brand: GrowPros Solutions

Waterproof RJ45 2-in-1 Controller Adaptor

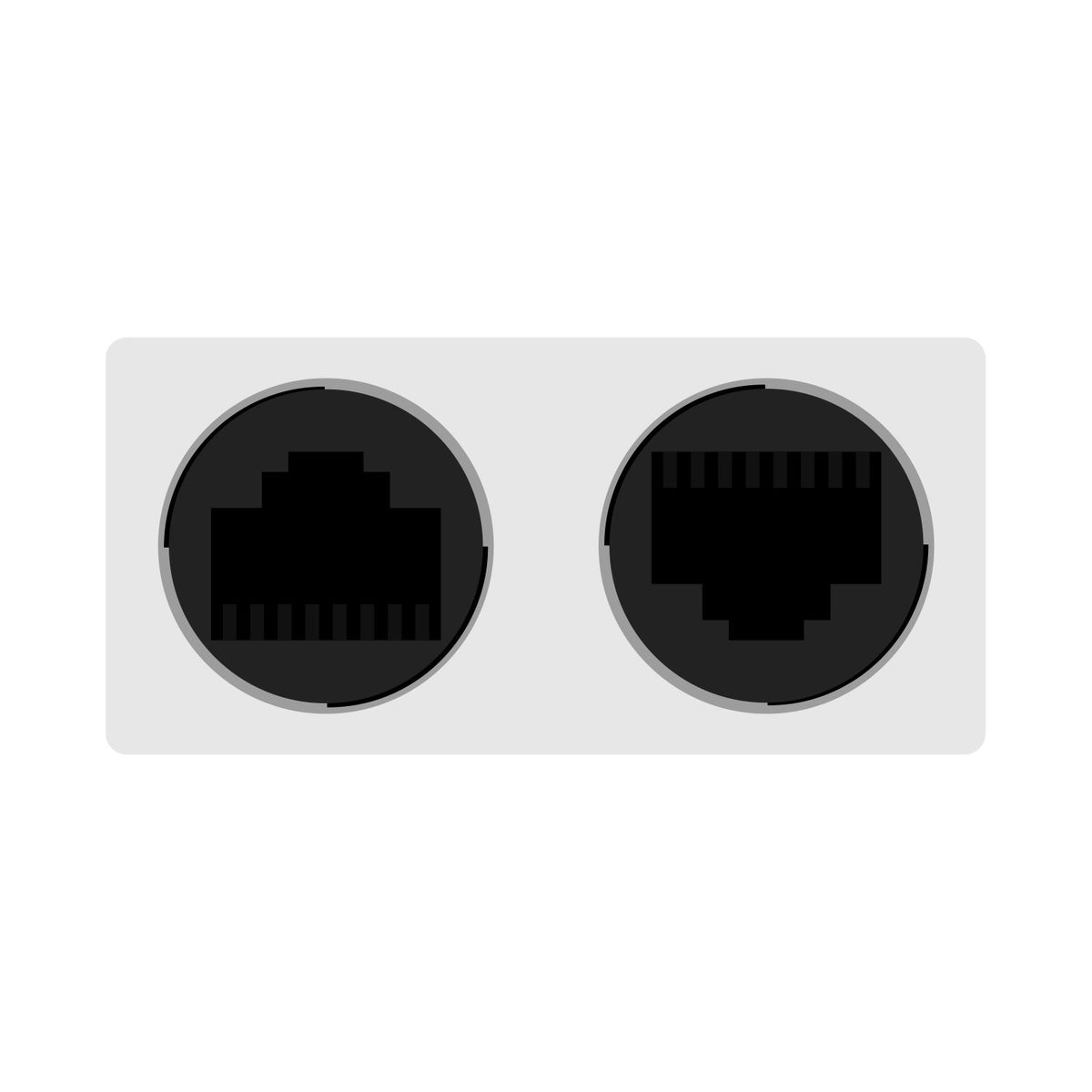

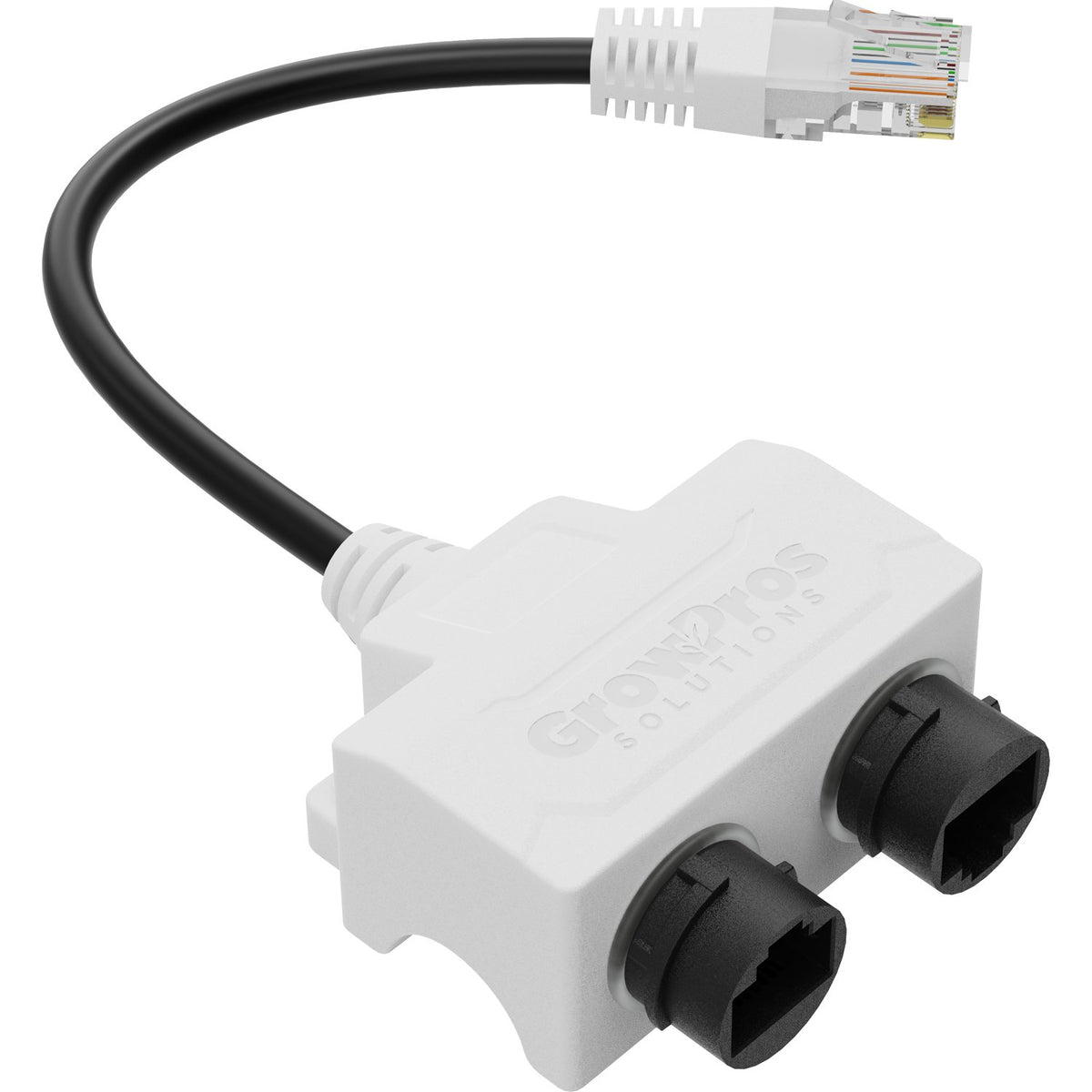

The GrowPros Solutions Waterproof RJ45 2-in-1 Controller Adaptor is a white data adapter with one male RJ45 connector and two waterproof push lock female RJ45 ports. It duplicates a single control signal from the controller into two identical outputs, so one controller port can drive multiple rows of lights.

The male RJ45 receives the RS485 output from the Dim Out port on the GrowPros Solutions controller and converts it into analog 0-10V dimming signals for dual channel or quad channel GrowPros Solutions lights. Only one adapter is required per controller or room; use waterproof RJ45 data cables and the 4-way RJ45 splitter to bring multiple rows back to the adapter. Note that with the white controller and white adapter, CH1 and CH2 timing and dimming settings are synced across all connected lights.

Available Options

• 2-in-1 controller adaptor, 1 male RJ45 to 2 female WP RJ45 (WP-ADAPTOR-2N1-RJ45)

Key Features

• Signal duplicator - one control signal into two identical outputs
• Converts controller RS485 output into analog 0-10V dimming signals
• Waterproof push lock ports with sealed design for humid environments
• Gold-plated contact pins for reliable long-term signal transmission
• Only one adapter required per controller or room
• Designed for GPS controllers with dual channel or quad channel lights

Ideal Applications

• Connecting GrowPros Solutions controllers to multiple rows of lights
• Rooms running dual channel top lights and under canopy lights
• Humid indoor cultivation environments needing sealed data connections
• Commercial controlled-environment agriculture lighting control
