Fluence DC PSU2 Dimming Signal Cable - 11in - Compatible with VYPR 3 and RAZRm

Complete Fluence Dimming & FLEX Cable Guide w/Diagrams - M12 Connector

This cable is NOT compatible with the M16 (plastic push-lock) dimming port found on older Gen 2 fixtures (see Connector Legend below). This cable uses an M12 (metal screw-on) connector.

For connecting a compatible Fluence fixture to a Fluence dimmer (or third party lighting controller/dimmer, e.g. TrolMaster).

This is a replacement cable; this is the same dimming adapter cable that comes standard with most new Fluence fixtures (see list below).

One end of this genuine Fluence DC Dimming Signal Cable connects to the Terminal Block on the Fluence dimmer (or third party lighting controller/dimmer), the other end connects to the power supply on any Gen 2 or later Fluence fixture that has an M12 dimming port, such as:

• SPYDR FANG
• SPYDR 2x (newer model only)
• SPYDR 2p (newer model only)
• SPYDR 2i (newer model only)
• SPYDR 2h
• VYPR 3x
• VYPR 3p
• RAZRm

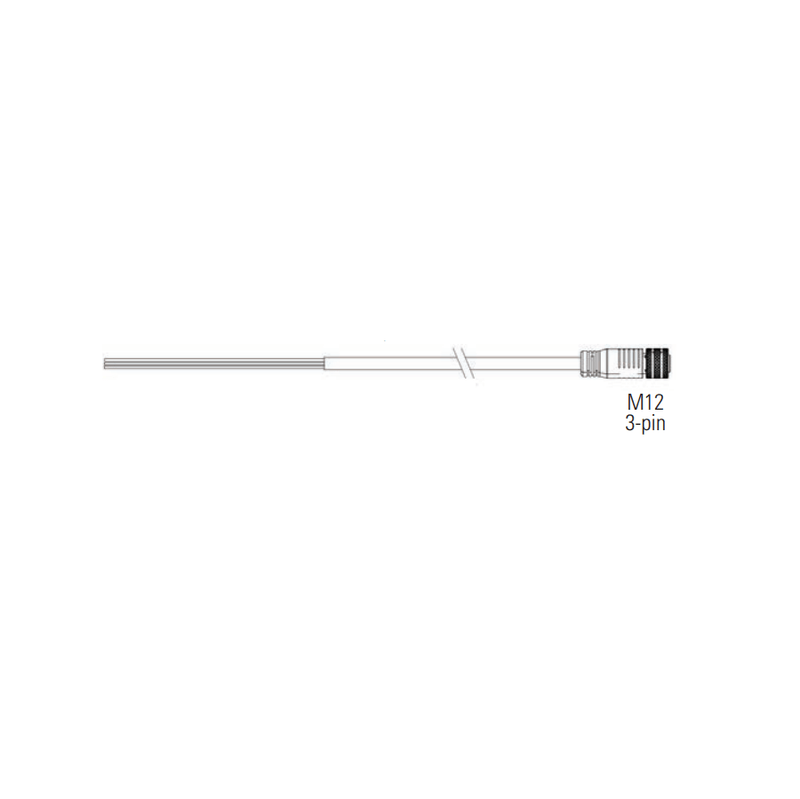

Plug type: 3-pin x Pigtail (bare wires) / M12

Cable length: 11"

Fluence part #: CDMA-71561

Connector Legend:

• M12 - Latest connector type, found on most new SPYDR 2, VYPR 3 and RAZRm fixtures
• M16 Push Lock - Predecessor of the M12, this connector type was used on all SPYDR 2 and VYPR 2 fixtures prior to the M12 introduction
• M16 Twist Lock - This connector is used on most SPYDRx and VYPRx fixtures, and all RAZRx and RAY fixtures
• 3.5mm Jack - This connector was used on some the oldest first generation SPYDRx and VYPRx fixtures
