HYPO SOURCE - EWCO 1200 Hypochlorous Acid Flow System

Brand: HYPO SOURCE

EWCO 1200 Hypochlorous Acid Flow System

The EWCO 1200 is an industrial-grade, low-maintenance, single stream system that generates hypochlorous acid (HOCl) through the electrolysis of salt and water. Patented electrolysis cells produce a stable, electrically neutral HOCl molecule with oxidation potential above 1000 mV, giving it high efficacy against microbial pathogens across a 10 to 400 ppm range.

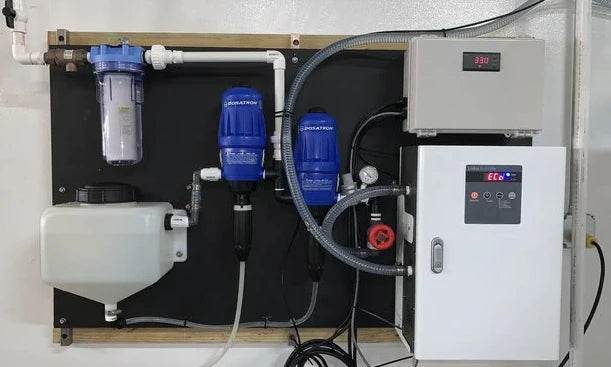

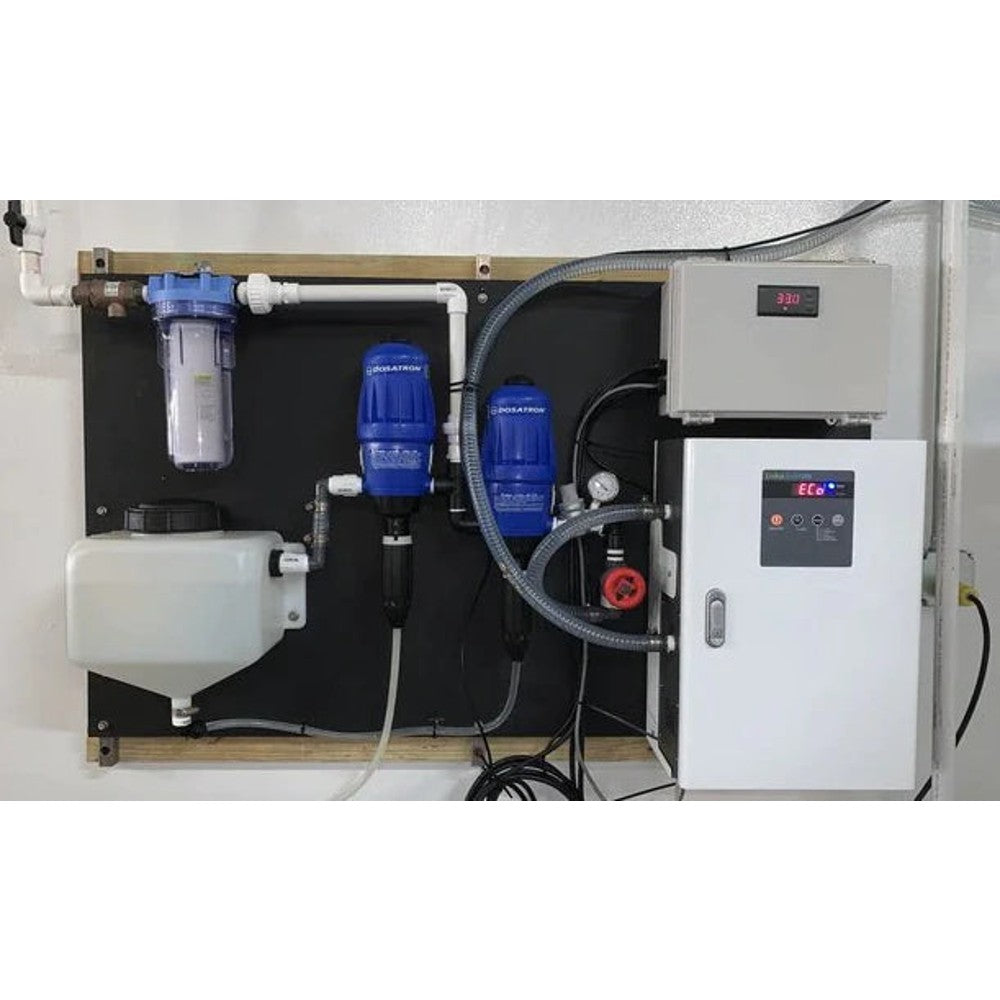

Delivered as a pre-built backboard system, it arrives with the pumps, filtration, and controls needed to plumb straight into a facility water line. Output scales with concentration, from 3 liters per minute at 300 ppm up to 24 liters per minute at 40 ppm, which suits continuous-demand operations rather than batch production.

Available Options

• Single system, 400 ppm, 6 liters per minute at 200 ppm

Key Features

• Concentration: 10 to 400 ppm, up to 700 ppm capability
• Output: 3 liters per minute at 300 ppm; 24 liters per minute at 40 ppm
• Oxidation-reduction potential: greater than 1000 mV
• pH: 5 to 8; controller maintains pH 5 to 6
• Build: 304SS or 316SS marine grade stainless steel
• Power: 110-220V, 50-60 HZ
• Dimensions: 35 x 24 x 52 cm (13.8 x 9.5 x 20.5 in); 21.2 kg (47 lbs)
• FDA Food Contact Notification and USDA organic approval
• Pre-built backboard includes venturi pumps for pH control, inflow water filter, backflow preventer, pressure regulator, flow valve, manuals, and test papers
• HS Code: 85437000

Ideal Applications

• Commercial irrigation and fertigation line treatment
• Large-scale facility and equipment sanitation
• Food processing and produce wash lines
• Veterinary and animal housing disinfection
• Continuous-demand controlled-environment agriculture
