Dramm - PulsFOG Portable Thermal Fogger

Brand: Dramm

PulsFOG Portable Thermal Fogger

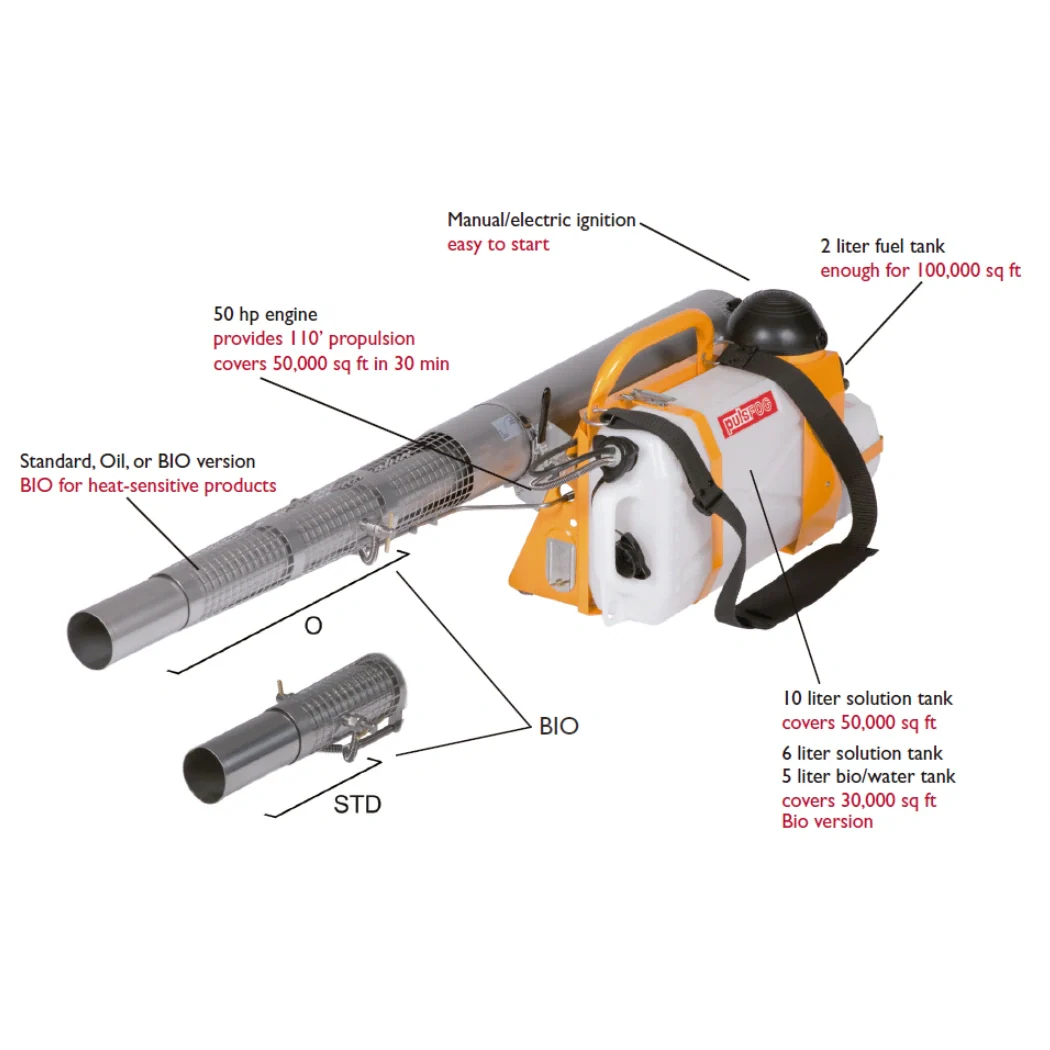

A PulsFOG is a hand-carried pulse-jet thermal fogger: it flashes a solution into a dense visible fog and throws it out across the structure, so one operator treats a large space from the doorway or the aisle and stays out of the cloud. Every machine here works the same way, carries the same 2 liter fuel tank, and starts on manual or electric ignition powered by 6 V from four 1.5 V D cells. Two things change: the engine, which sets how fast a tank empties and how far the fog is thrown, and the version, which sets what chemistry the machine is built to run. A carrier solution is normally mixed into the water and chemical for proper fog formation, and every unit is supplied with a cleaning kit, cleaning brush, chemical funnel, ear protection and a sample of cleaning solution.

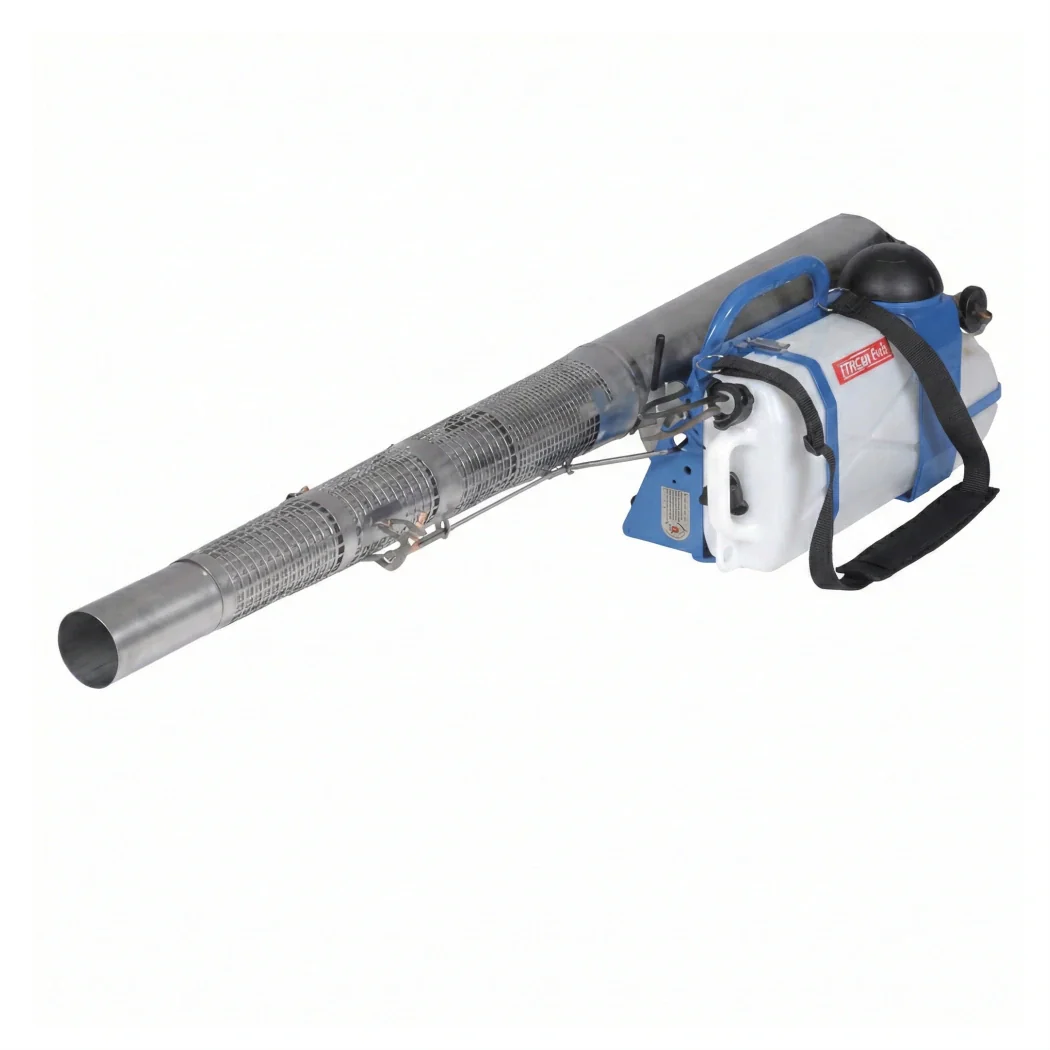

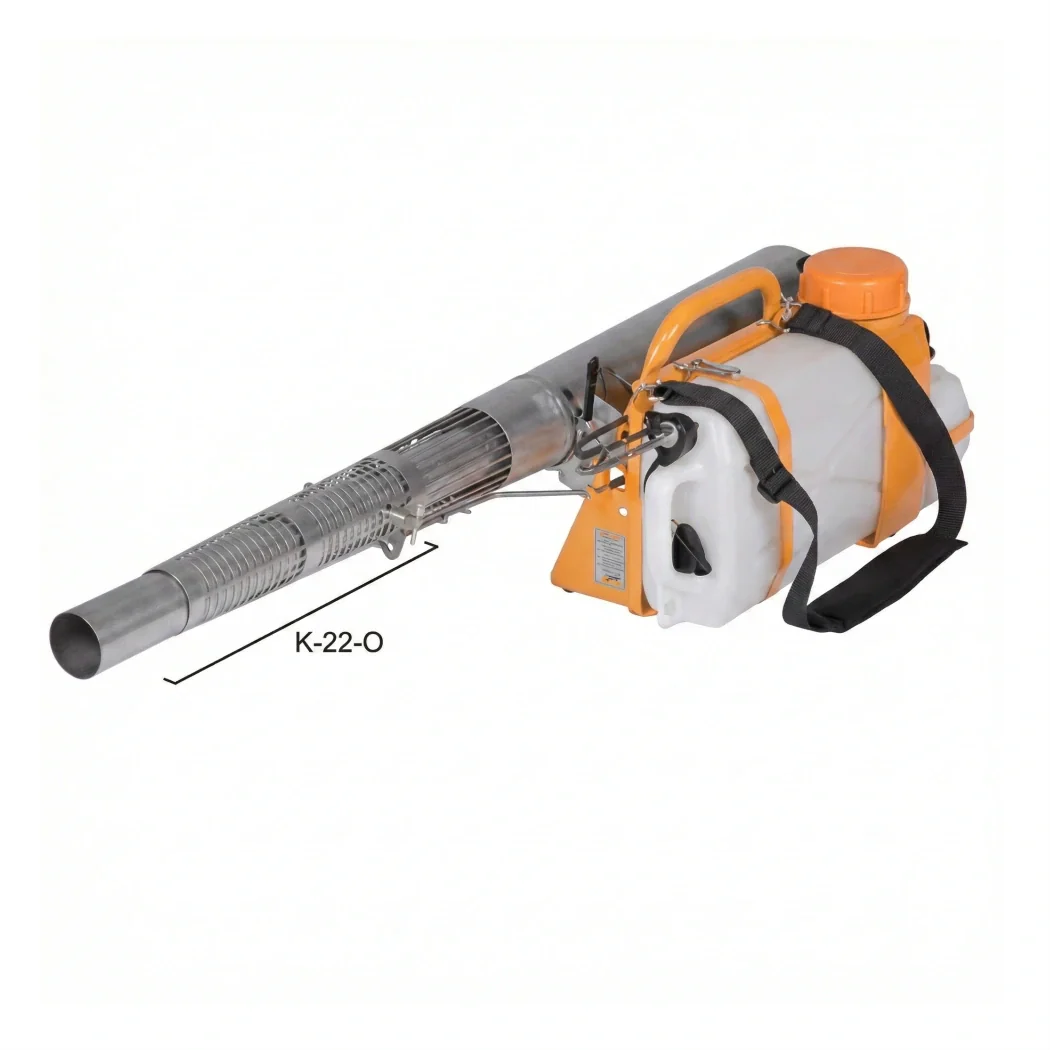

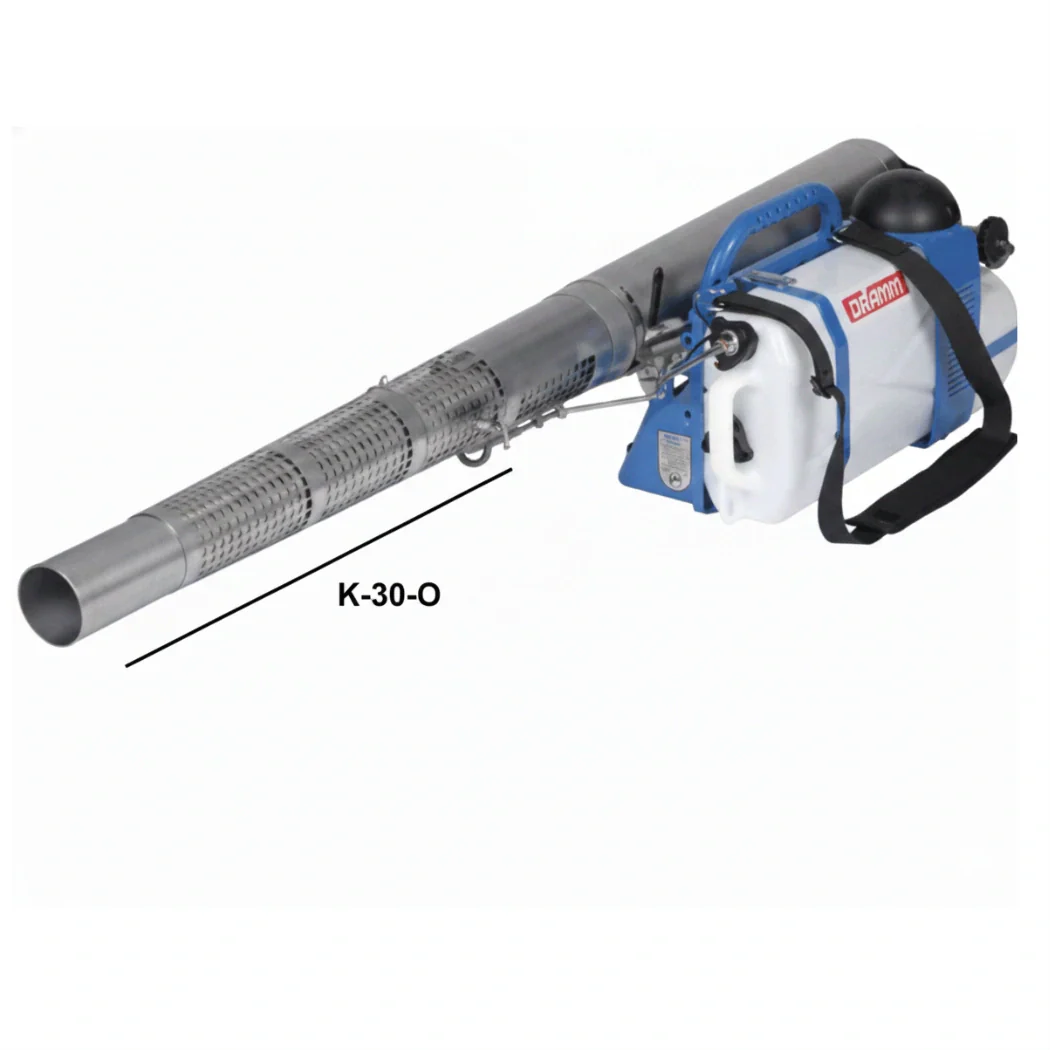

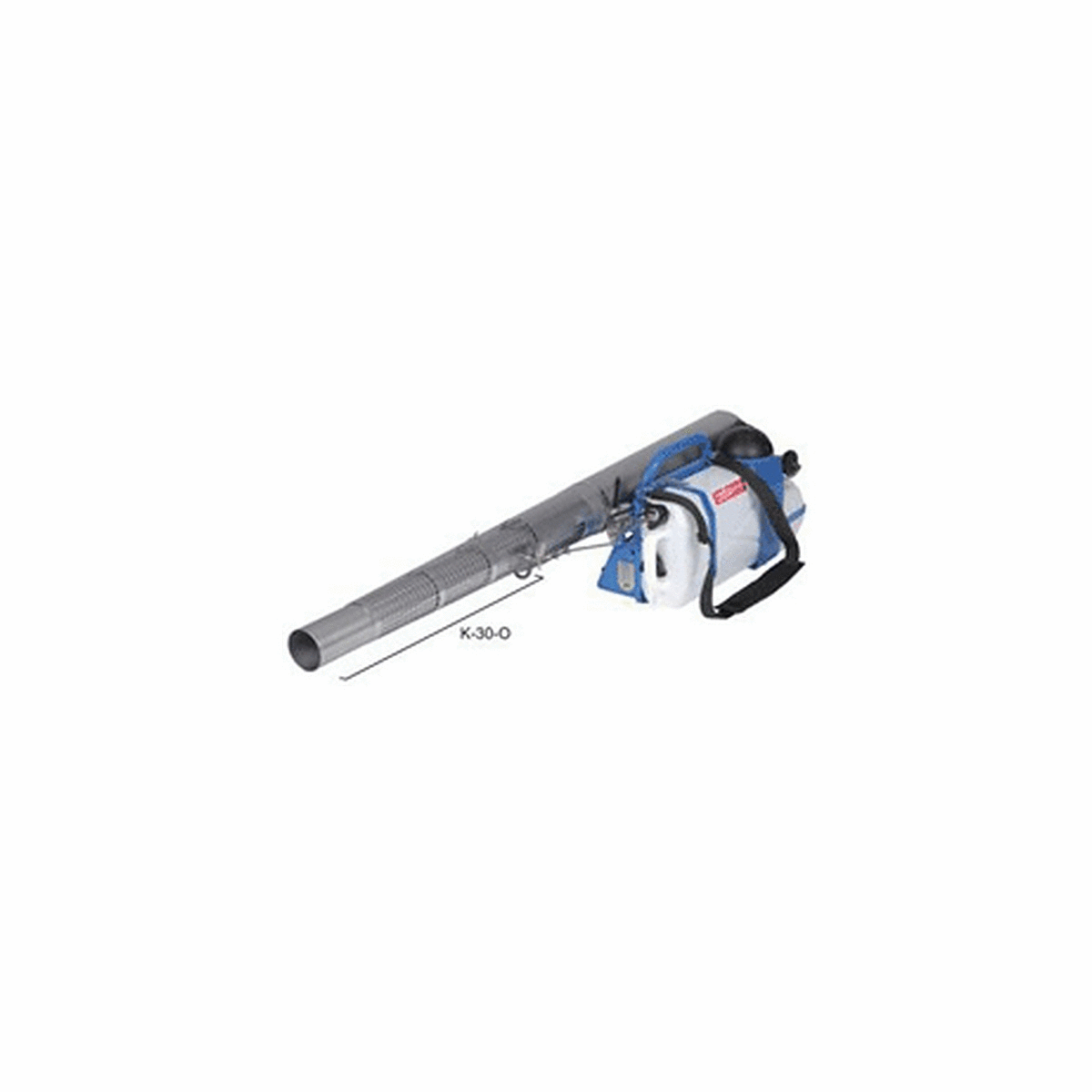

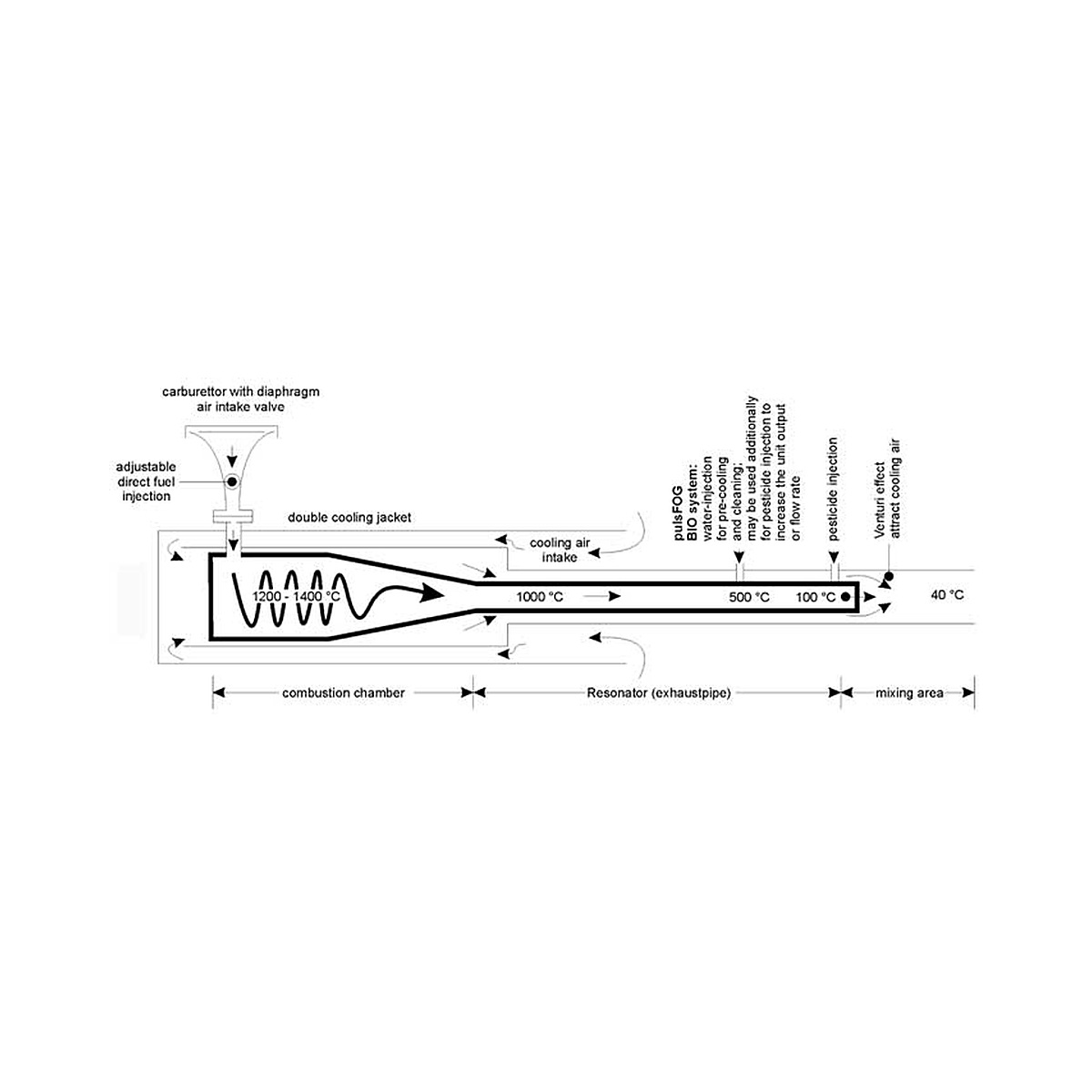

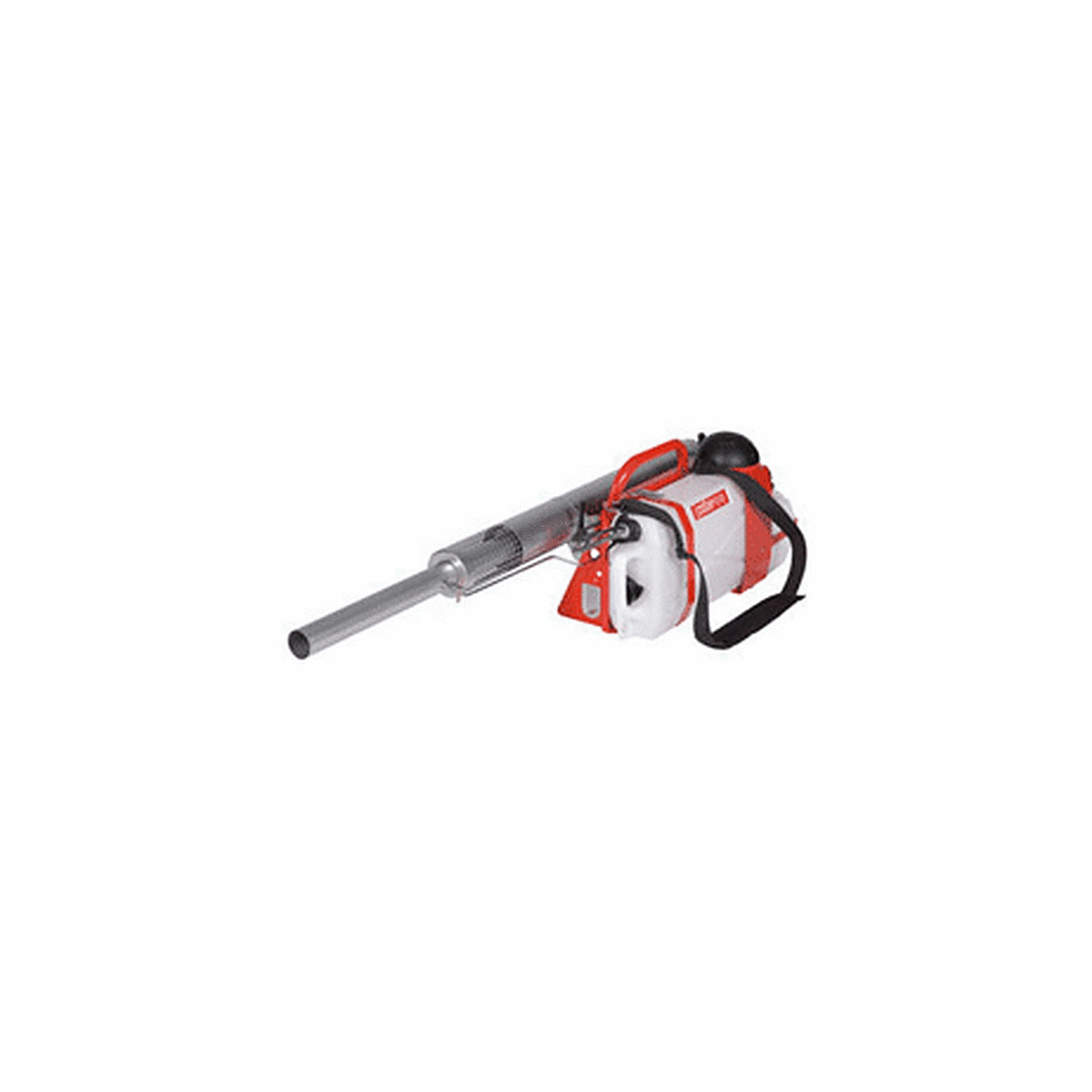

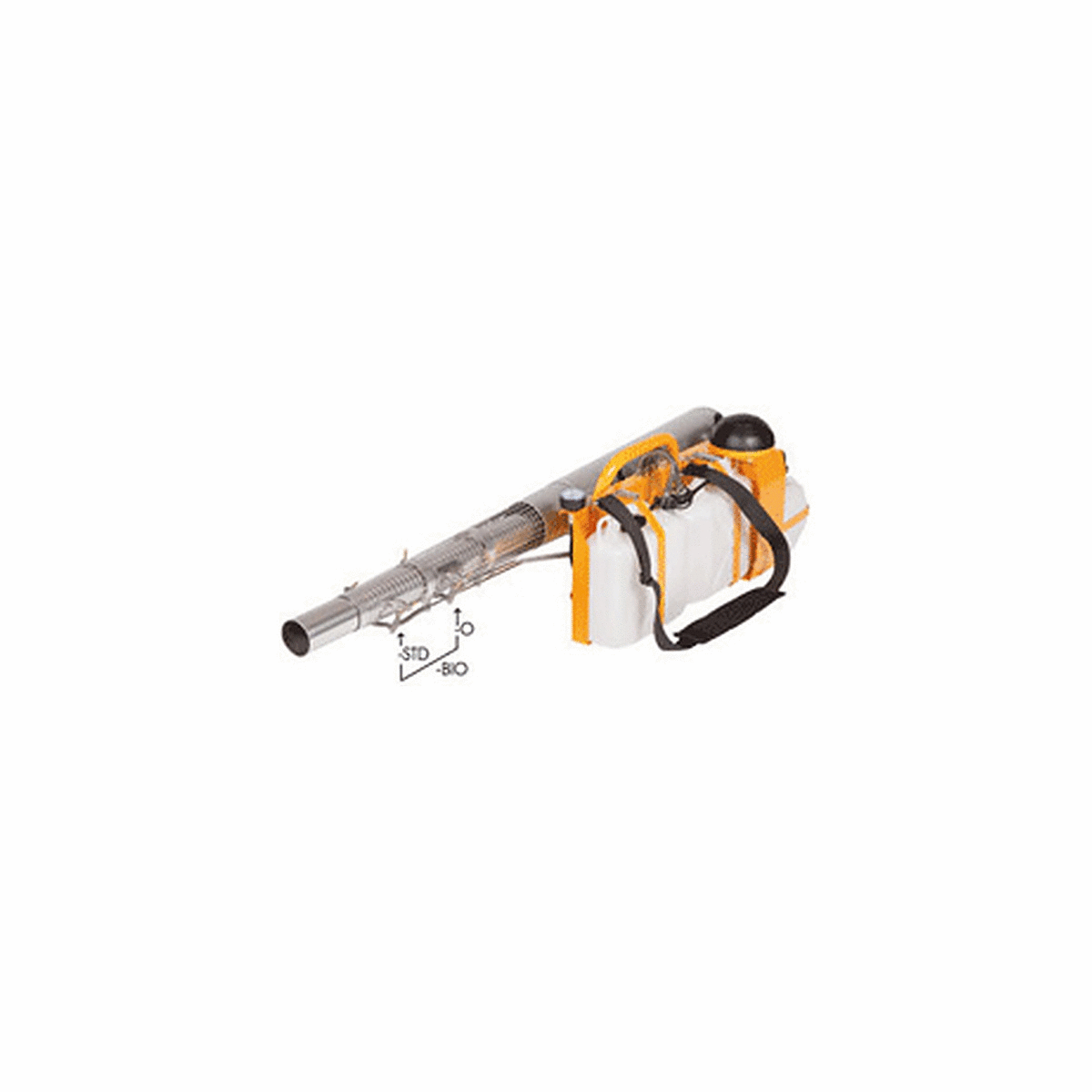

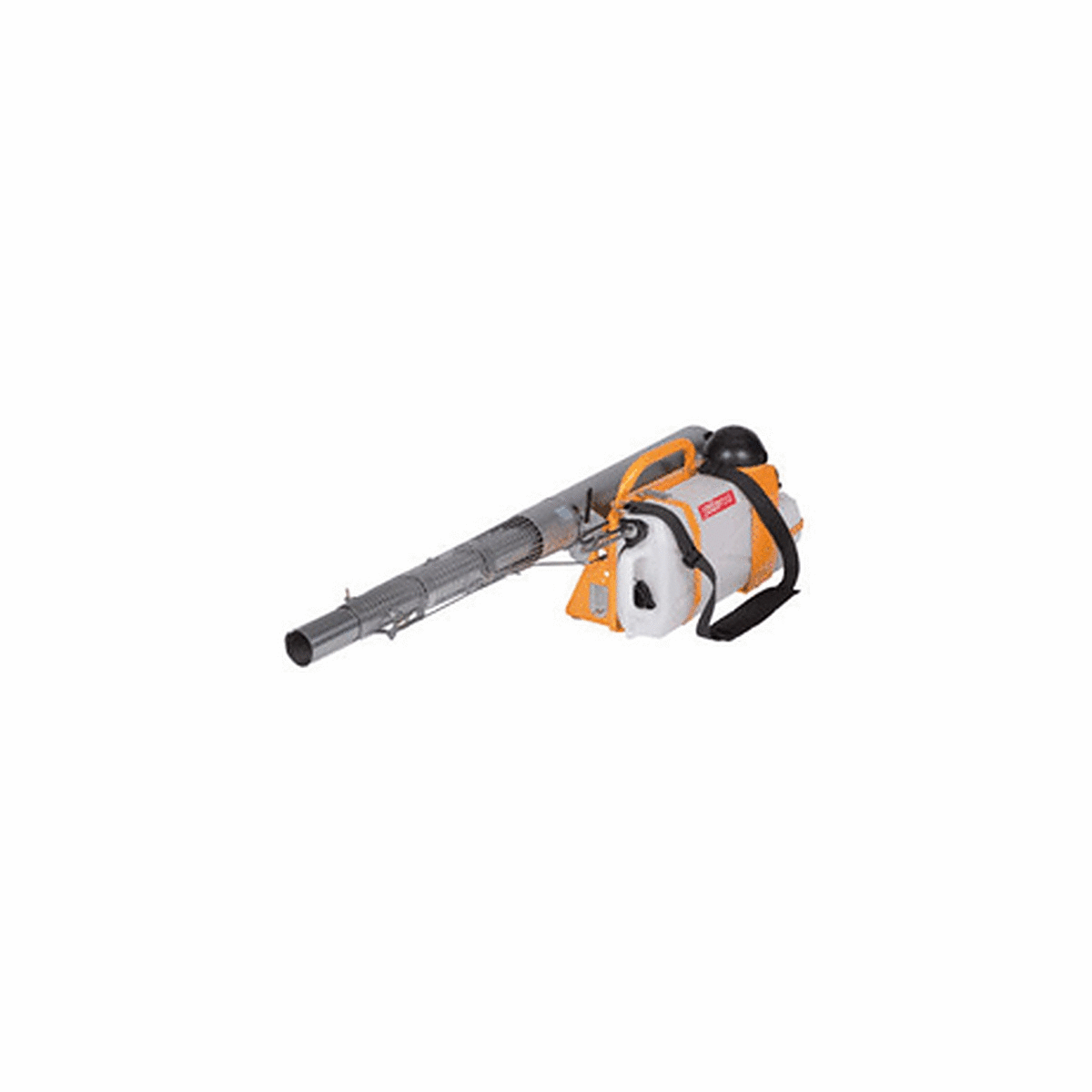

Choose the Machine for the size of the space and how quickly you need it done. K-10 is Dramm's 25 HP size, emptying a 10 liter tank in 45 minutes with a fog throw of about 45 ft, which suits quonsets and small houses treated from the doorway. K-22 is the 50 HP size, 10 liters in 30 minutes and about 110 ft of throw, the usual pick for gutter-connected ranges worked from the aisle. K-30 is the 100 HP size, 10 liters in 15 minutes and about 220 ft of throw, for the largest buildings and for outdoor work. Then choose the Version for your chemistry. Standard - water based is the plain machine, for ordinary water-based solutions that are not heat sensitive. Oil - livestock and outdoor is the version built for flammable, oil-carried formulations, and is the one Dramm supplies for poultry houses, dairy barns, hog facilities and outdoor use. BIO - heat sensitive adds a second tank of plain water and a second set of injection nozzles that water-cool the exhaust so biologicals and heat-sensitive products survive the pass; Dramm builds it on the K-22 only, and it carries a 6 liter solution tank plus a 5 liter water tank rather than one 10 liter tank, so it covers about 30,000 sq ft per fill instead of 50,000.

Specifications

Configurations

Key Features

• Pulse-jet thermal fogging lays a visible fog through the whole structure, so the applicator can see coverage and stay clear of it
• One tankful treats up to 50,000 sq ft, turning a house into a job of minutes rather than hours
• Fog is propelled well away from the operator, from about 45 ft on the K-10 up to about 220 ft on the K-30

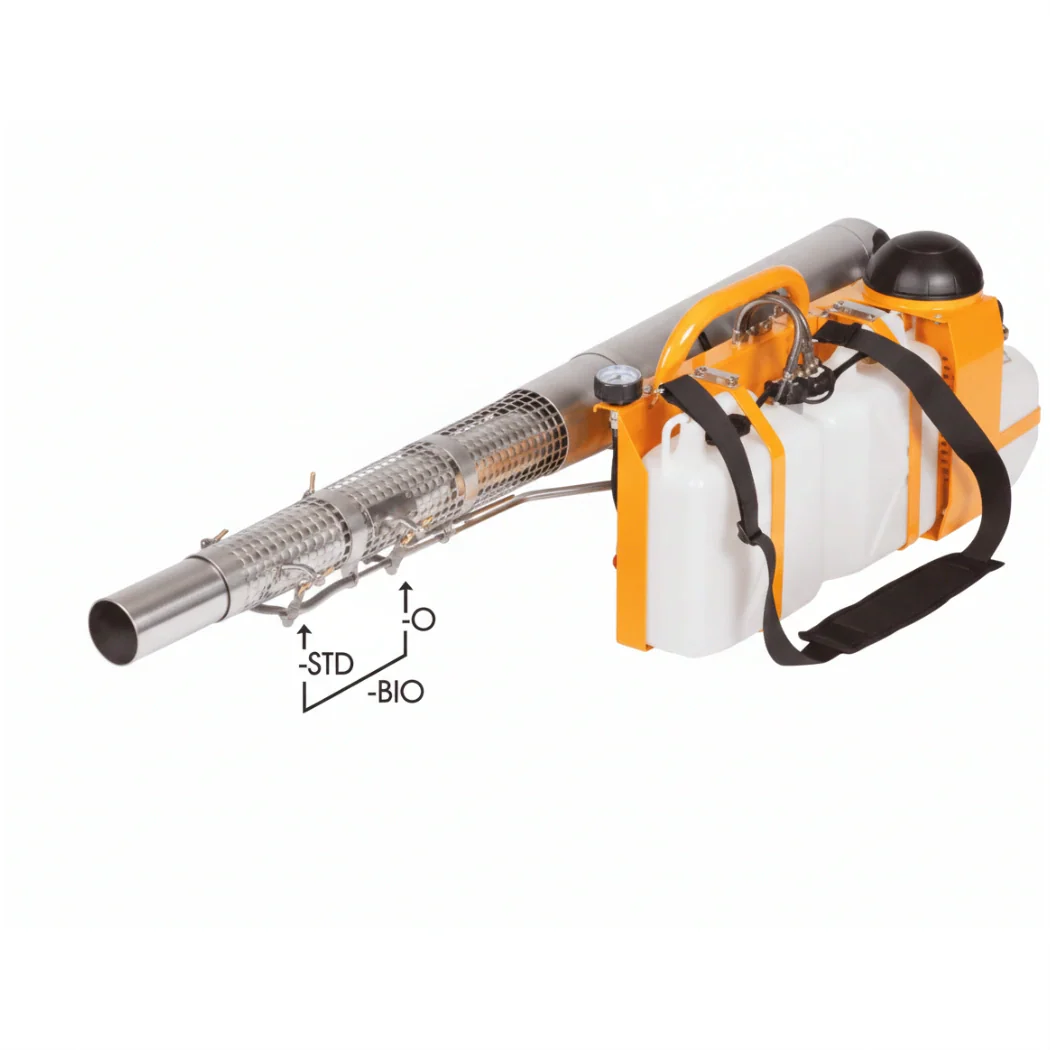

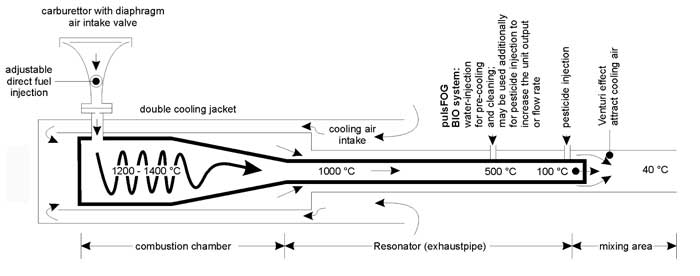

• The BIO version water-cools the exhaust through a second tank and nozzle set so biologicals and heat-sensitive products come through intact

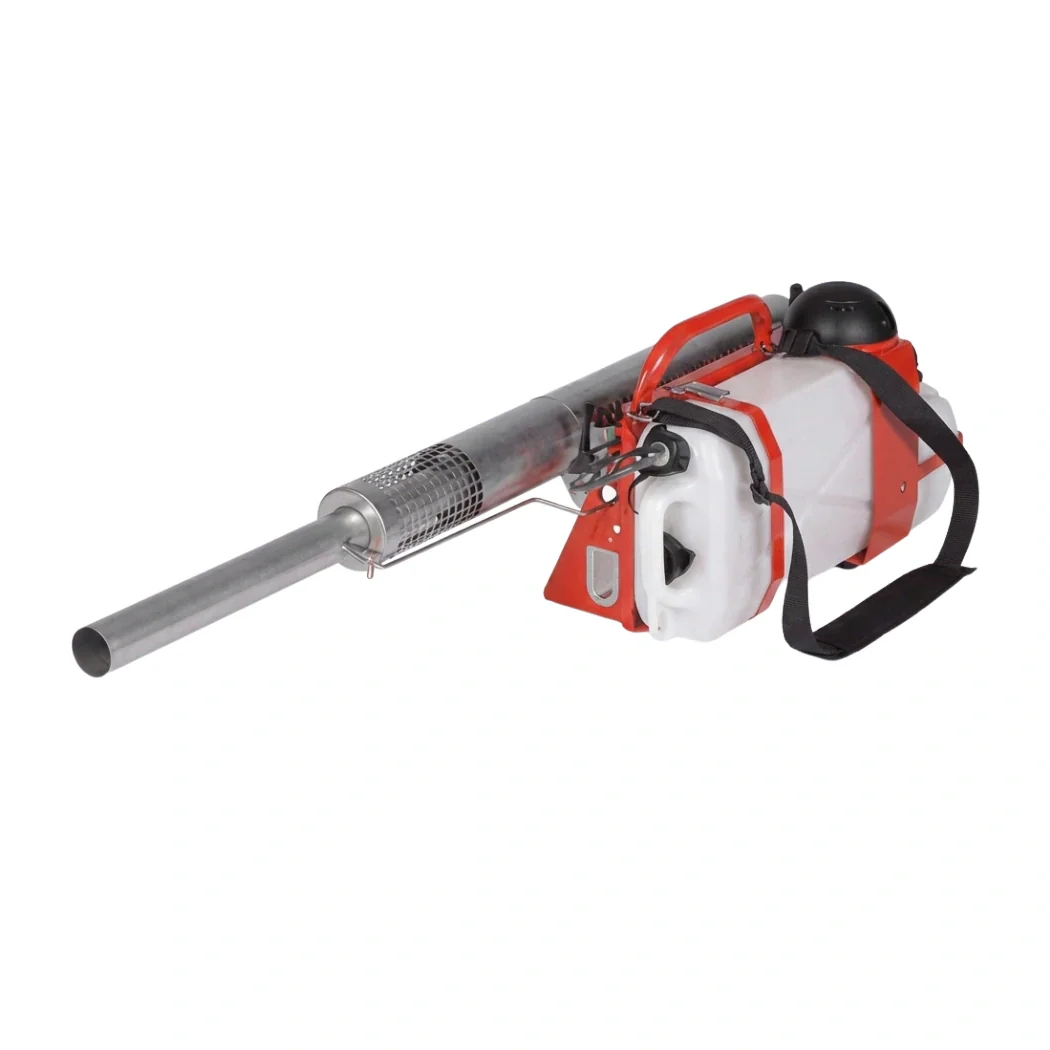

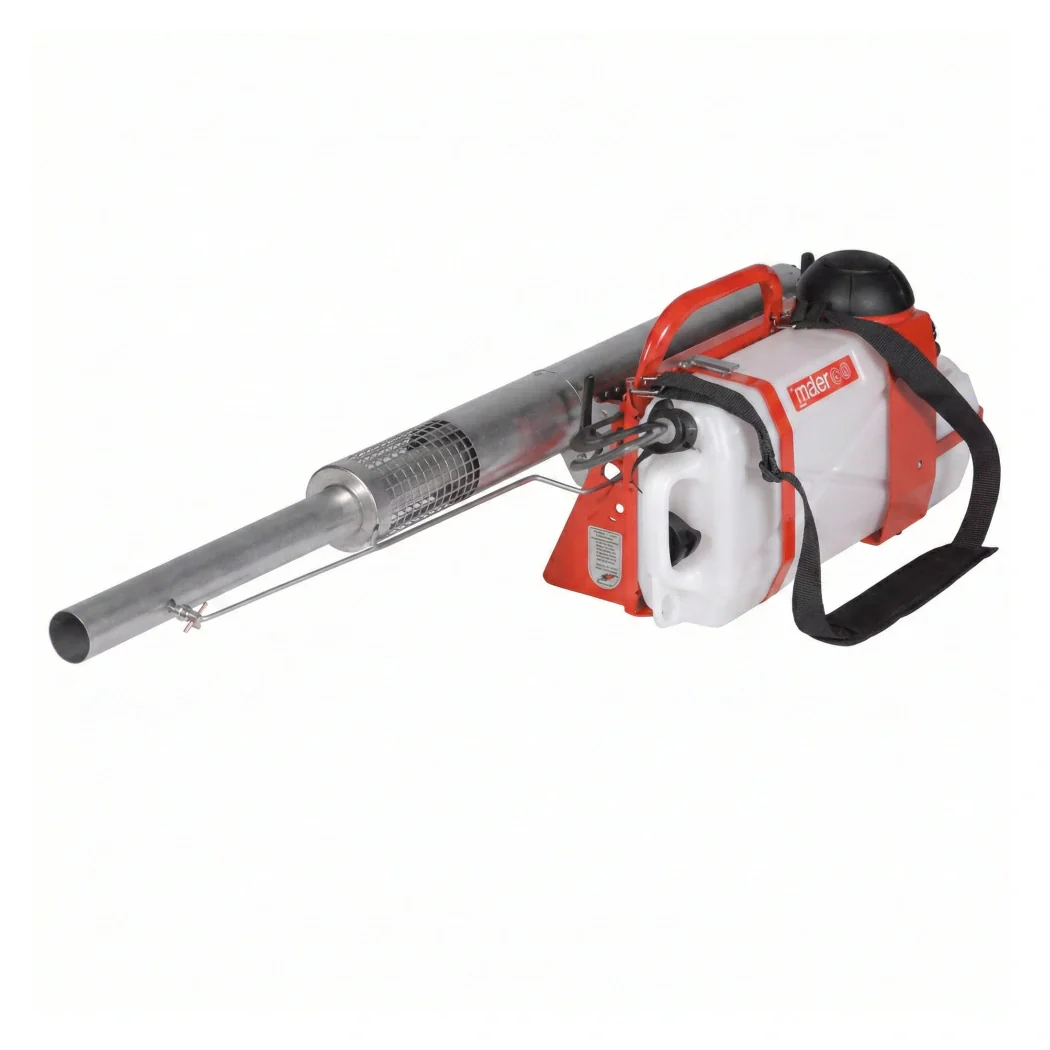

• The Oil version is built specifically for flammable, oil-carried formulations used in livestock housing and outdoors
• Manual or electric ignition running on four D cells, so no mains power is needed at the point of use
• Hand-carried single-operator machines with a 2 liter fuel tank good for roughly 100,000 sq ft of treatment
• Every unit ships with a cleaning kit, brush, chemical funnel, ear protection and a cleaning solution sample

Ideal Applications

• Insecticide and fungicide application in greenhouses and growing structures
• Disinfectant fogging in poultry houses, dairy barns and hog facilities
• Foliar fertilizer application through the fogger
• Frost protection
• Outdoor pest control where a long fog throw is needed
• Biological and heat-sensitive chemistry, using the BIO version
• Mushroom houses and other enclosed production rooms

A carrier is what makes these machines fog properly, so plan on VK-II carrier solution or the NutriFOG foliar-fertilizer carrier alongside the machine; Dramm also lists spare chemical tanks, dosage nozzles and PulsFOG cleaning solution, and the larger cart-mounted K-30/20 machines and their transport cart are listed separately.
