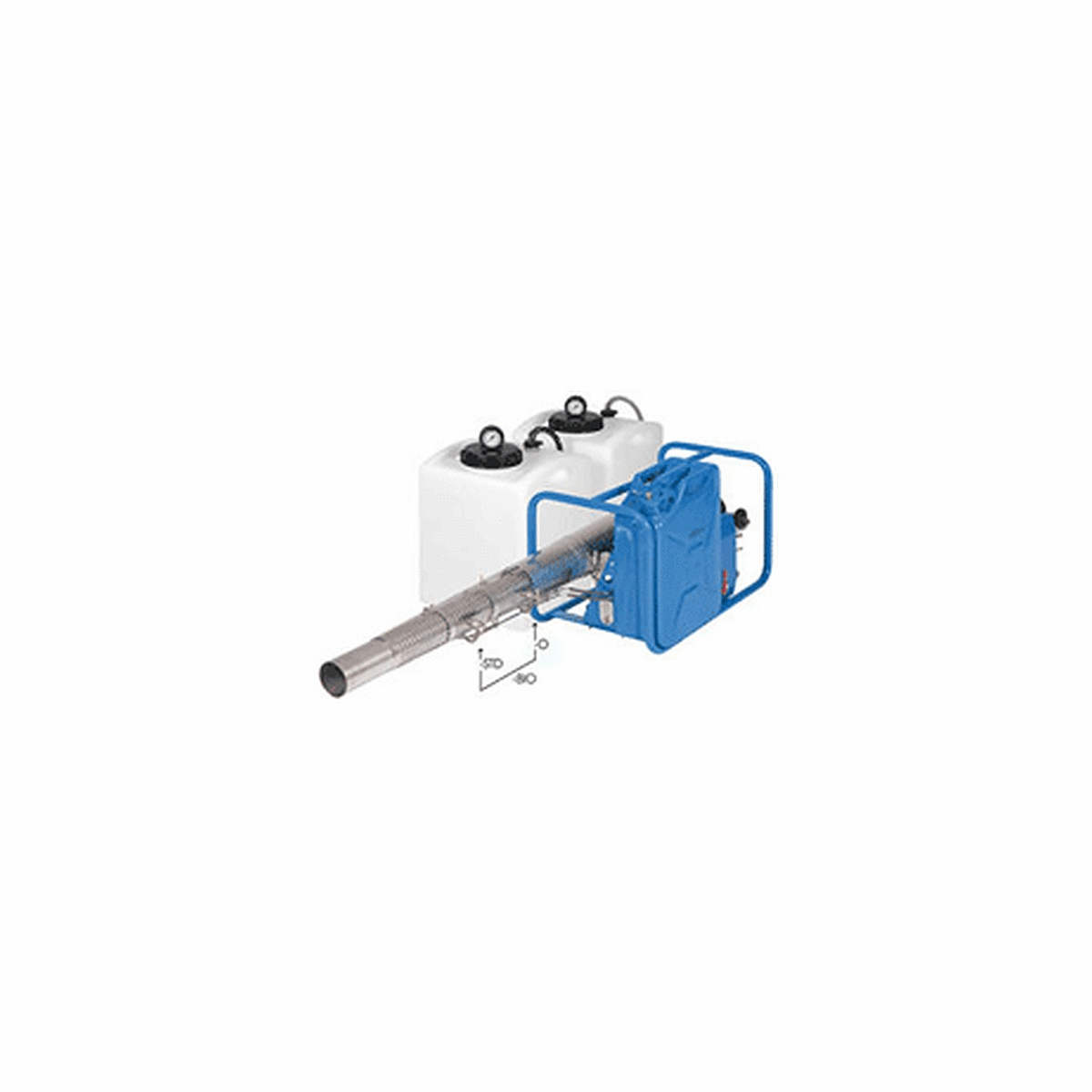

Dramm - PulsFOG K-30/20-Bio Dual-Tank Biological

Brand: Dramm

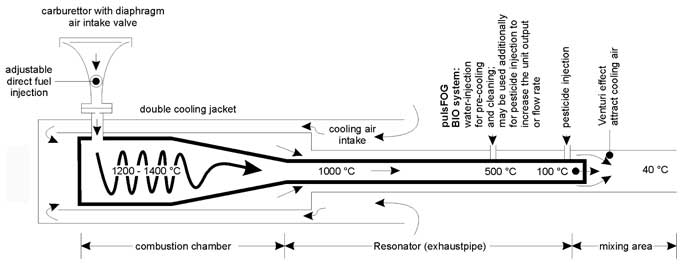

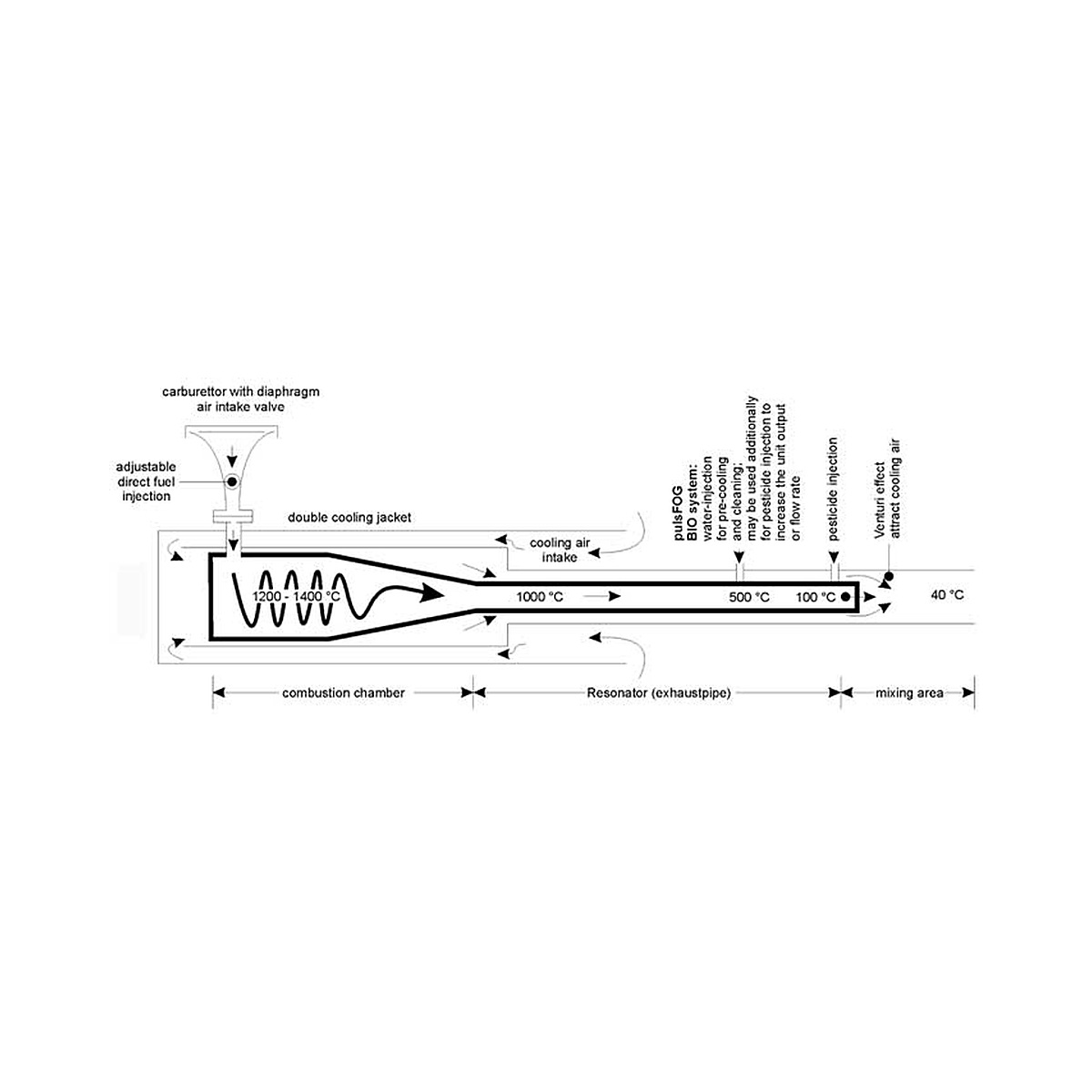

The Dramm K-30/20 BIO PulsFOG is a high-capacity thermal fogger for fast chemical application in large greenhouses, livestock facilities and storage areas. The K-30/20 BIO is built around the patented PulsFOG BIO system that allows the thermal application of bio-rational and other heat-sensitive products without damaging them. The system uses a secondary tank filled with plain water to cool the exhaust gases before the chemical injection point, so heat-sensitive solutions (biopesticides, biological controls, certain vaccines) can be fogged through the same 101-horsepower pulse-jet engine that powers the standard K-30. The K-30/20 BIO can treat up to 210,000 square feet and will fog 10,000 square feet in as little as 10 minutes. The fog is propelled up to 200 feet from the operator, which means the applicator can stay out of the chemical plume — a major safety advantage versus conventional sprayers. This fast-fogging method allows for very quick application from a distance, reducing labor and chemical exposure. The unit holds two 55-liter tanks (one for chemical solution, one for the BIO cooling water) and a 20-liter fuel tank good for hours of continuous operation. Standard ignition is via manual prime valve. PulsFOG units require the addition of a carrier solution (such as Dramm VK-II or NutriFOG) mixed into the chemical and water mixture for best operation; Dramm can recommend the proper solution for the application. Specifications: 101 HP pulse-jet engine. Solution capacity 2 x 55 liters. Fuel capacity 20 liters. Distance propelled up to 200 ft (with VK-II/NutriFOG carrier). Empty weight 70 lbs. Ship weight 67 lbs. *PulsFOG is a registered trademark of Dr. Stahl & Sohn GmbH & Co. KG.

Key Features & Specifications

• Patented BIO system — safe for heat-sensitive bio-rational products
• 101 HP pulse-jet engine — propels fog up to 200 ft
• Two 55-liter tanks (chemical solution + BIO cooling water)
• 20-liter fuel tank — hours of operation
• Treats up to 210,000 sq ft per fill (10,000 sq ft in ~10 min)

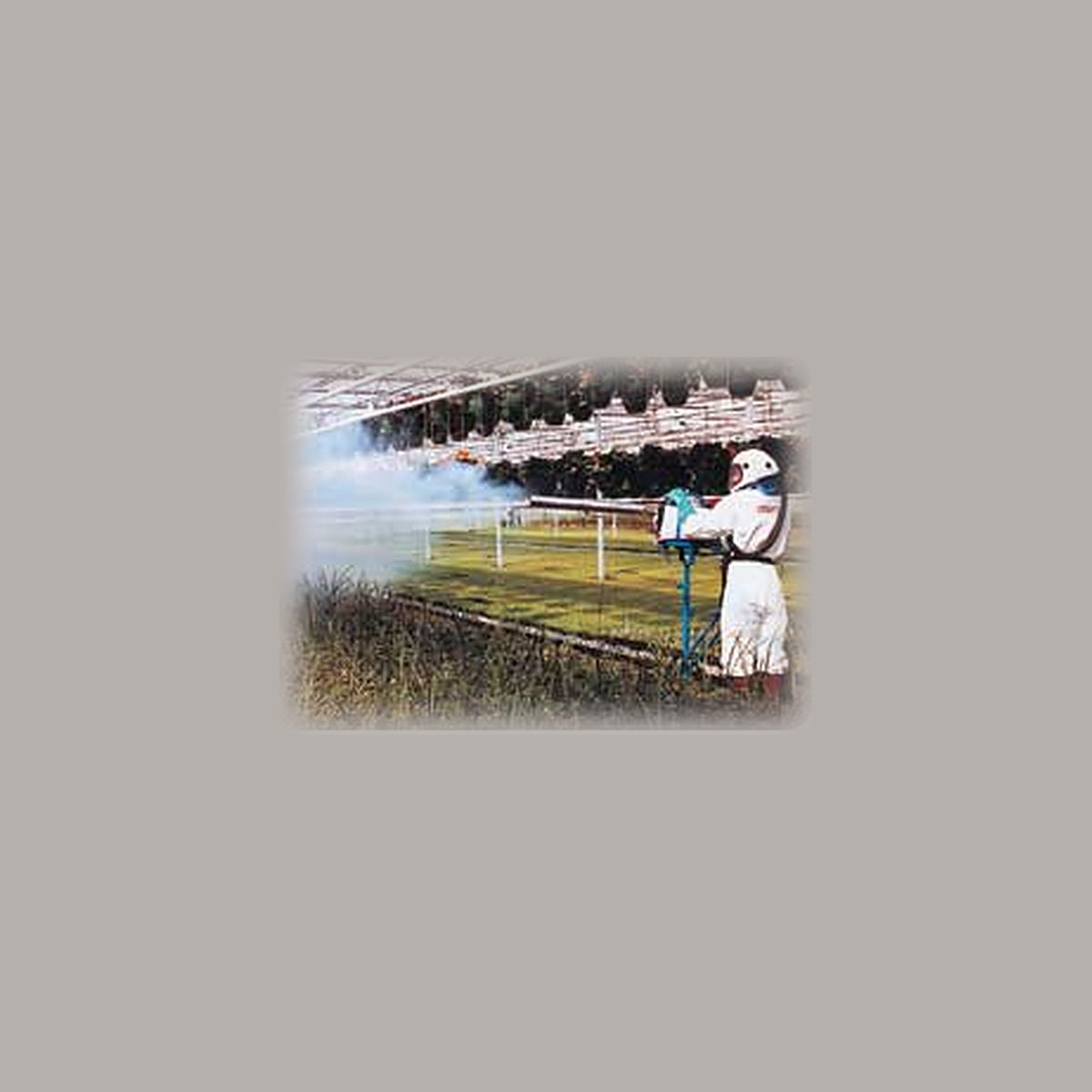

• Fast fogging keeps applicator out of the chemical plume

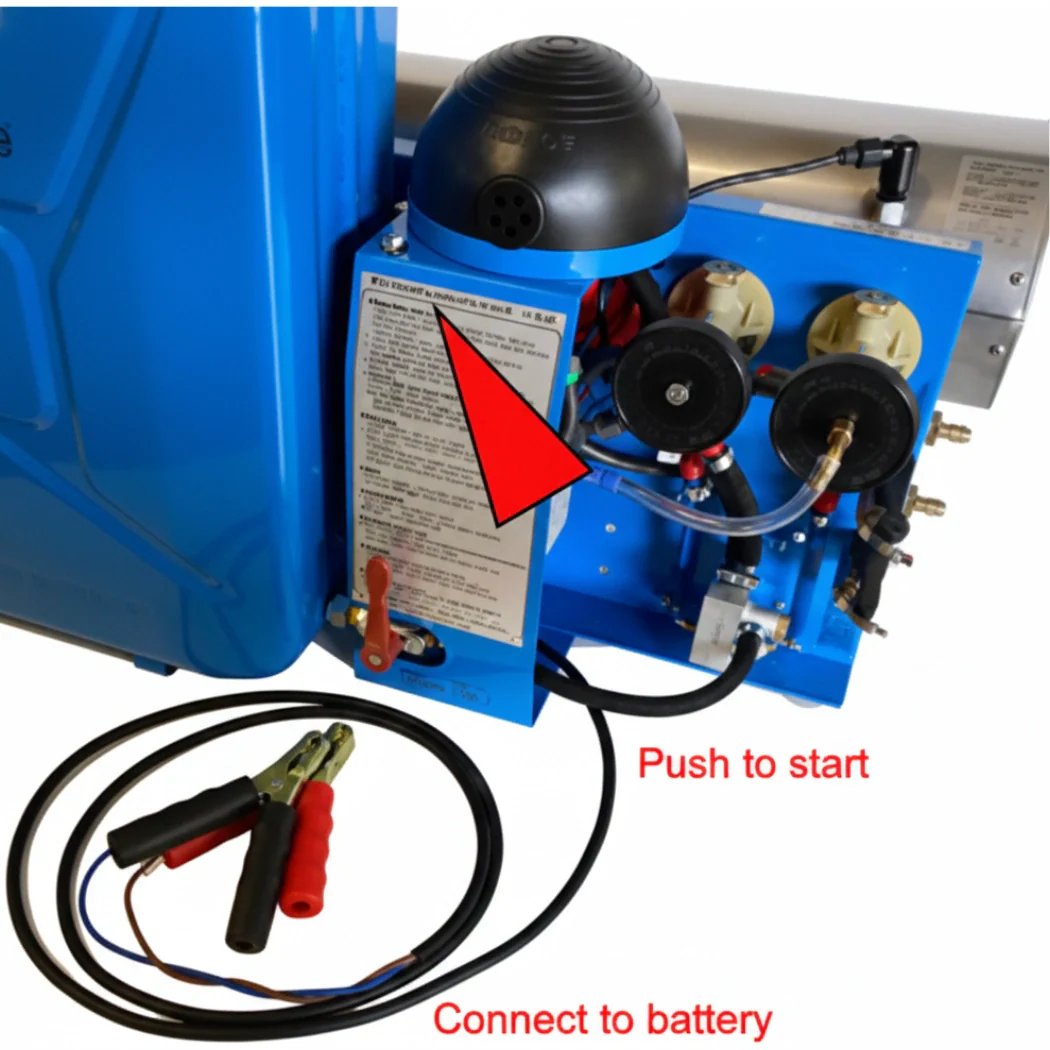

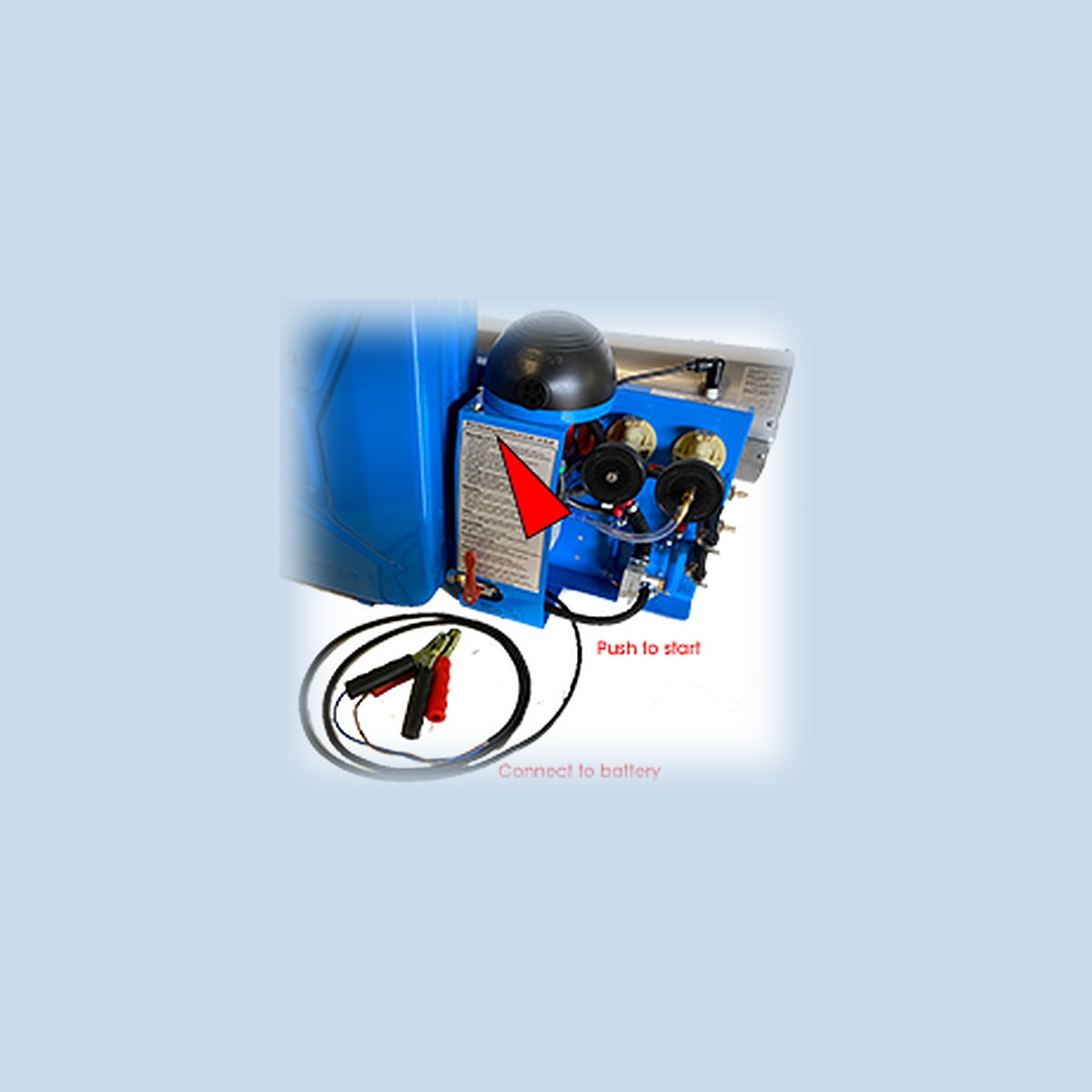

• Manual prime valve ignition
• Requires carrier solution (VK-II or NutriFOG) for best operation
• Empty weight 70 lbs
