Dramm - PCE High Flow Pressure Compensated Emitter

Brand: Dramm

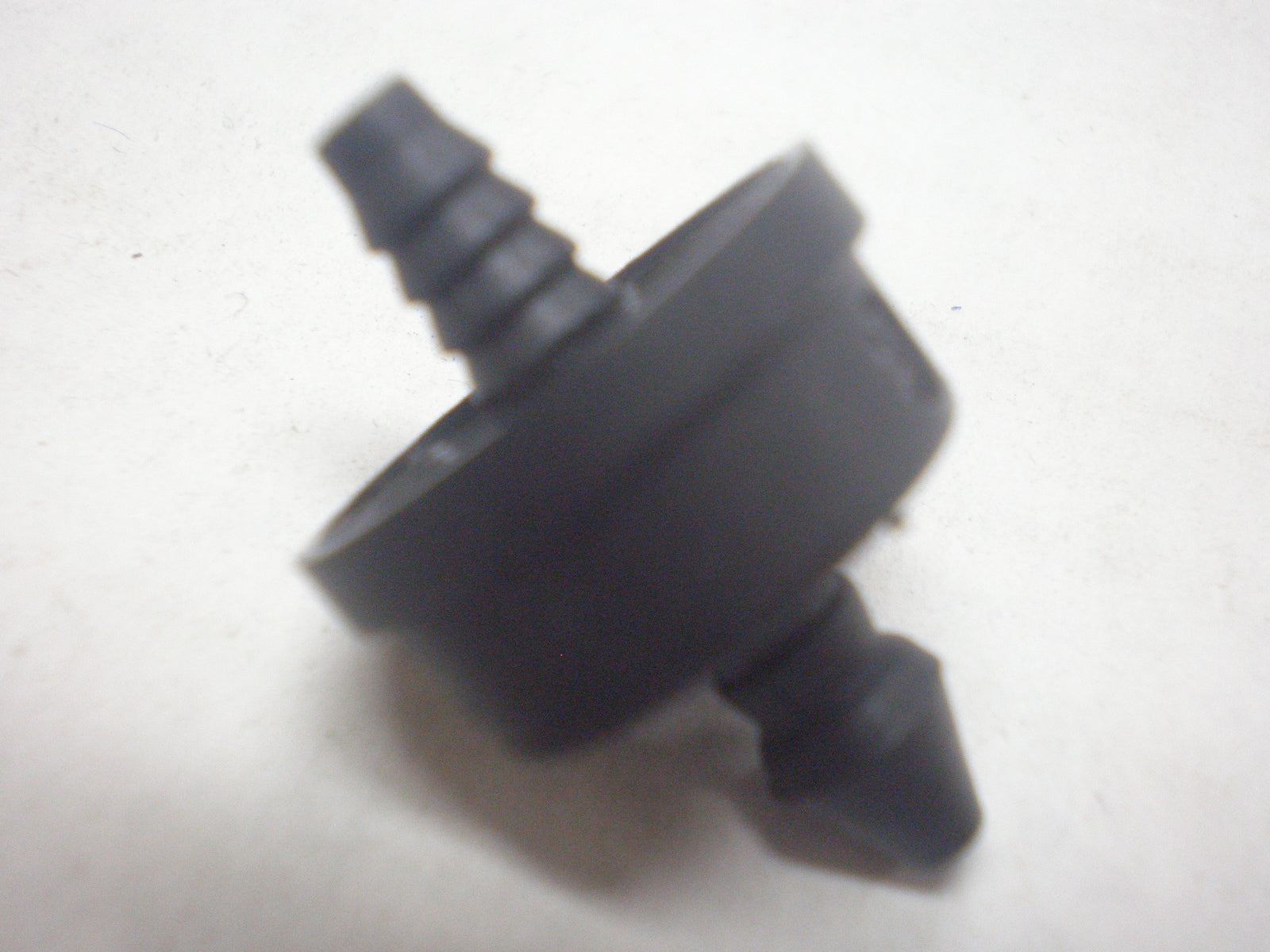

PCE High Flow Pressure Compensated Emitter

PCE emitters are the high-flow end of Dramm's pressure-compensated range, in 16, 24 and 32 litres per hour. They pick up where the PCAS emitters stop, which is 12 lph. Pressure compensation is what keeps output steady along a run rather than letting the near end over-water while the far end starves.

All three flows are the same price, so this is purely a decision about volume per plant per hour - there is no cost penalty for going up a size and no saving in going down. Work from container volume and the length of your irrigation window: the larger the pot and the shorter the window, the further up the ladder you go. The other route to these is fitting count - a single 24 or 32 lph emitter feeding a 2 or 4 way manifold puts fewer punched holes in the lateral than four separate emitters, which is fewer places to leak. If you need less than 16 lph, the PCAS range covers 2 to 12 lph.

Specifications

Configurations

Key Features

• Three high flows above the top of the PCAS range
• Pressure compensated, so output holds along the run instead of falling away at the far end
• Same price at every flow, so sizing is a growing decision rather than a budget one
• One high-flow emitter can replace several small ones, cutting punched holes and fitting count
• Feeds 2 and 4 way manifolds where one emitter has to serve several pots

Ideal Applications

• Large nursery containers and balled-and-burlapped stock
• Splitting one emitter across several pots through a 2 or 4 way manifold
• Short irrigation windows where volume has to be delivered fast
• Replacing several small emitters with one larger one to cut fitting count

Runs on the same 0.191 in leader tube and manifolds as the PCAS range, behind the same filter and regulator; the PCERC ring cap for barrel emitters is on the small parts listing.
