Dramm - PulsFOG K-30/20 Livestock Fogger and Transport Cart

Brand: Dramm

PulsFOG K-30/20 Livestock Fogger and Transport Cart

The K-30/20 is Dramm's large tank PulsFOG: the same 100 HP pulse-jet as the K-30 but fed from 55 liter tanks instead of a 10 liter one, so a fill runs for well over an hour and the fog still carries up to 220 ft. At that tank size the machine works off a cart rather than being carried, and this page holds both halves of that setup. The K-30/20/O is the complete livestock and outdoor fogger, built for flammable oil-carried formulations and rated at 55 liters in 80 minutes. The two cart lines are the transport and operating frame for K-30/20 machines: they take two 55 liter tanks side by side, adjust for height so the fog stream leaves at the right elevation, and carry a handle for turning the machine to aim it.

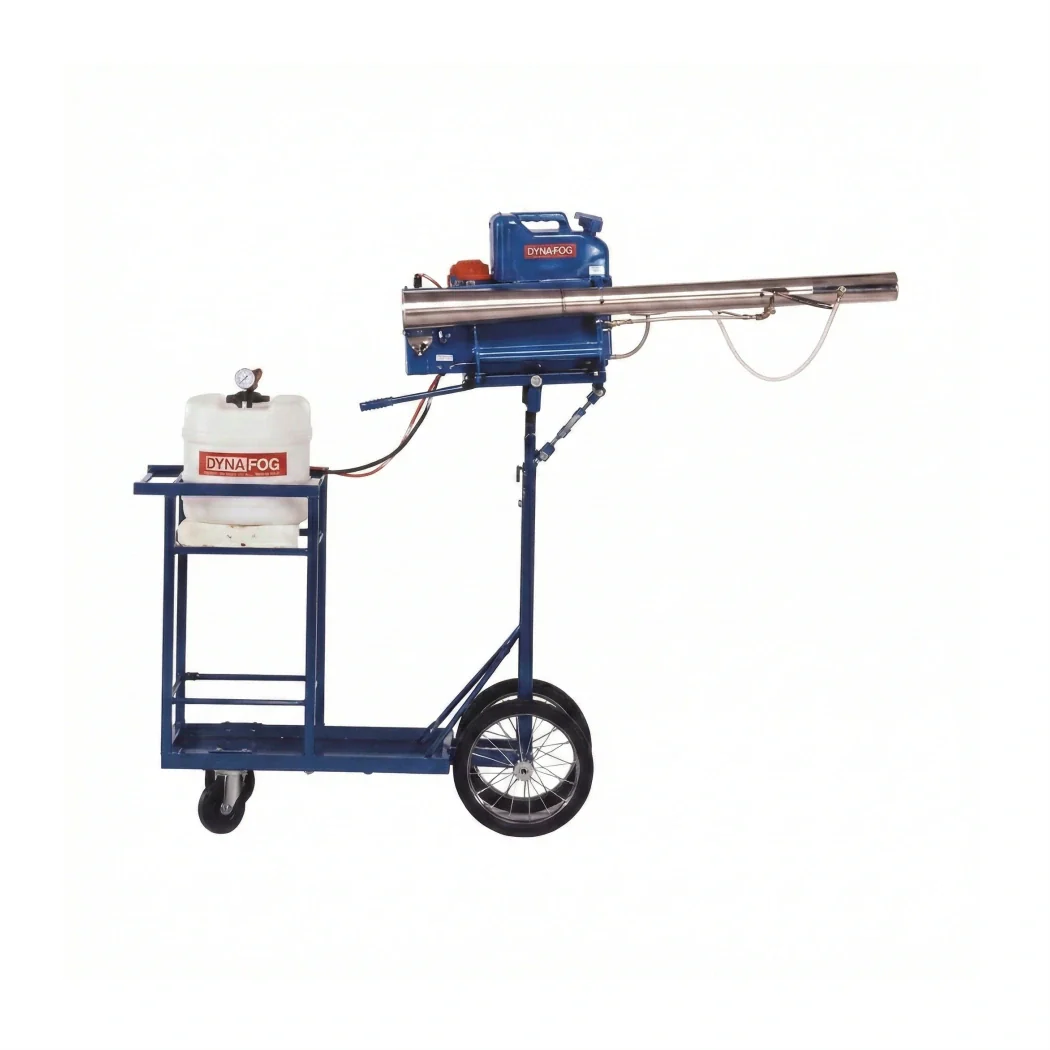

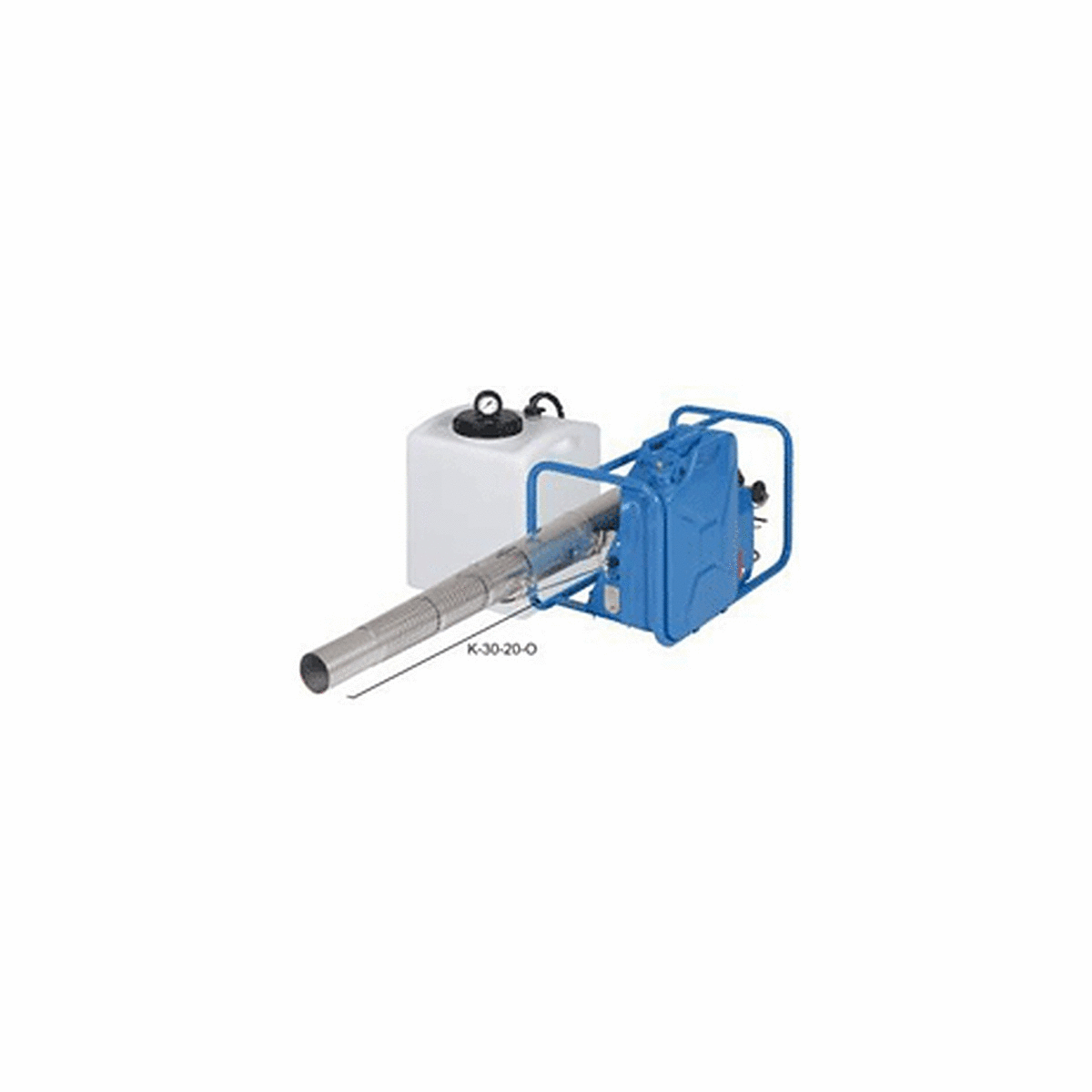

Order the machine and the cart as separate lines, because Dramm sells them that way. K-30/20/O fogger - livestock and outdoor is the machine itself, the oil version for flammable and oil-carried formulations in poultry houses, dairy barns, hog facilities and outdoor work; Dramm lists it at a 58 lb ship weight, lighter than either cart, so budget for a cart alongside it on a first purchase. K-30/20C cart - solid wheels is the standard cart on solid wheels, which is what you want on concrete floors and greenhouse aisles where a flat tire would be the only real risk and rough ground is not the problem. K-30/20C-BF cart - BigFoot pneumatic wheels is the same cart supplied with BigFoot pneumatic tires and pneumatic casters instead, for gravel, dirt and rough outdoor ground, and it ships 5 lbs heavier. Both carts share the same height adjusting frame, the same turning handle and the same capacity for two 55 liter tanks, and both are built for K-30/20 machines generally rather than for one version of the machine, so a cart bought today still fits if the fogger is later replaced or upgraded. Whichever way you buy it, plan on a carrier solution in the mix, because a PulsFOG needs one to form fog properly.

Specifications

Configurations

Key Features

• 100 HP pulse-jet throws fog up to 220 ft, so a long barn or range is covered from one position
• 55 liters of solution fogged in 80 minutes for long uninterrupted runs
• The oil build is made for the flammable, oil-carried formulations used in livestock housing and outdoors
• The cart takes two 55 liter tanks side by side, so a refill is a tank swap rather than a walk back
• Height adjustable cart frame sets the fog stream at the right elevation for the crop or the building
• Integrated turning handle aims the machine horizontally while the heavy tanks stay balanced and supported
• Solid wheels for paved floors and greenhouse aisles, or BigFoot pneumatic tires and casters for rough ground
• Either cart fits K-30/20 machines generally, so it outlives the fogger sitting on it

Ideal Applications

• Disinfection and insecticide fogging in poultry houses, dairy barns and hog facilities
• Outdoor pest control where a long fog throw and a large tank are both needed
• Whole range greenhouse treatment worked from the aisle
• Frost protection
• Moving and aiming a large PulsFOG between rooms without lifting the tanks

The hand carried K-10, K-22 and K-30 PulsFOG machines cover smaller structures, the water cooled K-30/20-Bio version of this machine is listed on its own page, spare 55 liter chemical tanks are listed separately, and a VK-II or NutriFOG carrier solution is needed with any PulsFOG.
