Dramm - HydraSkid Sprayer
Brand: Dramm
HydraSkid Sprayer

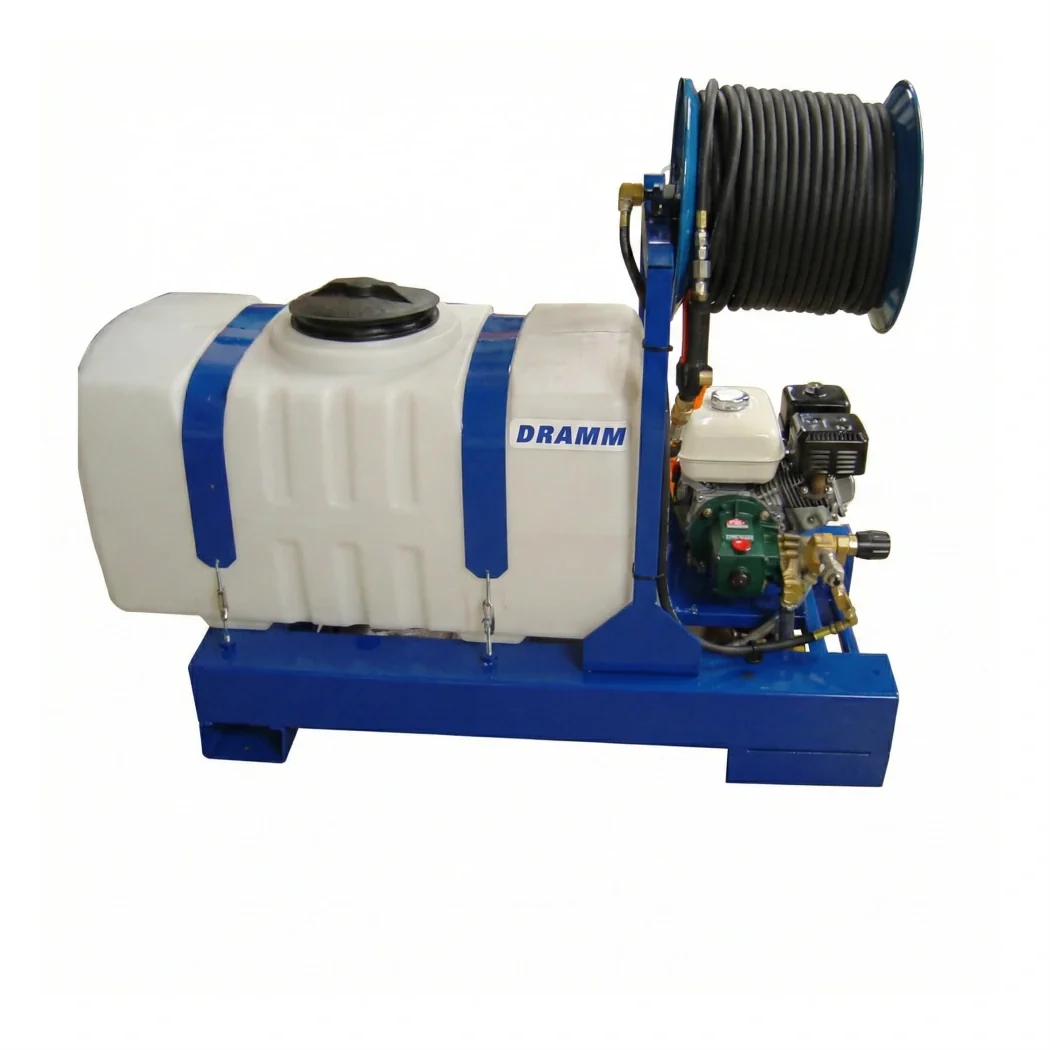

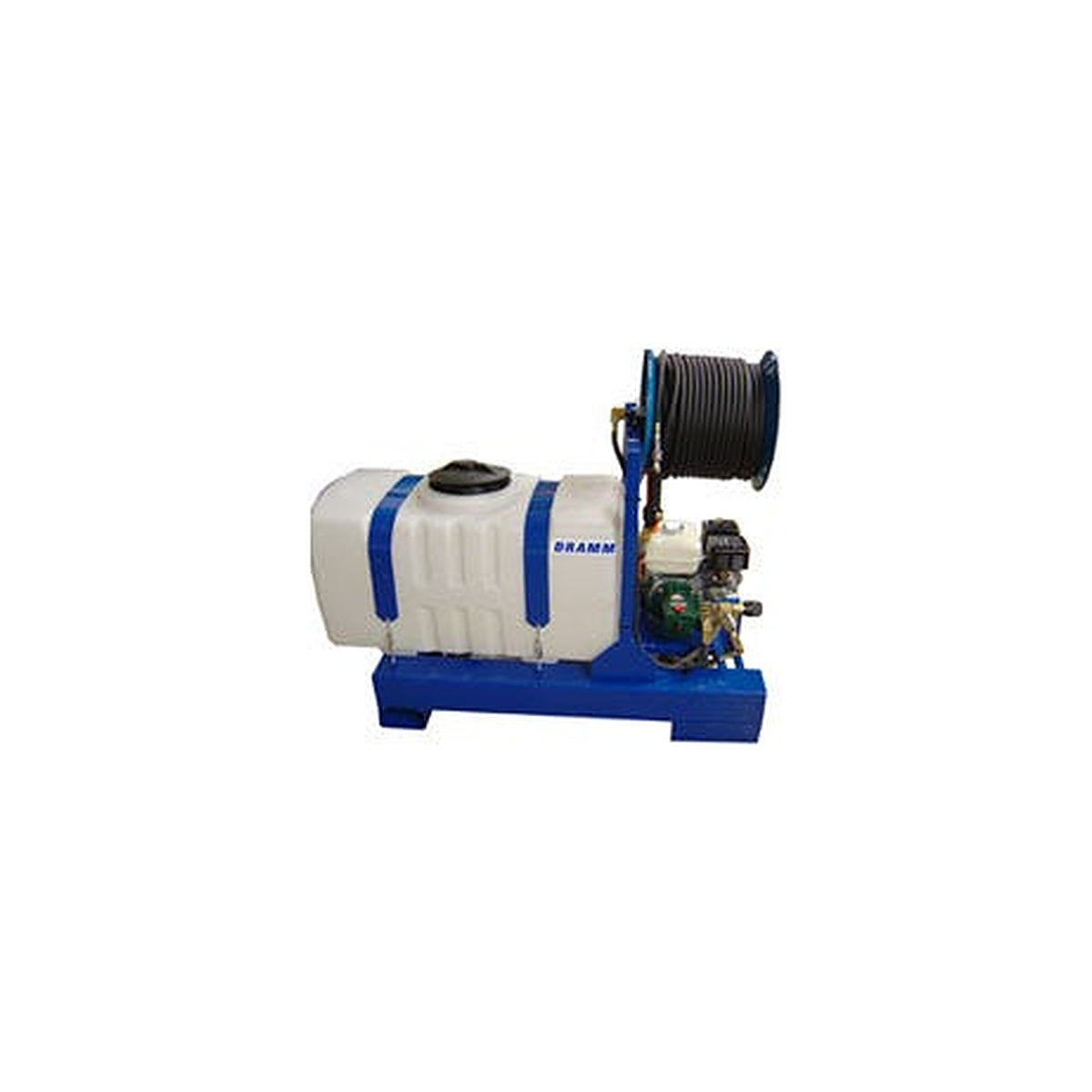

The HydraSkid puts a Hydra sprayer on a rigid steel skid instead of a cart, with fork placement designed in so the whole unit can be lifted into a pickup bed or onto a trailer. All operating functions sit at one end: the engine or motor, pump, pressure regulator, gauge, filter and drain are grouped together just below the reel. Tank size, power source and reel count are all live choices on this page, so the range runs from a 50 gallon single reel machine to a 100 gallon dual reel corrosion resistant build.
Three choices, and they are linked. Tank size: the 50 gallon builds are single reel only, and dual reel is offered on the 100 gallon frame. Power: the Honda gas builds use a 5.5 HP gasoline engine at 3600 RPM close-coupled to the pump and deliver 7 GPM, while the electric builds use Dramm's 1.5 HP TEFC motor and deliver 4 GPM. Take gas for outdoor and field work with no power drop; take electric where exhaust indoors is the problem and the lower flow is acceptable. On this page electric appears twice, as a 50 gallon single reel build and as a 100 gallon dual reel CRF build. Hose is a live choice at 150 ft, 200 ft or 250 ft, and on the dual reel builds that length goes on each reel - nothing on this page is fixed at 150 ft. CRF stands for Corrosion Resistant Fittings, Dramm's version that replaces the brass fittings and manifolds with stainless or plated components for use with oxidizers such as ZeroTol and other peroxide chemistry, and here it is only built on the 100 gallon dual reel units.
Specifications
| Tank capacity | 50 gallon or 100 gallon |
| Power | Honda 5.5 HP gasoline engine at 3600 RPM, or a 1.5 HP TEFC electric motor |
| Maximum pump output | 7 GPM (Honda gas), 4 GPM (electric) |
| Maximum pressure | 550 psi with fully adjustable regulator |
| Pump | Triplex piston, close-coupled direct drive to the engine or motor, no belt, chain or gear drive |
| Hose length | 150 ft, 200 ft or 250 ft; dual reel builds carry the selected length on each reel |
| Reel | One convex reel on the 50 gallon builds, one or two on the 100 gallon builds, with lock and variable tension drag |
| Fittings | Brass standard; CRF (Corrosion Resistant Fittings, stainless or plated) on the 100 gallon dual reel CRF builds |
| Frame | Rigid steel skid designed for fork placement into a pickup bed or onto a cart |
| Tank detail | Large opening with filter basket; sumped tank with an anti-vortex baffle to hold pressure at low volume |
| Controls | Engine or motor, pump, regulator, gauge, filter and drain grouped below the reel |
| Agitation | Provided by pump bypass |
| Spray gun | Dramm Turbo Gun, adjustable pattern, included |
| Water note | Dramm advises against running any Hydra on reverse osmosis water, which can damage even stainless components |
Configurations
| Hose Length | Tank Size | Power, Reel & Fittings | Part number |
|---|---|---|---|
| 150 ft | 50 Gallon | Honda gas - single reel | HYDRASKID501R150 |
| 200 ft | 50 Gallon | Honda gas - single reel | HYDRASKID501R200 |
| 250 ft | 50 Gallon | Electric - single reel | HYDRAESKID501R250 |
| 250 ft | 50 Gallon | Honda gas - single reel | HYDRASKID501R250 |
| 150 ft | 100 Gallon | Honda gas - single reel | HYDRASKID1001R150 |
| 200 ft | 100 Gallon | Honda gas - single reel | HYDRASKID1001R200 |
| 250 ft | 100 Gallon | Honda gas - single reel | HYDRASKID1001R250 |
| 150 ft | 100 Gallon | Honda gas - dual reel - CRF | HYDRASKID1002R150-CRF |
| 250 ft | 100 Gallon | Honda gas - dual reel | HYDRASKID1002R250 |
| 250 ft | 100 Gallon | Electric - dual reel - CRF | HYDRAESKID1002R250-CRF V01 |
| 200 ft | 100 Gallon | Honda gas - dual reel - CRF | HYDRASKID1002R200-CRF |
| 250 ft | 100 Gallon | Honda gas - dual reel - CRF | HYDRASKID1002R250-CRF |
Key Features
- Rigid steel skid with fork placement for loading into a pickup bed or onto a cart
- All controls grouped at one end below the reel - engine or motor, pump, regulator, gauge, filter and drain
- Triplex piston pump close-coupled to the power unit - no belt, chain or gear drive
- Up to 550 psi through a fully adjustable regulator on gas and electric alike
- Sumped tank with an anti-vortex baffle keeps pressure up as the tank empties
- Large tank opening with a filter basket for clean fills
- Convex reel with lock and variable tension drag stops birdnesting and freewheeling
Ideal Applications
- Spray work that has to move between sites in a pickup bed or on a trailer
- Nursery and greenhouse crop protection where floor space rules out a wheeled cart
- Insecticide, fungicide, growth regulator and fertilizer application
- Drench work with a drench adaptor in place of the spray gun
- Disinfectant and sanitation passes between crop cycles
- Oxidizer programs such as ZeroTol and peroxide chemistry, on the CRF builds
The same pump and power options on wheels are the Hydra 50 Gallon Cart Sprayer and the Hydra SprayTrax 50 and 100 Gallon sprayers, and BlueFlex replacement spray hose, the L-5 extension lance and the drench adaptor are sold separately.
