Dramm - Hydra SprayTrax Gas 100 Gallon Sprayer
Brand: Dramm
Hydra SprayTrax Gas 100 Gallon Sprayer

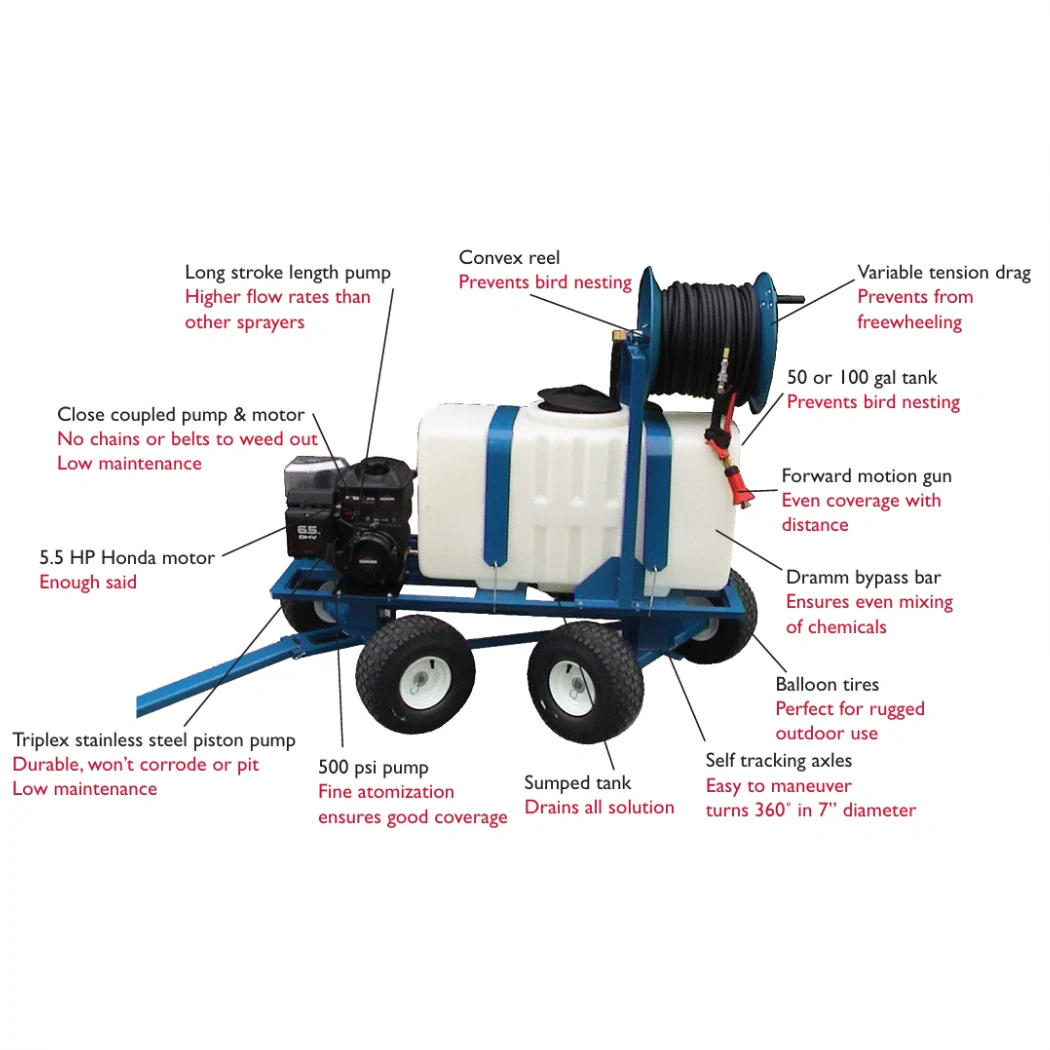

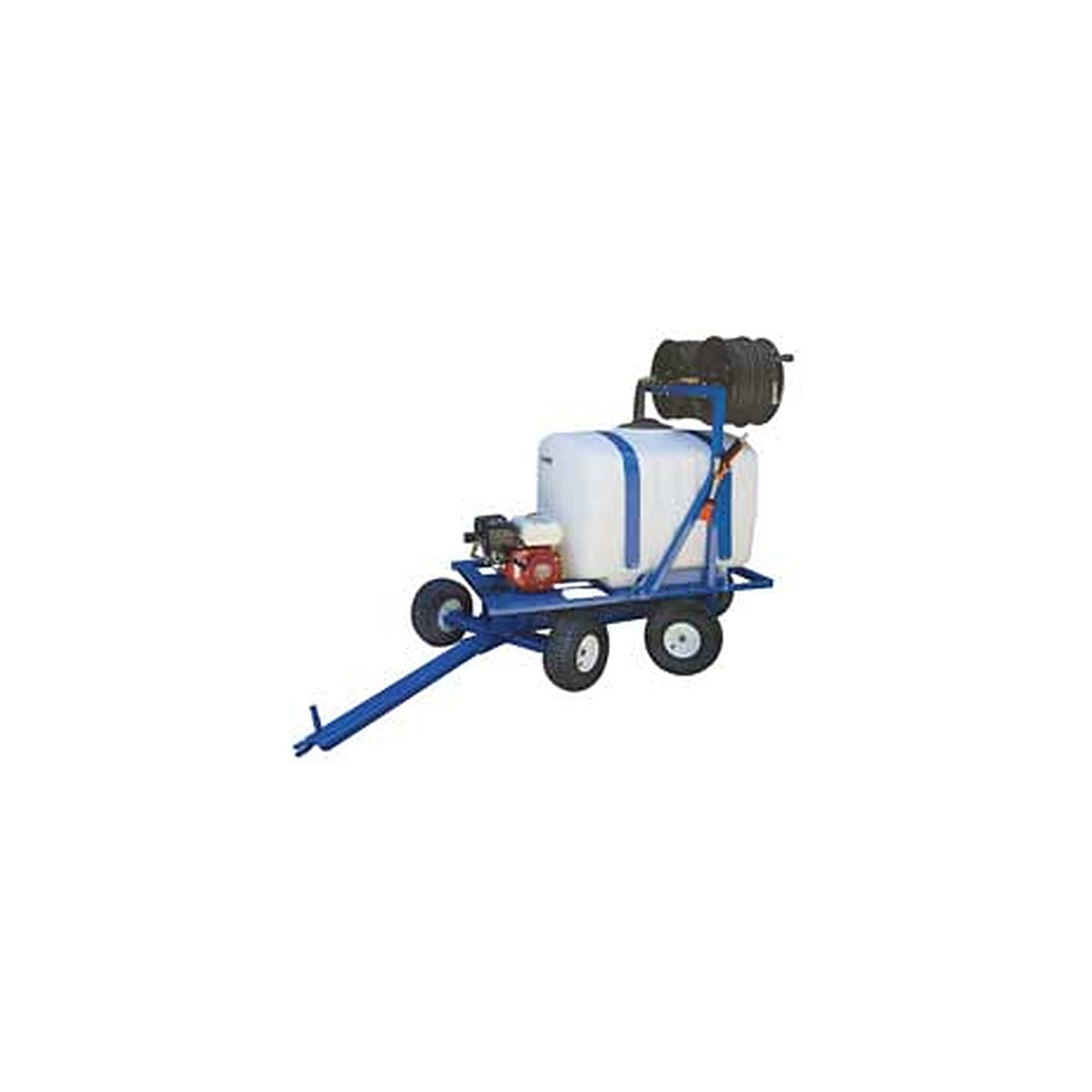

The Hydra SprayTrax Gas 100 is a 100 gallon hydraulic sprayer on Dramm's four wheel self-tracking SprayTrax cart. Both axles steer, so the loaded unit turns 360 degrees inside a 7 ft circle, and 15 in turf tires clear thresholds and soft ground; the tongue lets you pull it by hand or hitch it behind a tractor. Every build on this page runs a Honda 5.5 HP gasoline engine close-coupled to a triplex stainless steel piston pump rated at 7 GPM and 550 psi. It is aimed at nurseries and greenhouse ranges that need to move a large tank around obstacles without a power cord.
Start with the reel, because it sets most of the price. No reel with no hose is the bare machine for growers who already own reels; single reel is the standard build; dual reel carries two hose runs of the selected length. The ElectricWind reel is motorized, with push button variable speed rewind that only winds while the button is held. RemoteWind is a motorized reel triggered from the gun end of the hose by a pressure sensor rather than a wireless remote, with programmable rewind speed, a safety stop and a level wind guide. Every ElectricWind and RemoteWind build on this page comes with the electric start engine; on the manual reel builds recoil start is standard and electric start is an upcharge. Hose runs from 75 ft to 400 ft depending on the build, and the 400 ft run is only offered on an ElectricWind reel. CRF means Corrosion Resistant Fittings: Dramm replaces the brass fittings and manifolds with stainless or plated components so the machine can be run with oxidizers such as ZeroTol and other peroxide chemistry, and on this page CRF is offered on one dual reel build.
Specifications
| Tank capacity | 100 gallon |
| Engine | Honda 5.5 HP gasoline, recoil start or electric start (this page is gas only) |
| Pump | Triplex stainless steel piston, close-coupled direct drive, no belt, chain or gear drive |
| Maximum pump output | 7 GPM |
| Maximum pressure | 550 psi with fully adjustable regulator |
| Cart | SprayTrax four wheel self-tracking, turns 360 degrees within a 7 ft circle, 15 in turf tires, tongue for hand pulling or a tractor hitch |
| Frame dimensions | L 60 in x W 39 in x H 63 in (frame only) |
| Hose length | No hose, 75 ft, 150 ft, 200 ft, 250 ft, 300 ft or 400 ft depending on build; dual reel builds carry the selected length on each reel |
| Reel | No reel, one or two manual convex reels with lock and variable tension drag, or a motorized ElectricWind or RemoteWind reel |
| RemoteWind reel | 24 VAC, 300 W, programmable 50 to 160 ft per minute, holds up to 300 ft |
| Fittings | Brass standard; CRF (Corrosion Resistant Fittings, stainless or plated) on the dual reel CRF build |
| Spray gun | Dramm Turbo Gun, adjustable pattern, standard on the hose equipped builds |
| Water note | Dramm advises against running any Hydra on reverse osmosis water, which can damage even stainless components |
Configurations
| Hose Length | Engine | Reel & Fittings | Part number |
|---|---|---|---|
| No hose | Honda 5.5 HP recoil start | No reel | HYDRAGST100NRNH-GH |
| 150 ft | Honda 5.5 HP recoil start | Single reel | HYDRAGST1001R150 |
| 75 ft | Honda 5.5 HP recoil start | Single reel | HYDRAGST1001R-GH75 |
| 200 ft | Honda 5.5 HP recoil start | Single reel | HYDRAGST1001R200 |
| 250 ft | Honda 5.5 HP recoil start | Single reel | HYDRAGST1001R250 |
| 150 ft | Honda 5.5 HP electric start | Single reel | HYDRAGST1001R150 V02 |
| 150 ft | Honda 5.5 HP recoil start | Dual reel | HYDRAGST1002R150 |
| 200 ft | Honda 5.5 HP electric start | Single reel | HYDRAGST1001R200 V06 |
| 300 ft | Honda 5.5 HP recoil start | Single reel | HYDRAGST1001R300 |
| 200 ft | Honda 5.5 HP recoil start | Dual reel | HYDRAGST1002R200 |
| 250 ft | Honda 5.5 HP recoil start | Dual reel | HYDRAGST1002R250 |
| 150 ft | Honda 5.5 HP electric start | Dual reel | HYDRAGST1002R150 V02 |
| 300 ft | Honda 5.5 HP recoil start | Dual reel | HYDRAGST1002R300 |
| 250 ft | Honda 5.5 HP recoil start | Dual reel - CRF | HYDRAGST1002R250-CRF |
| 300 ft | Honda 5.5 HP electric start | Dual reel | HYDRAGST1002R300 V08 |
| 150 ft | Honda 5.5 HP electric start | ElectricWind reel | HYDRAGST100ER150 |
| 200 ft | Honda 5.5 HP electric start | ElectricWind reel | HYDRAGST100ER200 |
| 250 ft | Honda 5.5 HP electric start | ElectricWind reel | HYDRAGST100ER250 |
| 300 ft | Honda 5.5 HP electric start | ElectricWind reel | HYDRAGST100ER300 |
| 400 ft | Honda 5.5 HP electric start | ElectricWind reel | HYDRAGST100SER400 |
| 150 ft | Honda 5.5 HP electric start | RemoteWind reel | HYDRAGST100RR150 |
| 200 ft | Honda 5.5 HP electric start | RemoteWind reel | HYDRAGST100RR200 |
| 250 ft | Honda 5.5 HP electric start | RemoteWind reel | HYDRAGST100RR250 |
| 300 ft | Honda 5.5 HP electric start | RemoteWind reel | HYDRAGST100RR300 |
Key Features
- Four wheel self-tracking SprayTrax cart turns 360 degrees inside a 7 ft circle
- 15 in turf tires and a tongue that takes a tractor hitch or a hand pull
- Triplex stainless steel piston pump close-coupled to the engine - no belt, chain or gear drive
- 7 GPM at up to 550 psi through a fully adjustable regulator
- Convex reel profile with lock and variable tension drag stops birdnesting and freewheeling
- ElectricWind and RemoteWind motorized reel options, both supplied with the electric start engine
- CRF builds swap brass fittings and manifolds for stainless or plated components for oxidizer chemistry
Ideal Applications
- Nursery and greenhouse crop protection where a power drop is not available
- Outdoor growing ground, container yards and field blocks
- Long hose run spraying across several houses from one park position
- Foliar feeding and fertilizer application at high volume
- Drench work with a drench adaptor in place of the spray gun
- Disinfectant and sanitation passes between crop cycles
- Oxidizer programs such as ZeroTol and peroxide chemistry, on the CRF build
The electric motor version of the same cart is the Hydra SprayTrax Electric 100 Gallon, the smaller frame is the Hydra SprayTrax 50 Gallon, and BlueFlex replacement spray hose, the L-5 extension lance and the drench adaptor are sold separately.
