Dramm - Hose Protection and Repair Parts
Brand: Dramm
Hose Protection and Repair Parts
The small parts that keep a hose in service: a spring protector for the tap end, replacement washers, and the two kinds of screw-clamp repair, the hose end mender and the mid-hose splice. Dramm's menders and splices use nickel plated brass barbs with die-cast zinc and aluminum clamps, so a damaged hose is cut back and rebuilt in minutes instead of being scrapped. Nothing on this page needs a press: the clamps tighten with a screwdriver and the joint is leak proof and re-usable. These are the clamp-on repair parts, not the crimped fitting and ferrule sets that are swaged in the DrammPress.

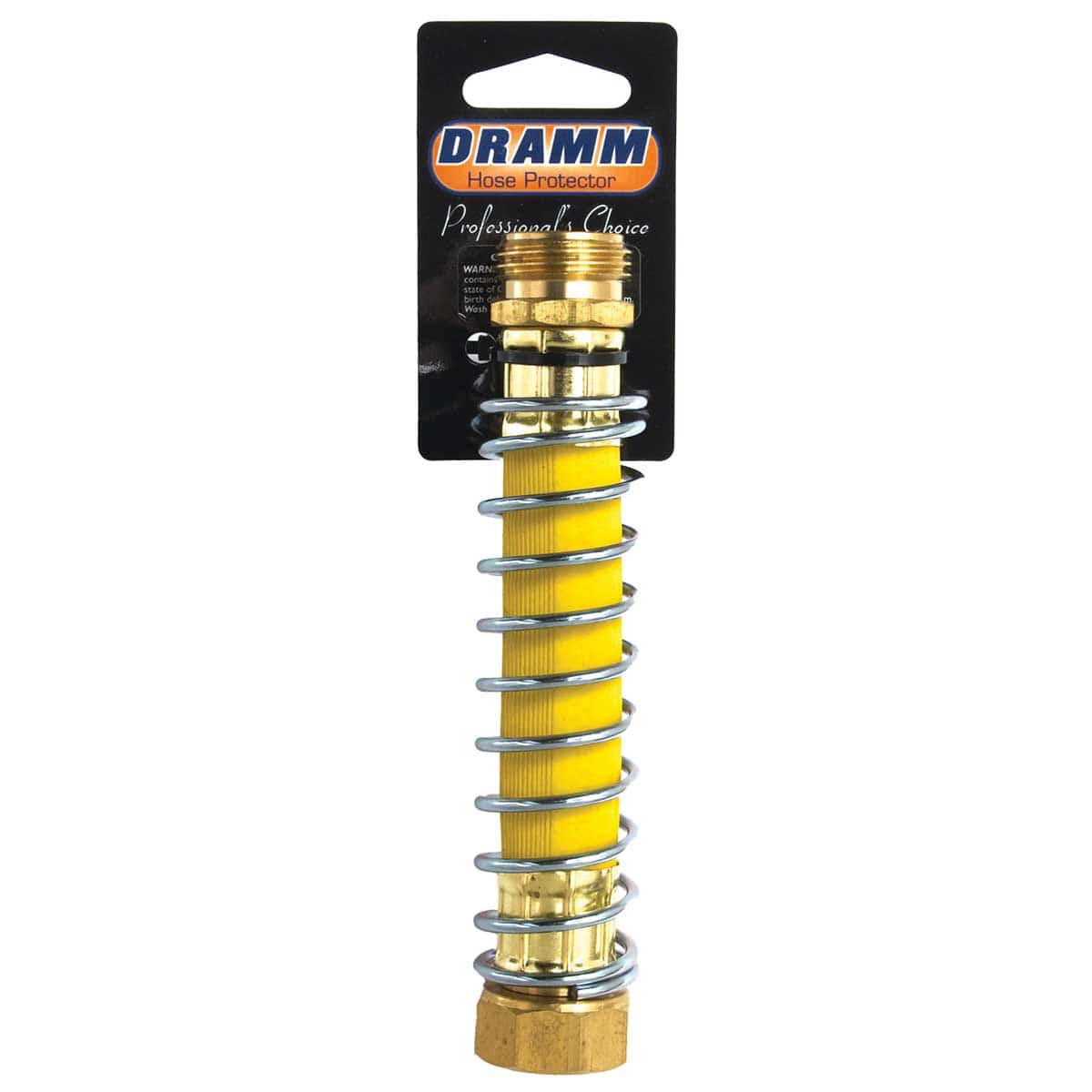

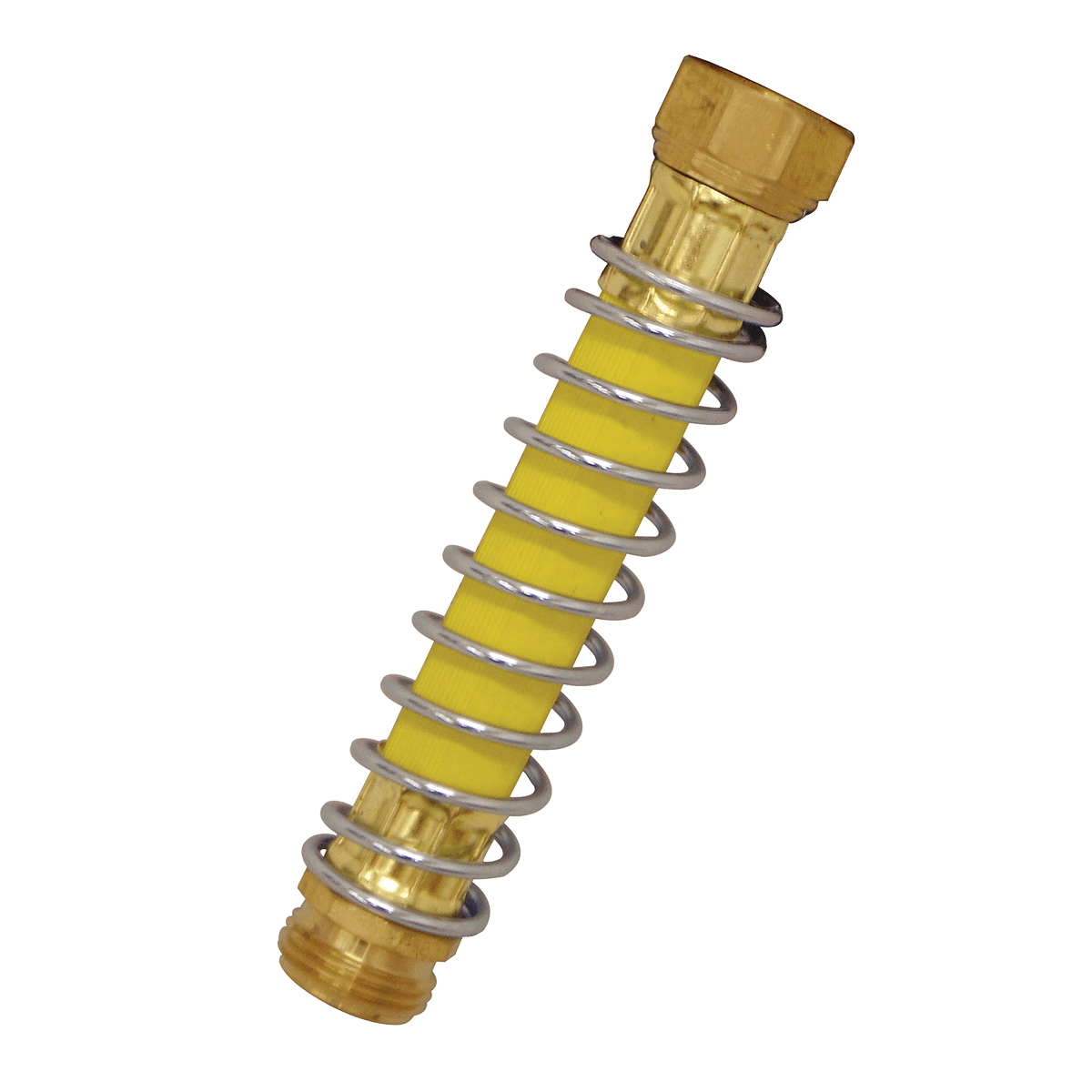

There is one choice and it is simply which part you need. Hose Protector - 5/8 in ID is a steel spring wound over a short hose stub that goes between the tap and the hose to stop the hose end kinking and to take the strain off the coupling; it is 5/8 in inside diameter with 3/4 in male and female garden hose thread. Universal Hose Washer - Bag of 100 is the neoprene replacement washer for hose couplings and hose-end watering tools, supplied a hundred to a bag, and it stays soft where nylon washers go brittle. Hose End Mender Set - 5/8 in and Hose End Mender Set - 3/4 in each contain both a male and a female hose end with screw-tight clamps, which is what you want when the threaded coupling itself has been crushed or torn off. Hose Splice Set - 5/8 in and Hose Splice Set - 3/4 in are the double-ended barb with two clamps, used to cut a damaged section out of the middle of a hose or to join two shorter hoses into one. On the menders and splices the size is the hose inside diameter, so measure the bore and not the thread.
Specifications
| Item | A hose protector; a bag of universal washers; hose end mender sets in 5/8 in and 3/4 in; hose splice sets in 5/8 in and 3/4 in |
| Hose Protector | 5/8 in inside diameter with 3/4 in male and female garden hose thread; steel spring over nickel plated brass |
| Mender and splice sizes | Both the mender sets and the splice sets are made for 5/8 in and for 3/4 in hose |
| Mender set contents | One male hose end and one female hose end, each with a screw-tight clamp |
| Splice set contents | One double-ended barb with two screw clamps |
| Material | Nickel plated brass fittings with die-cast zinc and aluminum clamps |
| Washer material | Virgin neoprene, which stays soft and pliable where nylon washers become brittle |
| Tools needed | A screwdriver; no crimping press, ring bands or gear clamps |
Configurations
| Item | Part number |
|---|---|
| Universal Hose Washer - Bag of 100 | 60-72999 |
| Hose Protector - 5/8 in ID | 10-73625 |
| Hose Splice Set - 5/8 in | 10-22314 |
| Hose Splice Set - 3/4 in | 10-22315 |
| Hose End Mender Set - 5/8 in | 60-22312 |
| Hose End Mender Set - 3/4 in | 10-22313 |
Key Features
- Menders and splices use nickel plated brass barbs with die-cast zinc and aluminum clamps
- Screw-tight clamps mean no crimping press and no gear clamps
- Leak proof and re-usable, so a repaired hose can be rebuilt again later
- Mender sets carry both a male and a female hose end in one set
- Splice sets take a damaged section out of the middle of a hose
- Hose protector stops the tap-end kink that destroys hose couplings
- Neoprene washers stay soft where nylon washers become brittle
Ideal Applications
- Repairing crushed or torn hose couplings in the greenhouse
- Joining two shorter hoses into one working length
- Protecting the hose end at a busy hose station or tap
- Stopping leaks at hose and watering-tool connections
- Keeping a repair kit on the cart for in-season breakdowns
For crimped, factory-style ends on Dramm ColorStorm hose use the fitting and ferrule sets 10-17810, 10-17815, 10-17820 and 10-17825 or the splice and ferrule sets 10-17830 and 10-17840 with the DrammPress frame 72620.
