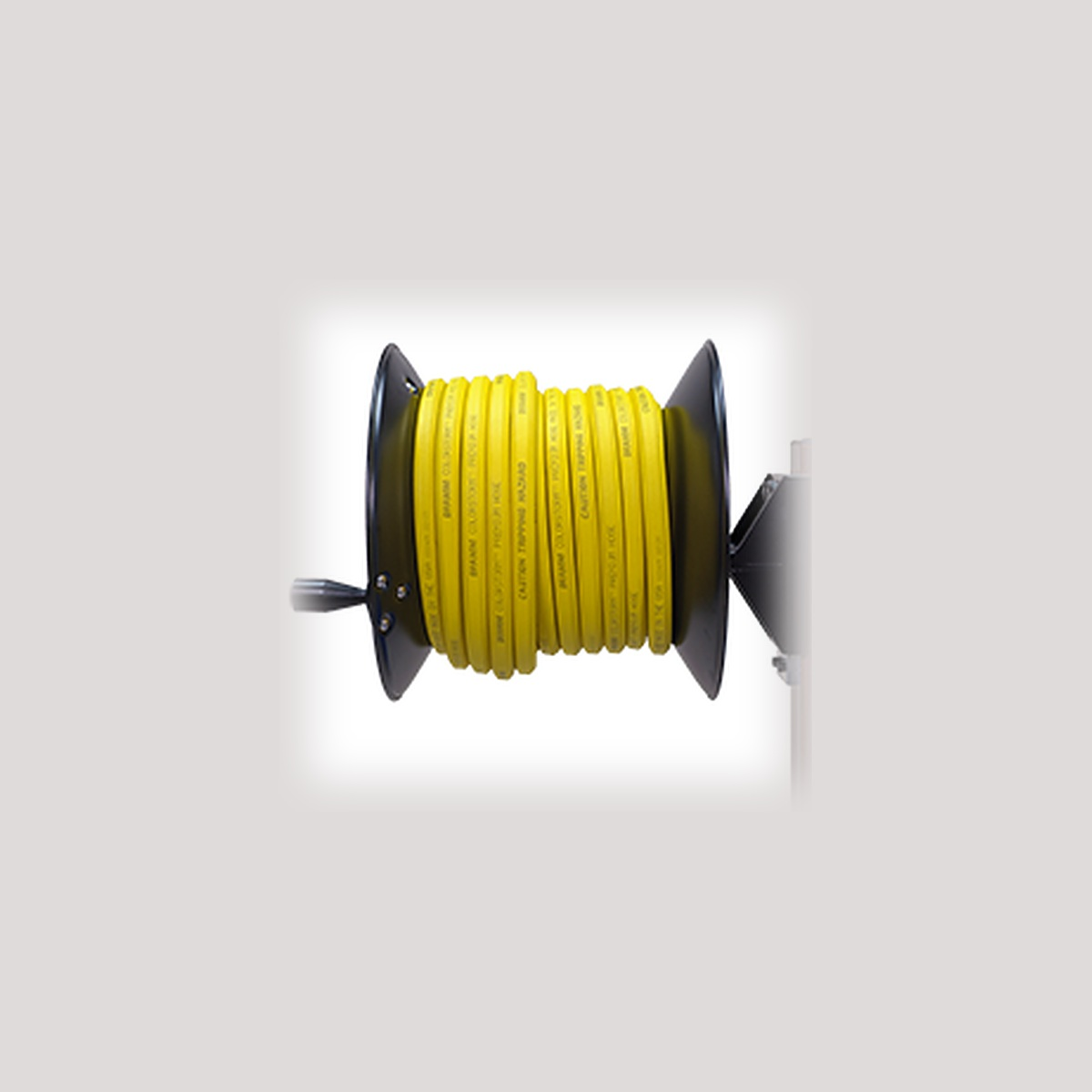

Dramm - Heavy Duty Hose Reel
Brand: Dramm
Heavy Duty Hose Reel

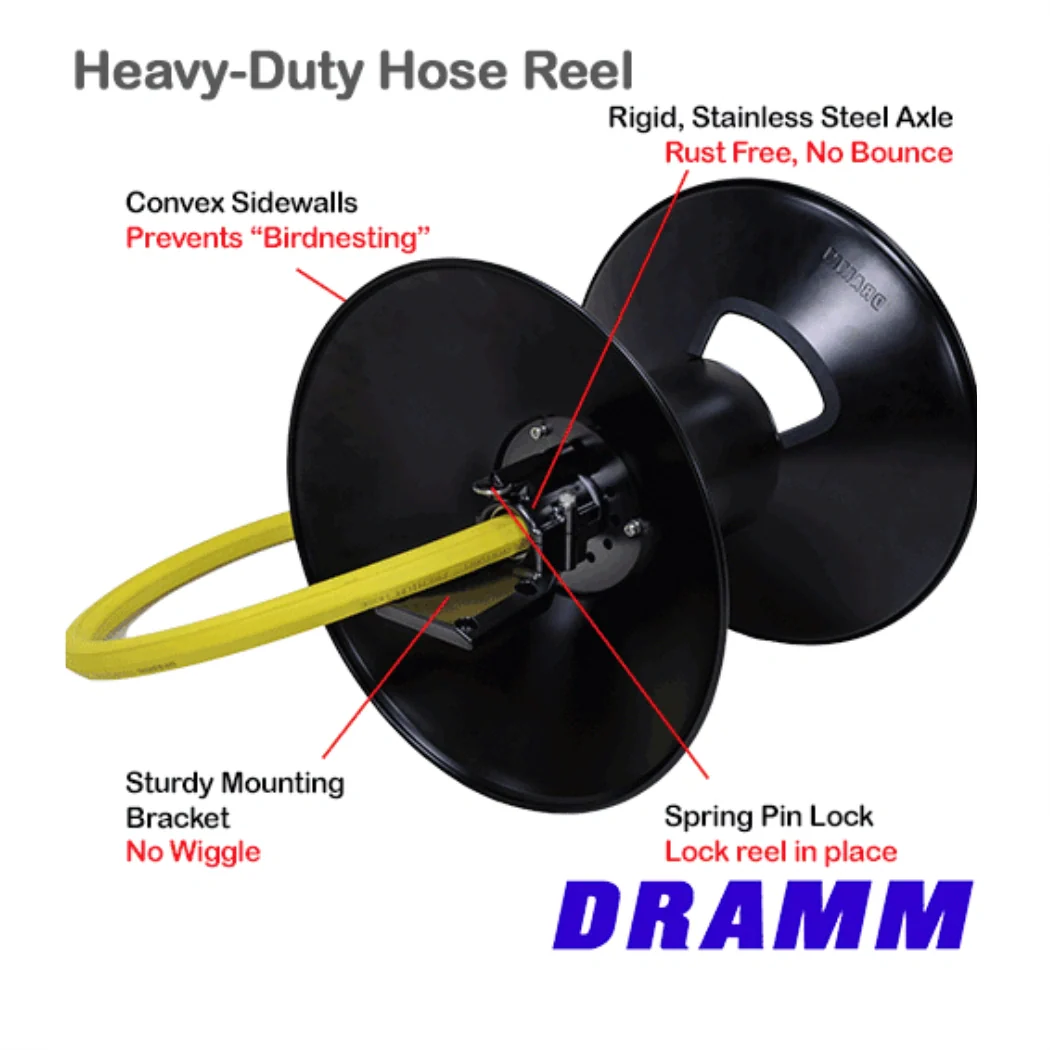

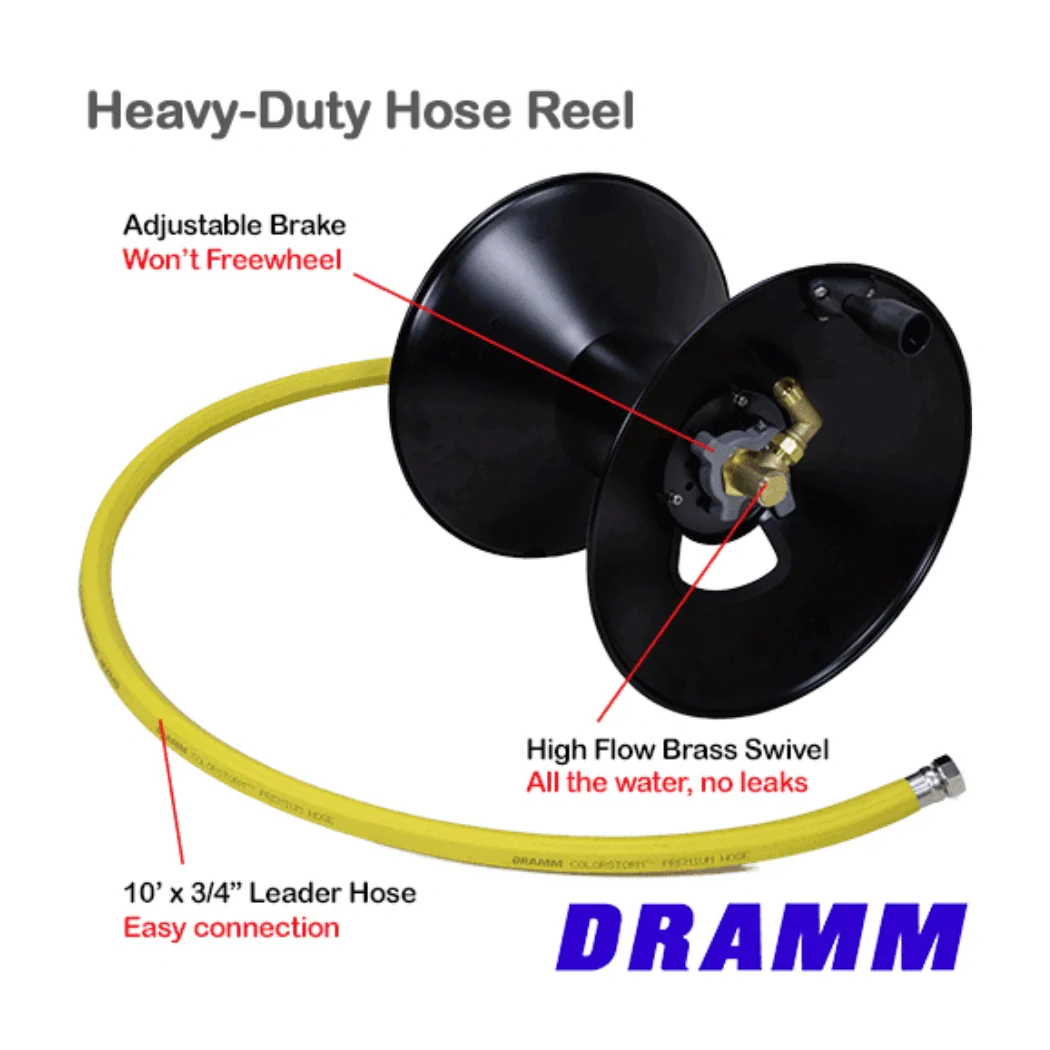

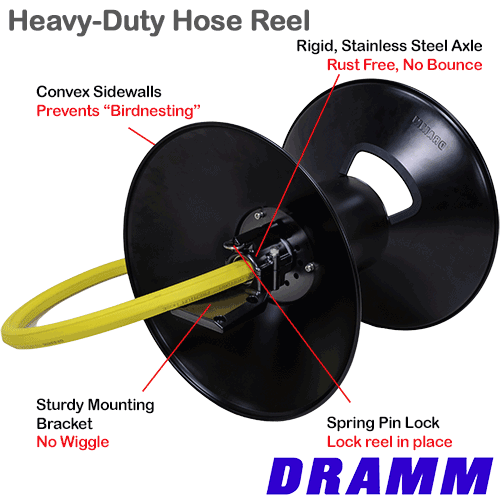

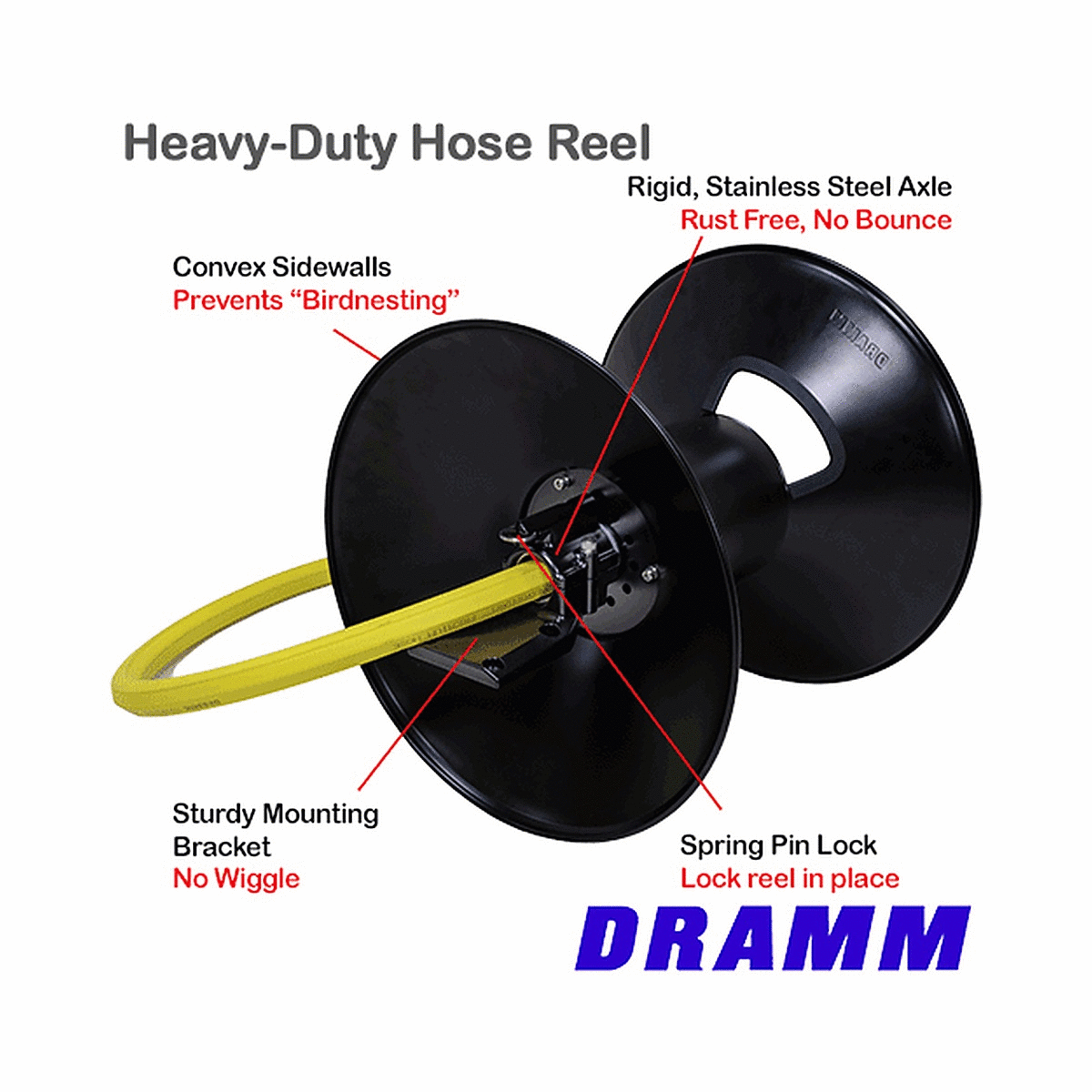

The Dramm Heavy-Duty Hose Reel is the reel Dramm has built for its own spray equipment for years, re-worked with a larger swivel and axle for the flow rates hand watering needs. Convex side walls stop the hose pinching against the sides and bird-nesting as it winds, a spring-pin lock holds the reel when it is not in use, and an adjustable tension brake stops it freewheeling. A rigid stainless steel axle on PTFE bearings means no flex, no bounce and no rust under a reel full of water. Each reel ships with a 10 ft x 3/4 in ColorStorm leader hose, a high-flow brass swivel at the inlet and a sturdy mounting bracket, and holds 175 ft of 5/8 in or 150 ft of 3/4 in ColorStorm hose.

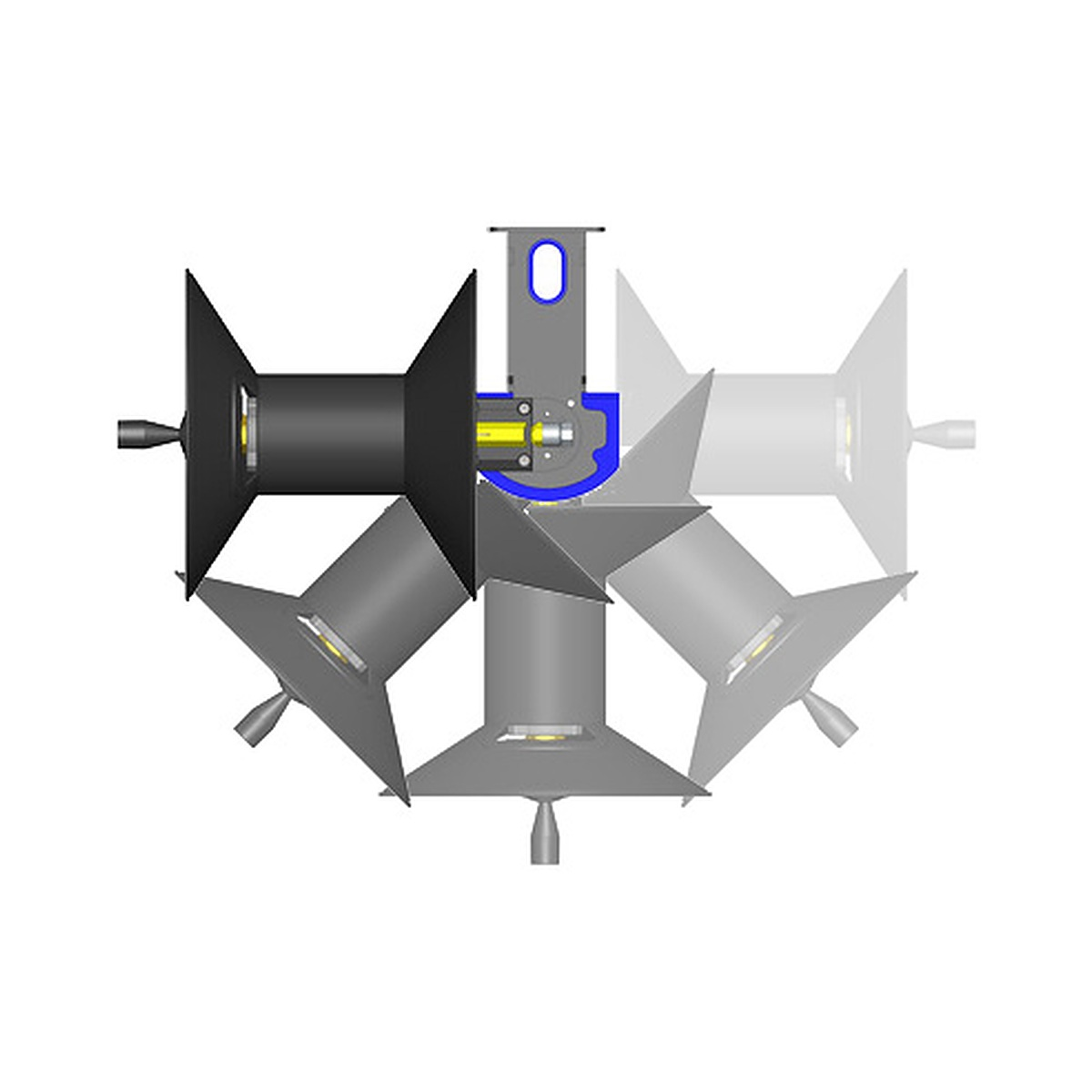

Item is simply what ships. Single is one complete reel with its leader hose, brass swivel and standard rigid mounting bracket, and is what most buyers want. Pallet (54 pcs) is the factory pallet of 54 of the same reel, for a build-out or a bulk restock; the reel itself is identical and only the quantity changes. 5-Point Pivot Bracket only is the optional bracket on its own with no reel: it replaces the standard mounting bracket so the reel swings through 180 degrees and locks at 0, 45, 90, 135 or 180 degrees, which is how one mounting point serves two aisles and how the hose is made to pull cleanly instead of dragging across the frame. Order the bracket with a new reel, or on its own to upgrade reels that are already on the wall.
Specifications
| Item | One reel, a pallet of 54 reels, or the 5-Point Pivot Bracket supplied on its own |
| Hose capacity | 175 ft of 5/8 in ColorStorm hose or 150 ft of 3/4 in ColorStorm hose; other hose may fit differently depending on its outside diameter |
| Supplied with each reel | 10 ft x 3/4 in ColorStorm leader hose, high-flow brass swivel and a rigid mounting bracket |
| Lock and brake | Spring-pin reel lock and adjustable tension brake |
| Axle and bearings | Rigid stainless steel axle running on PTFE bearings |
| Side walls | Convex, to stop the hose pinching against the side wall |
| 5-Point Pivot Bracket | Replaces the standard mounting bracket; pivots 180 degrees in 45 degree increments and locks at 0, 45, 90, 135 and 180 degrees |
| Ship weight | 10 lb for the reel; 8 lb for the 5-Point Pivot Bracket |
Configurations
| Item | Part number |
|---|---|
| 5-Point Pivot Bracket only | 17405 |
| Single | 17400 |
| Pallet (54 pcs) | 90-17400 |
Key Features
- Holds 175 ft of 5/8 in or 150 ft of 3/4 in ColorStorm hose
- Convex side walls prevent hose pinching and the bird-nesting that follows
- Spring-pin reel lock and adjustable tension brake
- Rigid stainless steel axle on PTFE bearings, so no flexing, bouncing or rust
- High-flow brass swivel at the inlet
- Ships with a 10 ft x 3/4 in ColorStorm leader hose and a rigid mounting bracket
- Optional 5-point pivot bracket swings the reel 180 degrees and locks in five positions
Ideal Applications

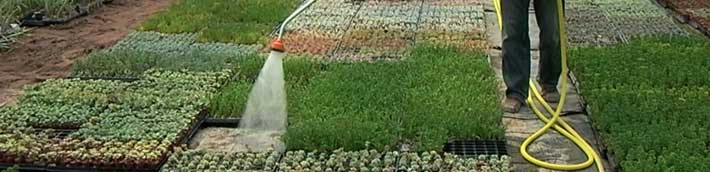

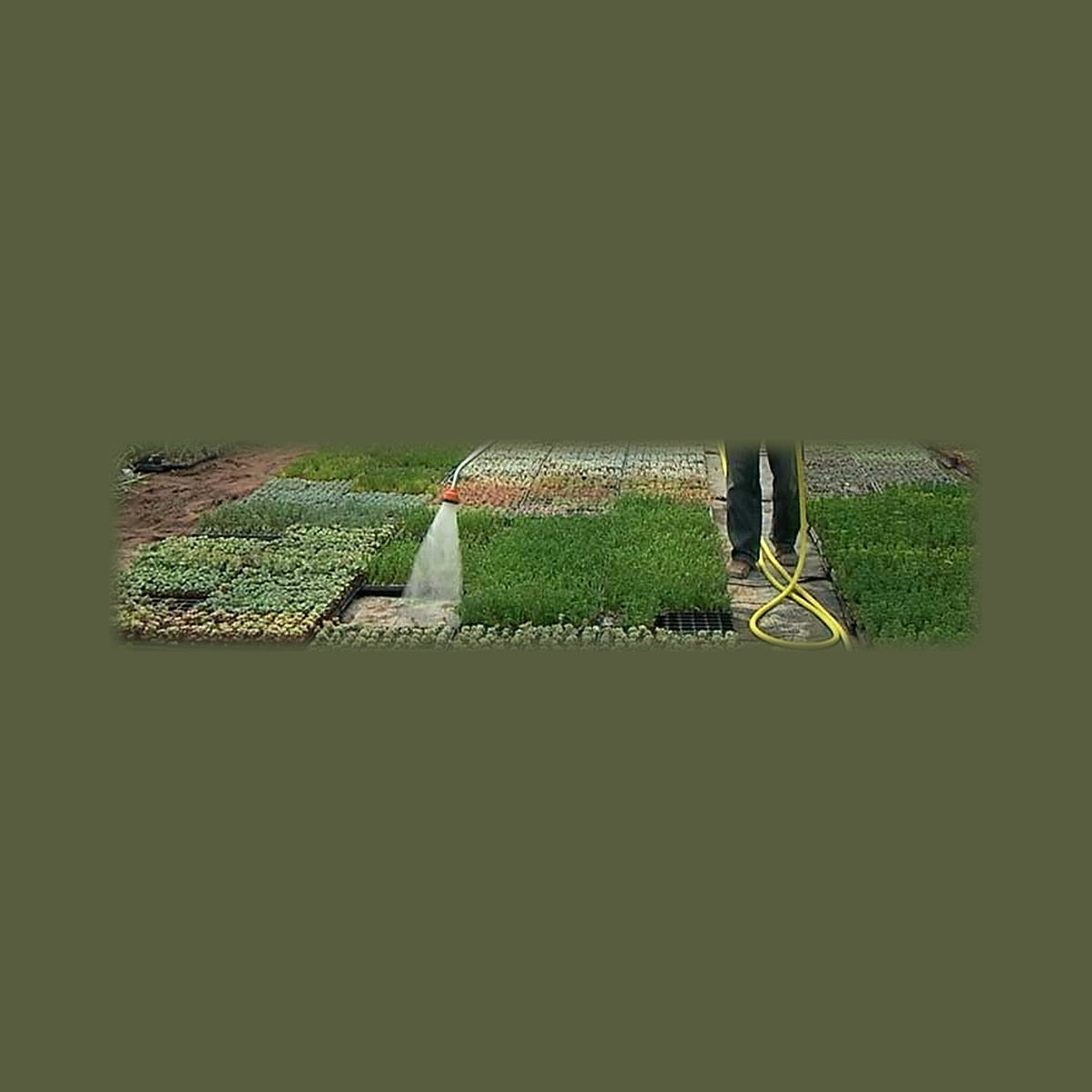

- Hose stations along a greenhouse aisle or headhouse wall
- Nursery and garden center hose points
- Wall or post mounting where the hose has to pull two ways from one point
- Upgrading the bracket on reels that are already installed
- Outfitting a whole range of hose stations in one order

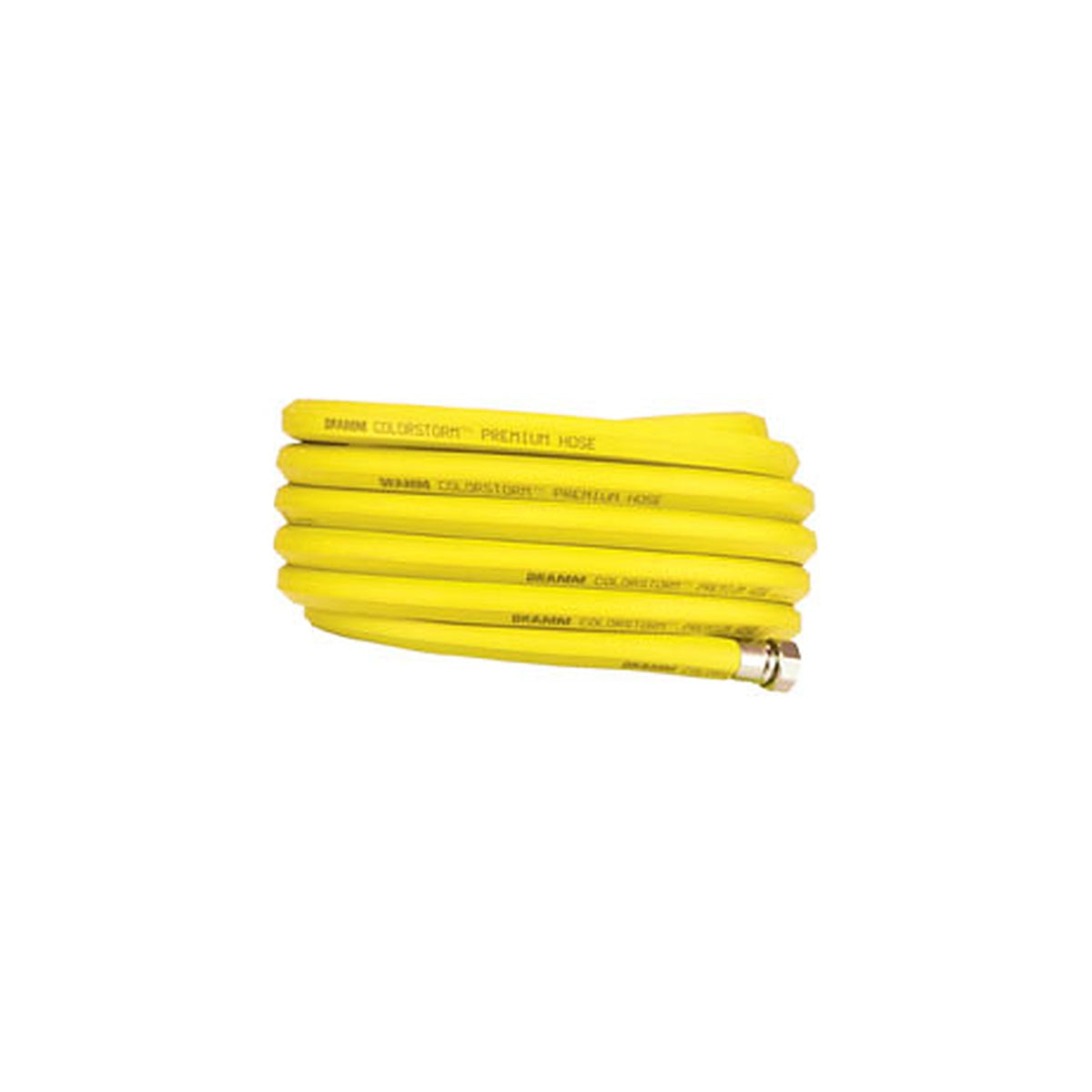

Built for Dramm ColorStorm Premium Yellow Hose (17003, 17303 and 17313) and works alongside the Dramm Heavy-Duty Hose Guide 10-17410.
