Dramm - FertiCart SprayTrax 100 Gallon Injector Cart

Brand: Dramm

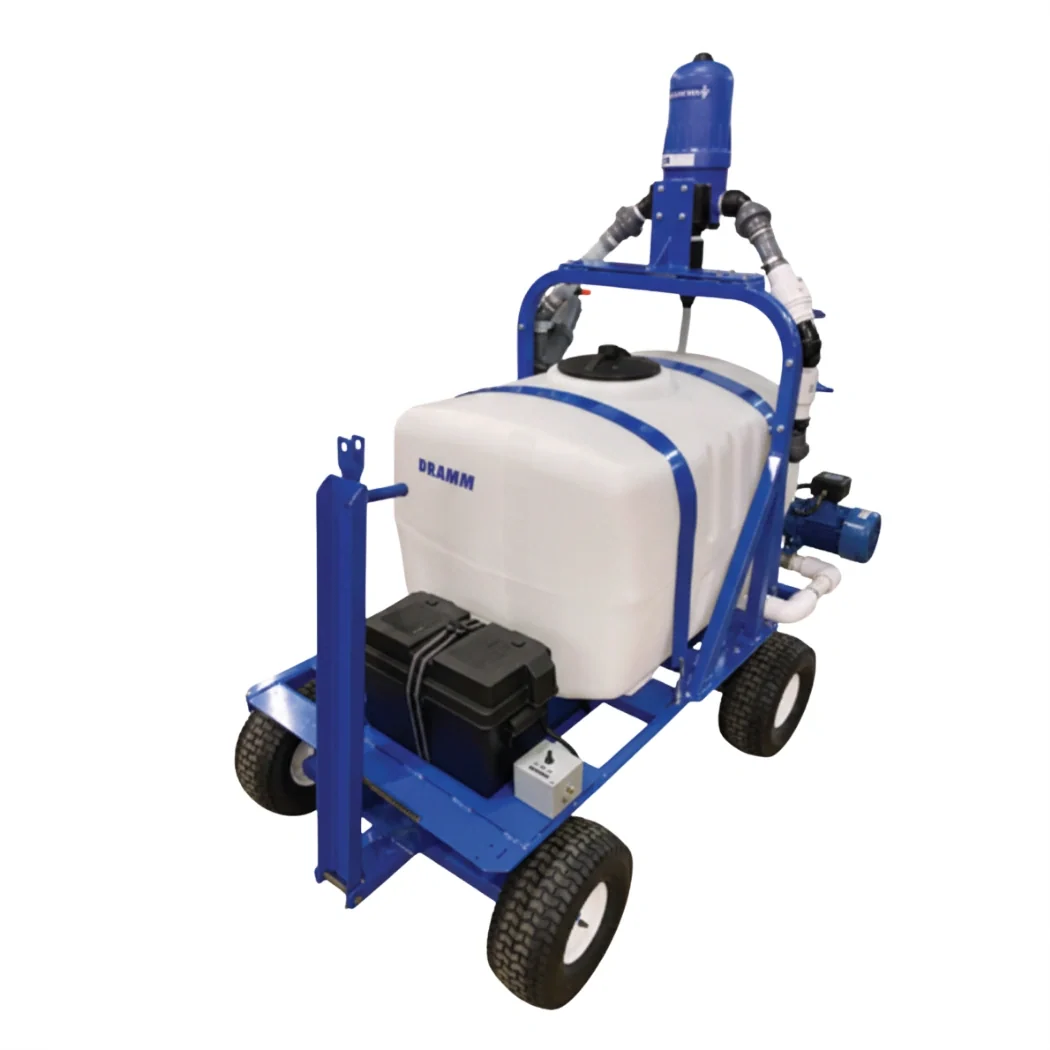

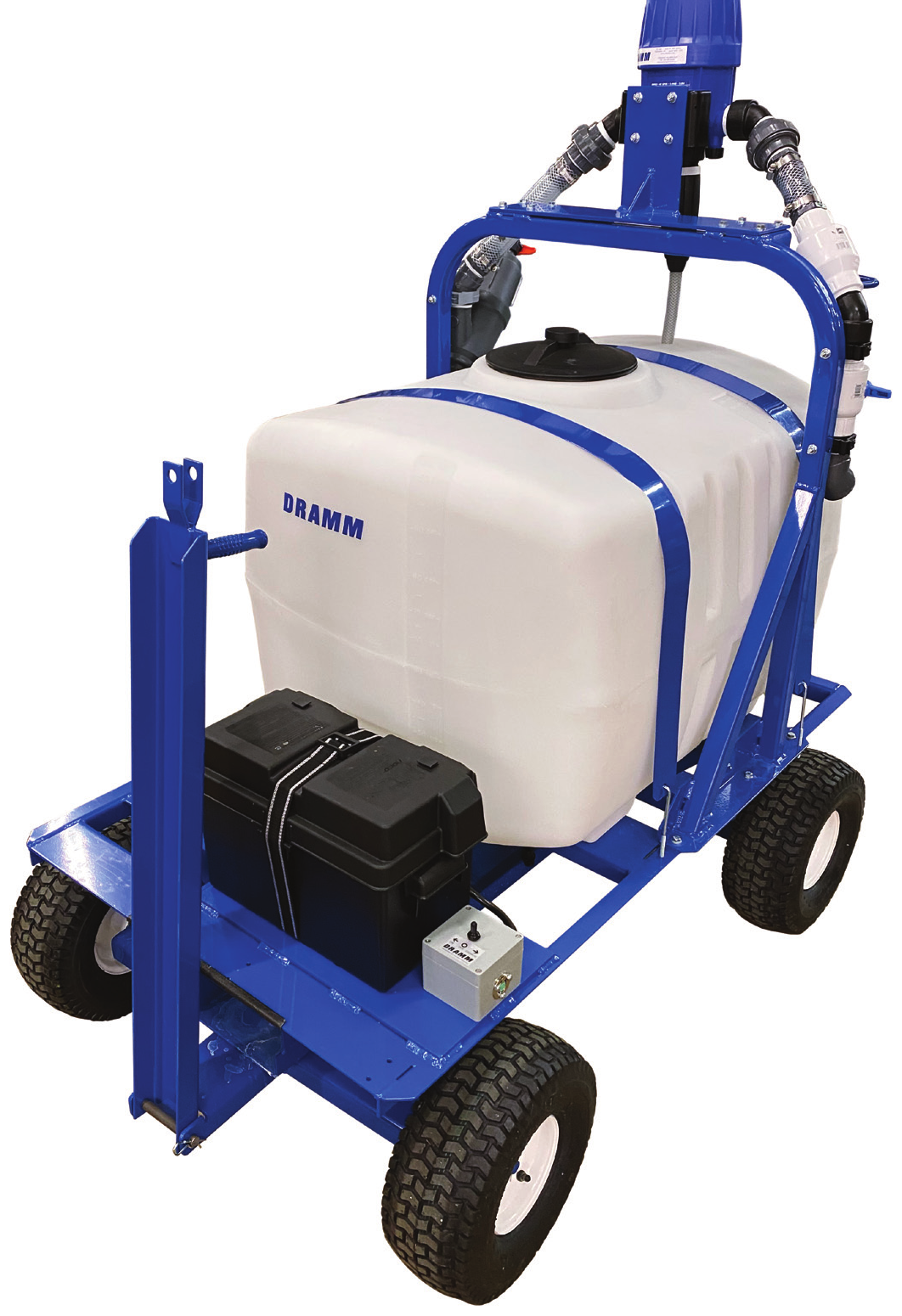

FertiCart SprayTrax 100 Gallon Injector Cart

The FertiCart SprayTrax 100 Gallon is a 100 gallon fertilizer stock solution cart with battery powered agitation, built for outdoor fertigation on rough ground. A 12 V DC pump moves 2 to 3 gpm through Dramm's agitation bar, which returns water through three nozzles that spray across the tank floor and rotate the liquid vertically, keeping fertilizers and chemicals in solution; a weighted stand filter on the intake stops water soluble fertilizer from clogging the suction. The Dosatron injector is not included - the cart ships with the mounting bracket and the full plumbing set, and the injector is fitted before first use. Because it runs off its own battery, the cart keeps mixing in a field block with no cord and no generator.

The only choice on this page is which Dosatron the cart is plumbed for, and it is a plumbing size rather than an injector purchase. Dosatron D40 - up to 40 gpm carries the larger plumbing for the D8 range at flows to 40 gpm; Dosatron D45 - up to 20 gpm is sized for the D45 at flows to 20 gpm. Both builds use 1.5 in female pipe thread inlets and outlets, both carry the same 100 gallon tank, the same battery and charger, the same articulating axles and 15 in turf tires, and the same plumbing set, so the only thing the choice changes is the pipework around the injector position and what you can legally hang on it. Order the one that matches the injector you already run, because swapping later means re-plumbing the arm. Mix powders into a slurry before adding them to the tank - the agitation bar will hold a solution but it is not designed to dissolve dry material.

Specifications

Configurations

Key Features

• 100 gallon tank runs a long way between refills on an outdoor block
• 12 V DC battery agitation runs 8 to 12 hours on a charge, so no cord and no generator in the field
• Included charger doubles as a maintainer and will not overcharge the sealed AGM battery
• Agitation bar returns water through three nozzles across the tank floor and rotates the liquid vertically
• Weighted stand filter on the intake keeps water soluble fertilizer from clogging the suction
• 200 mesh filter protects the injector and a check valve stops water hammer - both are required to keep the injector warranty
• Articulating axles and 15 in turf tires handle uneven ground with a full tank
• Drain valve at the bottom of the tank empties it for rinsing between chemistries

Ideal Applications

• Outdoor nursery and field fertigation away from mains power
• Feeding an irrigation zone from a portable injector at up to 40 gpm
• Hand watering finished solution straight off the injector outlet
• Applying beneficial nematodes and other biologicals that need the stock kept moving
• Propagation yards and container blocks with no fixed injection station
• Moving one injector between blocks instead of plumbing several fixed stations

The FertiCart SprayTrax 50 Gallon is the same chassis with half the tank and a choice of AC or battery agitation, and the FertiCart Portable Injector Cart line covers the smaller greenhouse carts.
