Dramm - Barbed Poly Tubing Fitting

Brand: Dramm

Barbed Poly Tubing Fitting

These are the barbed fittings that join, turn and branch Dramm polyethylene lateral line. Dramm runs its bench and PolyRail laterals in 16mm and 25mm polyethylene, and every fitting on this page pushes into the bore of one of those two sizes. Dramm's own PolyRail repair procedure is built around the barbed coupling: pull a foot of poly out of the rail either side of the fault, cut it, splice in two couplings and snap the tube and fittings back into the extrusion. Get the tubing size right before anything else, because a 16mm barb will not seal in 25mm line and a 25mm barb will not enter it.

Three choices, in order. Fitting is what the joint does: a Coupling joins two lengths in line or splices a repair into a cut run, an Elbow turns a lateral at a bench end or around an obstruction, and a Tee branches a lateral or drops a run off a header. Tubing Size has to match the line in front of you, 16mm or 25mm, measured on the poly Dramm supplied rather than on the nominal size of the threaded plumbing feeding it. Style separates the two barbed families Dramm carries: Insert Barb is the plain barbed body that pushes into the tube, and RingLoc is a second range Dramm stocks and prices separately at 16mm, so extend or repair a bench in the style already fitted rather than mixing the two on one line. Allow a clamp over the tube at each Insert Barb joint, and remember that a 25mm joint will be an Insert Barb because RingLoc stops at 16mm.

Specifications

Configurations

Key Features

• Barbed body pushes into the bore of 16mm or 25mm polyethylene lateral line.

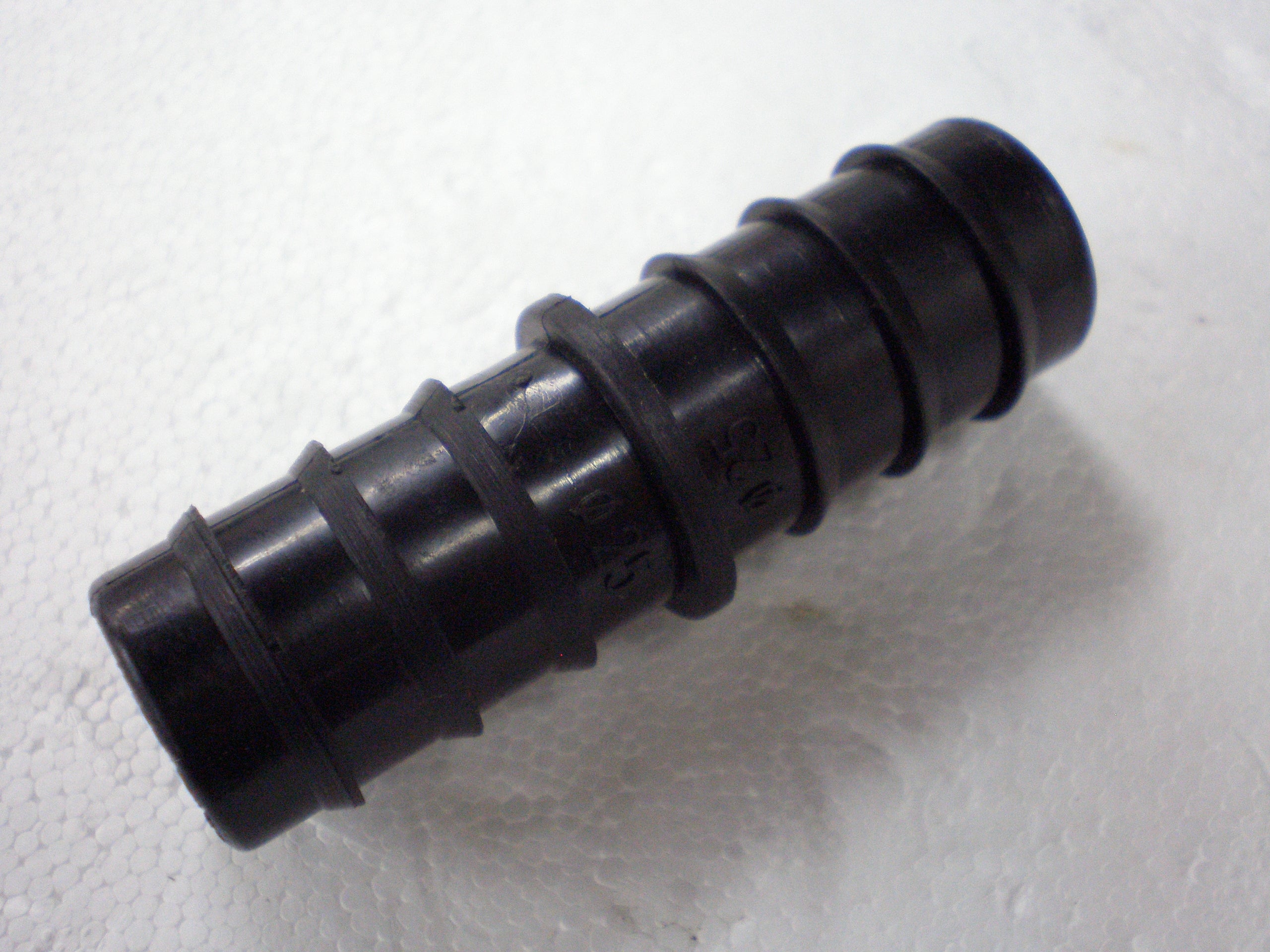

• Coupling is the repair coupling in Dramm's PolyRail procedure for splicing a damaged section out of a lateral.
• Fittings and tube snap back into Dramm PolyRail aluminium extrusion after a splice, so a repair does not disturb the rail.

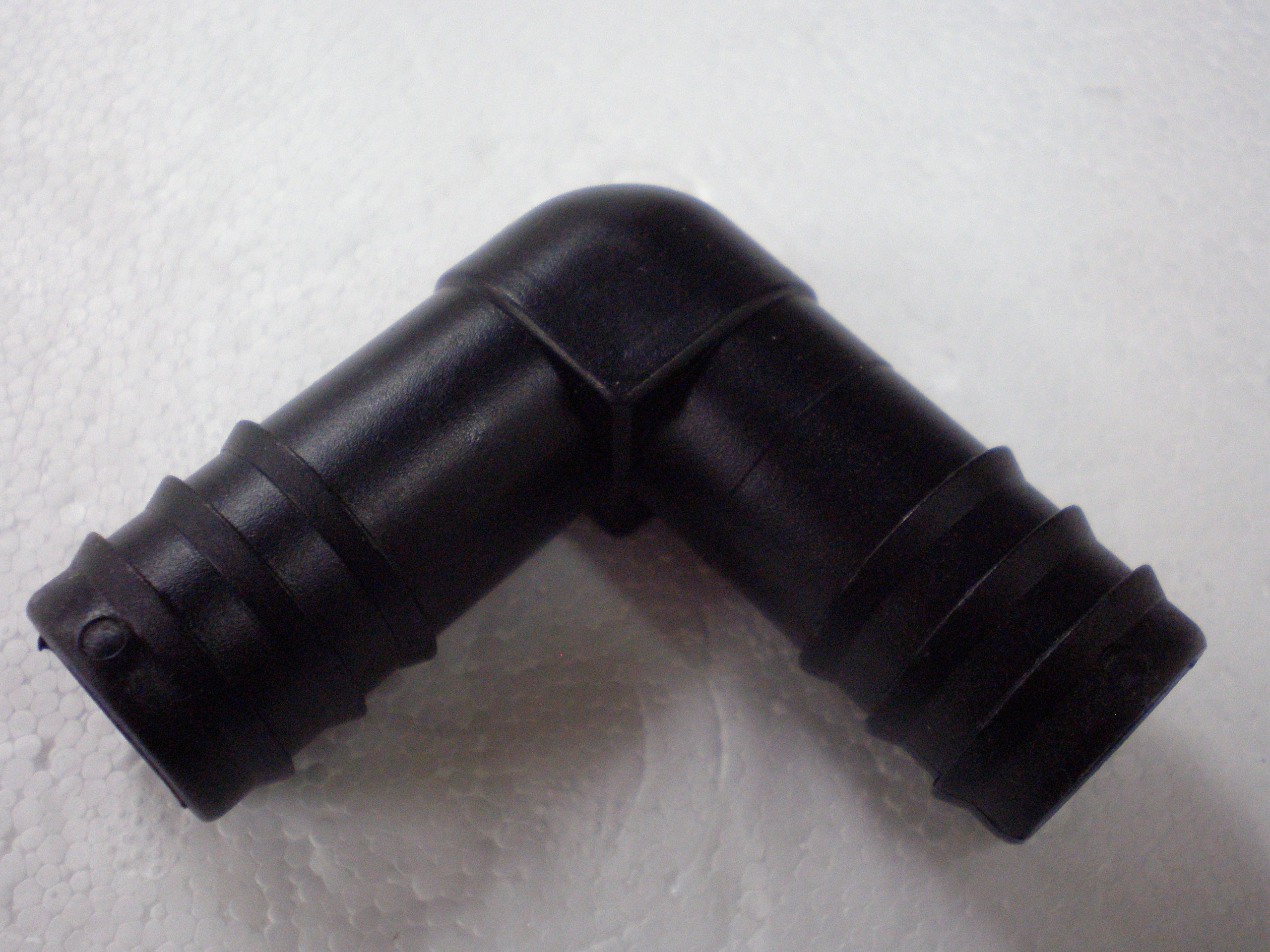

• Elbow turns a lateral at a bench end without kinking the tube.

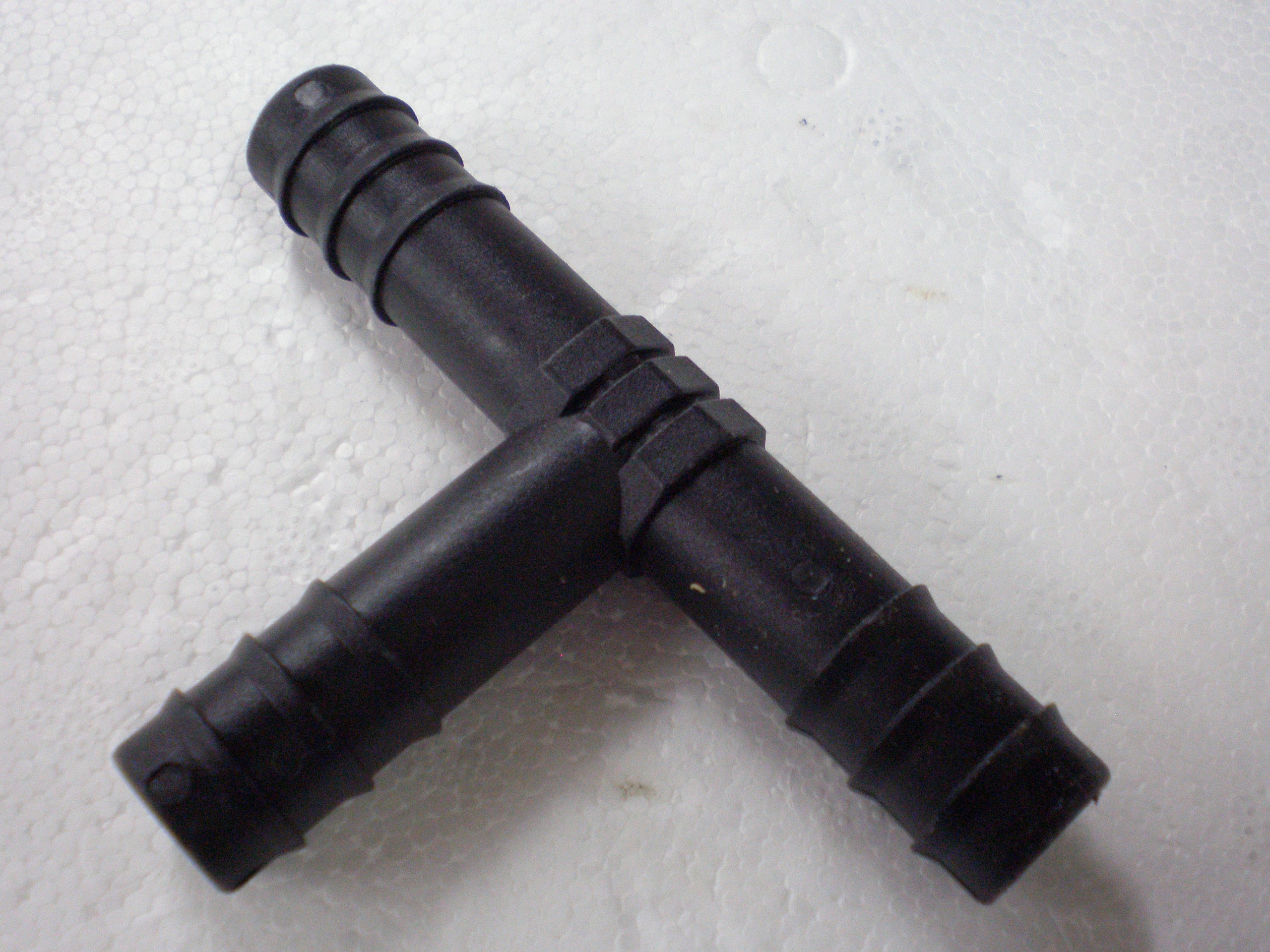

• Tee branches a lateral or splits a run between two benches.
• Insert Barb and RingLoc styles both offered at 16mm, so an existing bench can be extended in the style already on it.
• Moulded plastic body with no metal to corrode in a fertiliser or fogging environment.

Ideal Applications

• Joining two lengths of 16mm or 25mm poly on a bench or ground bed run.
• Splicing a leaking or damaged section out of a PolyRail lateral.
• Repairing a lateral where a nozzle hole has been egged and can no longer be plugged.
• Turning a lateral at the end of a bench.
• Branching a lateral off a header or splitting a run between two benches.
• Extending an existing irrigation line during a bench layout change.

Order these with Dramm 16mm and 25mm PE tubing, PolyRail extrusion and hangers, tube clips, the punch that cuts the nozzle holes and goof plugs for the holes you leave behind.
